AVO APO 324 Set of actuators for swing gates up to 3m

855,38 EUR including 23.00% VAT
Product code: #43269
  • Maximum gate leaf width: 3 m
  • Maximum leaf weight: 300 kg
  • Control unit: ACT20224
  • Power supply: 24V DC
  • Opening time to 90° s: 18-25*
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AVO APO 324 Set of actuators for swing gates up to 3m

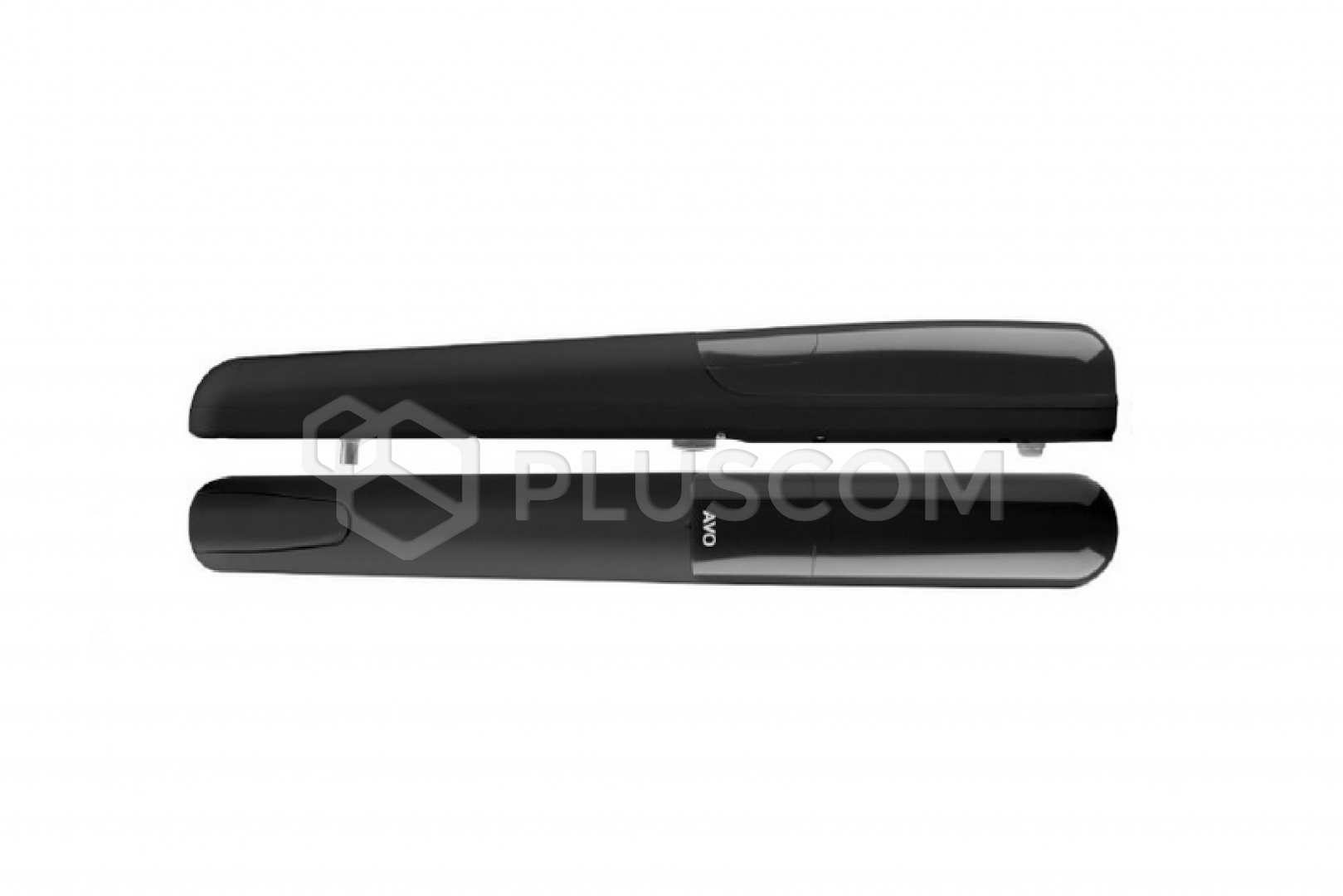

Electromechanical, self-locking 24V actuator for swing gates with a leaf length of up to 4 m.

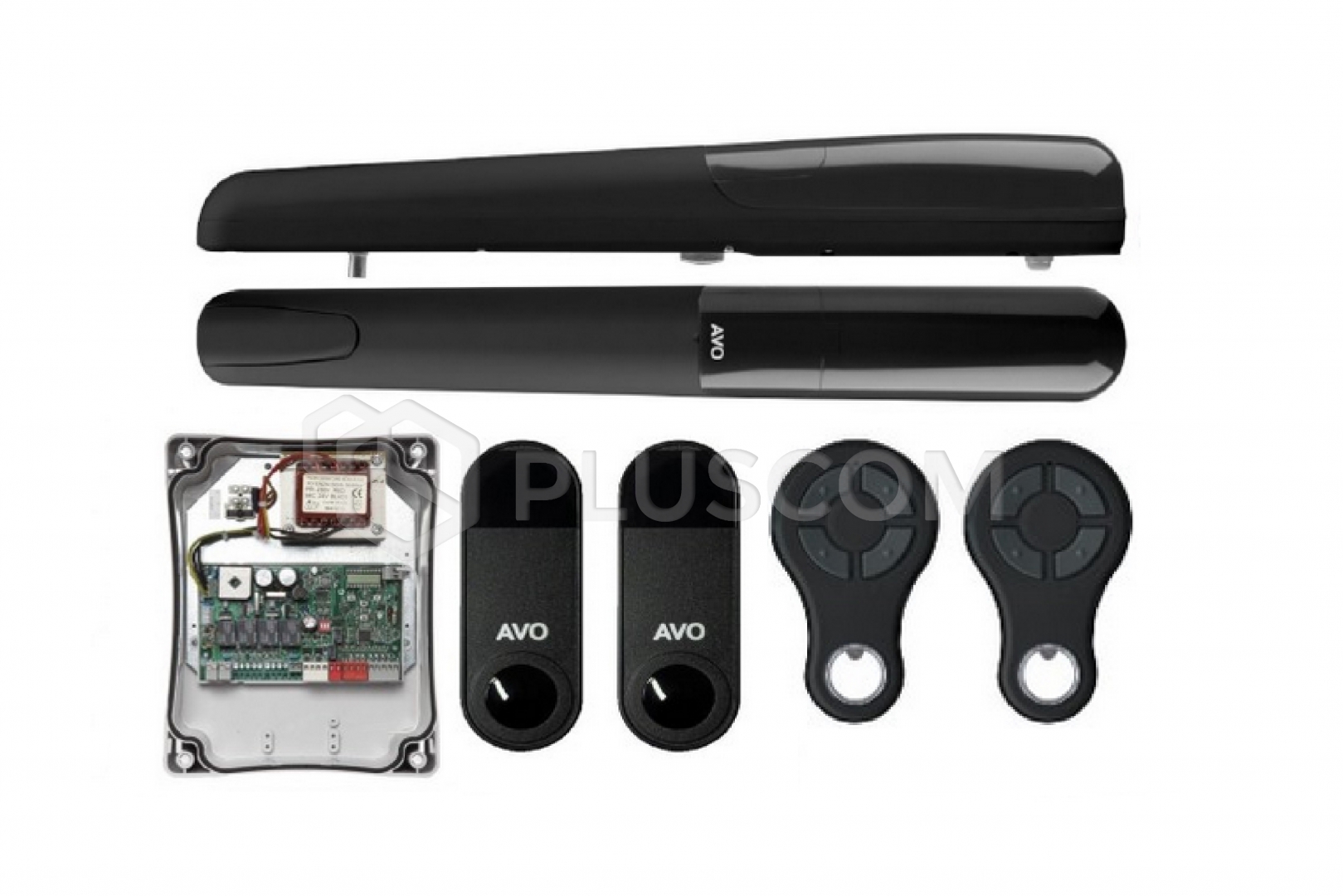

The kit includes:

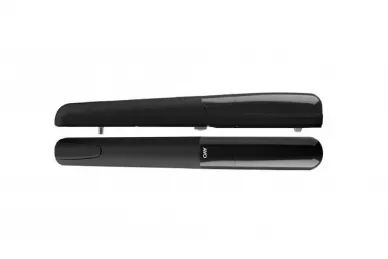

  • 2 APO 324 actuators

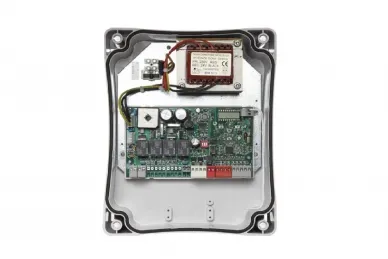

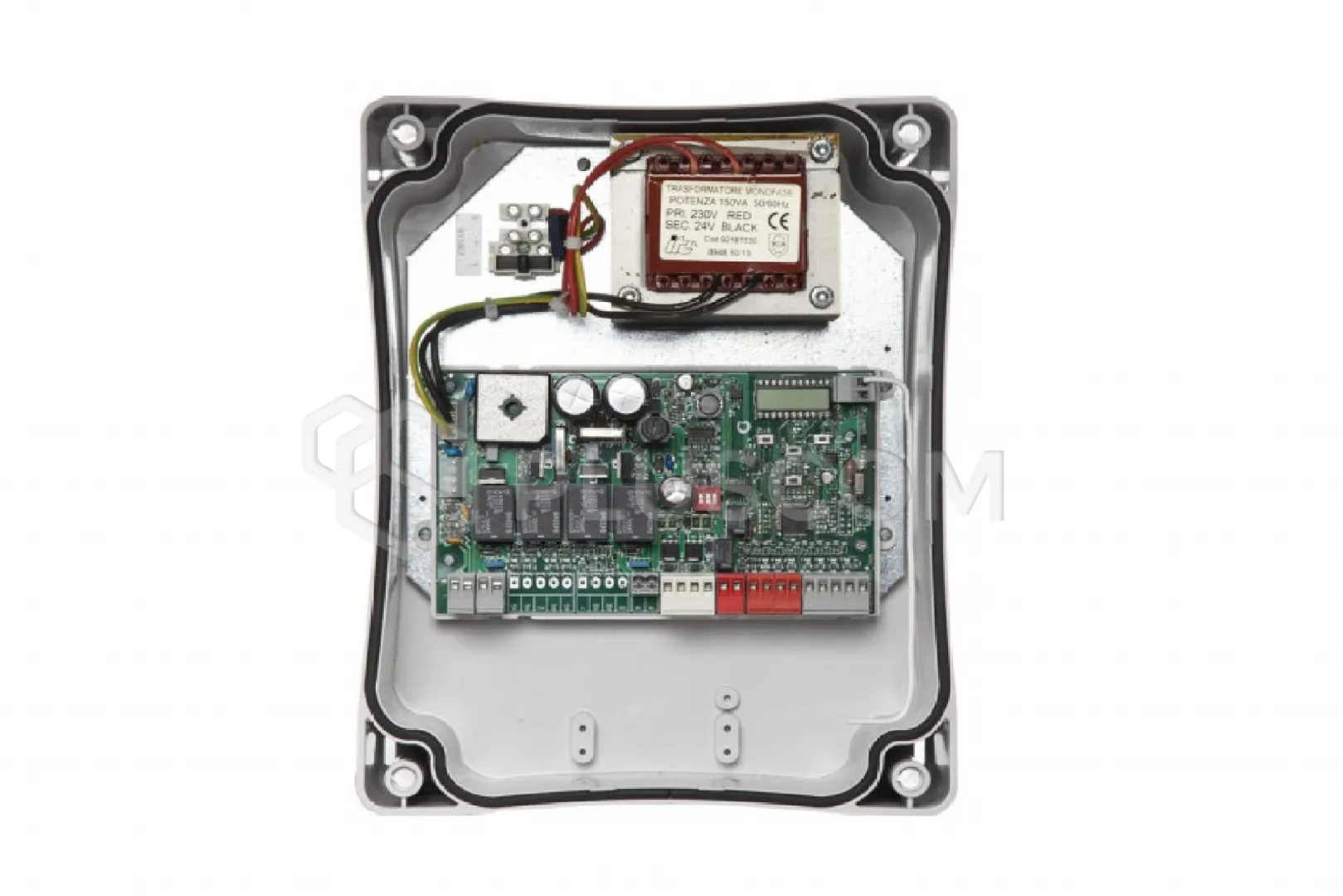

  • ACT20224 control unit
  • AFT180 photocells

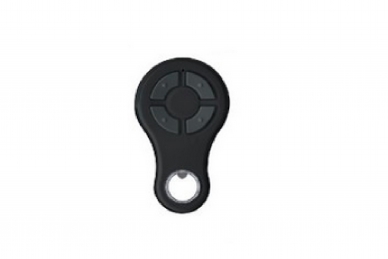

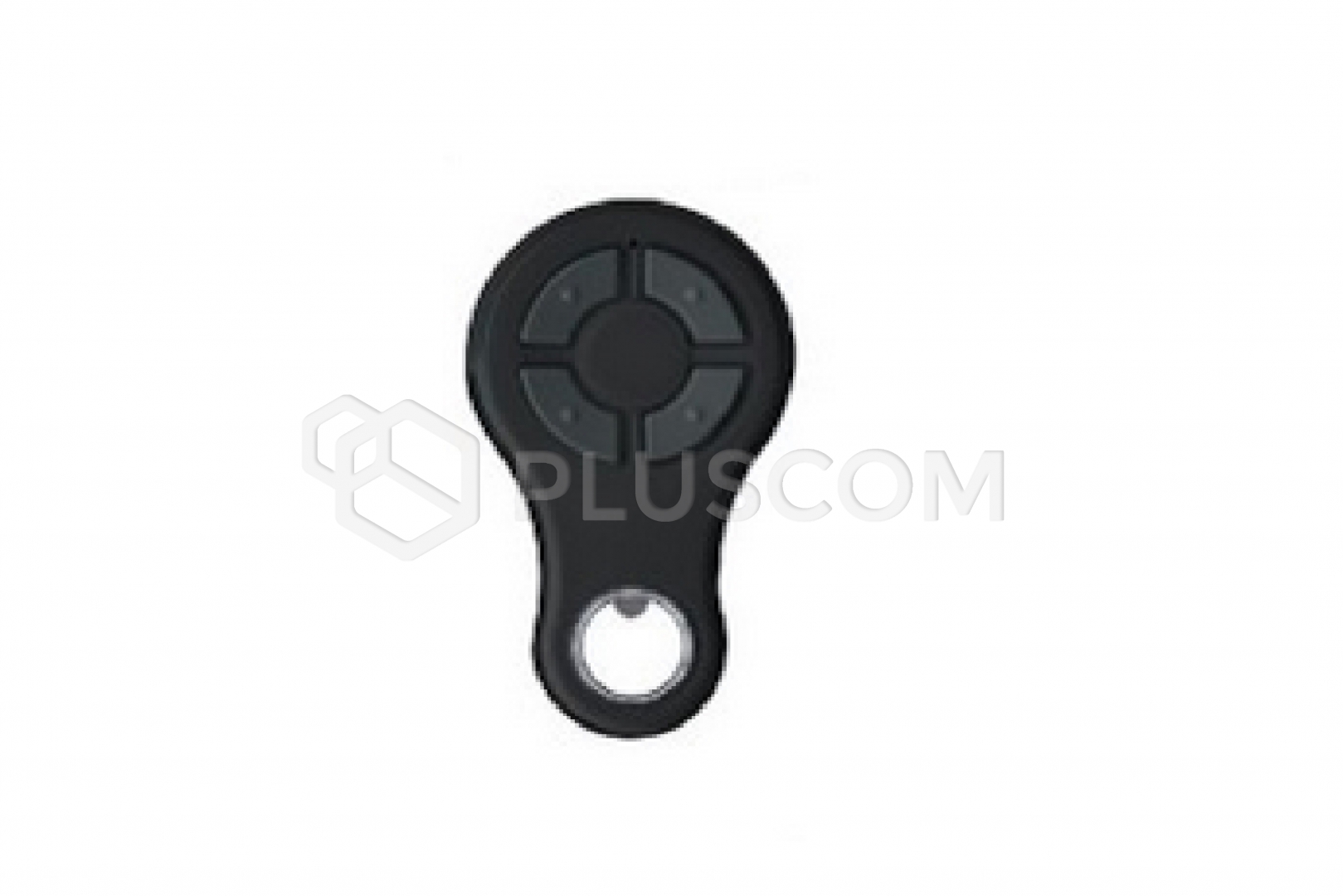

  • 2 AVAK 4-channel remote controls
  • Adjustable mounting brackets

Durable:

Mechanical components protected against weather conditions, UV-resistant powder-coated cast aluminum housing – all this ensures long-lasting and trouble-free operation.

Quiet:

The exceptionally quiet operation of the actuators guarantees high user comfort.

Programming:

Using the buttons on the control unit.

Emergency power supply:

A battery can be used for emergency opening (optional); the actuator will open and close the gate in the event of a power outage.

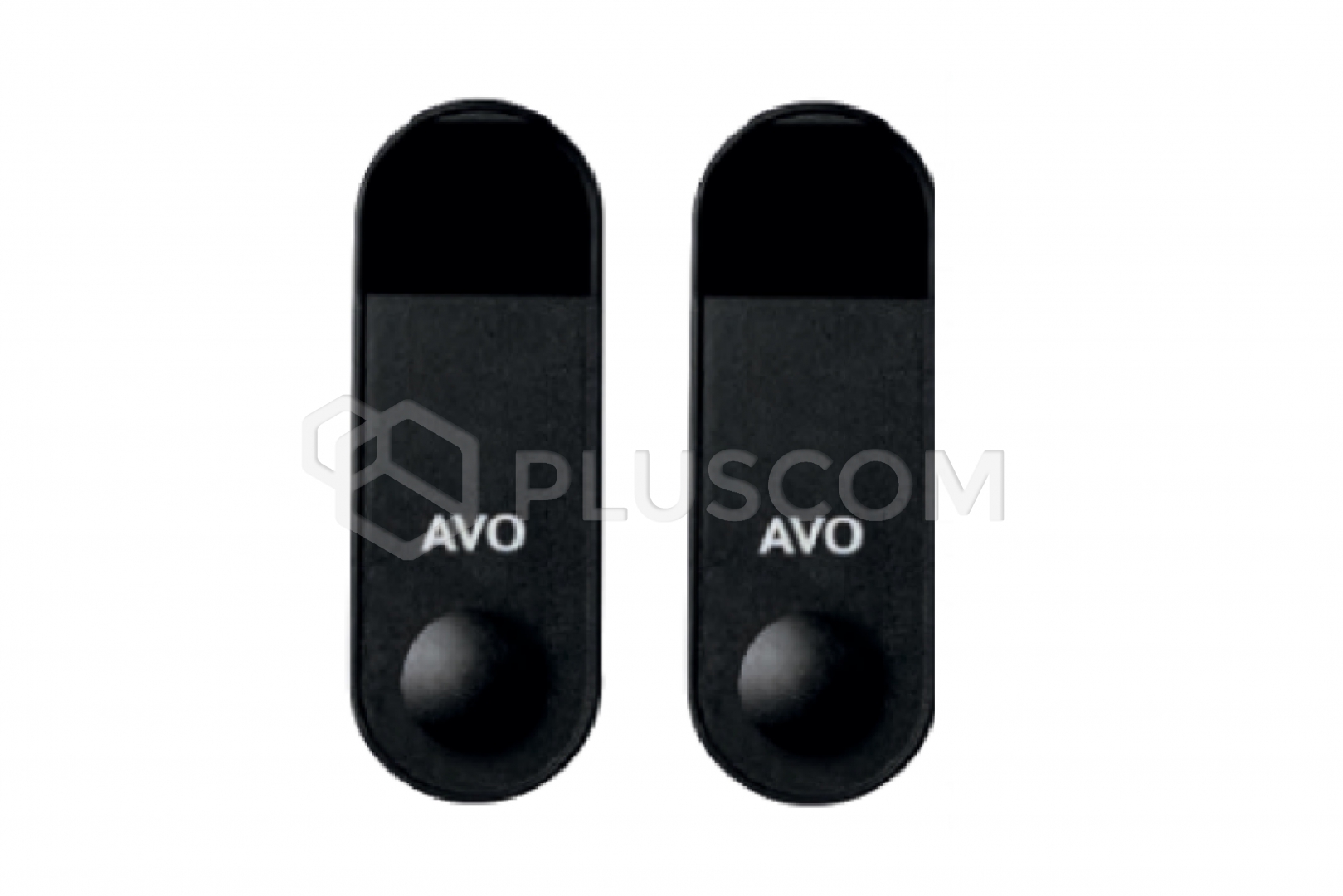

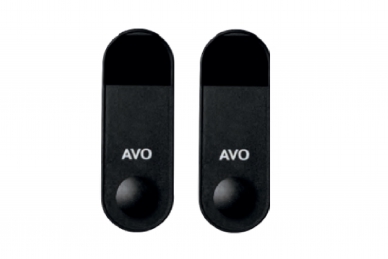

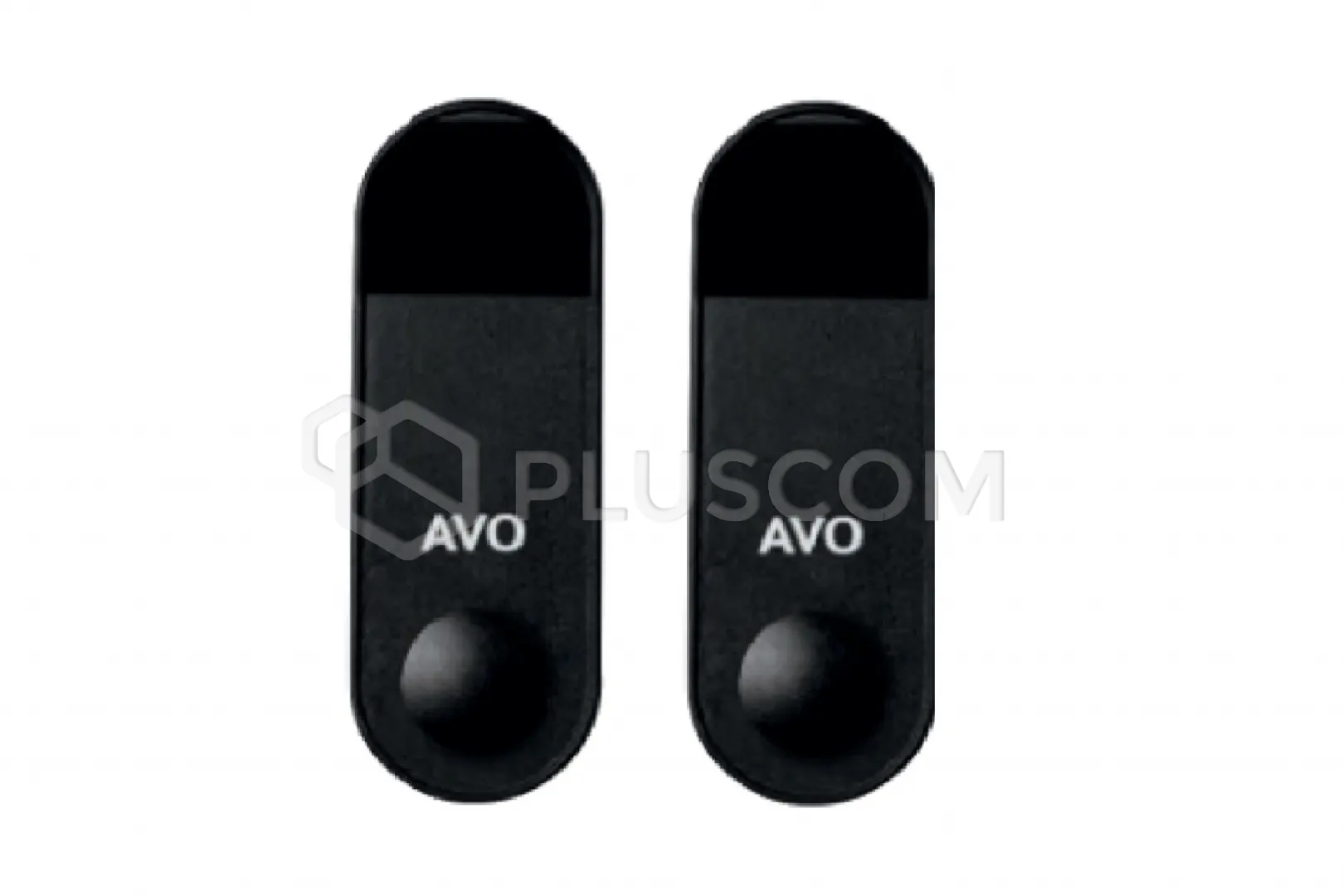

Photocells:

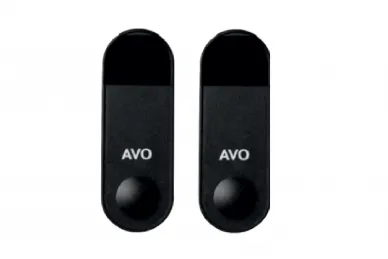

An adjustable pair of external photocells designed for mounting on narrow posts, with 180-degree adjustment, is standard equipment in each set.

Technical specifications:

  • Speed cm/s: 2.6
  • Thrust force N: 1500
  • Work intensity %: 50
  • Opening time to 90° s: 18-25*
  • Control unit: ACT20224
  • Power supply V DC: 24
  • Consumption A: 3.5
  • Motor power W: 85
  • IP protection class: 44
  • Dimensions (L-D-H) mm: 844 - 100 - 104
  • Weight kg: 6
  • Operating temperature °C: -20 + 55
  • Maximum gate leaf weight kg: 300
