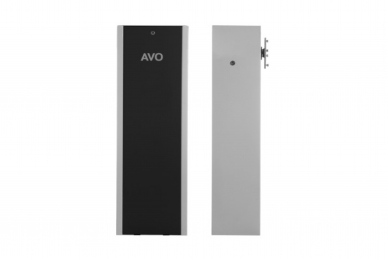

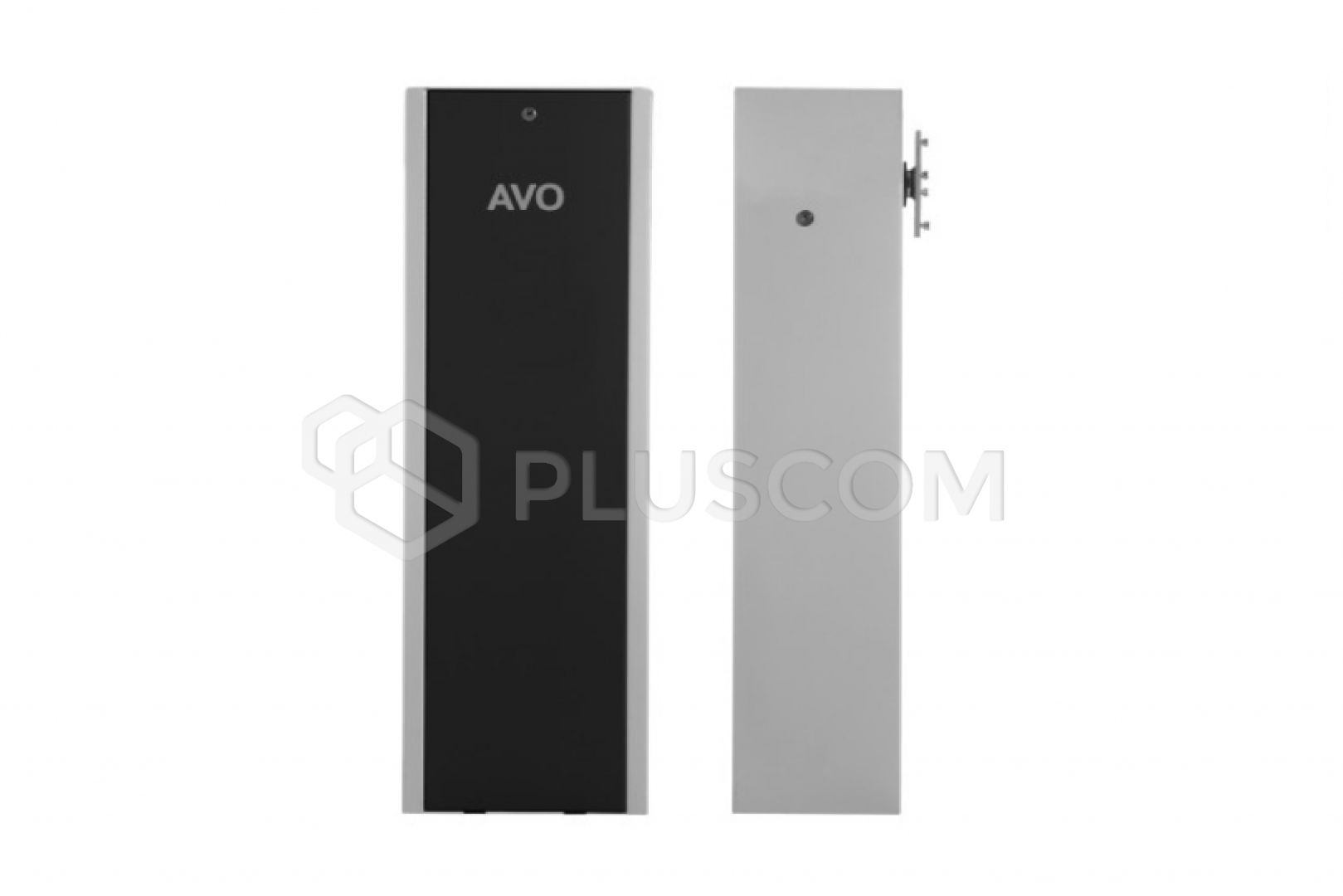

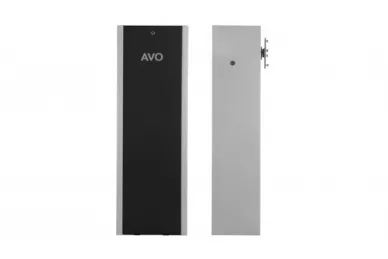

AVO APARK6 Central barrier unit for 6-8.4 m arm
Electromechanical barrier designed for intensive use in private, public, and industrial facilities, with a boom length of 3 m (APARK324 FAST), 4-5 m (APARK4), and 6-8.4 m (APARK6).
The APARK family of barriers is designed for intensive use in both private and public spaces. The APARK324 FAST barriers are characterized by very fast operation, opening the boom in just 1 second.
APARK6 features a double spring that ensures smooth boom movement, even with a boom length of 8.4 m.
The amperometric system automatically reverses the movement direction upon detecting an obstacle.
The universal housing allows the boom to be mounted on either the right or left side.
The powder-coated housing coating provides UV resistance.
Adjustable arm opening and closing speed.
The ACT10224 control unit is equipped with a built-in display, allowing installers to effectively monitor the device's status and make precise settings. The intuitive interface simplifies operation, making it simpler and more accessible.
Durable gears and levers guarantee reliable operation for years to come.
The device has a built-in radio receiver and an energy-saving mode.
Technical Specifications:
- Torque Nm: 305
- Working intensity %: 50
- Opening time to 90° s: 6/12*
- Control unit: ACT10224
- Power supply V AC: 230
- Consumption A: 1.3
- Motor power W: 300
- IP protection class: 54

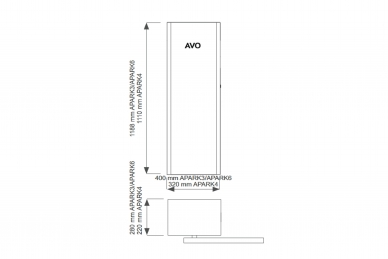

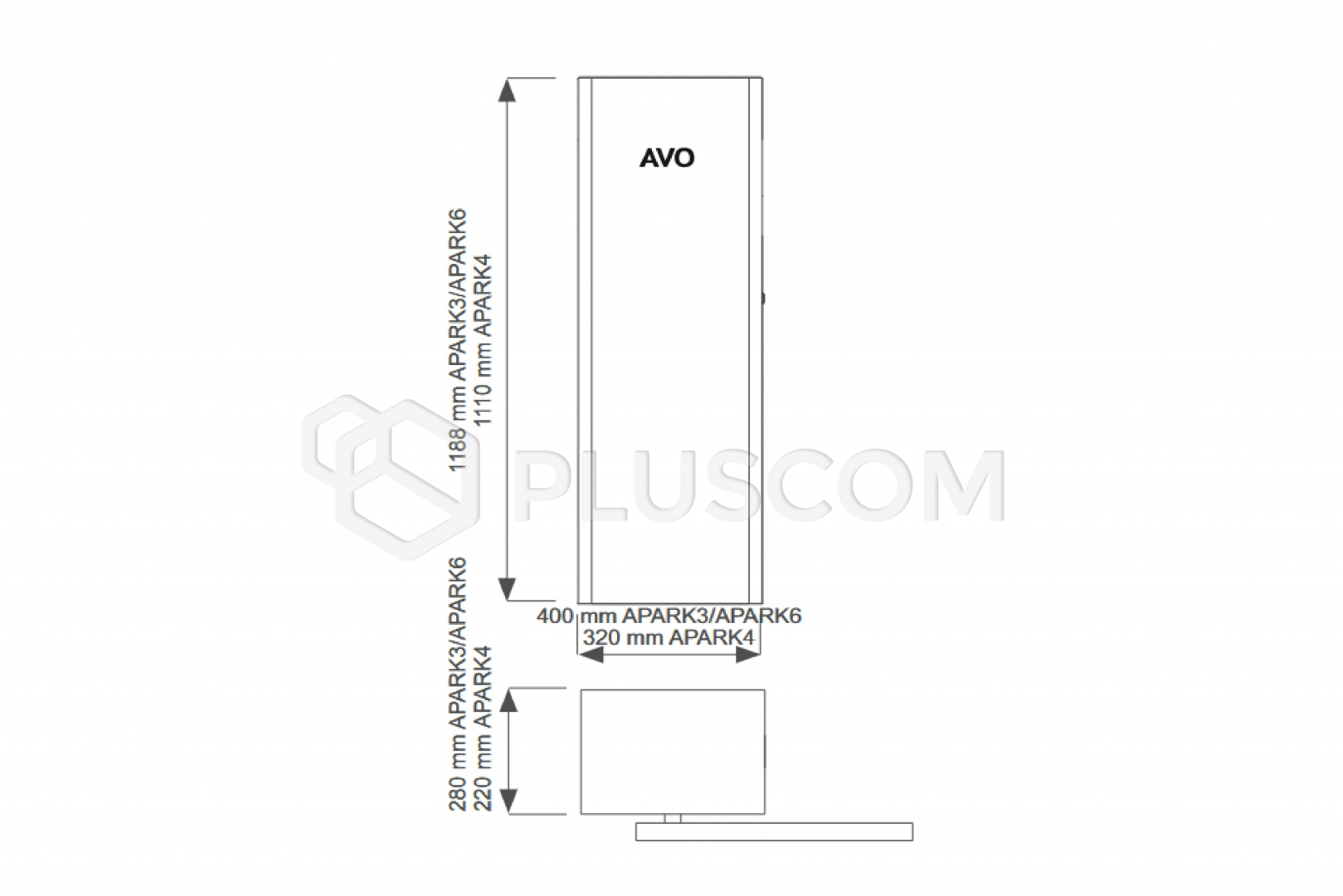

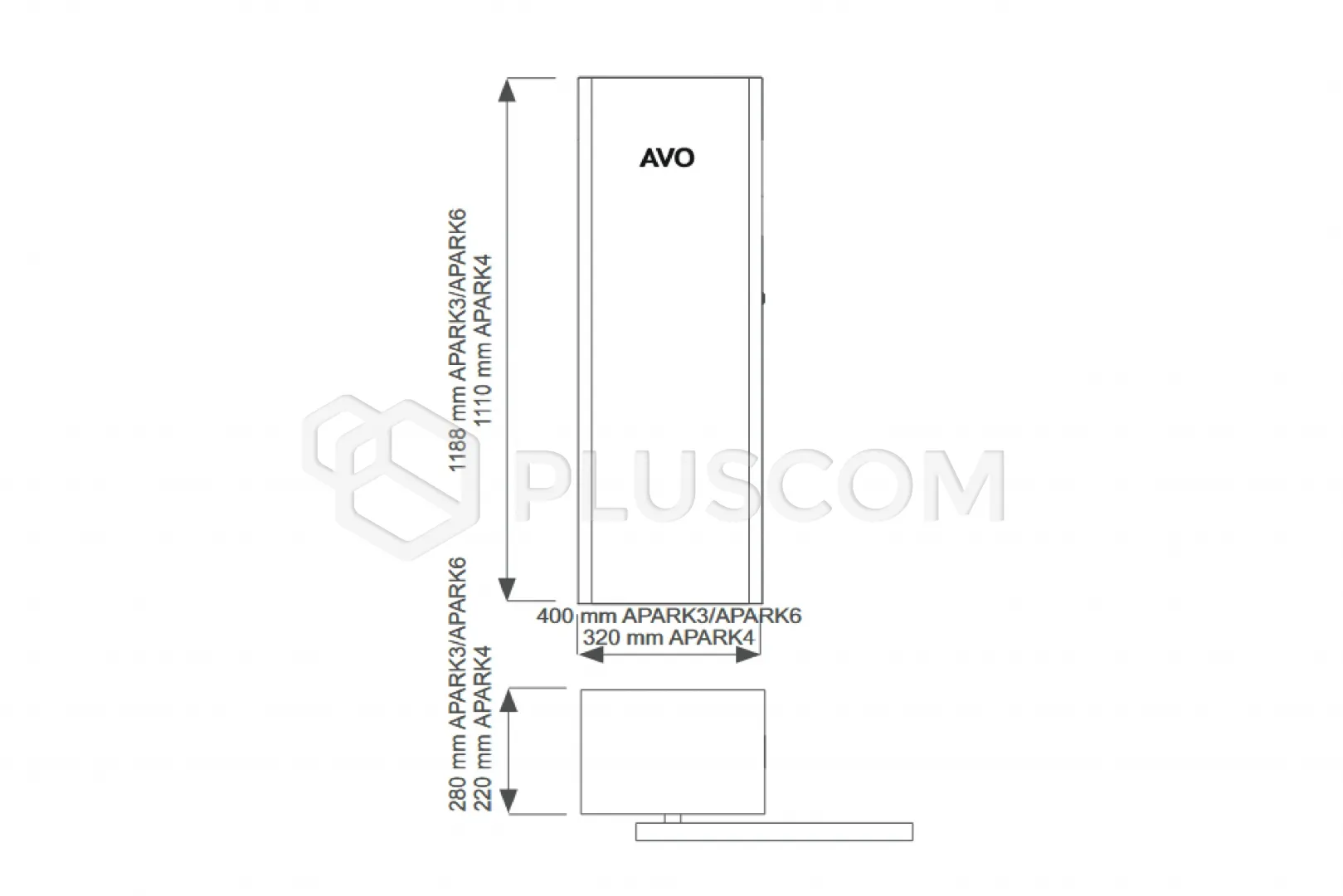

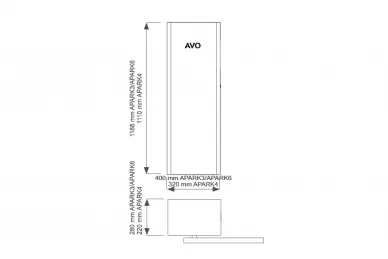

- Dimensions (L-D-H) mm: 400 - 280 - 1188
- Weight kg: 67
- Operating temperature °C: -20 + 55
- Maximum arm length m: 8.4
