AVO ALO 1124 Set for sliding gates up to 1100 kg

794,60 EUR including 23.00% VAT
Product code: #36494
Manufacturer: Avo
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Maximum gate weight: 1100 kg
  • Control unit: ACT10224
  • 2 x 4-channel AVAK remote control, AFT180 photocells
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AVO ALO 1124 Set for sliding gates up to 1100 kg


Electromechanical, self-locking sliding gate operator for gates weighing up to 400 kg (24V), up to 600 kg (230/24V), up to 700 kg (24V), and up to 1100 kg (24V).

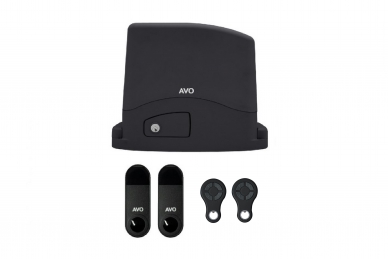

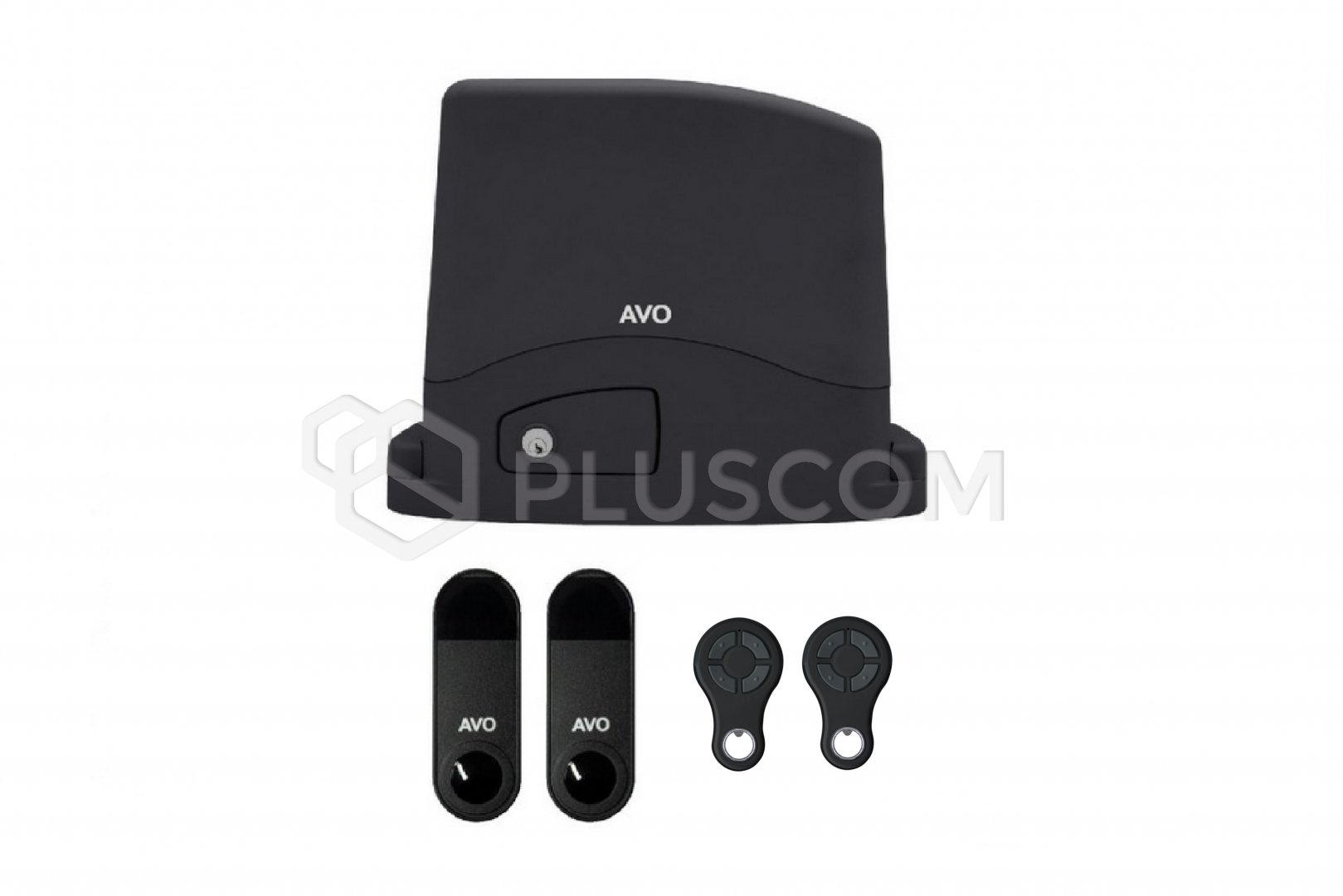

The set includes:

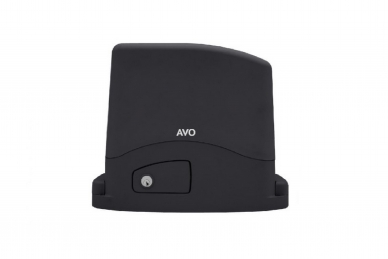

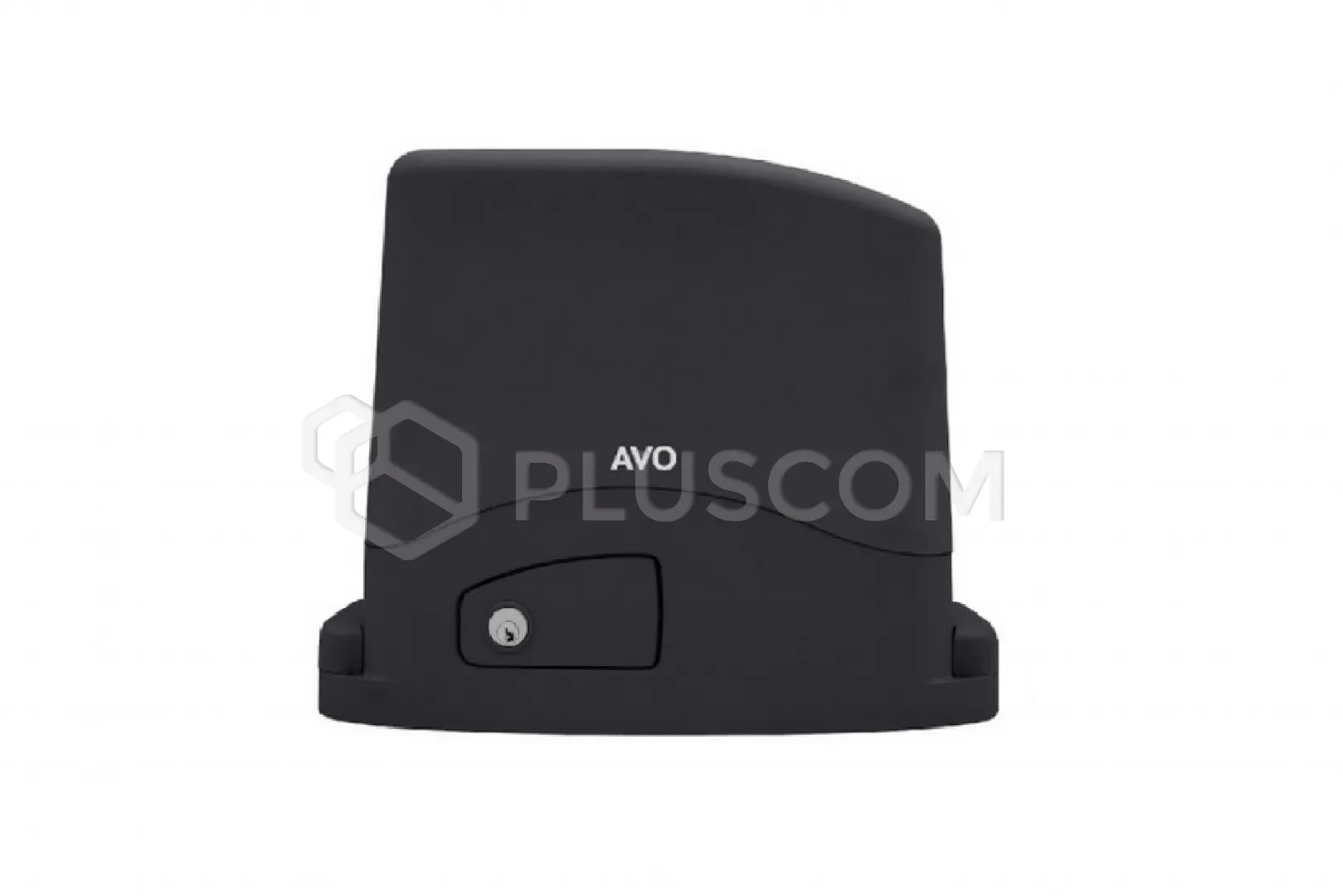

  • ALO 1124 operator with built-in control unit
  • AFT180 photocells

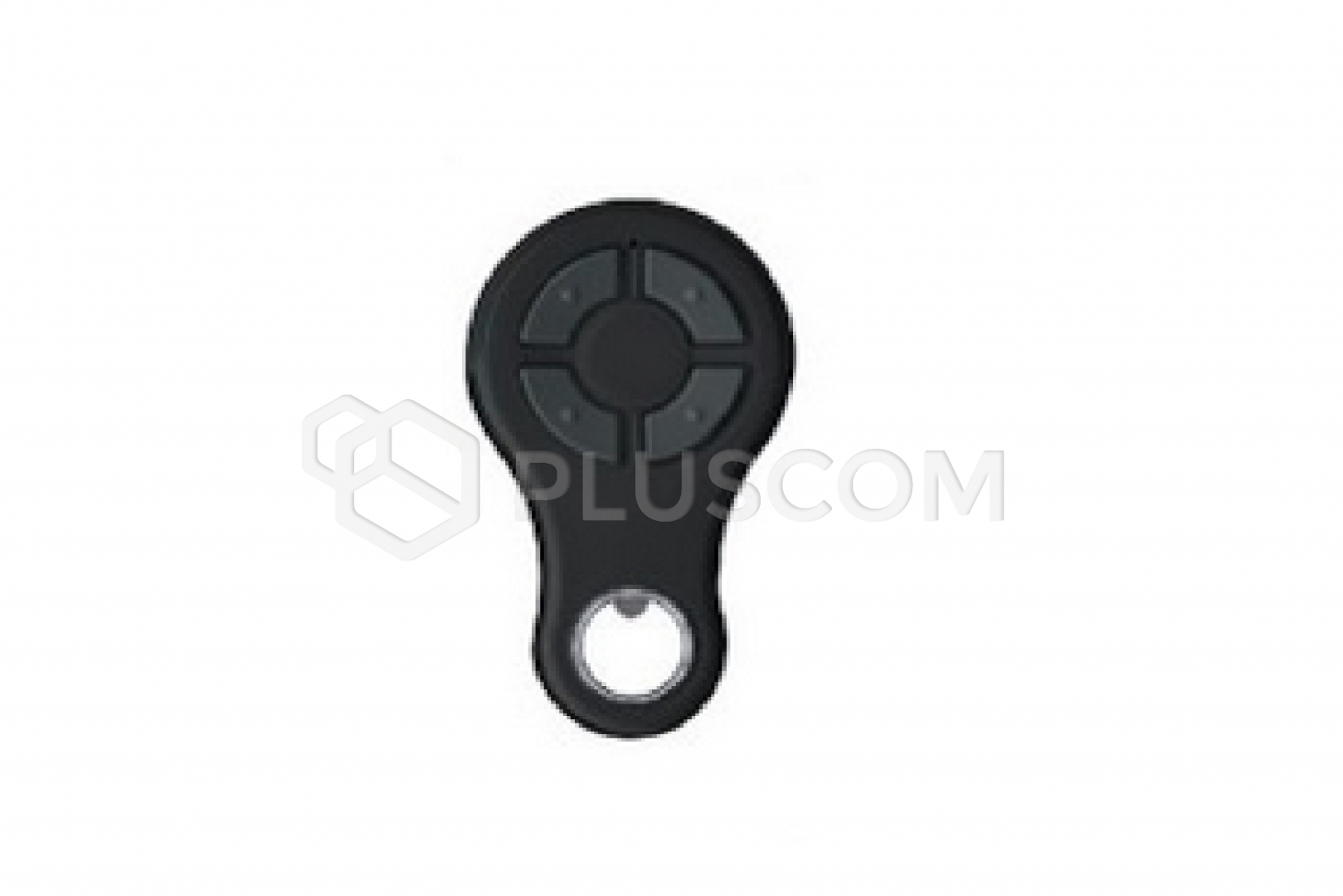

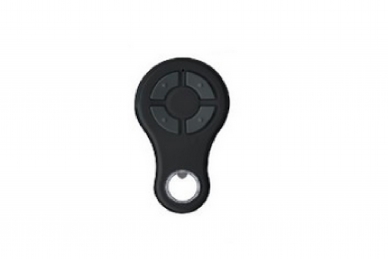

  • 2 AVAK 4-channel remote controls

Quiet:

The extremely quiet operation of the operator guarantees high comfort of use. Slowdowns during opening and closing ensure smooth operation and prevent loud door operation and mechanical damage.

Innovative:

The modern control unit with an LCD display provides intuitive access to many functions, reducing programming time.

Robust:

The set includes a sturdy mounting base, ensuring stability and easy installation.

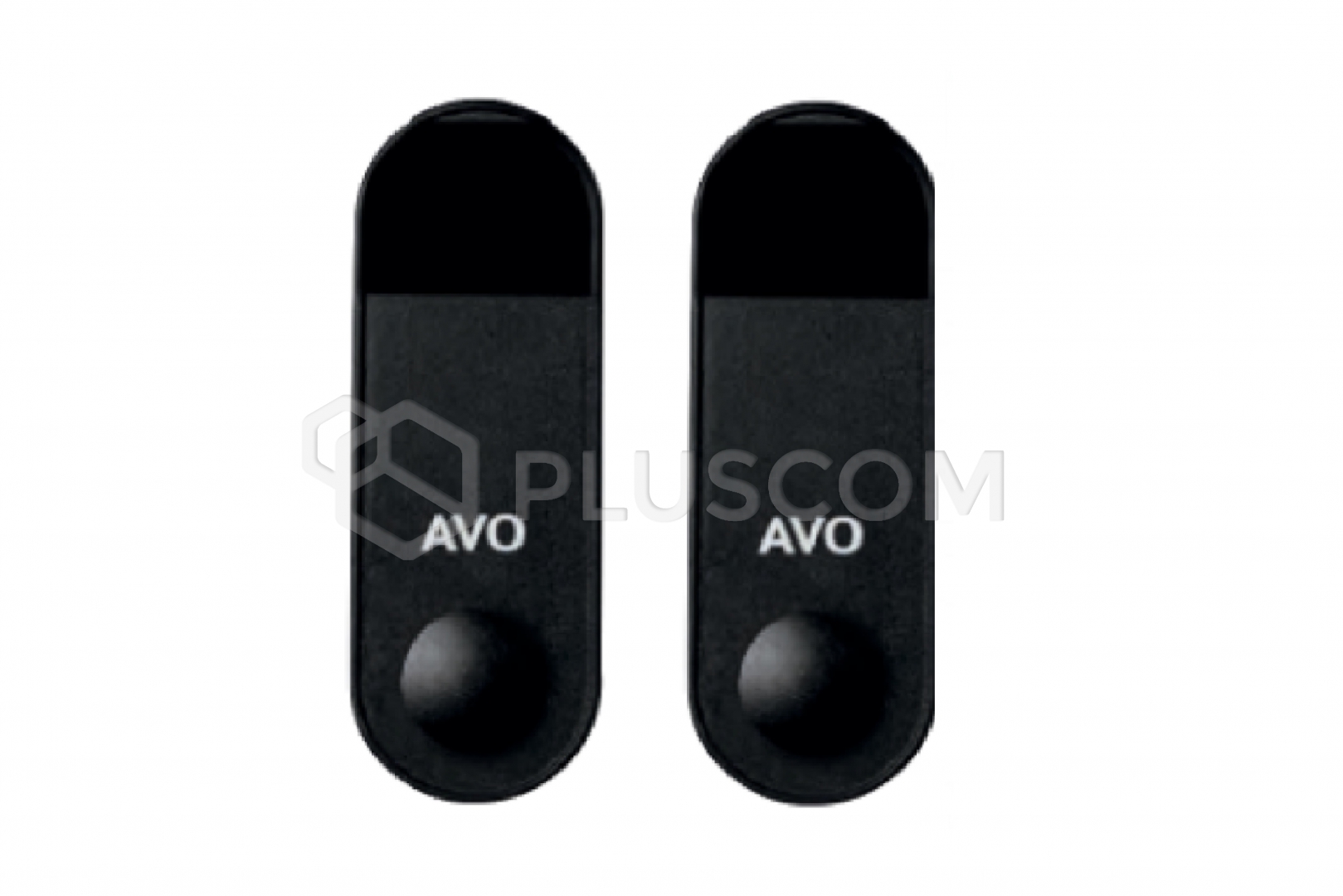

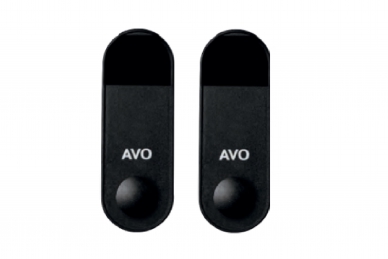

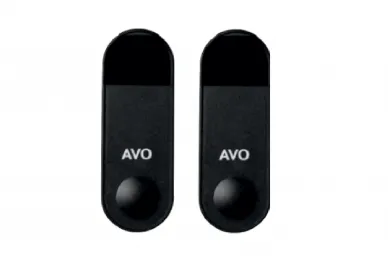

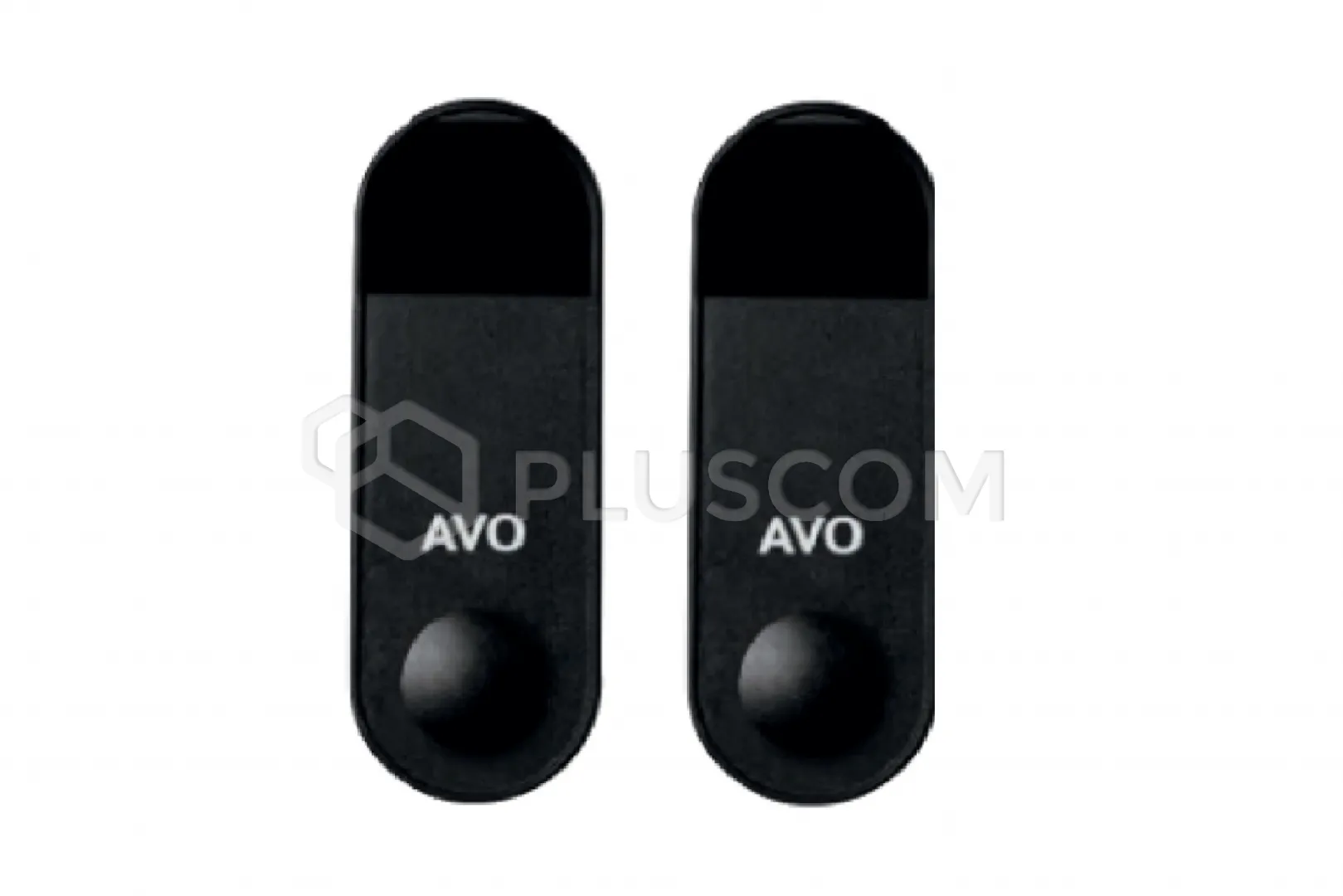

Photocells:

An adjustable pair of external photocells designed for mounting on narrow posts, with 180-degree adjustment, is standard equipment in each set.

Technical Specifications:

  • Speed ​​cm/s: 20*
  • Torque Nm: 38
  • Efficiency %: 50
  • Control unit: ACT10224
  • Power supply V AC: 230
  • Consumption A: 1.8
  • Motor power W: 360
  • IP protection class: 44

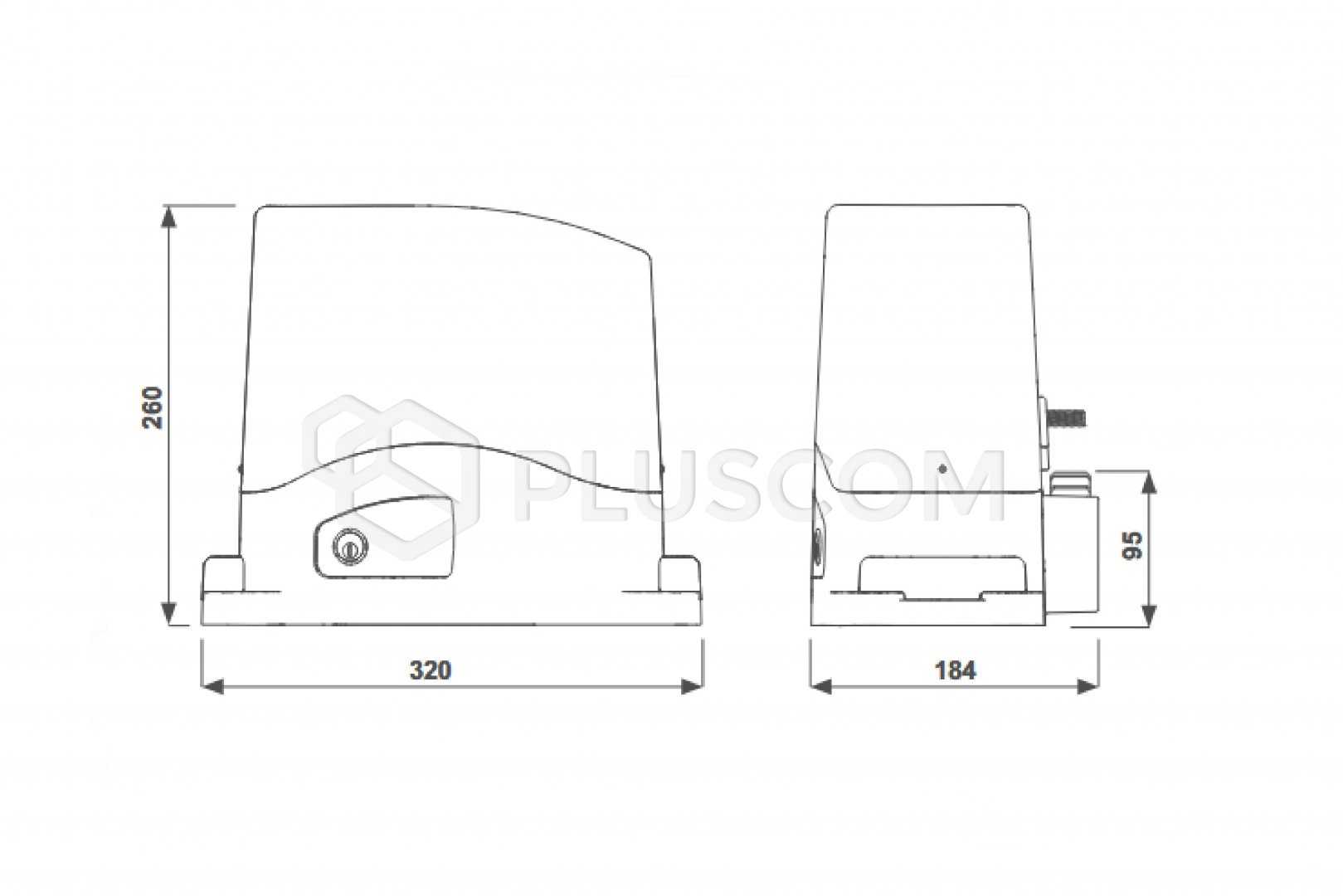

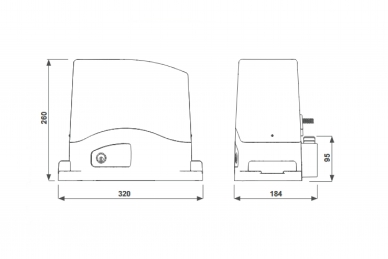

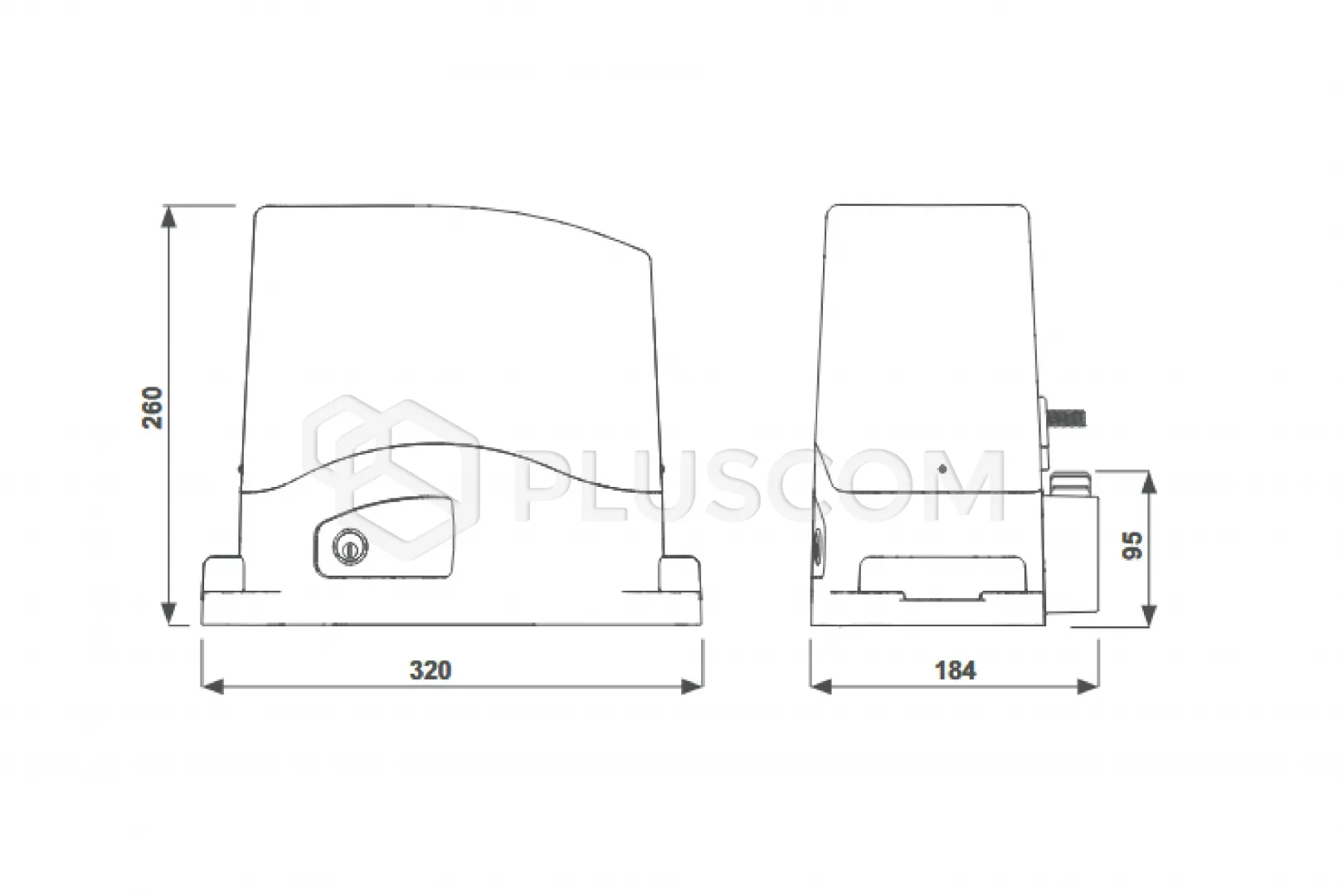

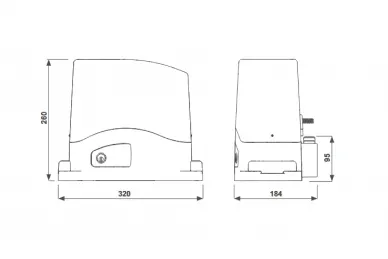

  • Dimensions (L-D-H) mm: 320 - 184 - 260
  • Weight kg: 12.5
  • Operating temperature °C: -20 + 55
  • Maximum weight gate leaf kg: 1100
