AVO ADO 800 PRO Sliding gate operator, belt rail with built-in LED lighting
3.1 m
24V motor for sectional garage doors up to 19m and overhead doors up to 17m,
with built-in LED lighting and a KUBE interface for smartphone control.

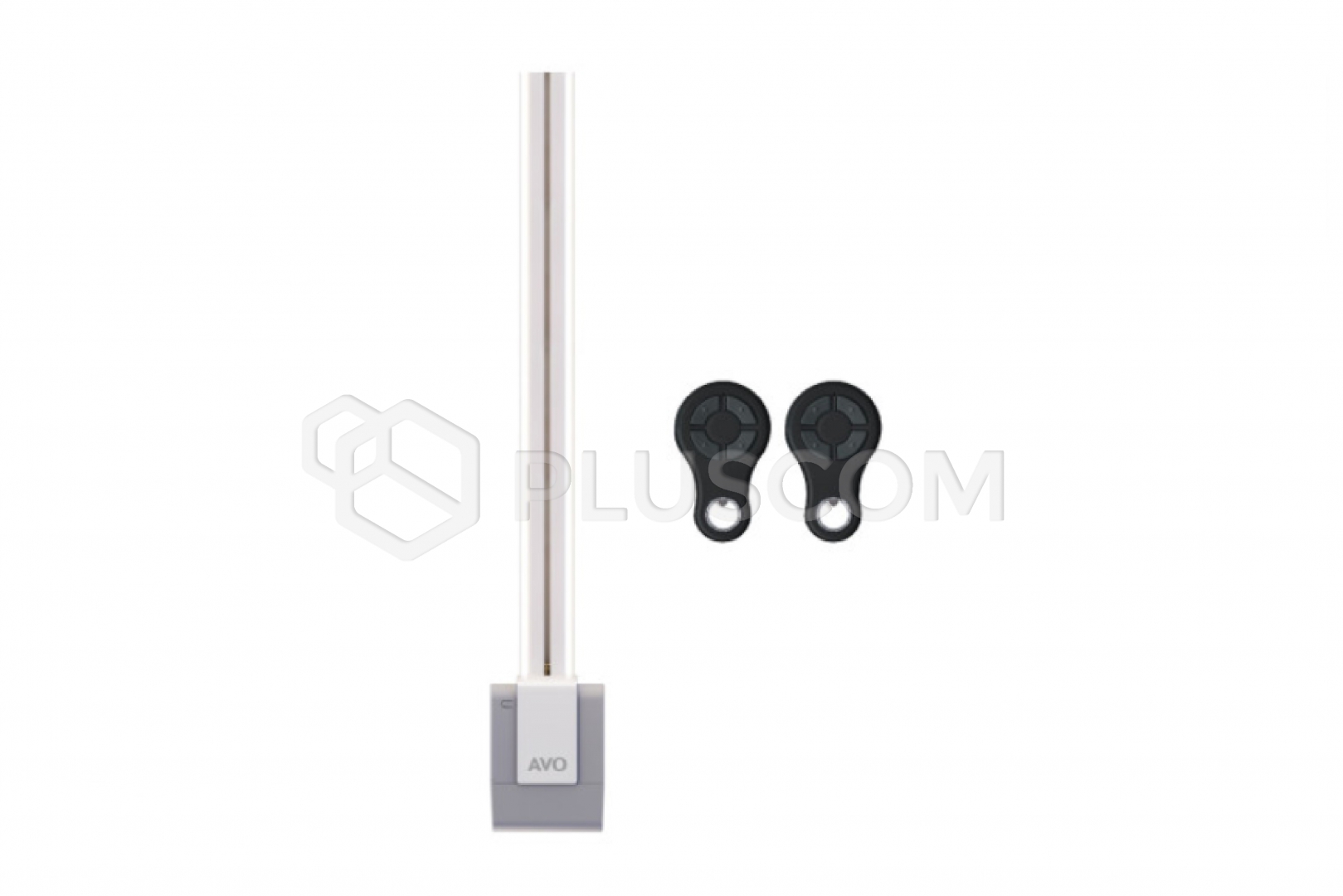

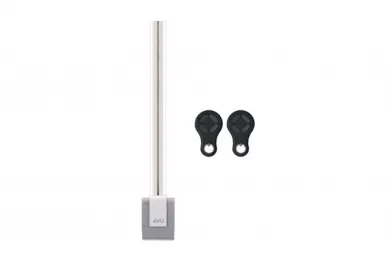

The set includes:
- ADO 800 PRO motor

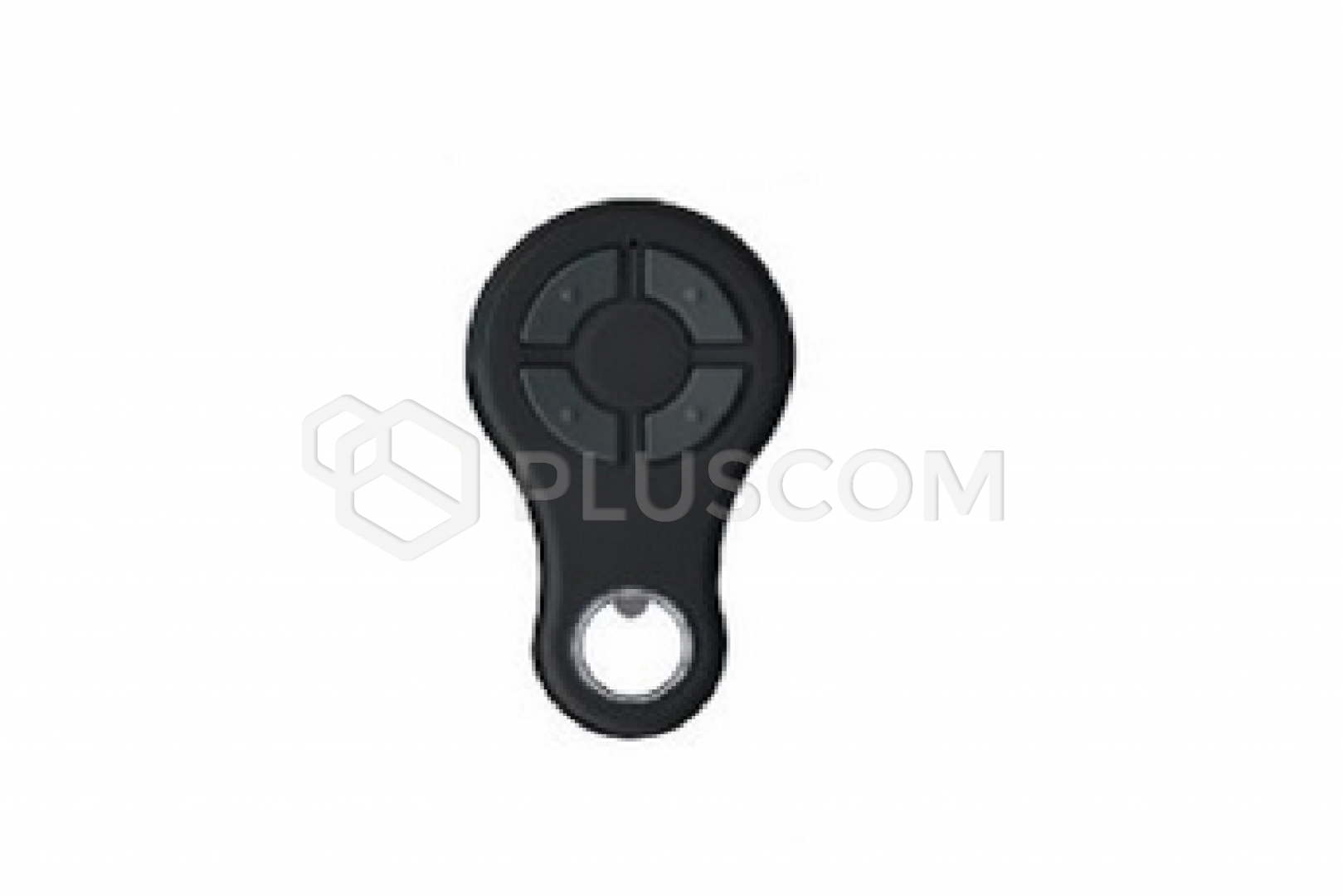

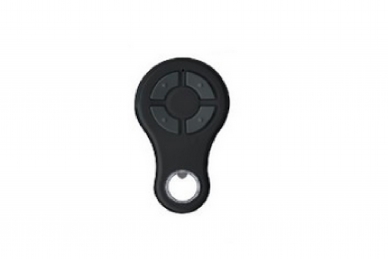

- 2 4-channel AVAK remote controls

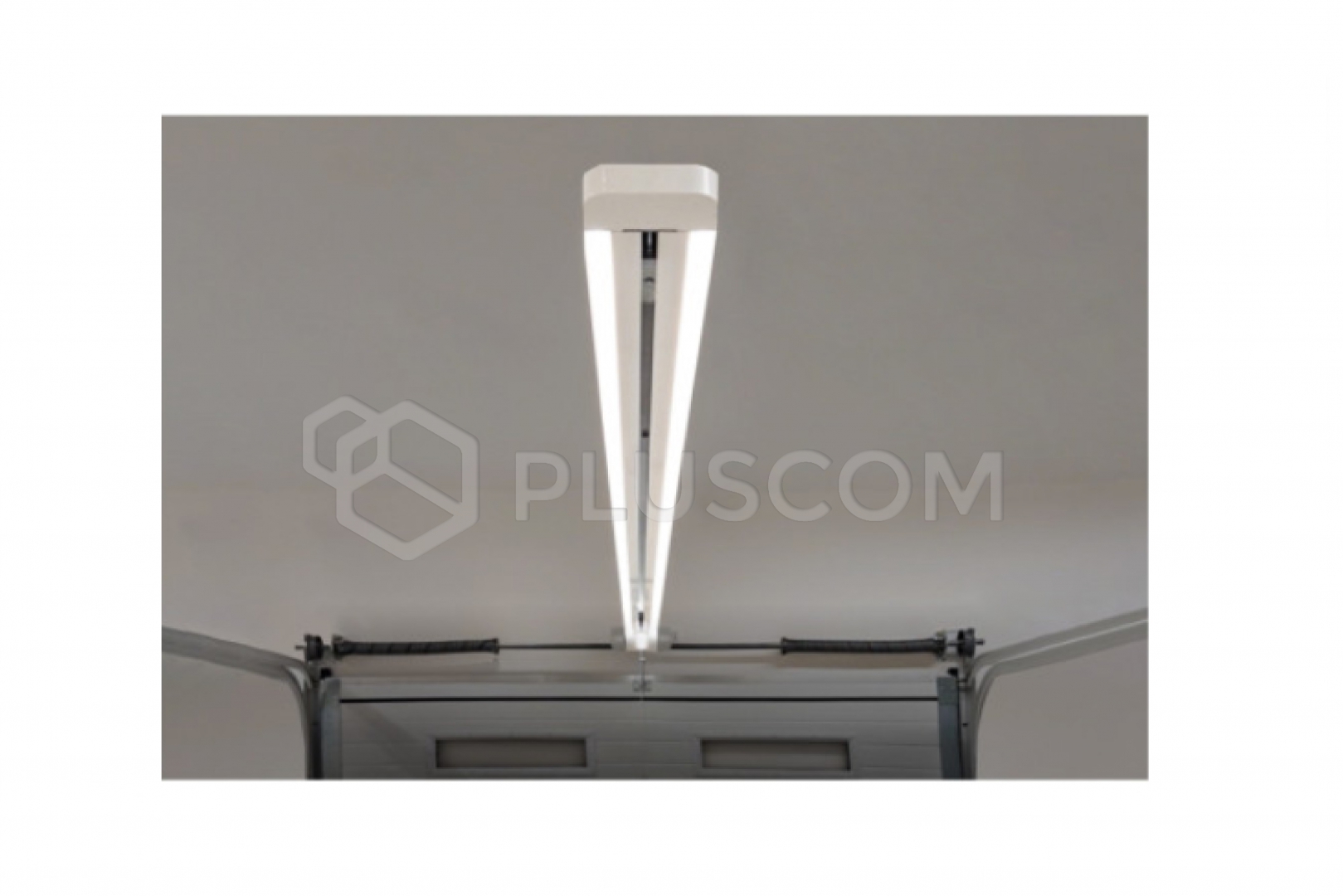

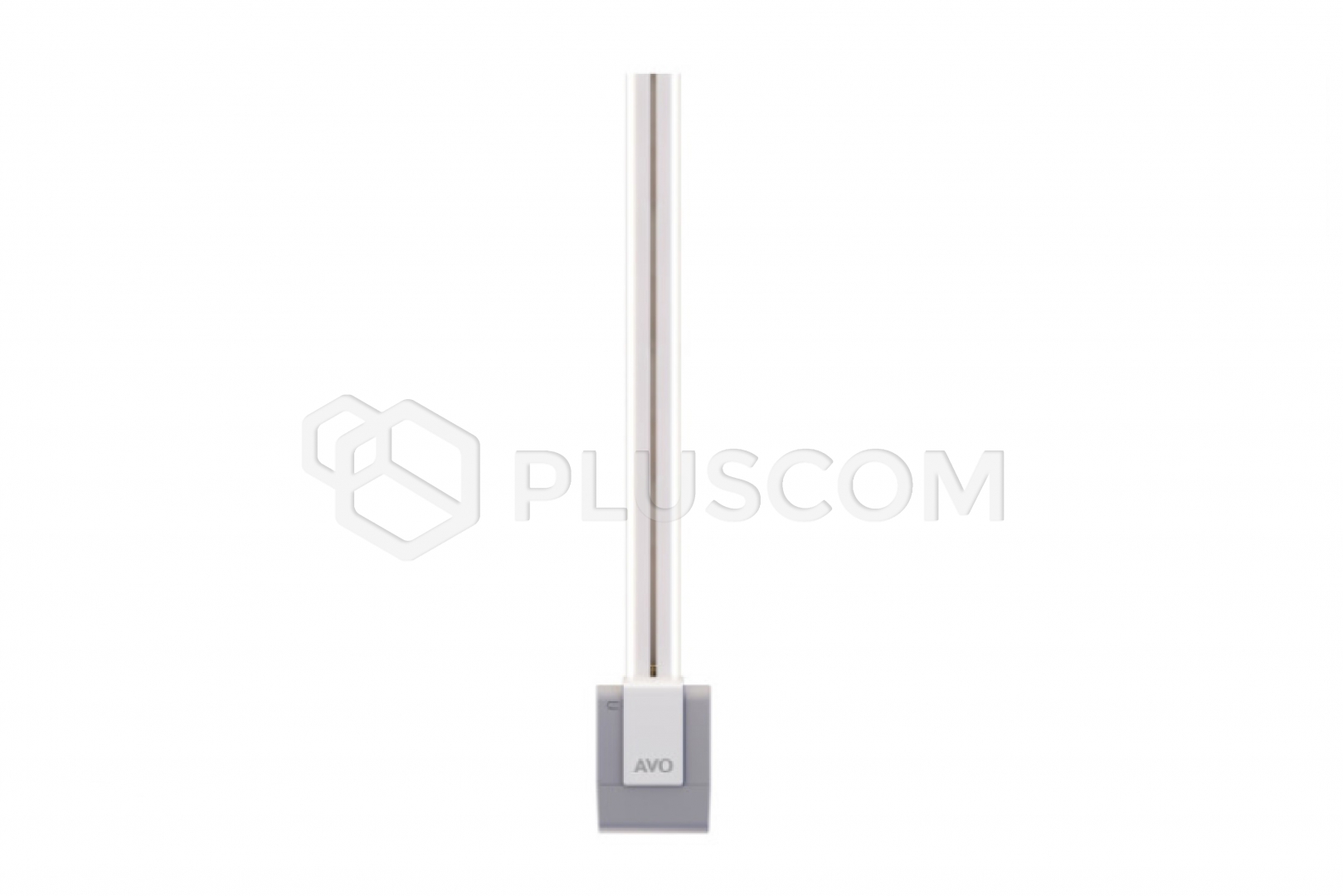

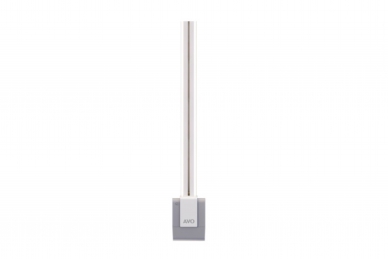

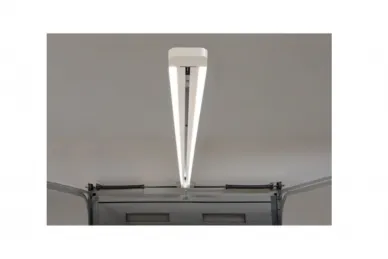

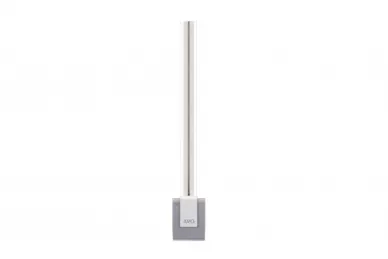

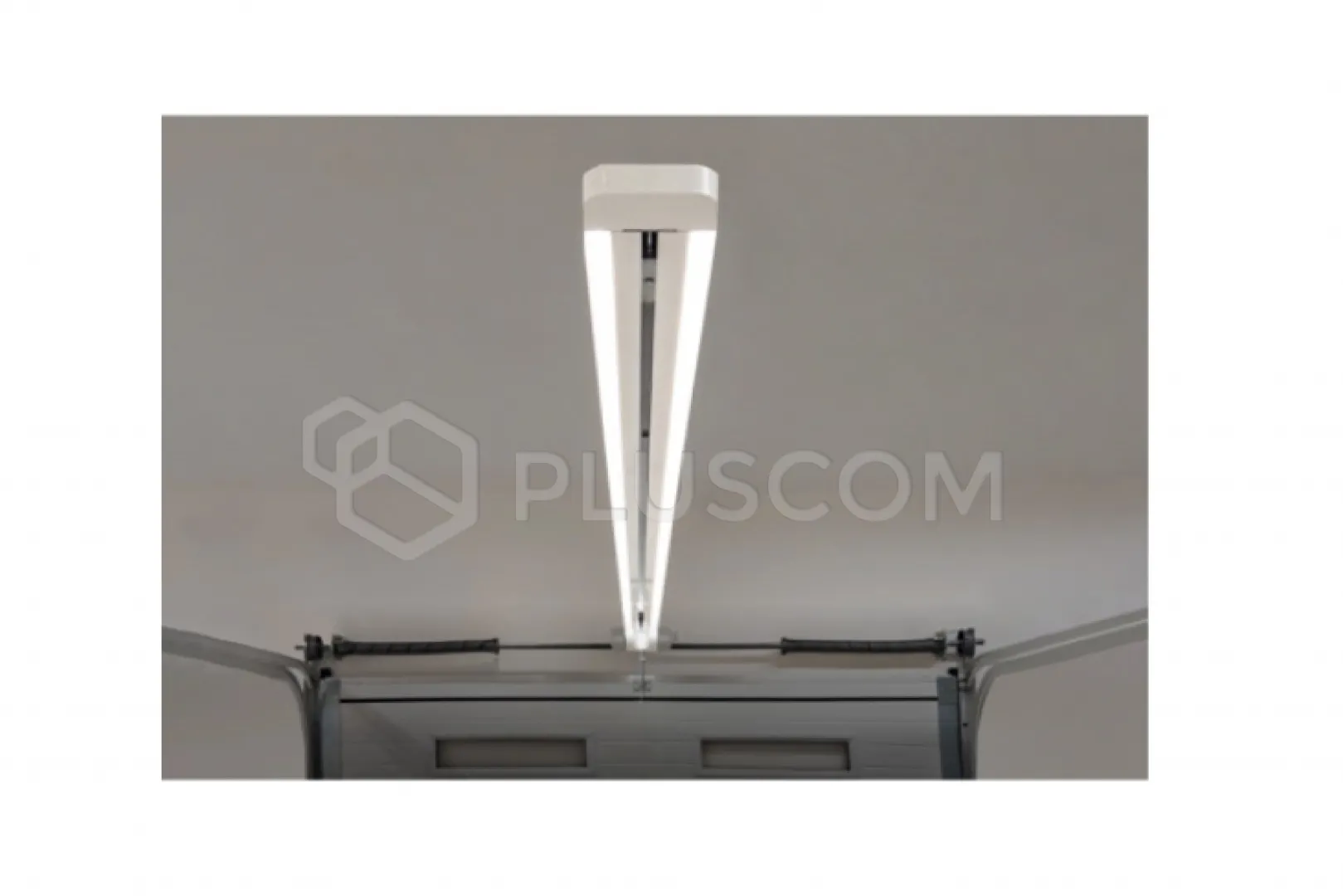

- Guide rail with belt and built-in LED lighting, 3.1m
Convenient access to the electronics:
The lockable side flap provides
convenient access to the electronics.
The pull carriage (the element connecting the motor to the garage door) is
fully integrated with the rail, ensuring smooth movement and quiet operation.
Configuration via the KUBE PRO interface significantly simplifies the
programming process.
The rail profile is made of extruded aluminum and powder-coated in an elegant
RAL 9010 color.
Three mounting methods:
Standard - rear drive head, front drive head -
lintel mounting, front drive head - on a shaft with springs.
Compact head:
With a total height of 8 cm, it includes an integrated
rail unit, enabling installation close to the shaft.
This innovative solution ensures convenient installation and an aesthetic
appearance.
KUBE AND KUBE PRO:
Innovative Bluetooth interface for configuring and
managing AVO automation using an app.
An effective tool enabling remote control of AVO automation and supporting
installation, guaranteeing optimal installer uptime and easy and quick
programming of control units and numerous actuator functions.
Compatible with Android and Apple smartphones.
Technical specifications:
- Speed cm/s: 15
- Force N: 800
- Cycles/hour Maximum: 20
- Power supply: 230 V AC (±10%) 50Hz
- Warning light: 3 W max
- Lights on the guide with built-in LEDs: 30 W max
- Power output for additional devices: 100 mA (24 V DC unregulated)
- Radio receiver memory: 90
- IP protection rating: 20

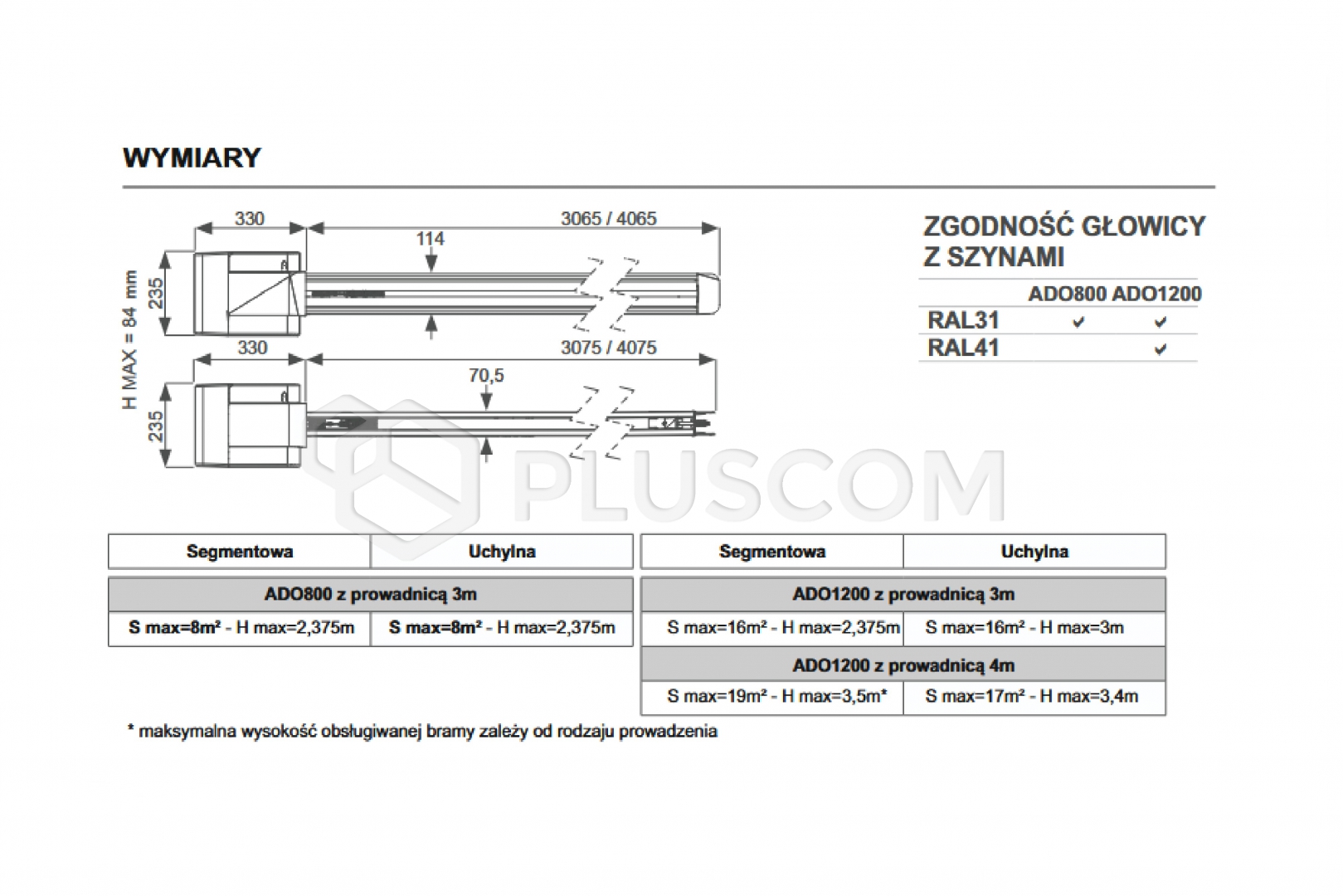

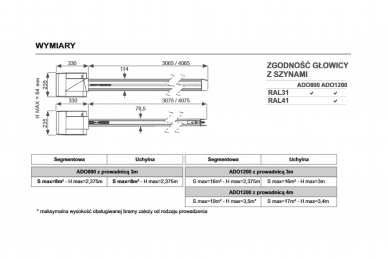

- Dimensions (L-W-H) mm: 330 - 235 - 84
- Weight kg: 6.25
- Operating temperature °C: -10 + 45
- Maximum gate area m2: 8
- Maximum gate weight kg: 120
