AVO ADO 1200 PRO CONNECT Garage door operator, rail with belt and built-in LED lighting 3.1 m, KUBE interface for control via app

545,32 EUR including 23.00% VAT
Product code: #36475
Manufacturer: Avo
  • Maximum gate area: 16 m2
  • Pulling force: 1200N
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Included: 2 x AVAK 4-channel remote control, KUBE interface
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

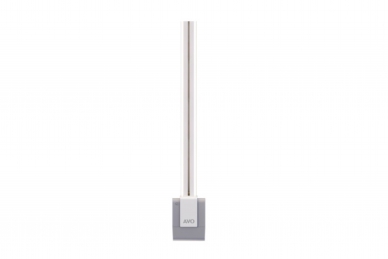

AVO ADO 1200 PRO CONNECT Garage door operator, rail with belt and built-in LED lighting 3.1 m, KUBE interface for control via app


24V motor for sectional garage doors up to 19m and overhead doors up to 17m, with built-in LED lighting and a KUBE interface for smartphone control.

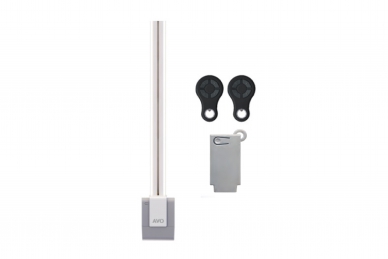

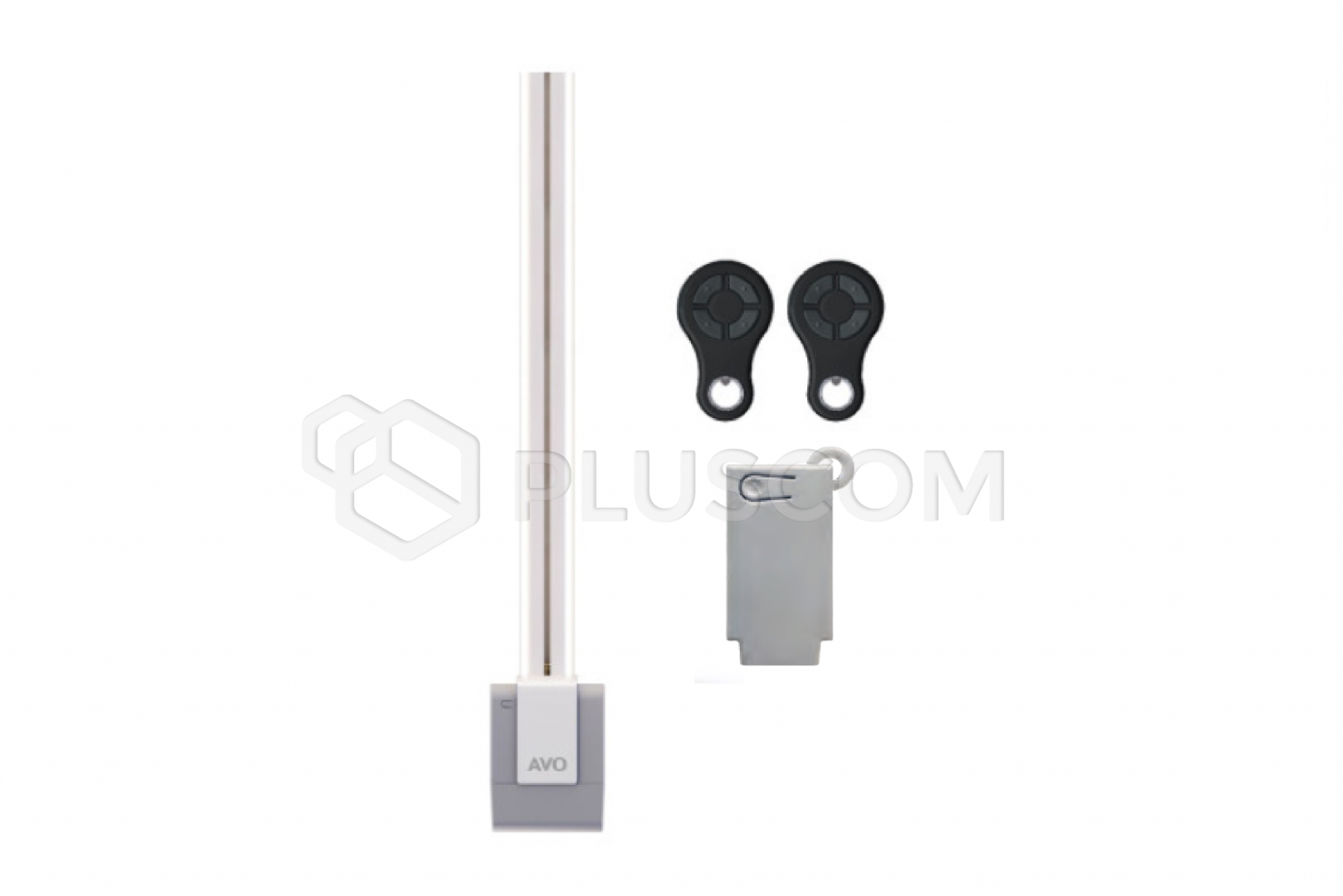

The set includes:

  • ADO 1200 PRO motor

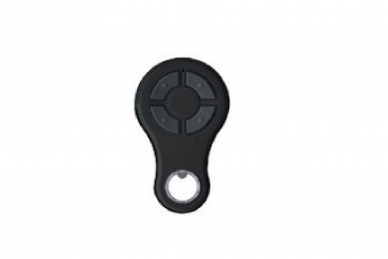

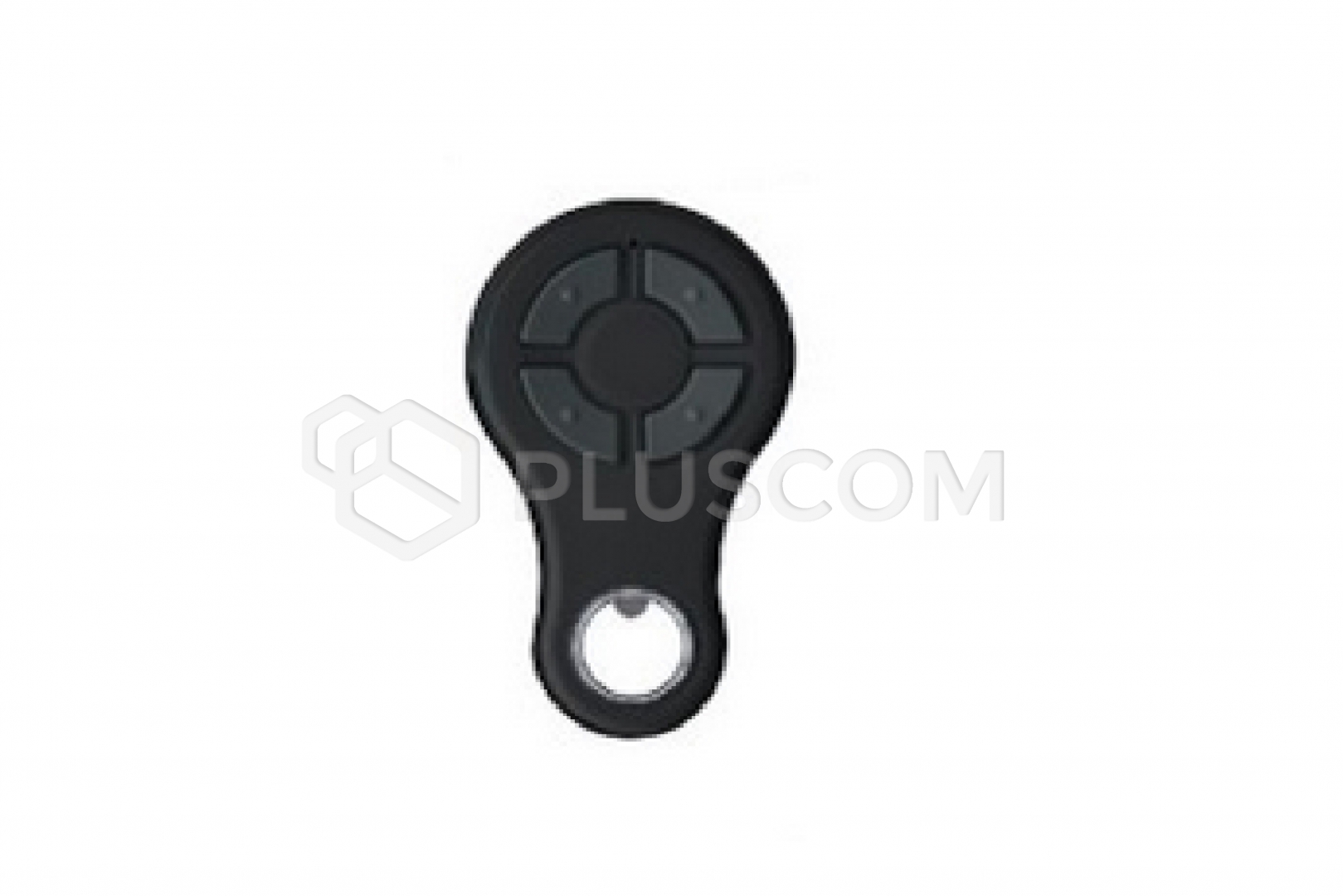

  • 2 AVAK 4-channel remote controls

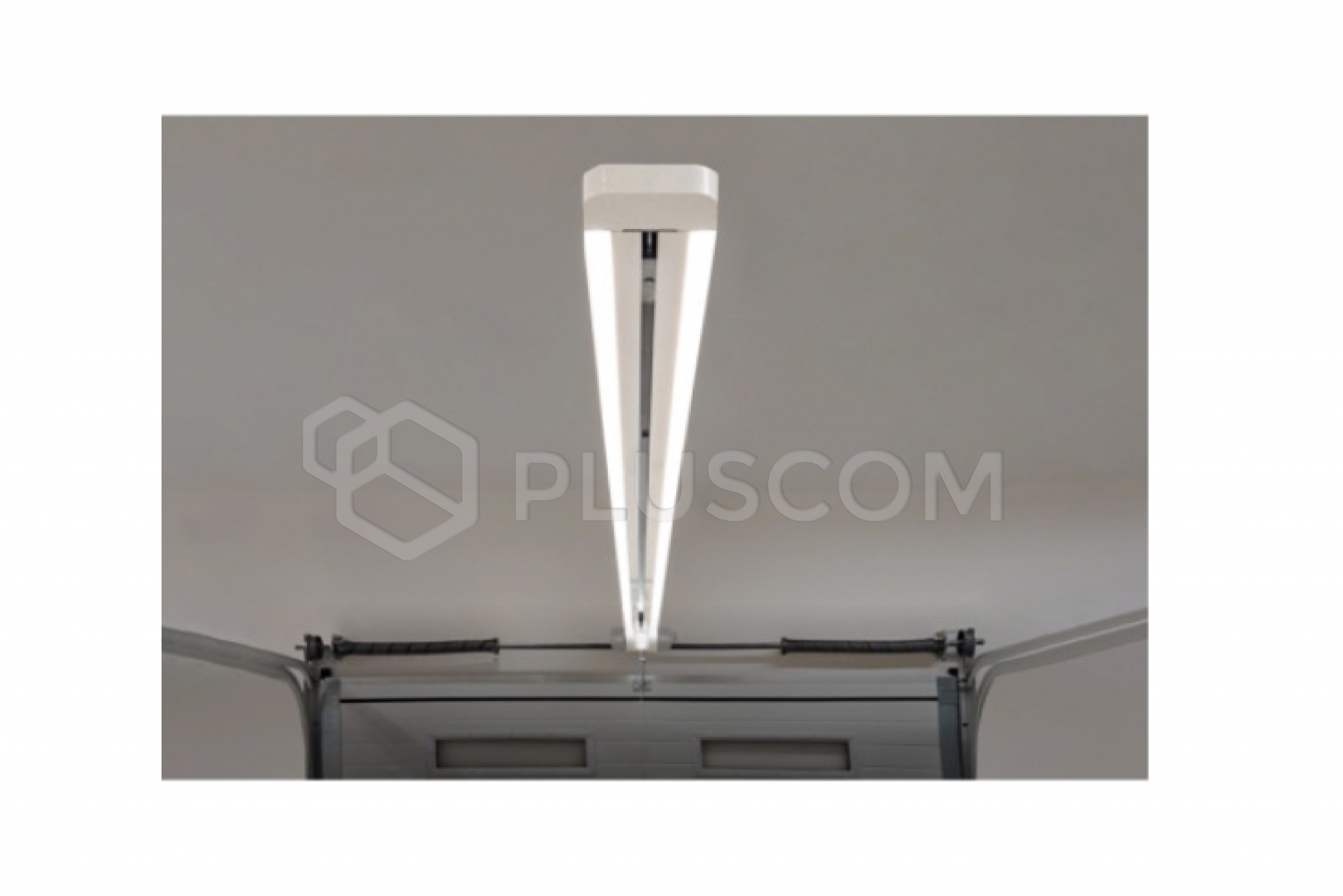

  • Guide rail with belt and built-in LED lighting, 3.1m
  • KUBE interface for app control

Convenient access to electronics:

A lockable side flap provides convenient access to the electronics.
The carriage (the element connecting the motor to the garage door) is fully integrated with the rail, ensuring smooth operation and quiet operation.

Configuration via the KUBE PRO interface significantly simplifies the programming process.

The rail profile is made of extruded aluminum and powder-coated in an elegant RAL 9010 color.

Three mounting options:

Standard - rear drive head, front drive head - lintel mounting, front drive head - on a shaft with springs.

Compact head:

With a total height of 8 cm, it includes an integrated rail unit, enabling installation close to the shaft.
This innovative solution ensures convenient installation and aesthetic appearance.

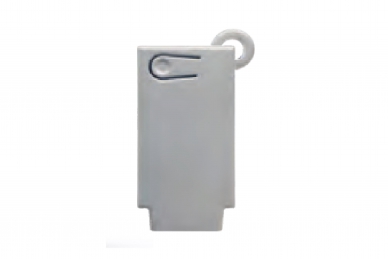

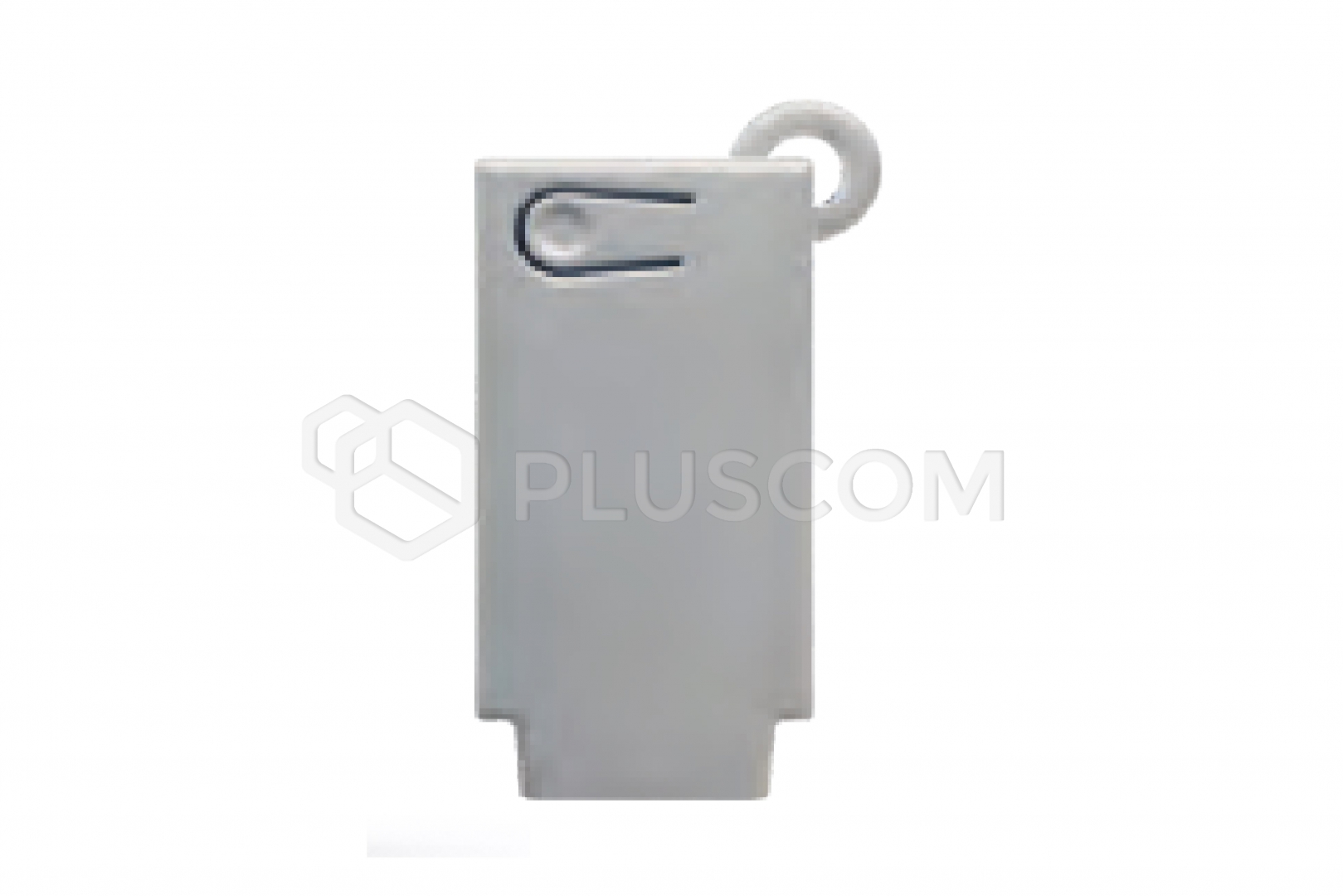

KUBE AND KUBE PRO:

Innovative Bluetooth interface for configuring and managing AVO automation via the app.

An effective tool enabling remote control of AVO automation systems and supporting installation, ensuring optimal installer uptime and easy and quick programming of control panels and numerous actuator functions.

Compatible with Android and Apple smartphones.

Technical specifications:

  • Speed cm/s: 15
  • Force N: 1200
  • Cycles/hour Maximum: 20
  • Power supply: 230 V AC (±10%) 50Hz
  • Warning light: 3 W max
  • Lights on the guide with built-in LEDs: 40 W max
  • Power output for additional devices: 100 mA (24 V DC unregulated)
  • Radio receiver memory: 90
  • IP protection rating: 20

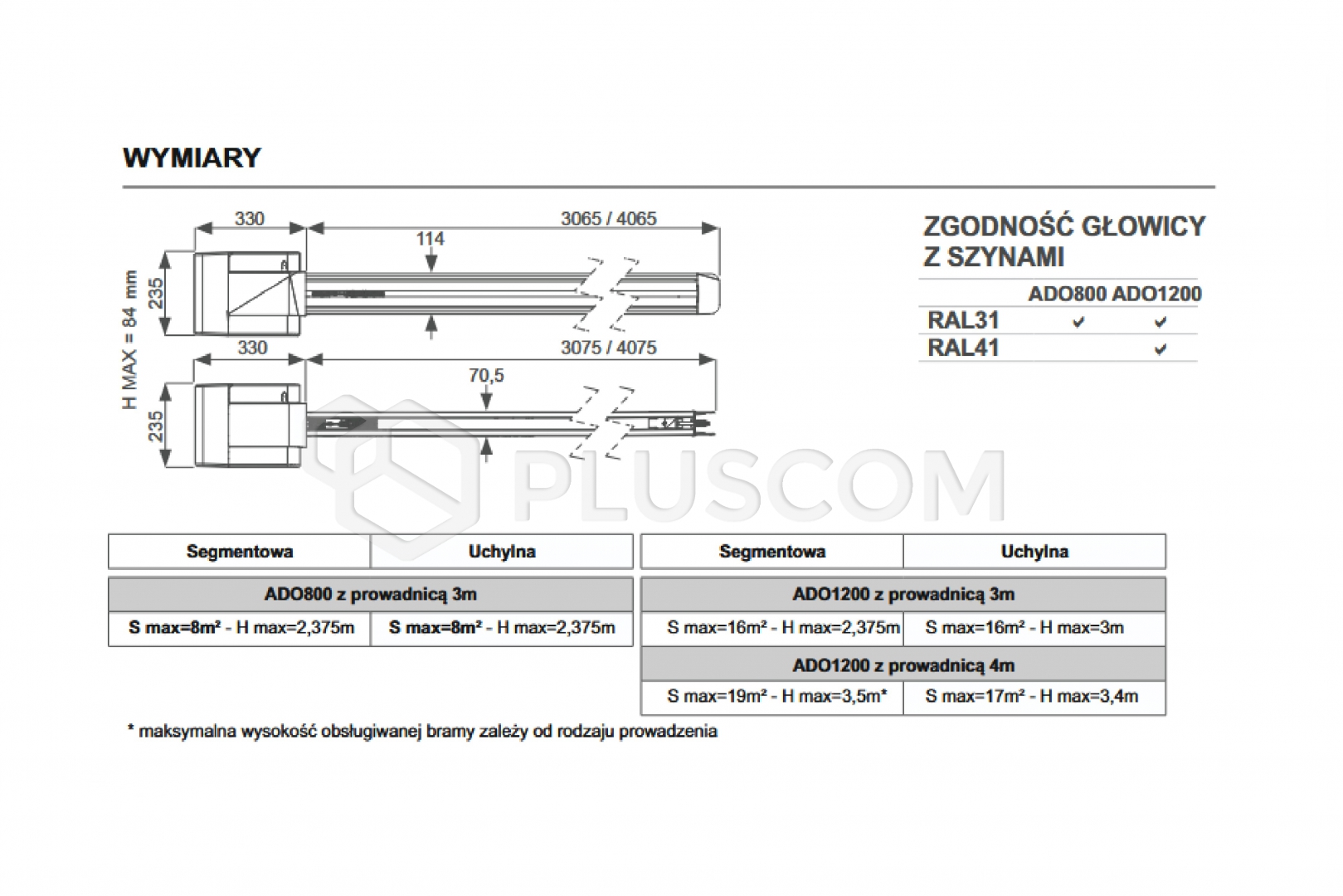

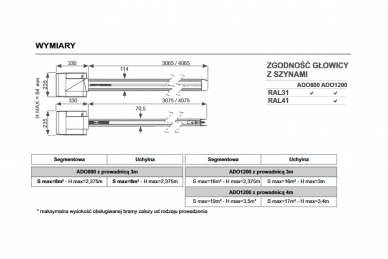

  • Dimensions (L-W-H) mm: 330 - 235 - 84
  • Weight: 6.8 kg
  • Operating temperature °C: -10 + 45
  • Maximum gate area m2: 16
  • Maximum gate weight kg: 200
