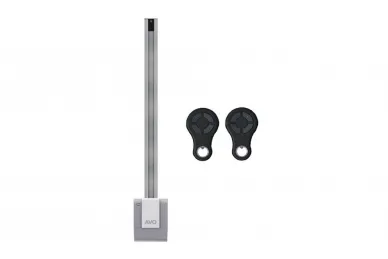

AVO ADO 1200 Garage door drive, 3.1m belt rail

370,89 EUR including 22.00% VAT
Product code: #36469
Manufacturer: Avo
  • Maximum gate area: 16 m2
  • Pulling force: 1200N
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Includes 2 x AVAK 4-channel remote controls
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,36 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AVO ADO 1200 Garage door drive, 3.1m belt rail


Motor for sectional garage doors up to 19m and overhead doors up to 17m, 24V.

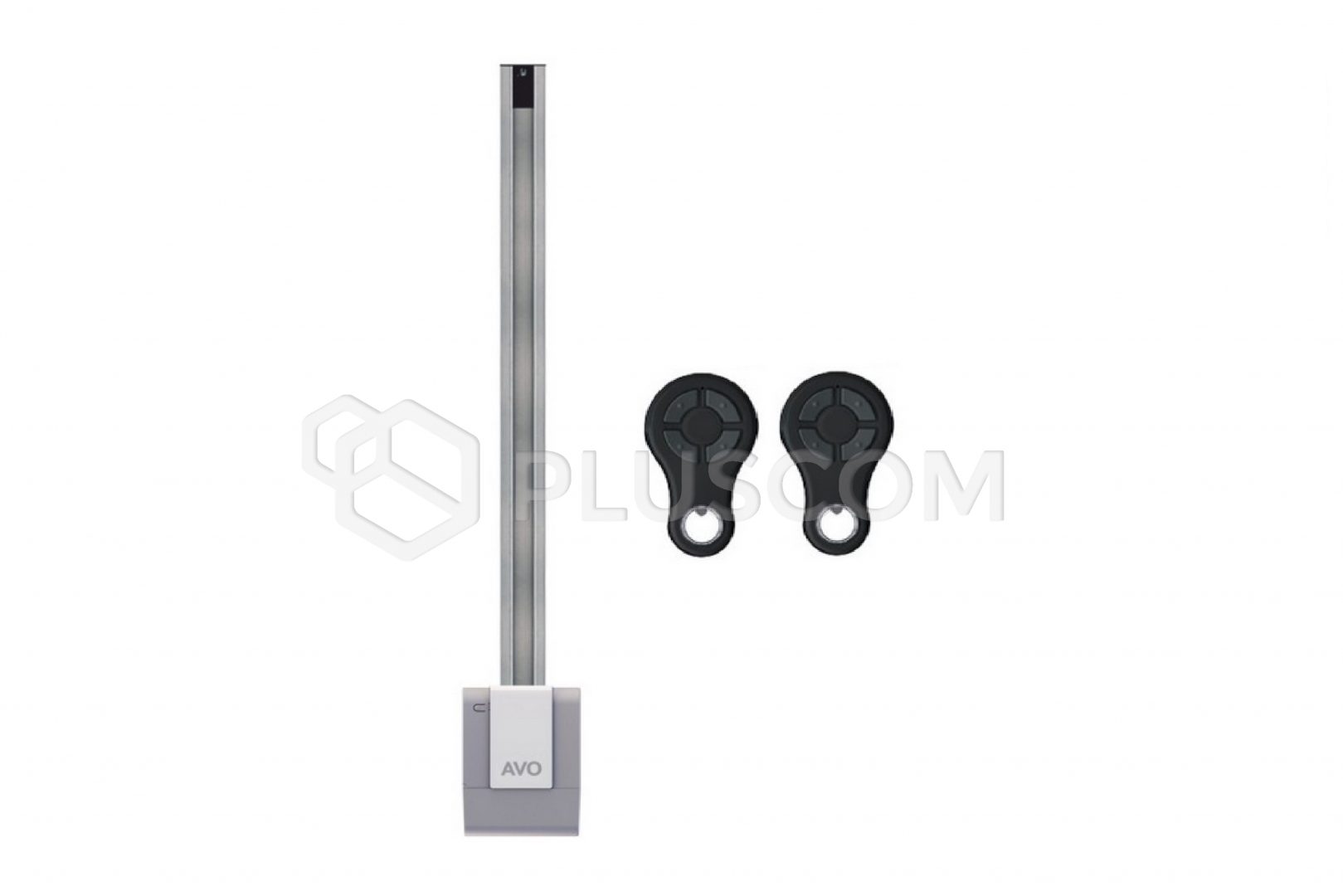

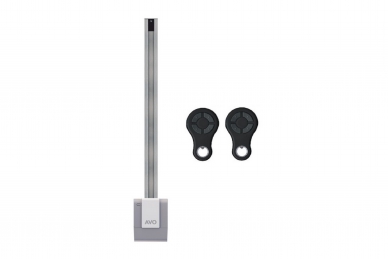

The kit includes:

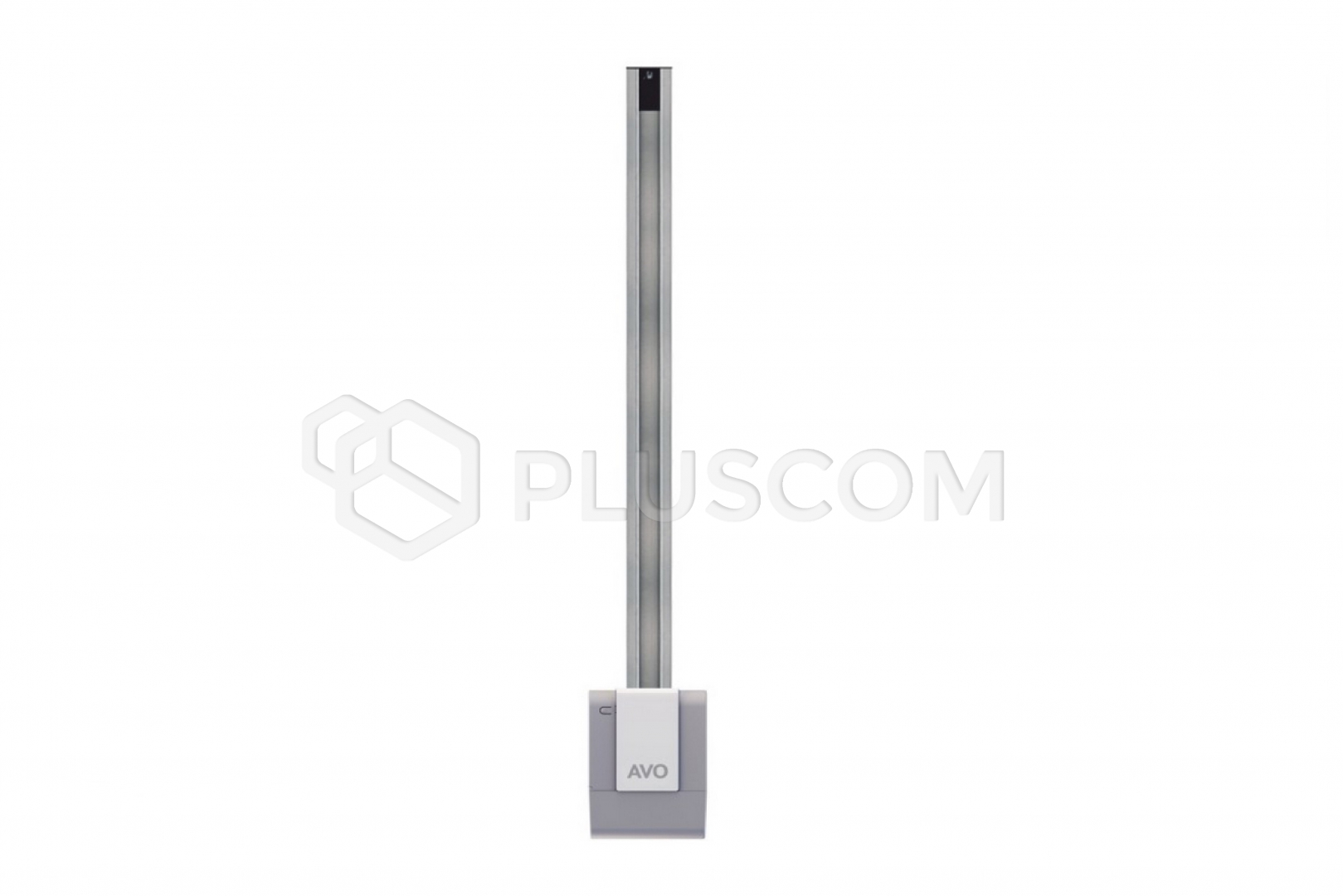

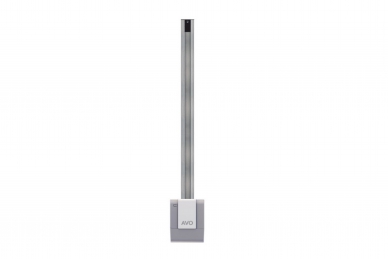

  • ADO 1200 garage door operator

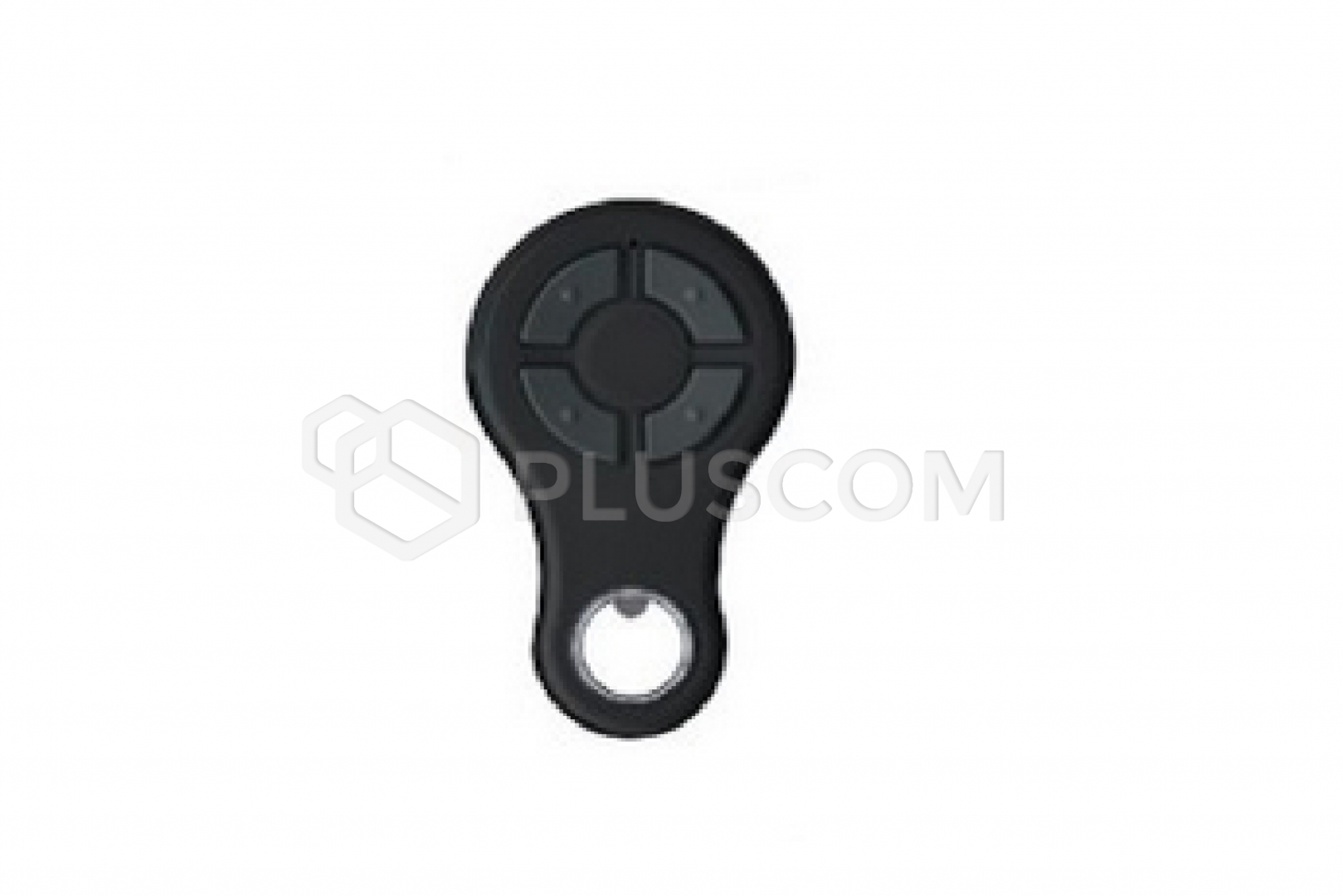

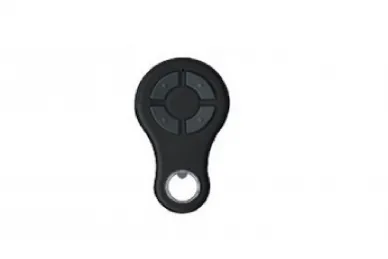

  • 2 AVIK 4-channel remote controls
  • Guide rail with 3.1m belt

Convenient access to the electronics:

A lockable side flap provides convenient access to the electronics.

The pull carriage (the element connecting the motor to the garage door) is fully integrated with the rail, ensuring smooth movement and quiet operation. Configuration via the KUBE PRO interface significantly simplifies the programming process.

Standard track equipped with a steel C-profile using a Kevlar strip, available in two sizes: 3 or 4 m, in one piece.

Three mounting methods:

Standard - rear drive head, front drive head - lintel mounting, front drive head - on a shaft with springs.

Compact head:

With a total height of 8 cm, it includes an integrated track unit, allowing for installation close to the shaft. This innovative solution ensures quick installation.

Technical data:

  • Speed cm/s: 15
  • Force N: 1200
  • Cycles/hour Maximum: 20
  • Power supply: 230 V AC (±10%) 50Hz
  • Warning light: 3 W max
  • Power output for additional devices: 100 mA (24 V DC unregulated)
  • Radio memory: 90
  • IP protection rating: 20

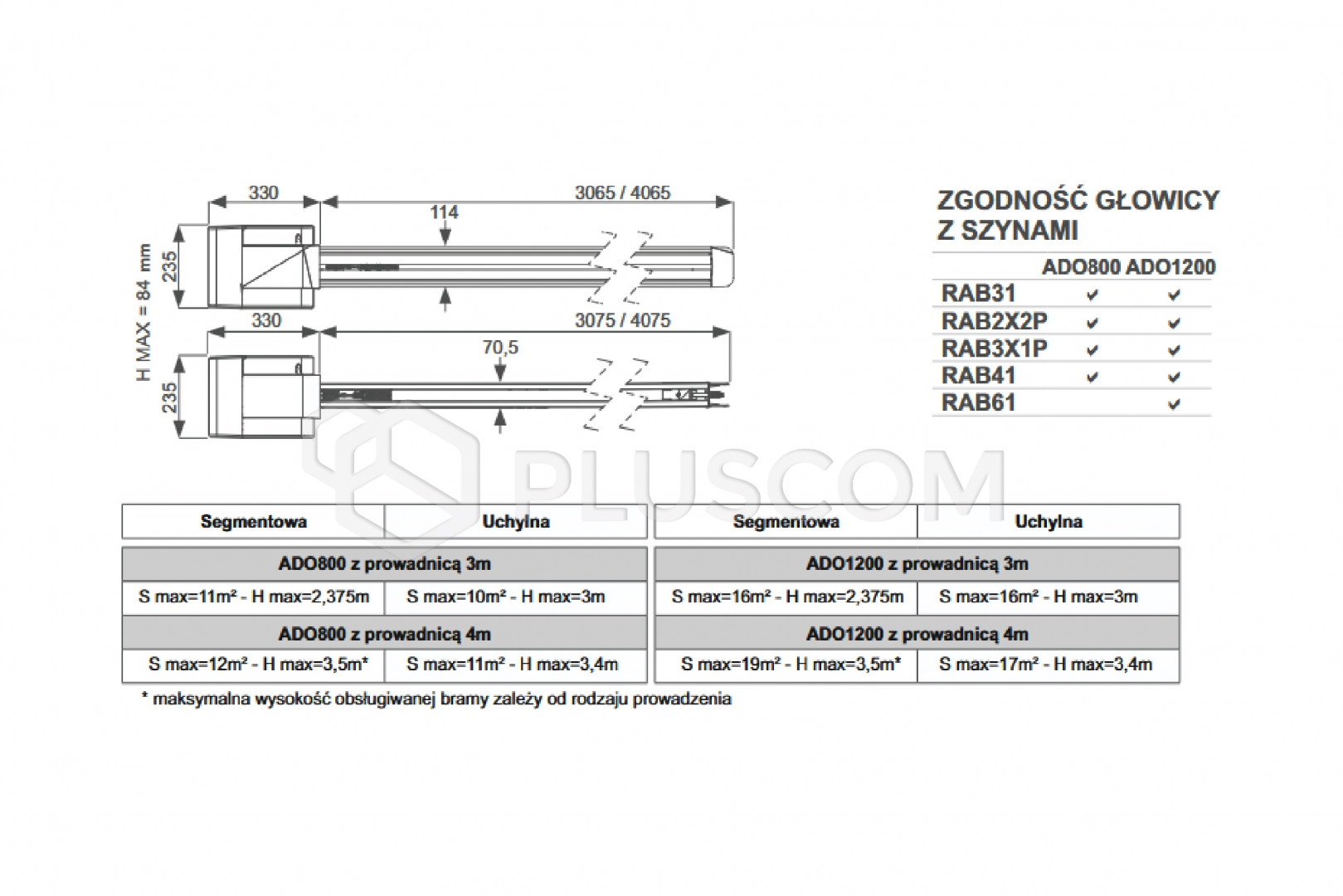

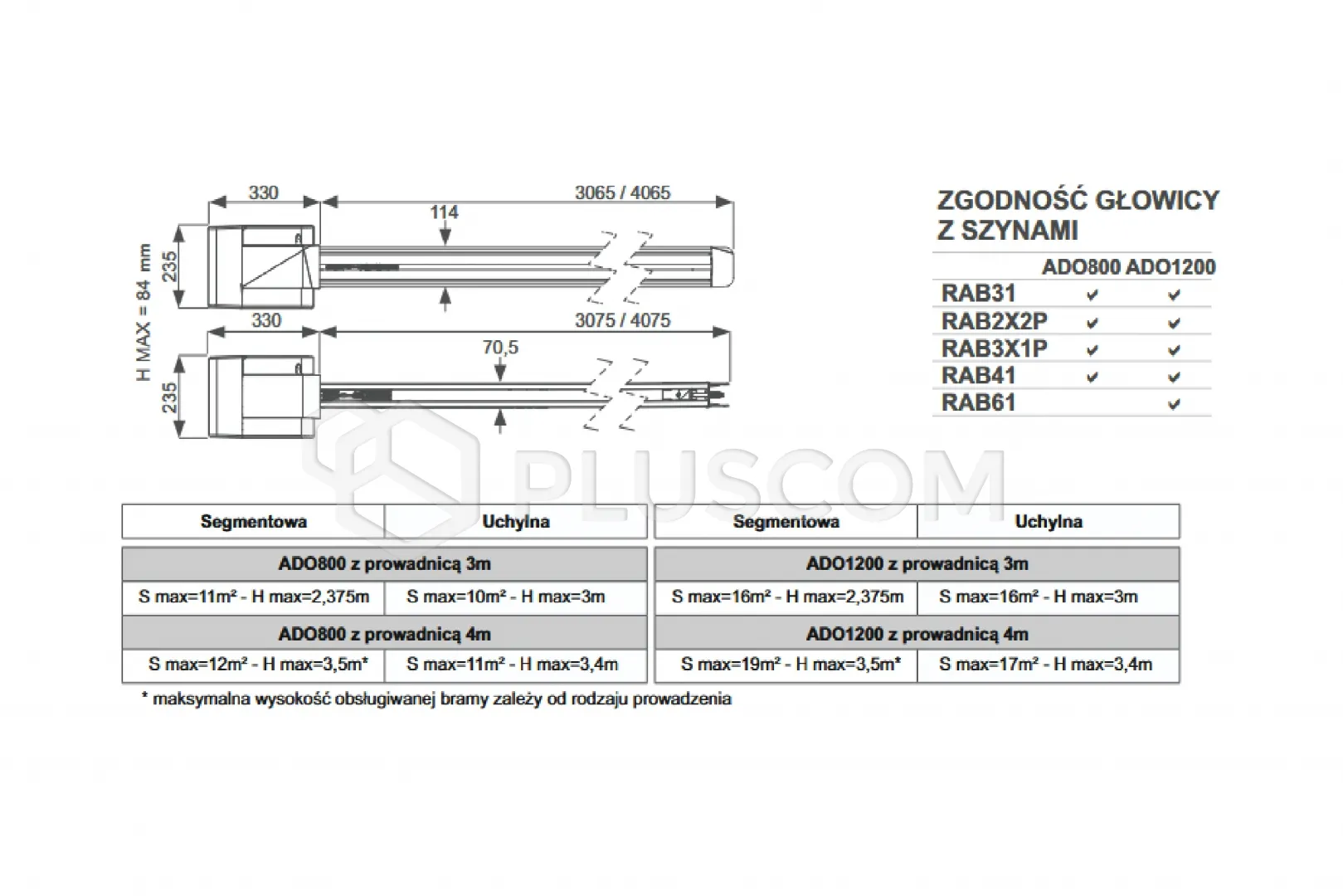

  • Dimensions (L-W-H) mm: 330 - 235 - 84
  • Weight kg: 6.8
  • Operating temperature °C: -10 + 45
  • Maximum gate area m2: 16
  • Maximum gate weight kg: 200
