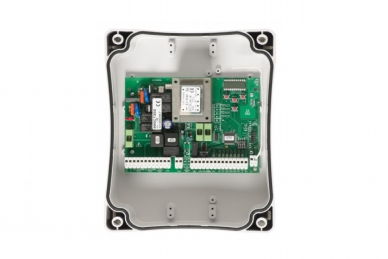

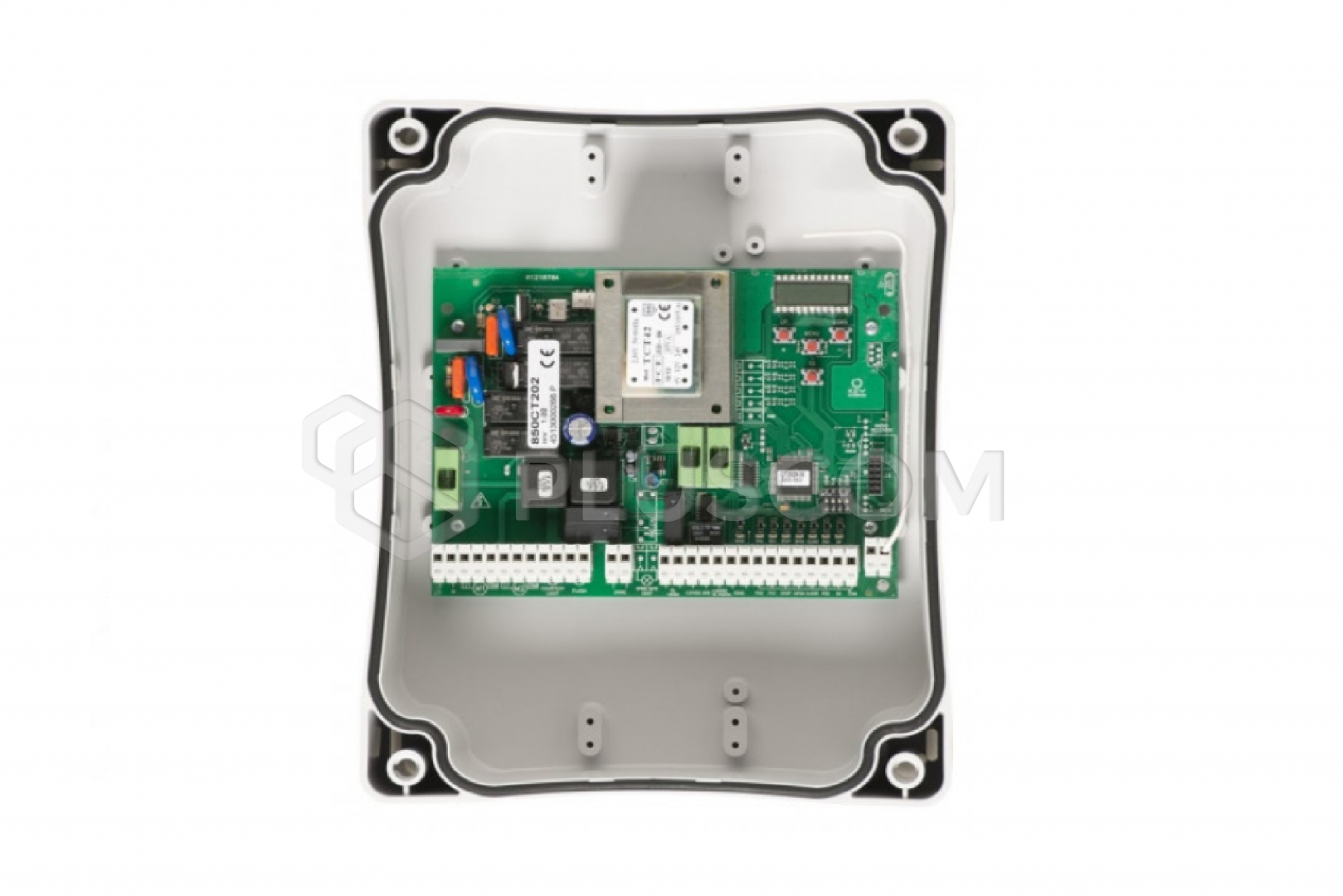

AVO ACT202 230V Control unit for controlling 2 actuators

286,36 EUR including 23.00% VAT
Product code: #36595
Manufacturer: Avo
  • Power supply: 230V AC
  • Accessory power supply: 24V AC/DC
  • Warning lamp output 230V/21W
  • Electric lock output (12VAC/15VA)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AVO ACT202 230V Control unit for controlling 2 actuators


ACT202 - Control unit for two 230V swing gate actuators, with electric lock support, slowdown on opening and closing, and radio receiver integration, in a housing.

This unit belongs to the AVO ACT series of control units, which share the same method of programming end positions and adjusting parameters. The control unit monitors the operation of actuators with single-phase asynchronous AC motors powered by 230V.

FEATURES:

  • Two motor outputs (M1, M2)
  • 230V/21W warning light output
  • Remote-controlled auxiliary lighting output (230V/25W)
  • Electric lock output (12VAC/15VA)
  • 4 switches for deactivating security inputs (no jumpers required)
  • 2 analog photocell inputs
  • STOP input operating as NC
  • Safety input compatible with an 8.2 kΩ resistive strip
  • 4 control inputs: step-by-step, open, close, gate
  • Input for connecting a dedicated ARX4K radio receiver
  • Equipped with a display for easy programming and parameter adjustment, as well as monitoring the status of safety and control inputs.

    FUNCTIONS:

    • Human presence: YES
    • Semi-automatic operation: YES
    • Automatic operation: YES
    • Apartment complex: YES
    • Pre-flashing: YES
    • Phototest during opening: YES
    • Soft start: YES
    • Soft stop: YES
    • Supplementary lighting: YES
    • Gate status monitoring: YES
    • Slowdown function: YES
    • Electric strike release: YES
    • Electric limit switch disconnection: NO
    • Pause during opening: YES
    • Function STEP BY STEP: YES
    • Separate opening and closing: YES
    • Amperometric: YES
    • Adjustable opening delay: YES
    • Brake: YES
    • Cycle counter: YES
    • Display: YES
    • Encoder: NO
    • Close after photo: YES
    • Wicket function: YES
    • Electric strike: YES
    • Energy saving: NO
    • Behavior after power outage: NO
    • Sensitive edge connection: YES
    • Amperometric sensitivity: YES
    • Solar power supply: NO

    Technical specifications:

    • Power supply: 230V 50Hz
    • Accessory power supply: 24Vac / 24Vdc
    • Maximum motor power: 700W + 700W
    • Maximum operating time: adjustable
    • Maximum pause time: 0 - 900 sec.
    • Amperometric sensitivity: YES
    • Encoder support: NO
    • Protection rating: IP54
    • Dimensions (L x W x H): 220 x 110 x 275 mm
    • Operating temperature: -20°C / +55°C
