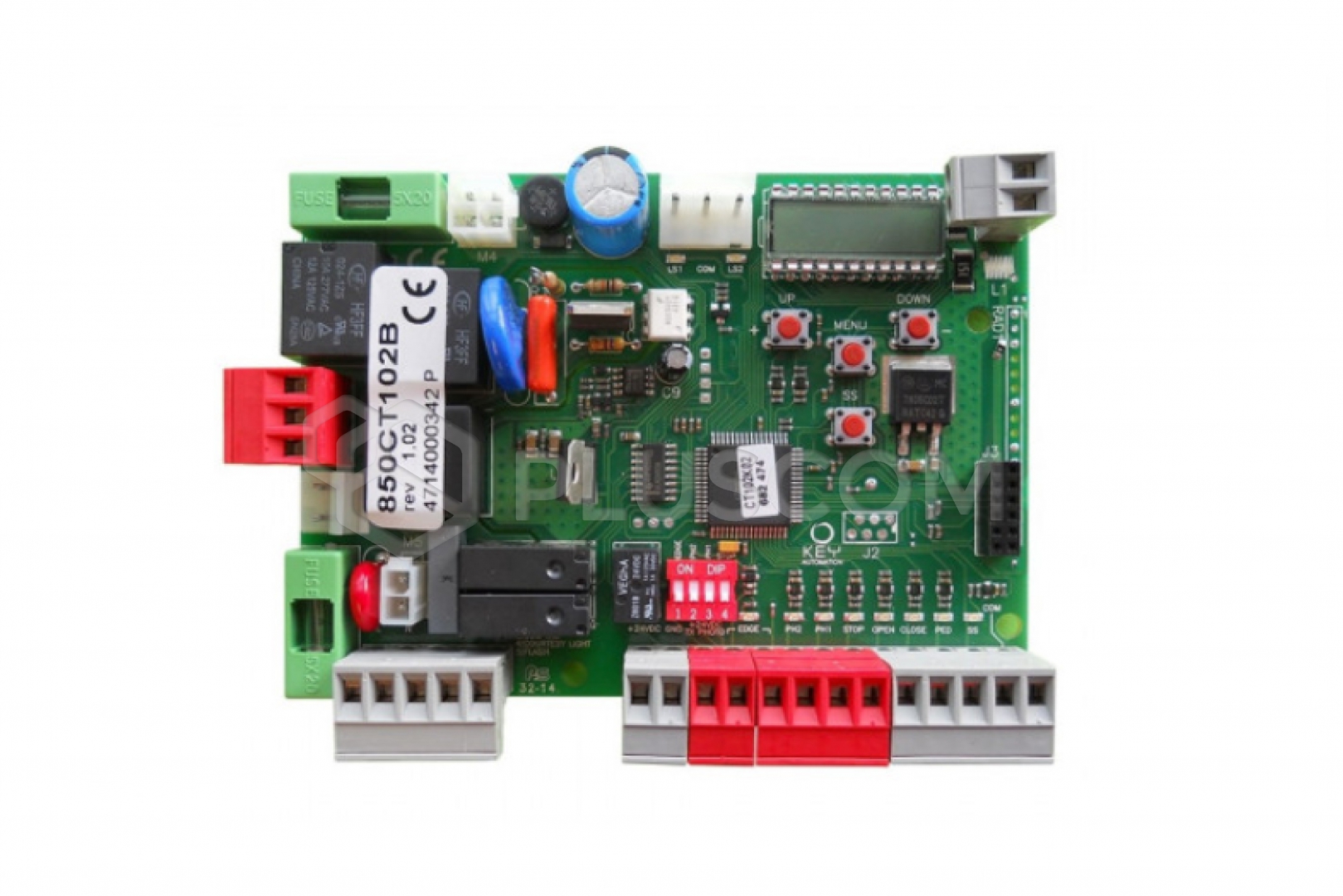

AVO ACT102B Control unit, CT102B board for one actuator

158,60 EUR including 23.00% VAT
Product code: #36464
Manufacturer: Avo
  • Power supply: 230V
  • Accessory power supply: 24V DC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

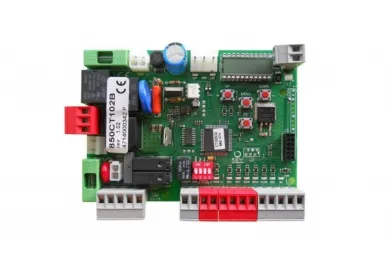

AVO ACT102B Control unit, CT102B board for one actuator


ACT102B - Control unit for controlling one 230V actuator for sliding gates and garage doors, with electric lock support, slowdown during opening and closing, and the ability to connect a radio receiver.

This unit belongs to the AVO ACT series of control units, which share the same method of programming end positions and adjusting parameters.

The control unit monitors the operation of one actuator with a single-phase asynchronous AC motor powered by 230V.

FEATURES:

  • One motor output
  • 230V/40W warning light output
  • Remote-controlled auxiliary lighting output (230V/100W)
  • Electric lock output (12VAC/15VA)
  • 4 switches for deactivating security inputs (no jumpers required)
  • 2 analog photocell inputs
  • STOP input operating as NC
  • Safety input compatible with an 8.2 kΩ resistive strip
  • 4 control inputs: step-by-step, open, close, gate
  • Input for connecting a dedicated ARX4K radio receiver
  • Equipped with a display for easy operation Programming and adjusting parameters and monitoring the status of safety and control inputs.

FUNCTIONS:

  • Human presence: YES
  • Semi-automatic operation: YES
  • Automatic operation: YES
  • Apartment complex: YES
  • Pre-flashing: YES
  • Phototest during opening: YES
  • Soft start: YES
  • Soft stop: YES
  • Additional lighting: YES
  • Gate status monitoring: YES
  • Slowdown function: YES
  • Electric strike release: NO
  • Electric limit switch deactivation: YES
  • Pause during opening: YES
  • STEP-BY-STEP function: YES
  • Separate opening and closing: YES
  • Amperometric: NO
  • Adjustable opening delay: NO
  • Brake: YES
  • Cycle counter: YES
  • Display: YES
  • Encoder: NO
  • Close after photo: YES
  • Wicket function: YES
  • Electric strike: NO
  • Energy saving: NO
  • Behavior after power outage: NO
  • Sensitive edge connection: YES
  • Amperometric sensitivity: NO
  • Solar power supply: NO

Technical data:

  • Power supply: 230V 50Hz
  • Accessory power supply: 24Vdc
  • Maximum motor power: 700W
  • Maximum operating time: adjustable
  • Maximum pause time: 0 - 900 sec.
  • Amperometric sensitivity: YES
  • Encoder support: NO
  • Protection rating: -
  • Dimensions (L x W x H): 120 x 90 x 30 mm
  • Operating temperature: -20°C / +55°C
