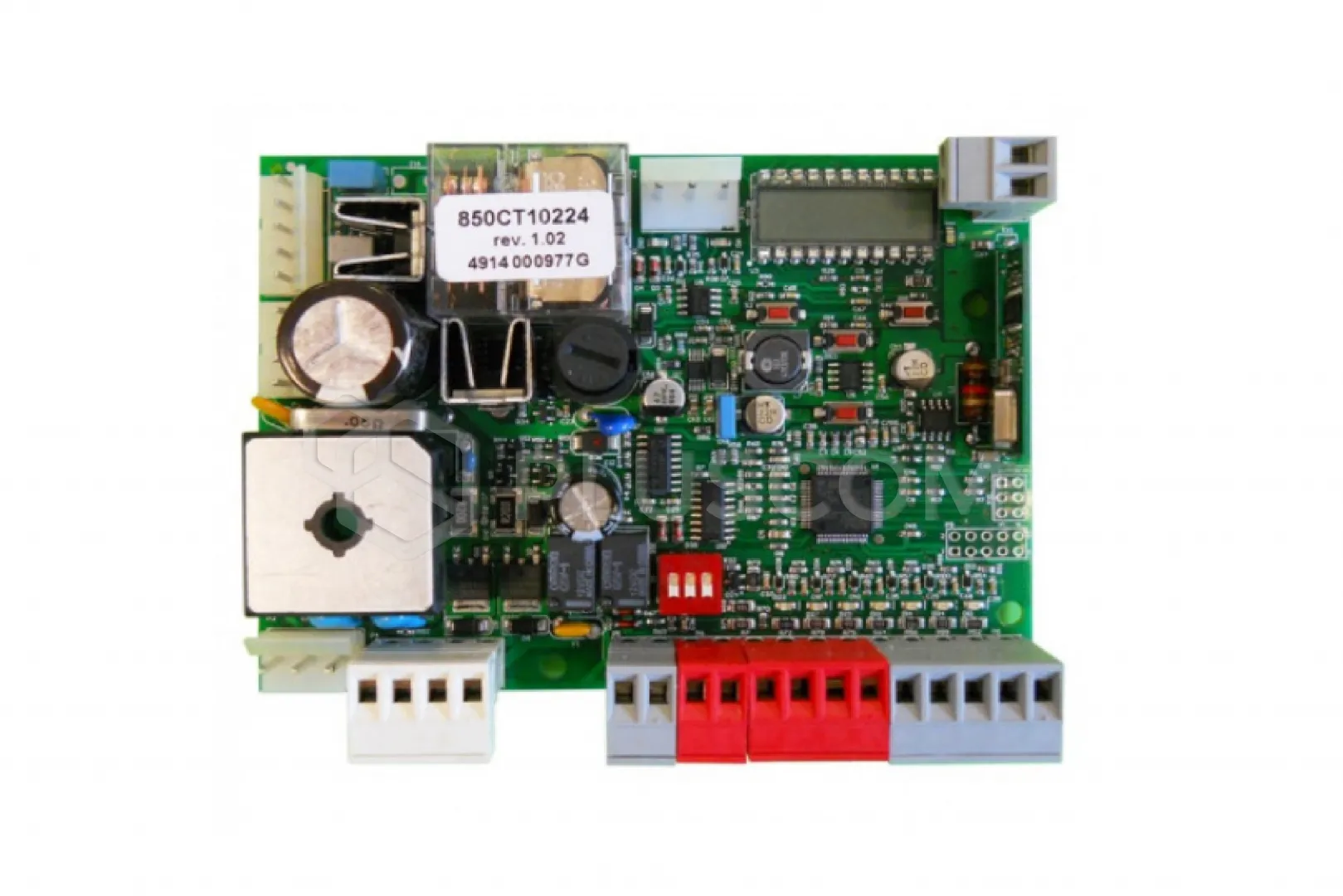

AVO ACT10224 Control unit, board ACT10224/10224F 24V for one actuator

217,67 EUR including 23.00% VAT
Product code: #36462
Manufacturer: Avo
  • Power supply: 230V
  • Accessory power supply: 24V AC / DC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AVO ACT10224 Control unit, board ACT10224/10224F 24V for one actuator


ACT10224/10224F - Control unit for one 24V actuator for sliding gates and barriers, with automatic limit position programming, opening and closing slowdown, and integrated radio receiver.

This unit belongs to the AVO ACT series of control units, which share the same method for programming limit positions and adjusting parameters.

The control unit monitors the operation of one actuator with a 24V DC motor.

FEATURES:

  • One motor output
  • 24V/15W warning light output
  • Remote-controlled auxiliary lighting output (24V/15W)
  • Gate status indicator output (24V/4W) / Electric lock output (12VAC/15VA)
  • Backup battery connection option
  • 4 switches for deactivating security inputs (no jumpers required)
  • 2 analog photocell inputs
  • STOP input operating as a NC contact or compatible with an 8.2 kΩ resistive strip
  • 4 control inputs: step-by-step, open, close, gate
  • Built-in radio receiver (memory for 150 remote controls/buttons)
  • Equipped with a display for easy programming and parameter adjustment, as well as monitoring the status of safety and control inputs.
  • Input for operating actuators with an encoder.

FUNCTIONS:

  • Human presence: YES
  • Semi-automatic operation: YES
  • Automatic operation: YES
  • Apartment complex: YES
  • Pre-flashing: YES
  • Phototest during opening: YES
  • Soft start: YES
  • Soft stop: YES
  • Additional lighting: YES
  • Gate status monitoring: YES
  • Slow-down function: YES
  • Electric strike release: NO
  • Electric limit switch cut-off: YES
  • Pause during opening: YES
  • STEP-BY-STEP function: YES
  • Separate opening and closing: YES
  • Amperometric: YES
  • Adjustable delay during opening: NO
  • Brake: NO
  • Cycle counter: YES
  • Display: YES
  • Encoder: YES
  • Close after photo: YES
  • Wicket function: YES
  • Electric strike: YES
  • Energy saving: YES
  • Behavior after power failure: YES
  • Sensitive edge connection: YES
  • Amperometric sensitivity: YES
  • Solar power supply: YES

Technical Specifications:

  • Power Supply: 230V 50Hz
  • Accessory Power Supply: 24Vac / 24Vdc
  • Maximum Motor Power: 150W
  • Maximum Operating Time: 240 sec.
  • Maximum Pause Time: 0 - 900 sec.
  • Amperometric Sensitivity: YES
  • Encoder Support: NO
  • Ingress Protection Rating: -
  • Dimensions (L x W x H): 120 x 90 x 30 mm
  • Operating Temperature: -20°C / +55°C
