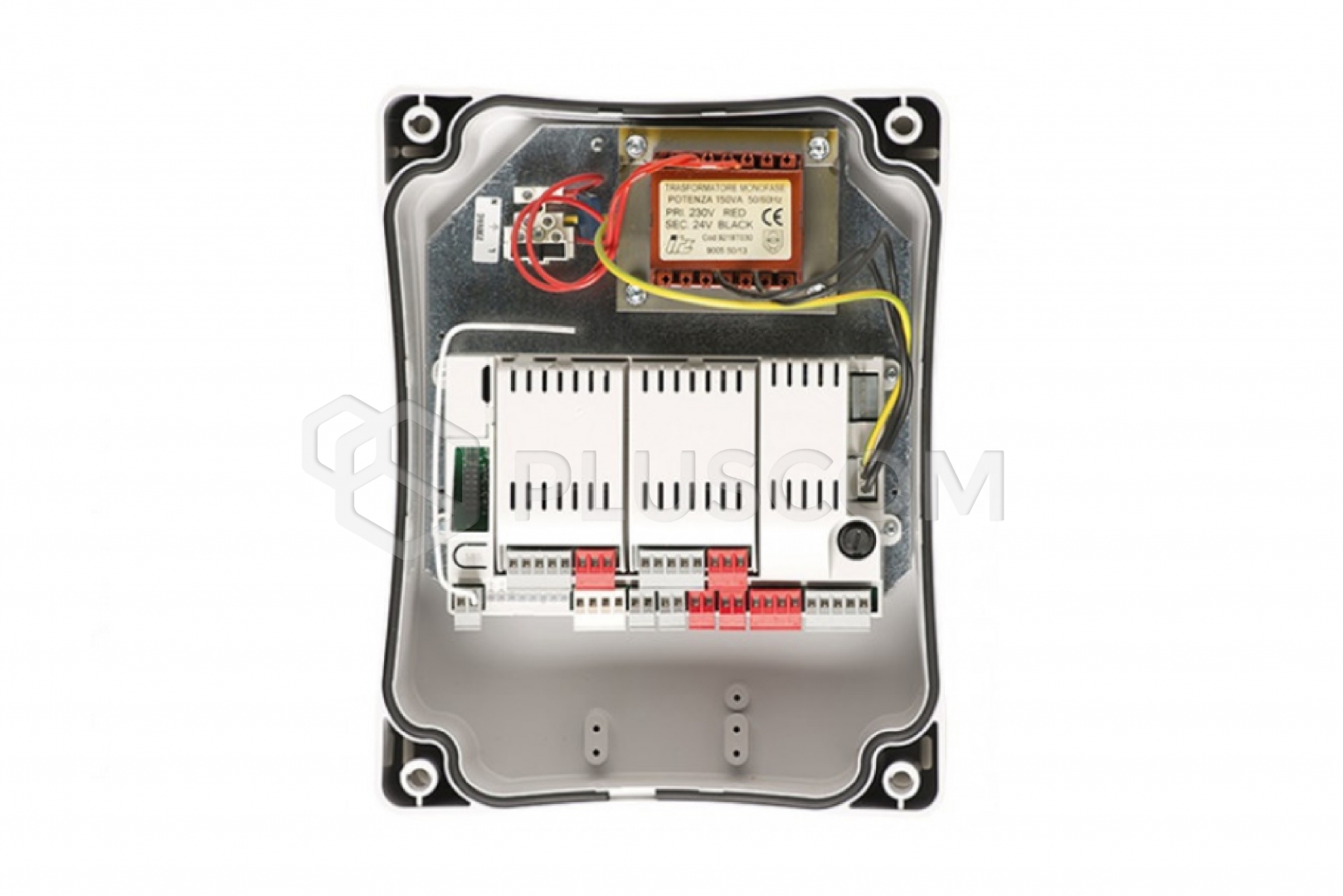

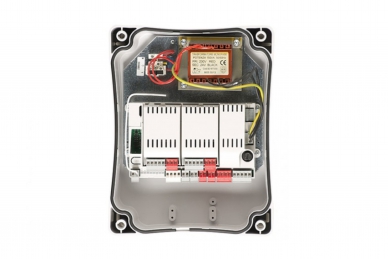

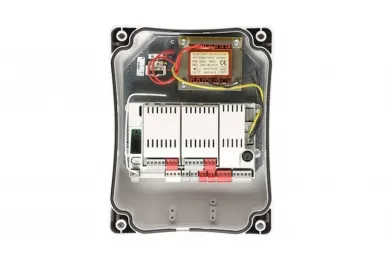

AVO A14AB250 Control unit in housing for 2 24V actuators

373,51 EUR including 23.00% VAT
Product code: #36461
Manufacturer: Avo
  • Power supply: 230V AC
  • Accessory power supply: 24V
  • Warning light output 24V/25W
  • Input for connecting a dedicated ARX4K radio receiver
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

AVO A14AB250 Control unit in housing for 2 24V actuators


A14AB250 (APO424PRO) - Control unit in a housing for two 24V actuators with a 250VA transformer and the option of connecting a radio receiver.

This unit belongs to the AVO ACT series of control units, which share the same method of programming end positions and adjusting parameters. The control unit supervises the operation of two actuators with 24V DC motors.

FEATURES:

  • Modules can be combined depending on the installation (1 or 2 actuators)
  • The same programming procedure for all systems
  • Amperometric sensitivity with reverse movement
  • Standard or programmable slowdown during opening and closing
  • Programmable automatic closing time (pedestrian function)
  • 24V/25W warning light output
  • Remote-controlled auxiliary lighting output (24V/15W)
  • Electric lock output (12VAC/15VA)
  • 2 analog photocell inputs
  • Normally activated STOP input
  • Safety input compatible with an 8.2 ohm resistive edge kΩ
  • 4 control inputs: step-by-step, open, close, gate
  • Input for connecting a dedicated ARX4K radio receiver

Technical specifications:

  • Power supply: 230V 50Hz
  • Accessory power supply: 24V
  • Maximum motor power: 300W
  • Maximum operating time: 240 sec.
  • Maximum pause time: 900 sec.
  • Amperometric sensitivity: YES
  • Encoder support: YES
  • Protection rating: IP54
  • Dimensions (L x W x H): 222 x 275 x 110 mm
  • Operating temperature: -20°C / +55°C
