Audio module MP-2/R

9,19 EUR including 23.00% VAT
Product code: #8198
Manufacturer: Ropam
  • High sensitivity
  • Gain Control 1-500x
  • Miniature size allows for discreet installation

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

MP-2R AUDIO MODULE (ADJUSTABLE)

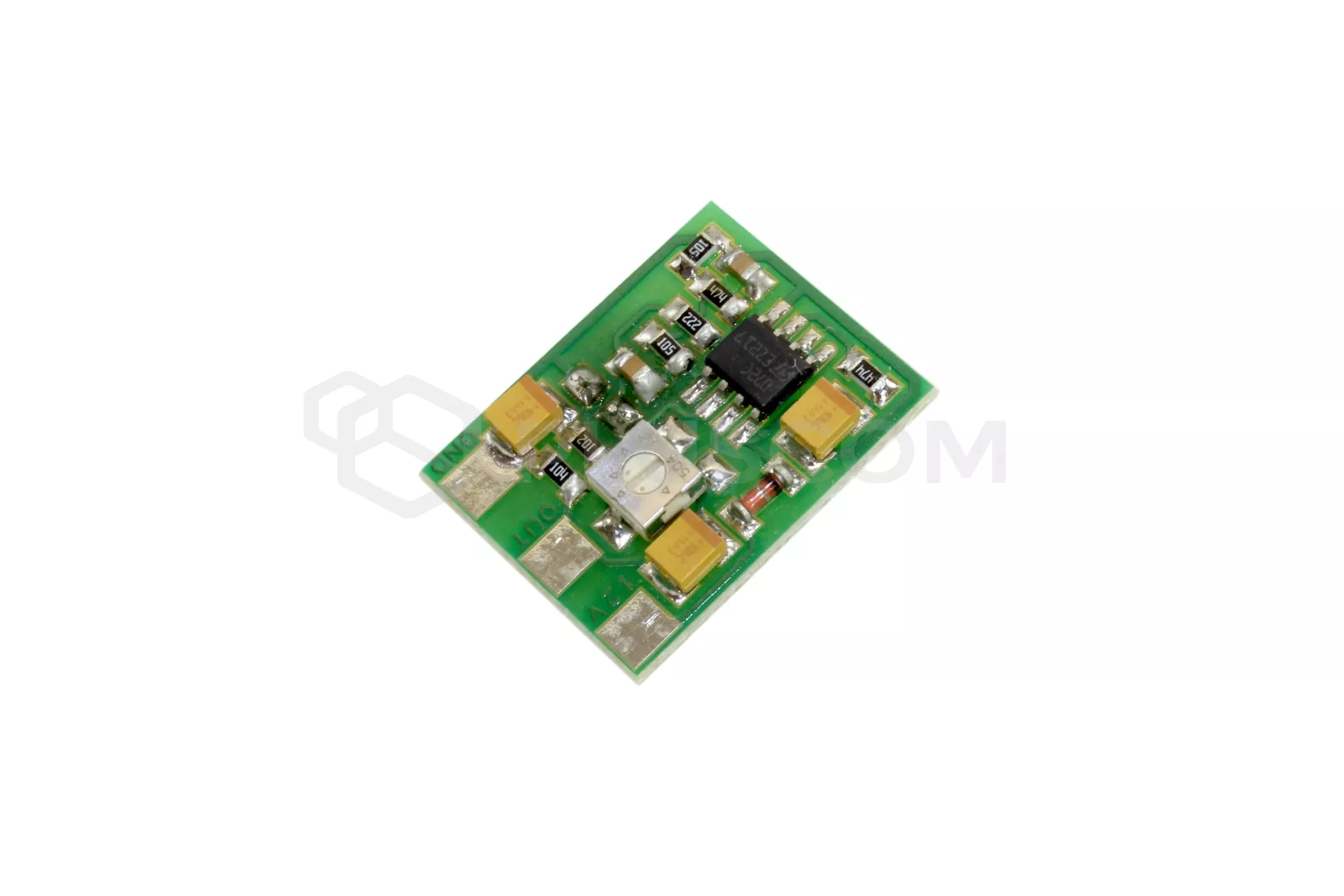

The MP-2/R miniature module is designed for cooperate with DVRs. It was made in SMD technology. The device has the microphone directly mounted on the PCB and gain control PCB potentiometer. There are three soldering points on the PCB to solder the connecting wires. The signal ground and the power ground are common (GND).

SPECIFICATIONS:
  • power – 12V DC
  • current consumption – 5mA
  • gain control - 1x-500x
  • microphone directly mounted on the preamplifier PCB
  • weight – 3g
  • dimensions – 19x24x9mm


Download
Datasheet 0.06 MB
Manual 0.05 MB
CE Declaration 0.35 MB
