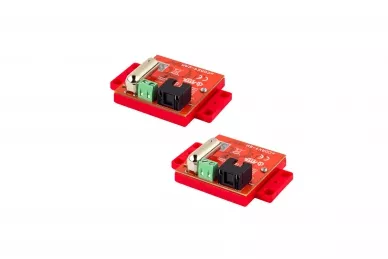

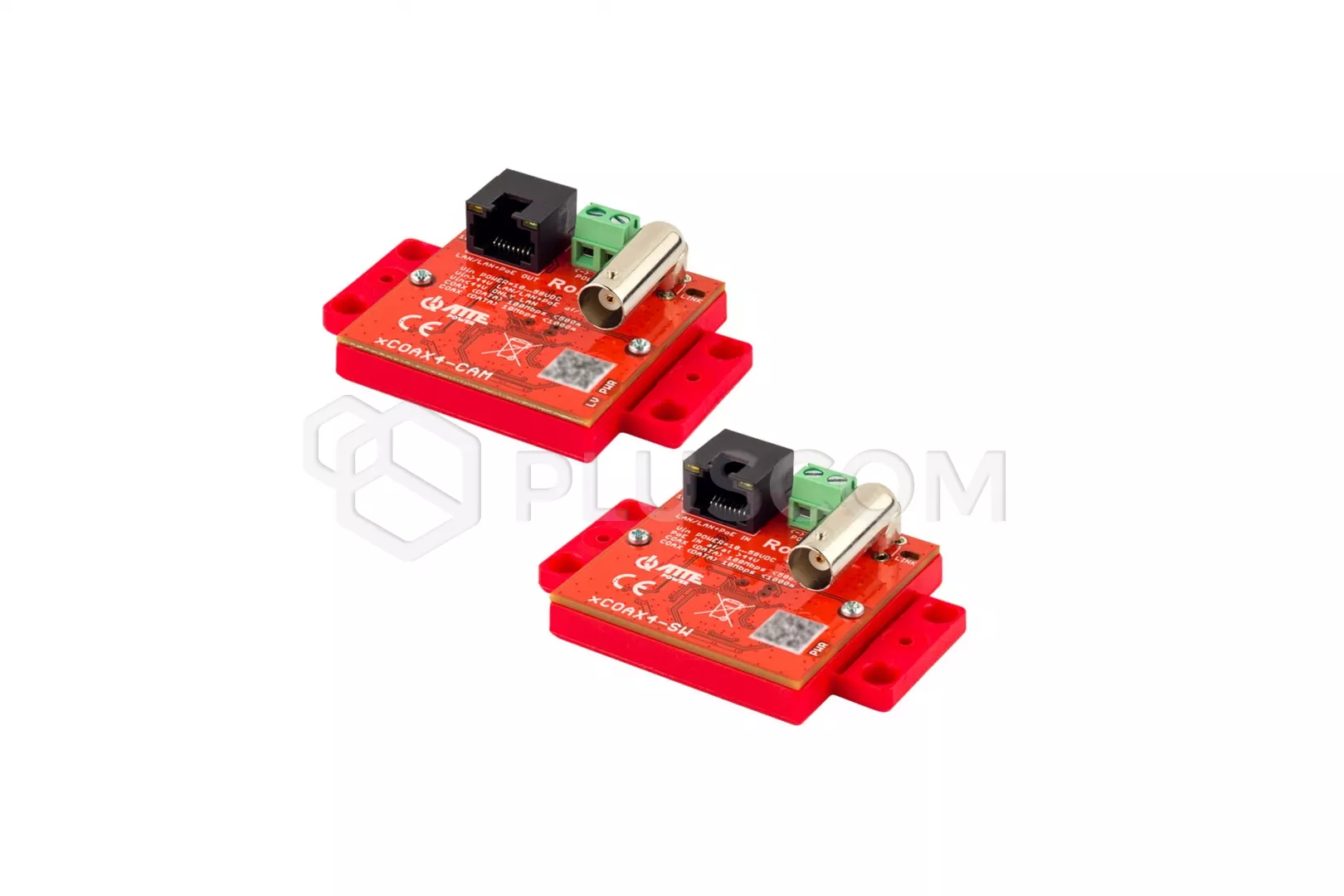

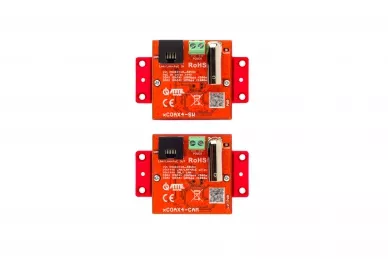

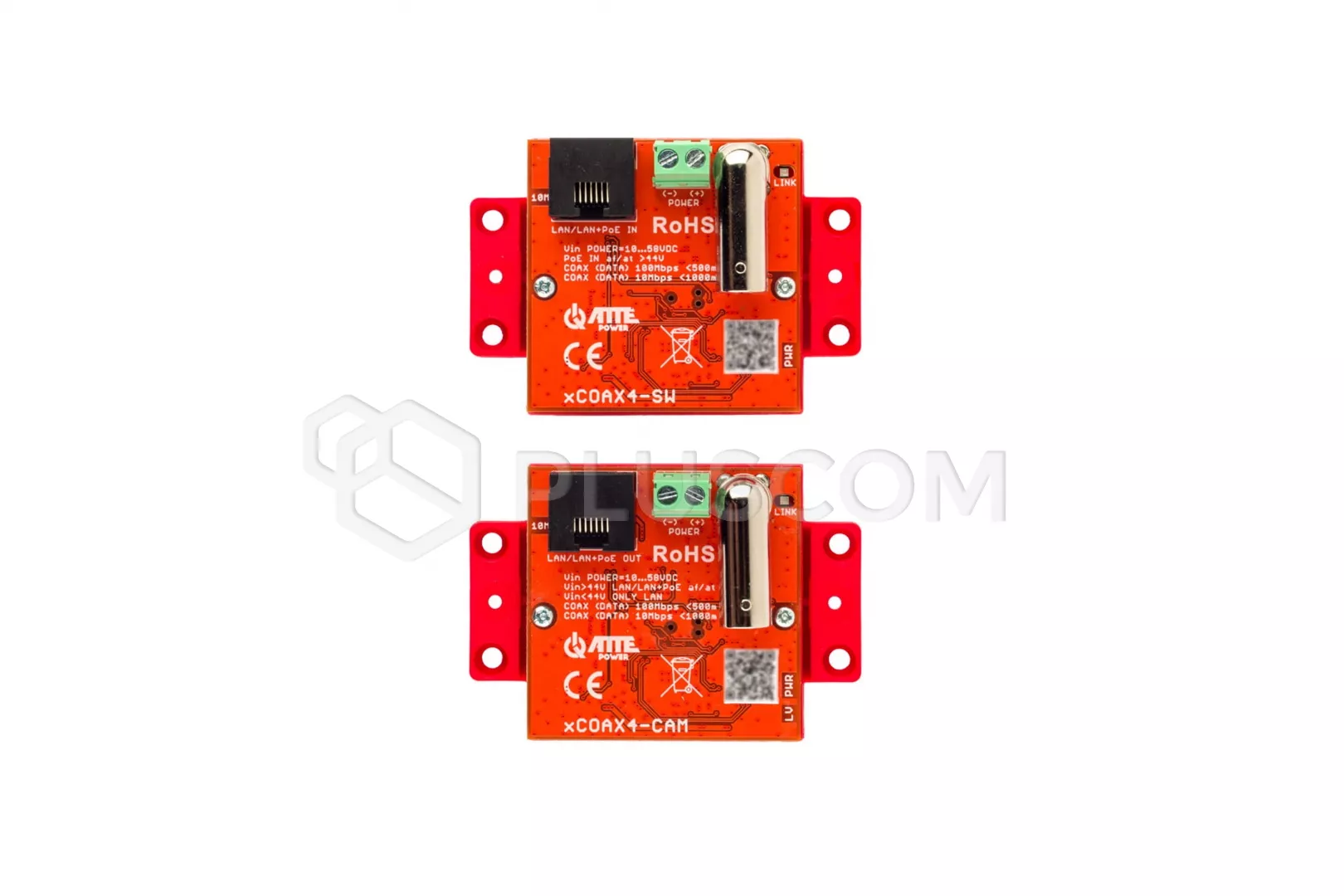

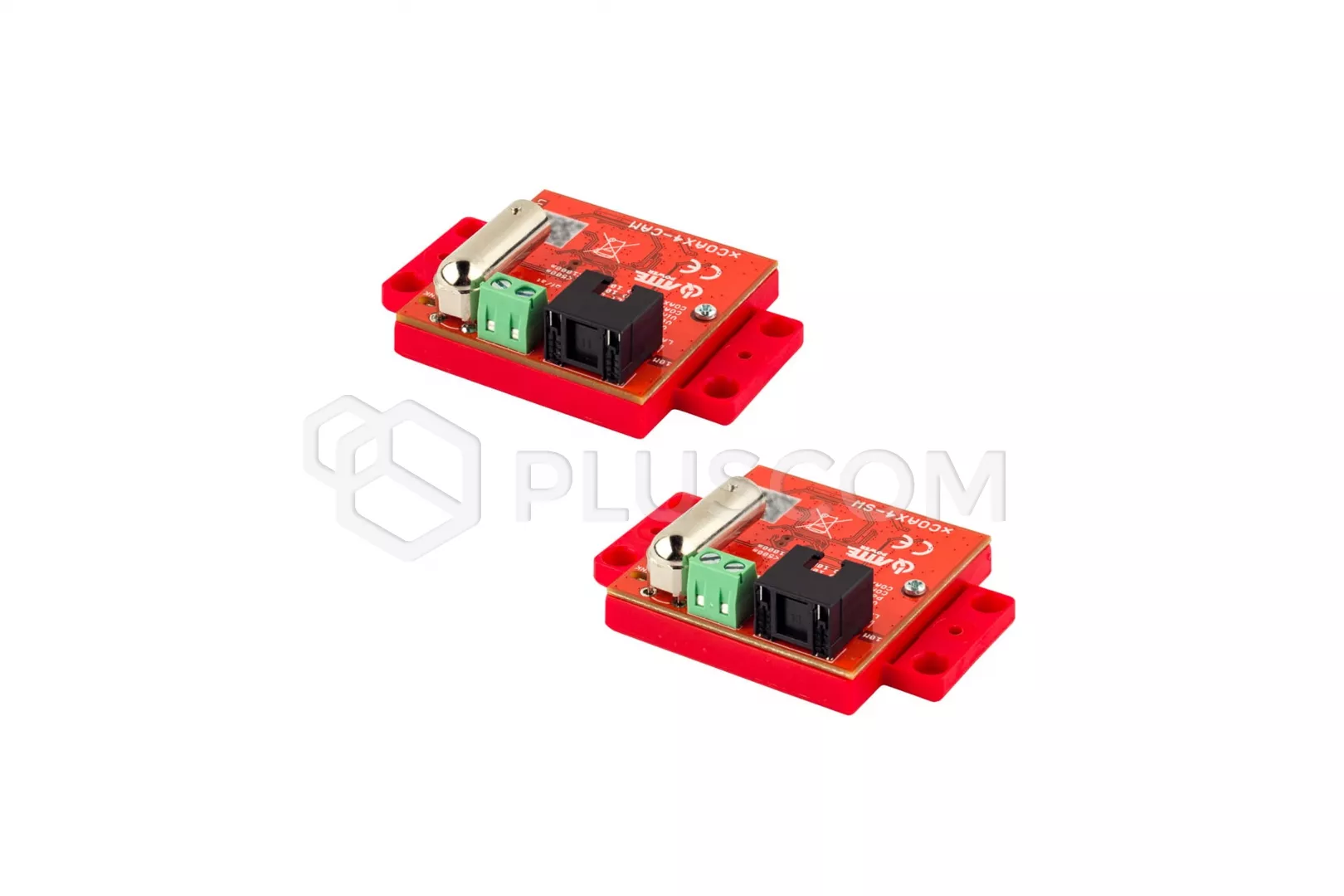

ATTE XCOAX4-SET ATTE XCOAX4-SET Set of active converters

ATTE XCOAX4-SET Set for LAN + PoE transmission via coaxial 100Mbps, range up to 1000m

The set includes:

• xCOAX4-SW
• xCOAX4-CAM

xCOAX4-SET is a set of active converters for data transmission from Ethernet networks and PoE power supply via a typical coaxial cable used in analog monitoring.
The devices can optionally be powered from POWER screw connectors. For correct power supply PoE receivers, the voltage must be higher than 44V DC. When supplied with voltage from screw connections 55V DC output power available on the PoE port increases to 60W.
The device has a very small size, which allows for easy installation in small spaces spaces, e.g. in the camera base or installation box.

The maximum distance of data transmission and PoEpower depends on the length and cross-section cables used and the quality of the BNC connectors used. Big impact on stability transmission is influenced by the presence of other wires in the cable route and additional indirect connections.
The maximum length of the coaxial cable is 1000m. In the case of low-quality cable the transmission speed can be reduced to 10Mbps, which will be signaled by the LED housing.

xCOAX4-SET enable the installation of IP PoE cameras in places where the existing one is replaced coaxial cabling is impossible or uneconomical. The xCOAX4-SW module is powered by any PoE switch (RJ45 port) and via a coaxial cable, allows bidirectional network communication and power supply for the xCOAX4-CAM module. IP camera or any other camera the network device can be connected to the RJ45 port of the xCOAX4-CAM module at the end of the line.

MOST IMPORTANT FEATURES:

• transmission range via coaxial cable up to 1000m at 10/100Mbps
• miniature design allows installation in the camera base
• possibility of power supply from PoE 802.3at/af switch, PoE PASSIVE (xCOAX4-SW) and via screw connectors with 10-58VDC
• interference resistance and watchdog function in the COAX path
• up to 40W total power
• clear optical indication of power supply and data transmission status
• very low power consumption (< 1.35 W)
• easy and quick startup without the need to configure parameters

TECHNICAL DATA:

• Total number of ports: 2 PoE port, 2 BNC port (female)
• PoE IN port: LAN/LAN + PoE IN 802.3af/at, PoE Passive
• PoE OUT ports: LAN/LAN + PoE OUT 802.3af/at/bt60
• LAN ports 10/100Mbps: LAN/LAN + PoE IN, LAN/LAN + PoE OUT
• LAN + PoE OUT 10/100Mbps ports: LAN/LAN + PoE OUT
• Input voltage: 10 ... 58 V
• PoE output voltage: Vout = Vin (44... 58 V)
• Maximum output power from the port: LAN/LAN + PoE OUT - 60 W
• Power consumption: 1.35 W (entire track)
• Output power control: Autonegotiation
• Surge protection: LAN and BNC ports
• Overload protection: xCOAX4-SW - Short-circuit protection with auto-recovery
• Coaxial cable length: < 1000m - xCOAX4-SW to xCOAX4-CAM
• Signalling of the coaxial track: LED LINK at the BNC connector (green) - link and data transmission in the COAX track
• Power indication: LED PWR - power supply present
• PoE signaling: LED RJ45 port (yellow) - presence of PoE power
• Transmission signaling: LED RJ45 port (green) - link and data transmission
• LAN bandwidth signaling: LED 10Mb - LAN transmission in the XCOAX path at a speed of 10Mbps
• Low voltage signaling: LED LV LowVoltage signaling diodeProtection level: IP20
• Housing design: Universal mounting base
• Mounting: Mounting pins, additional adapters available for TH-35 and RACK rails
• Operating temperature range: -25°C ... +65°C
• Dimensions: 51(73) x 51 x 23 mm
• Weight: 0.06 kg
