ATTE SDIP-40-120 Gigabit PoE adapter to step down the voltage

45,77 EUR including 23.00% VAT
Product code: #36451
Manufacturer: Atte
  • Number of PoE ports: 2
  • Output voltage: 12 vdc
  • Supply voltage: 44 ... 56 VDC (PoE)
  • Output power: 40 W
  • IP20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

ATTE SDIP-40-120 Gigabit PoE Adapter lowering the voltage to 12V 40W

The SDIP-40-120 Gigabit Adapter is a non-isolated DC/DC step-down converter. The device is a dedicated solution for powering devices with 12V DC with a budget of 40W, using PoE 802.3at/bt or PoE PASSIVE 44...56 VDC. When powered by PoE, we get stable 12V to power the device and a LAN output on the RJ45 connector.

Basic possibilities of using the adapter to power devices such as:
  • NVR with disk
  • Cameras combined with IR lighting, beacon, microphone or loudspeaker
  • IP video intercom gate station with electric strike
  • Non-standard PoE devices (e.g. those that do not work with the 802.3af/at standard

TECHNICAL DATA:

  • Total number of ports: 2 PoE ports, 1 Screw strip
  • Supply voltage: 44 ... 56 VDC (PoE)
  • Output voltage: 12 VDC +/-3%
  • Output power: 40 W
  • Surge protection: LAN IN, DC OUT
  • Overload protection: DC OUT
  • Power indication: PWR LED (red) - power supply present
  • PoE signaling: LED in LAN connectors (yellow) - presence of PoE power on the port
  • Operating temperature range: -25°C ... +50°C
  • Protection rating: IP20

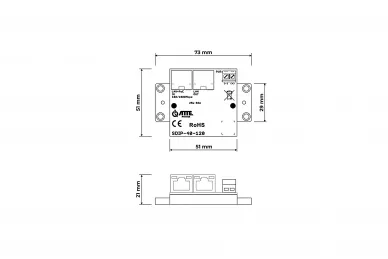

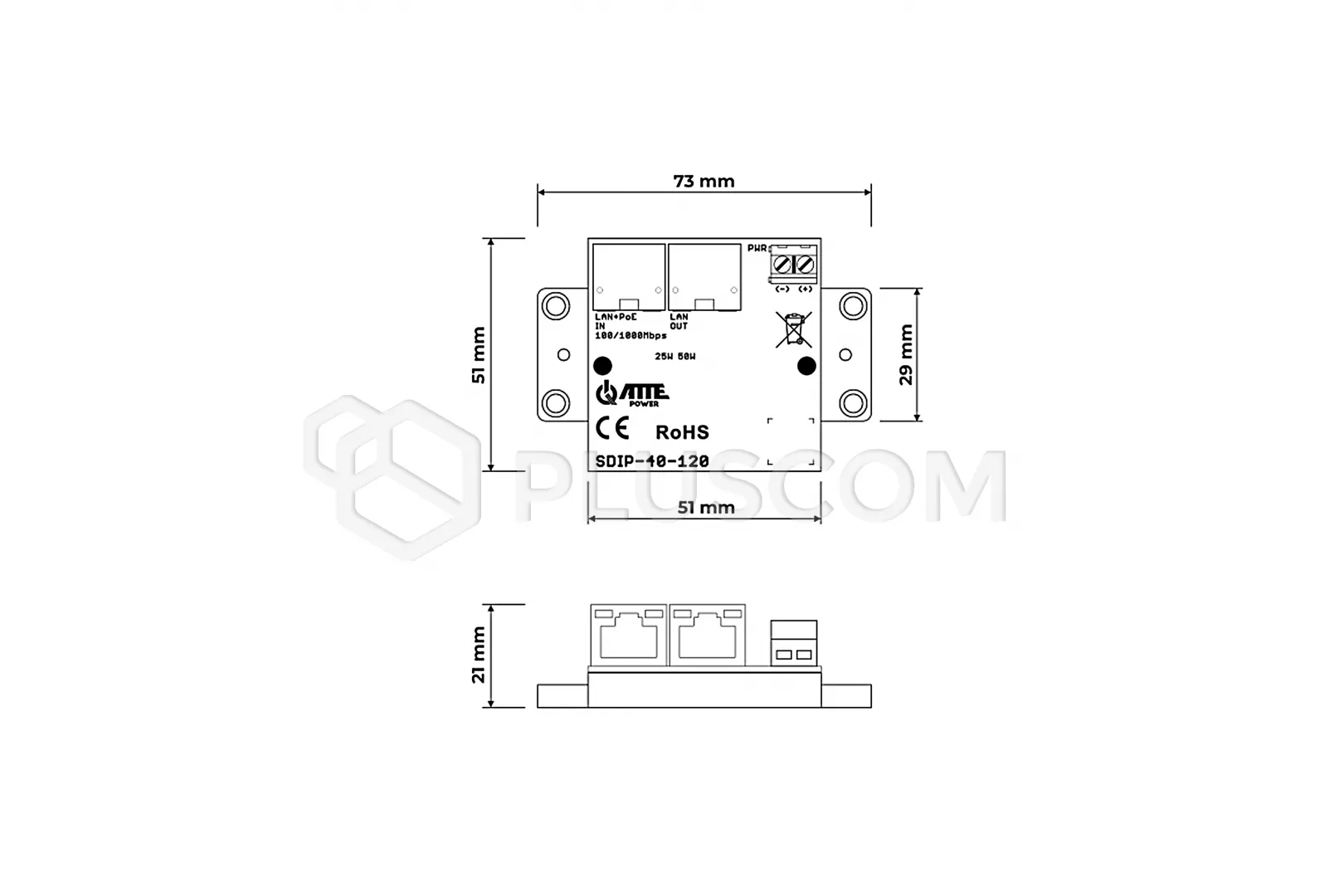

  • Dimensions: 51 x 51(73) x 21 mm
  • Weight: 0.032 kg
