ATTE SDIP-12-240 Gigabit PoE adapter to step down the voltage

24,40 EUR including 22.00% VAT
Product code: #36450
Manufacturer: Atte
  • Number of PoE ports: 2
  • Output voltage: 24 vdc
  • Supply voltage: 35 ... 56 VDC (PoE)
  • Output current: 0.5 A
  • IP20
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

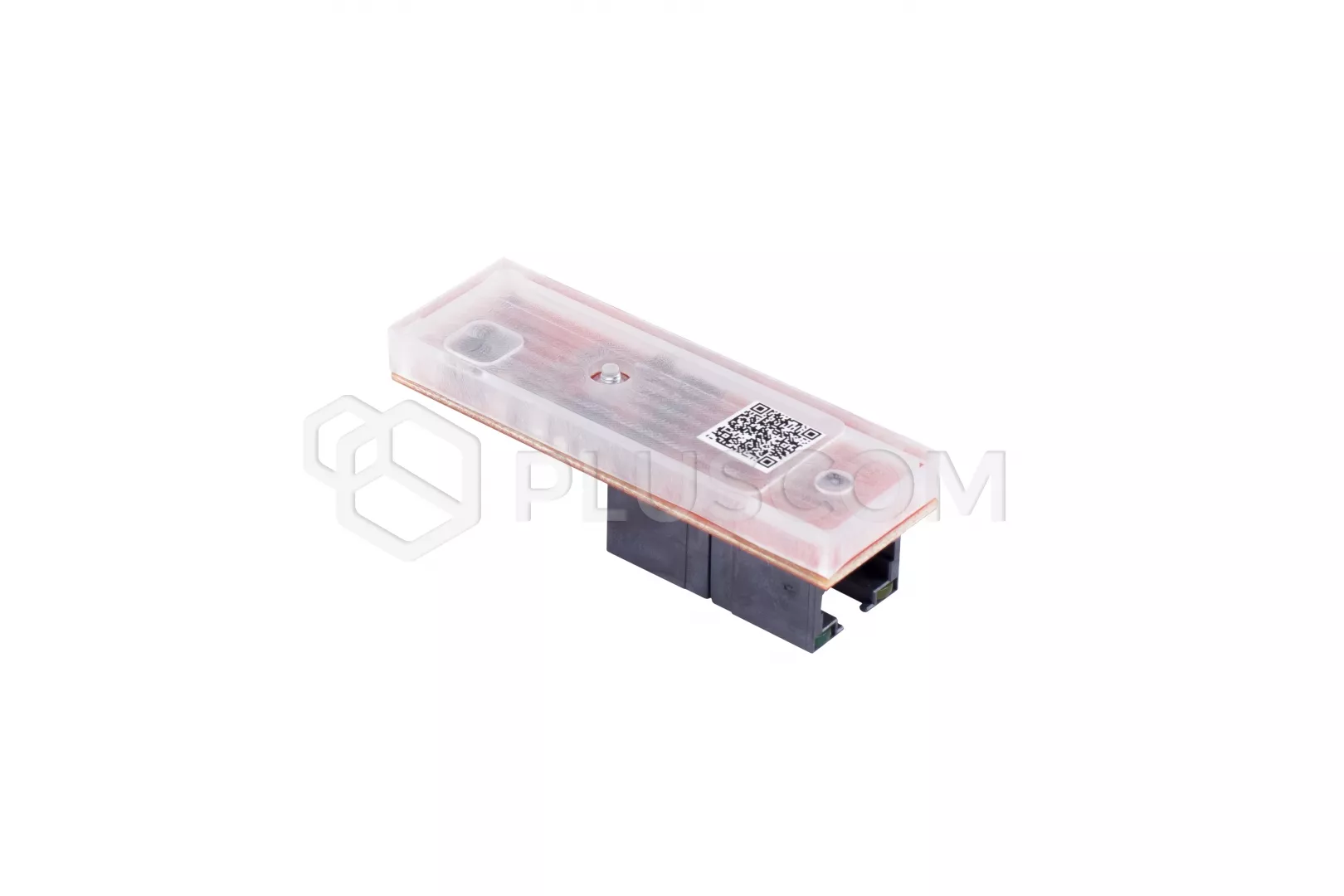

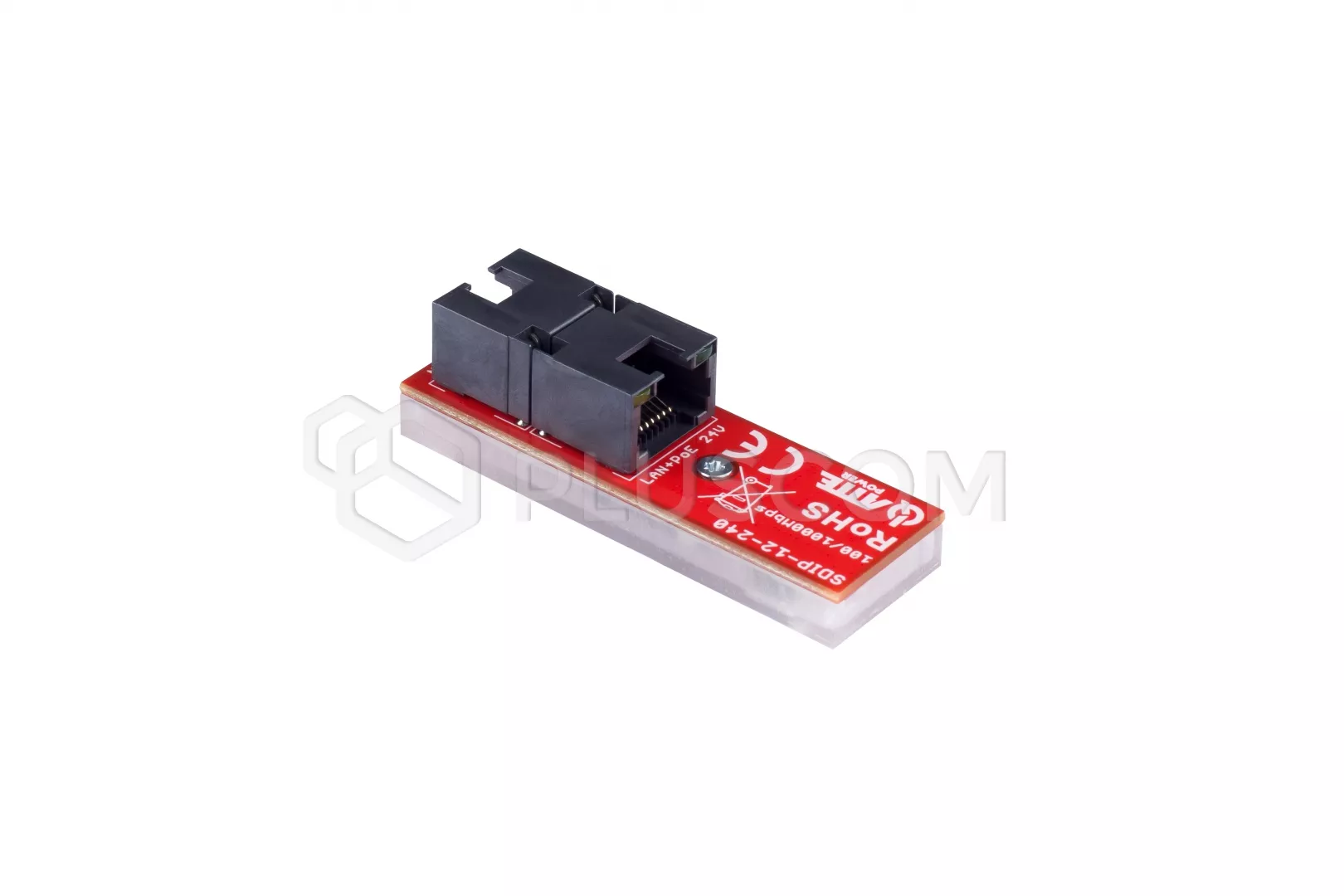

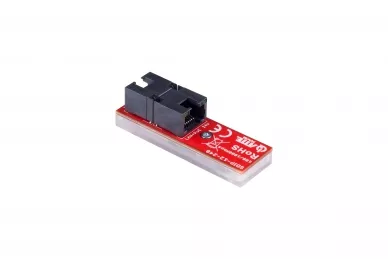

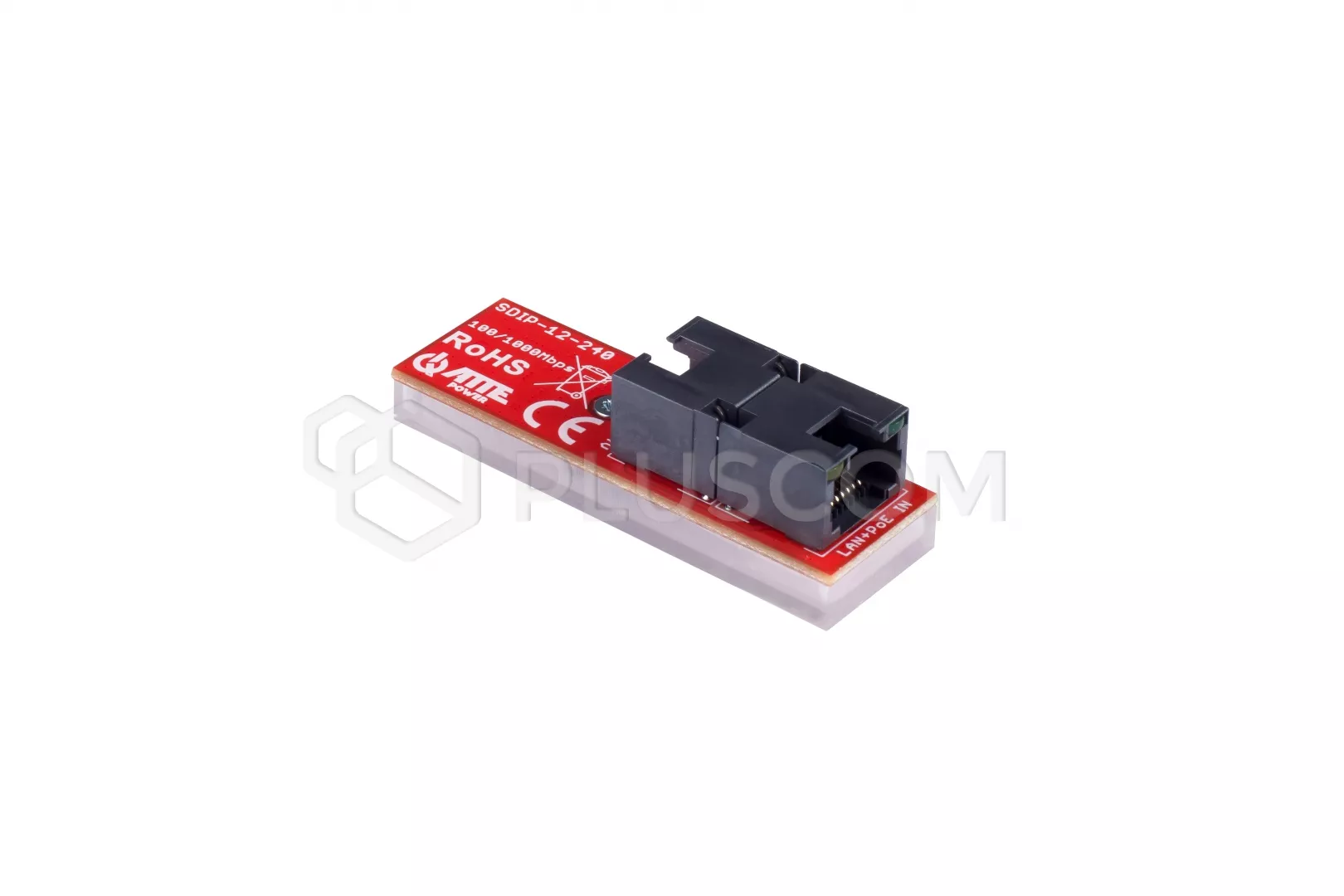

ATTE SDIP-12-240 Gigabit PoE Adapter lowering the voltage to 24V

The SDIP-12-240 Gigabit Adapter is a non-isolated DC/DC step-down converter. The device allows you to change the PoE 802.3 af or PoE PASSIVE 35-56V standard to the PoE PASSIVE 24V standard. The basic use of the adapter is to power AP WiFi access devices requiring a PoE power supply voltage of 24V. Gigabit bandwidth allows full use of wireless transmission speeds.
The device can be powered by 802.3af and PoE PASSIVE switches.

THE MOST IMPORTANT FEATURES:

  • a solution for powering WiFi AP devices requiring 24 V PoE voltage from any PoE switch
  • easy to implement and install, maintaining power supply to access points using IPUPS sets
  • wide input voltage range
  • small module size

TECHNICAL DATA:

  • Total number of ports: 2 PoE ports
  • Supply voltage: 35 ... 56 VDC (PoE)
  • Output voltage: 24 VDC +/-3%
  • Output current: 0.5 A
  • Surge protection: LAN IN, LAN OUT
  • PoE signaling: LAN LED (yellow) - presence of PoE power on the port
  • Protection rating: IP20
  • Housing construction: Polycarbonate
  • Operating temperature range: -25°C ... +50°C

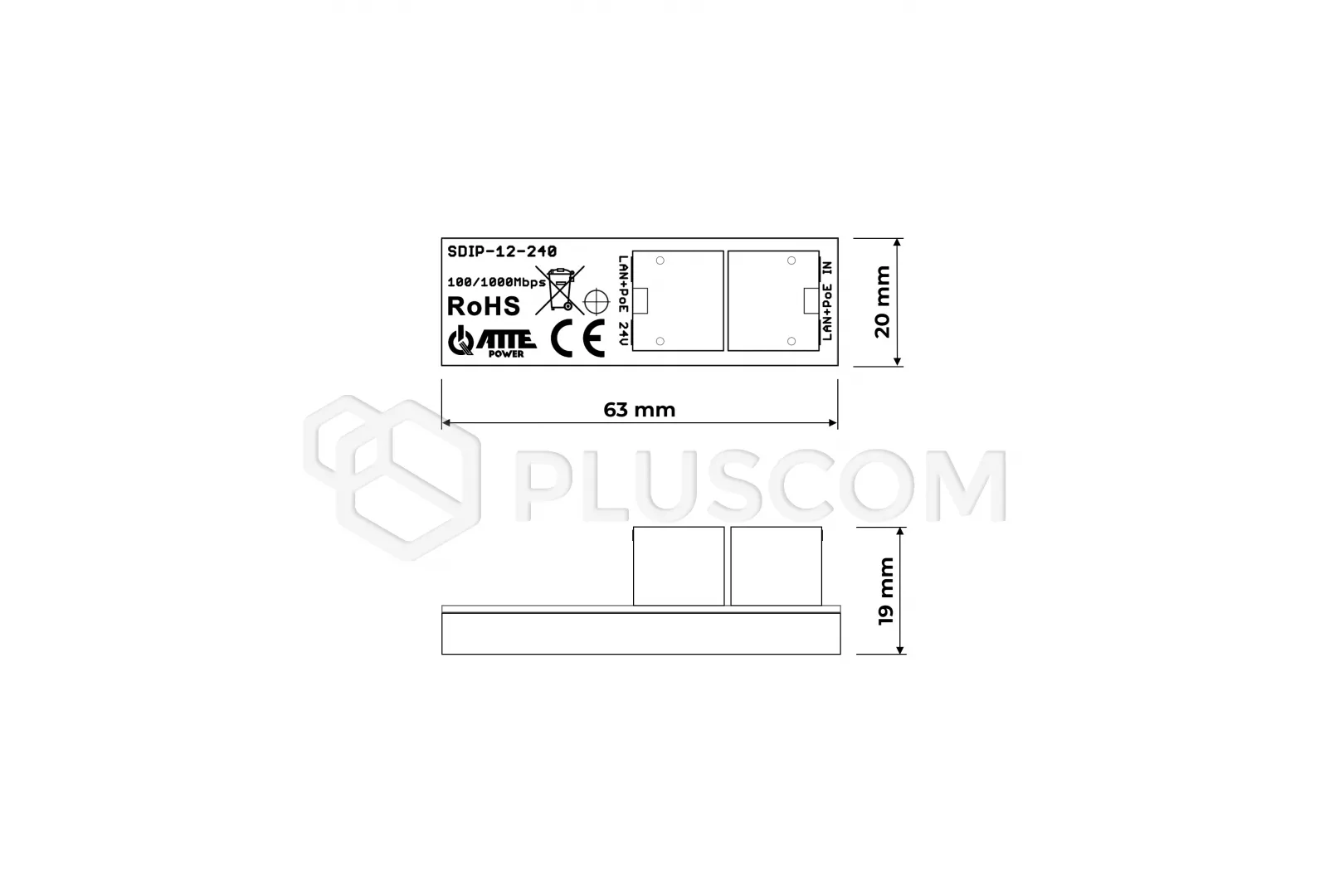

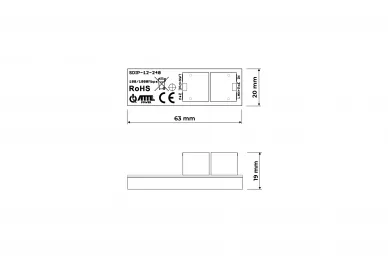

  • Dimensions: 63 x 20 x 19 mm
  • Weight: 0.015 kg
