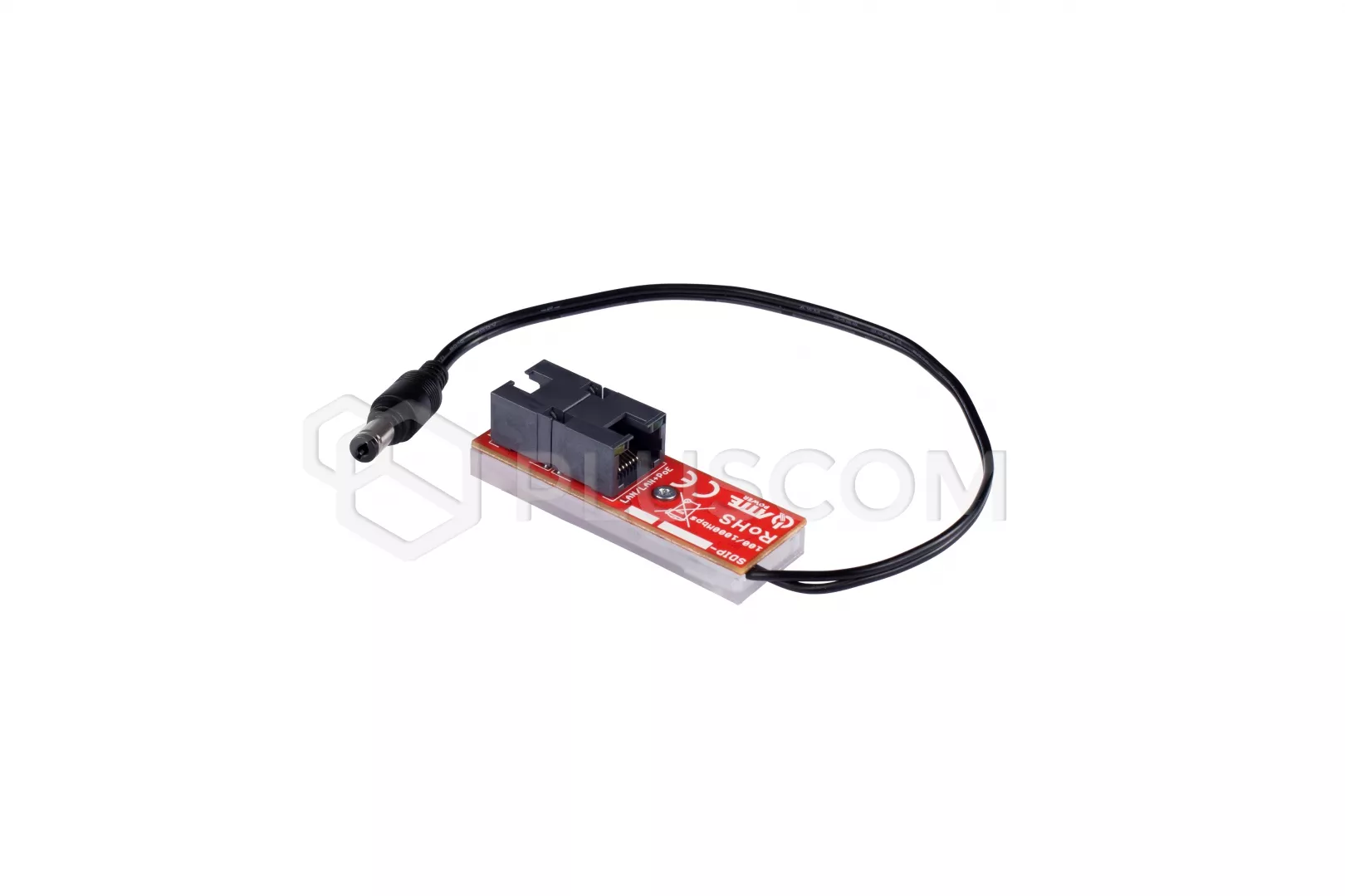

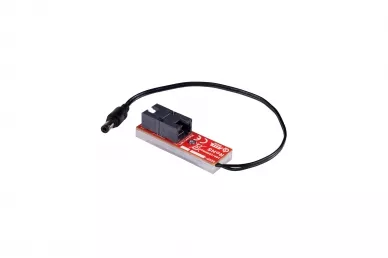

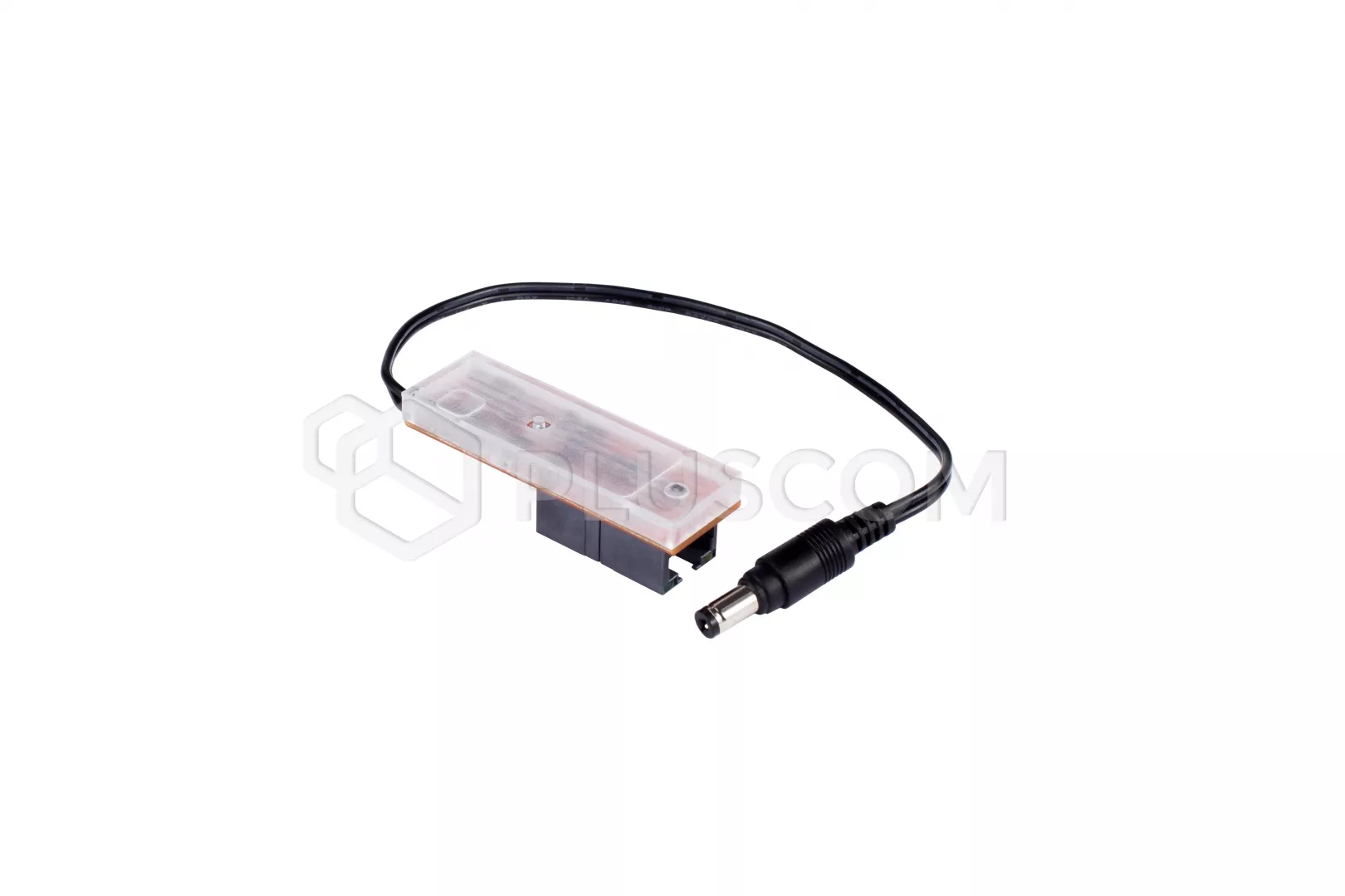

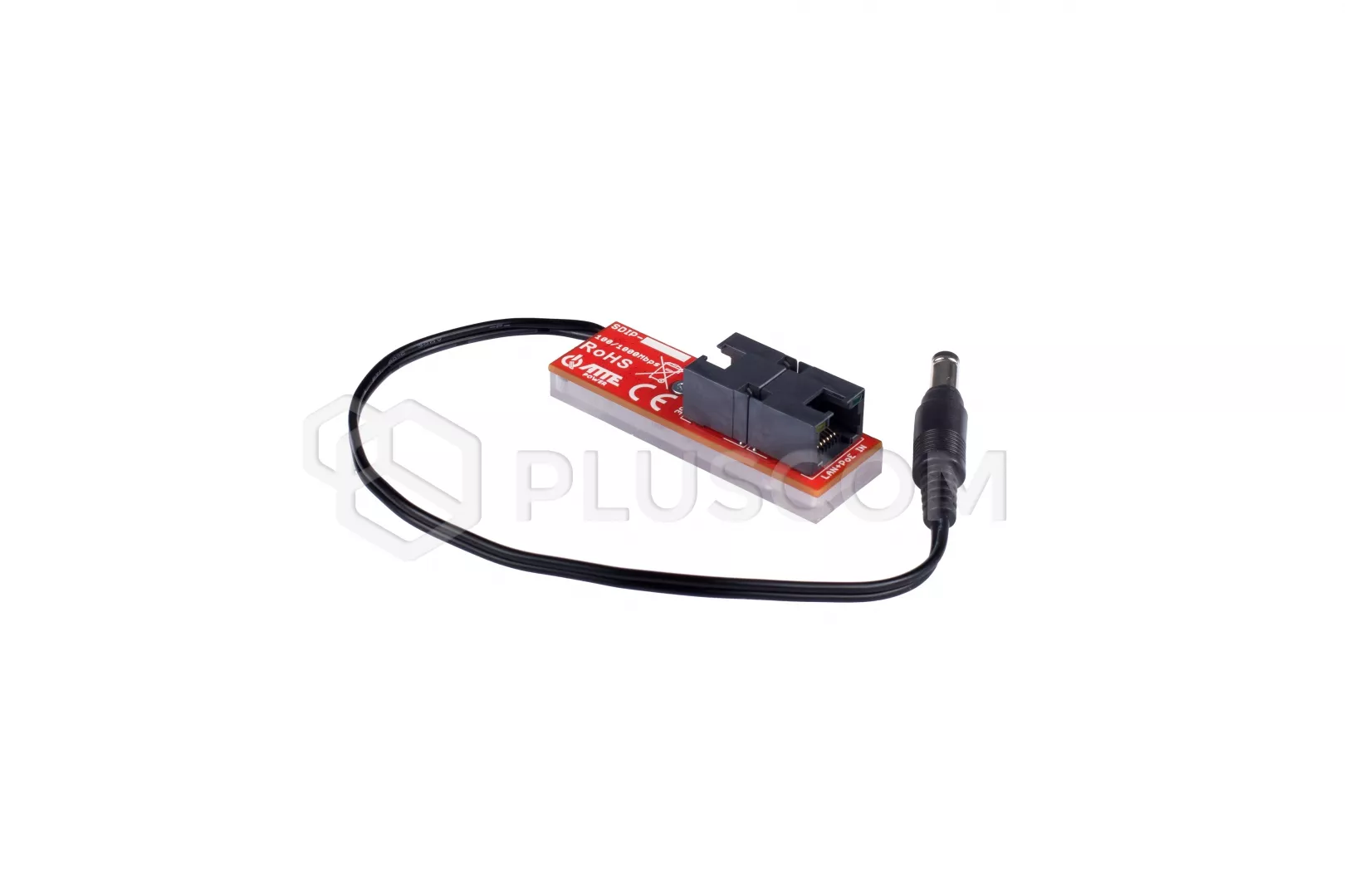

ATTE SDIP-12-121 Gigabit PoE adapter to step down the voltage

24,60 EUR including 23.00% VAT
Product code: #36448
Manufacturer: Atte
  • Number of PoE ports: 2
  • Output voltage: 12V DC
  • Supply voltage: 35 ... 56 VDC (PoE)
  • Output current: 1A
  • IP20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

ATTE SDIP-12-121 Gigabit PoE adapter lowering the voltage to 12V

The SDIP-12-121 gigabit adapter is a DC/DC step-down converter. The device allows us to power devices with a nominal voltage of 12V using PoE 802.3 af or PoE PASSIVE 35-56V. The basic use of the adapter is to power devices such as a camera or a door station with an electric strike requiring 12V power supply. Gigabit bandwidth allows full use of the transmission speed.
There is no PoE power supply at the RJ45 output, only LAN transmission.

The adapter is designed to work with a PoE switch operating in the 802.3af or PoE PASSIVE standard.

The most important features and functions:

  • designed to work in 10/100/1000Mb/s networks
  • cooperation with PoE 802.3af switches
  • cooperation with passive PoE power supplies 35-56VDC
  • small module size
  • optimized arrangement of RJ45 connectors facilitating installation in installation boxes

TECHNICAL DATA:

  • Total number of ports: 2 PoE ports, 1 DC plug
  • Supply voltage: 35 ... 56 VDC (PoE)
  • Output voltage: 12 VDC +/-3%
  • Output current: 1 A
  • Surge protection: LAN IN, LAN OUT, DC OUT
  • Overload protection: DC OUT 2A converter protection
  • Power indication: DC LED (red) - DC_OUT power supply present
  • PoE signaling: LAN LED (yellow) - presence of PoE power on the port
  • Housing construction: Polycarbonate
  • Protection rating: IP20
  • Operating temperature range: -25°C ... +50°C

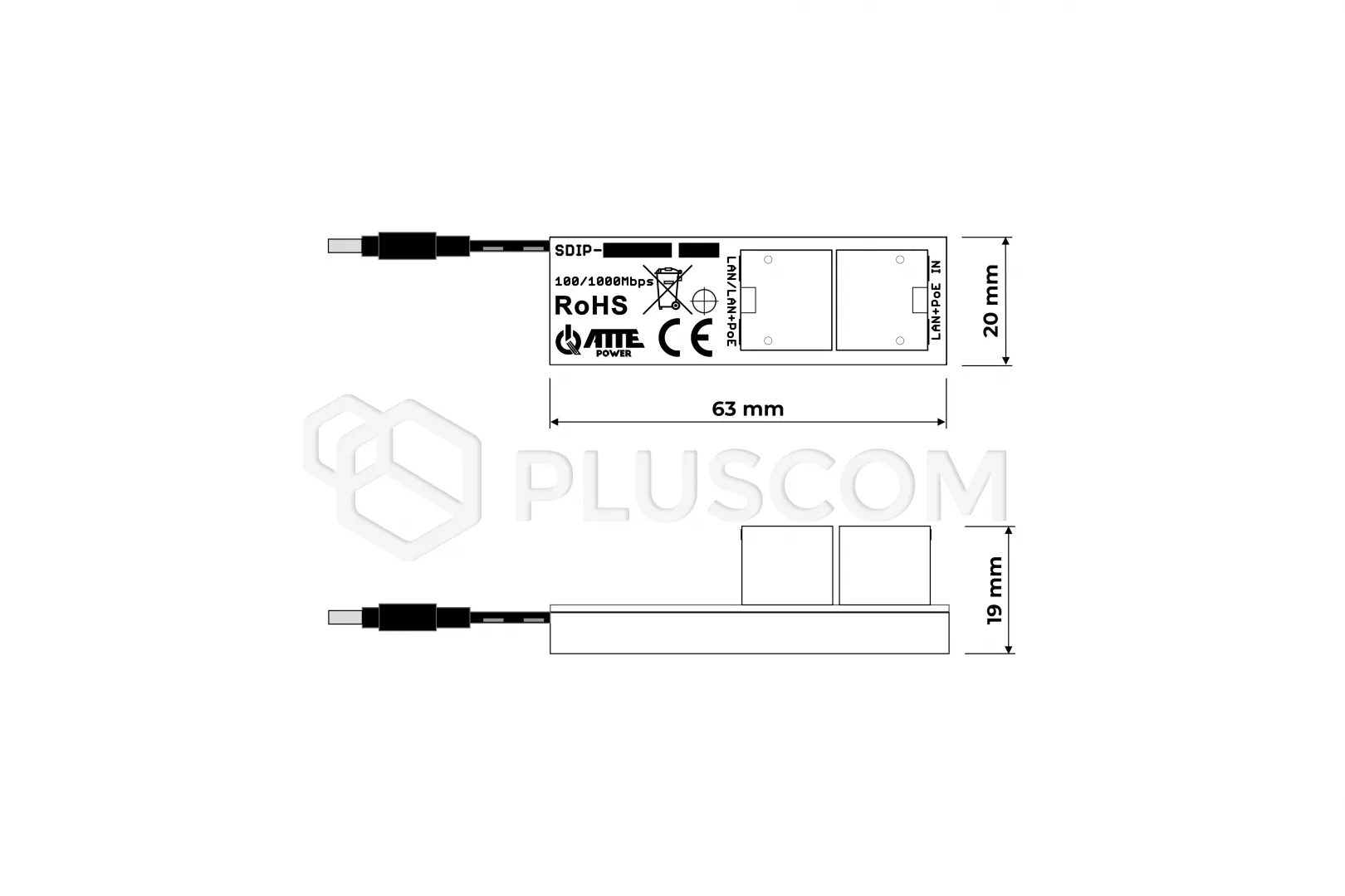

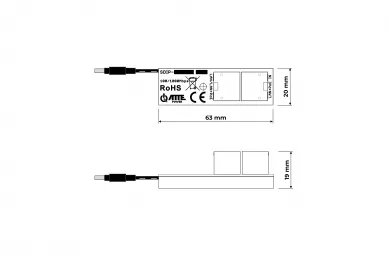

  • Dimensions: 63 x 20 x 19 mm
  • Weight: 0.022 kg
