ATTE IPM-90-550 Midspan PoE 1 channel

107,79 EUR including 22.00% VAT
Product code: #36446
Manufacturer: Atte
  • Supply voltage: 190 ... 260 VAC, 50 Hz
  • Output voltage: 55VDC
  • Number of PoE ports: 2x
  • AC_IN socket
  • Supports power supply standards: PoE, PoE+, Hi Poe in 3 modes
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

ATTE IPM-90-550 Midspan PoE 1 channel 10/100/1000Mbps 55V 90W

IPM-90-550 is used to power devices compliant with the PoE standard in LAN networks. Placed between a switch that does not have PoE power supply (or there is insufficient power budget) and network devices (e.g. cameras, access points, extenders) allows simultaneous power supply and data transmission to IP PoE devices using one UTP twisted pair at a speed of 10/100/1000Mbps.
It provides power using both UTP data pairs (1/2 and 3/6) and free pairs (4/5 and 7/8) depending on the receiver's identification method.

It supports all popular PoE, PoE+, Hi Poe power supply standards in 3 operating modes selected from a handy menu:
  • standard 802.3 AF / AT/ BT60 / BT90
  • PoH mode equivalent to PoE+ and HiPoe for demanding receivers beyond standardization
  • Passive PoE with auto-negotiation (e.g. all xPoE-xx series ATTE ecosystem devices, AP WIFI distribution points)
Preview of the current working status and menu functions are operated on the built-in display.

The most important features and functions:

  • powering any devices operating in most PoE standards
  • display clearly presenting the current operating status
  • function of a simple PoE tester/meter to facilitate the calculation of the power budget
  • support for high-power PoE receivers
  • perfect power source for cascaded APT series extenders
  • designed to work in 10/100/1000 Mbps networks
  • high efficiency 96%
  • support for Passive PoE receivers
  • optical indication of operating status
  • port security

TECHNICAL DATA:

  • Total number of ports: 2 PoE ports, 1 AC_IN socket
  • Selection of the PoE standard at the input: using the button next to the display
  • Supply voltage: 190 ... 260 VAC, 50 Hz
  • Output voltage: 55 VDC +/-2%
  • Power of the power supply: 90 W
  • Efficiency: 96% @90W
  • Surge protection: LAN+PoE OUT and AC_IN
  • Overload protection: LAN+PoE OUT and AC_IN
  • Thermal protection: LAN+PoE OUT
  • Operating indication: information displayed on the display
  • PoE signaling: LAN + PoE OUT (yellow) RJ45 - presence of PoE power
  • Transmission signaling: LAN + PoE OUT (green) RJ45 - link and data transmission
  • Casing design: dedicated plastic casing
  • Protection rating: IP20
  • Operating temperature range: -25°C ... +65°C

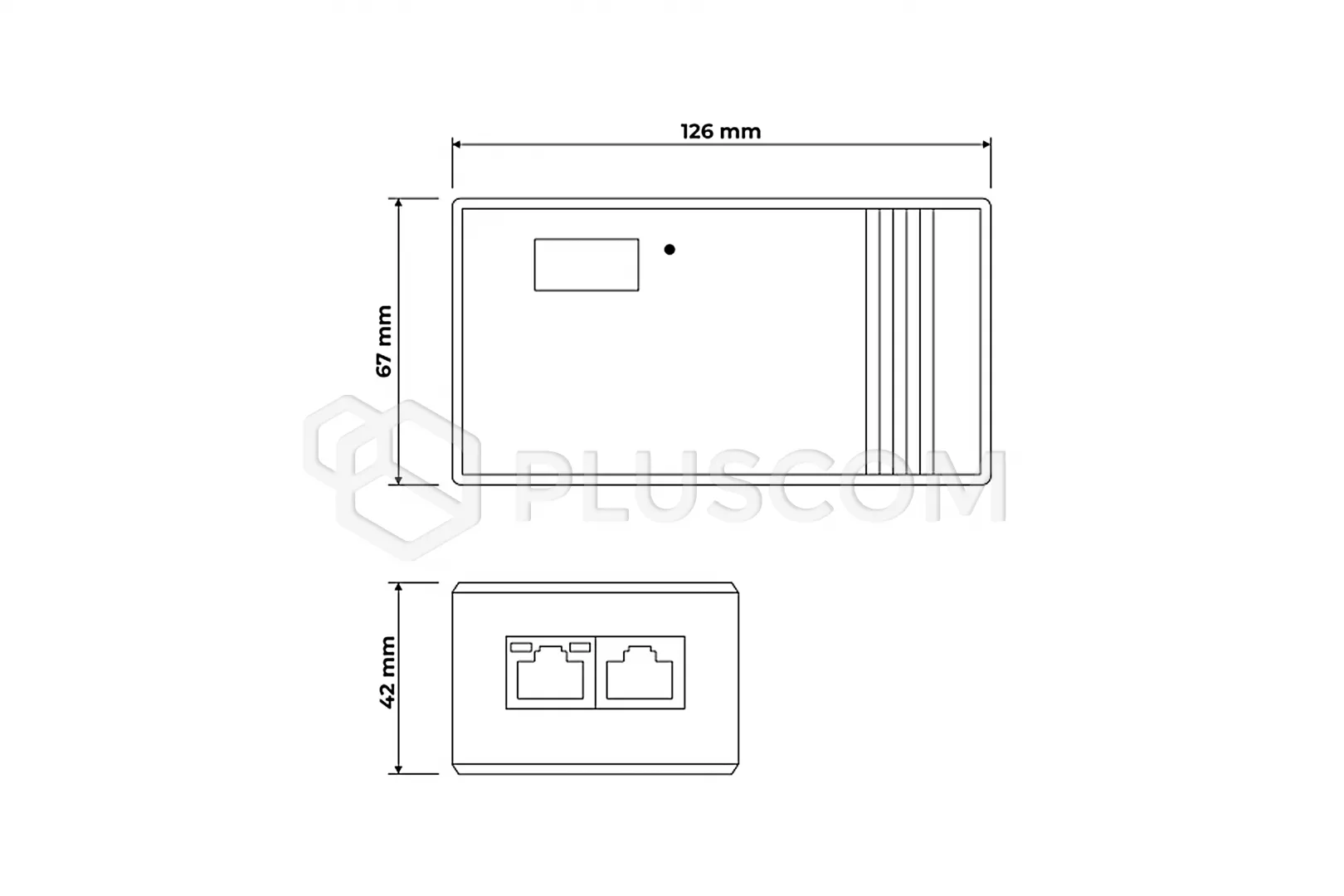

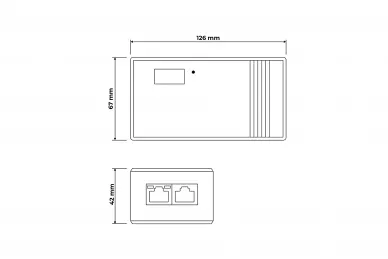

  • Dimensions: 67 x 126 x 42 mm
  • Weight: 0.194 kg
