ETH10-2wire-SET LAN transmission kit 10Mbps + PoE with 2 wires for
1000m

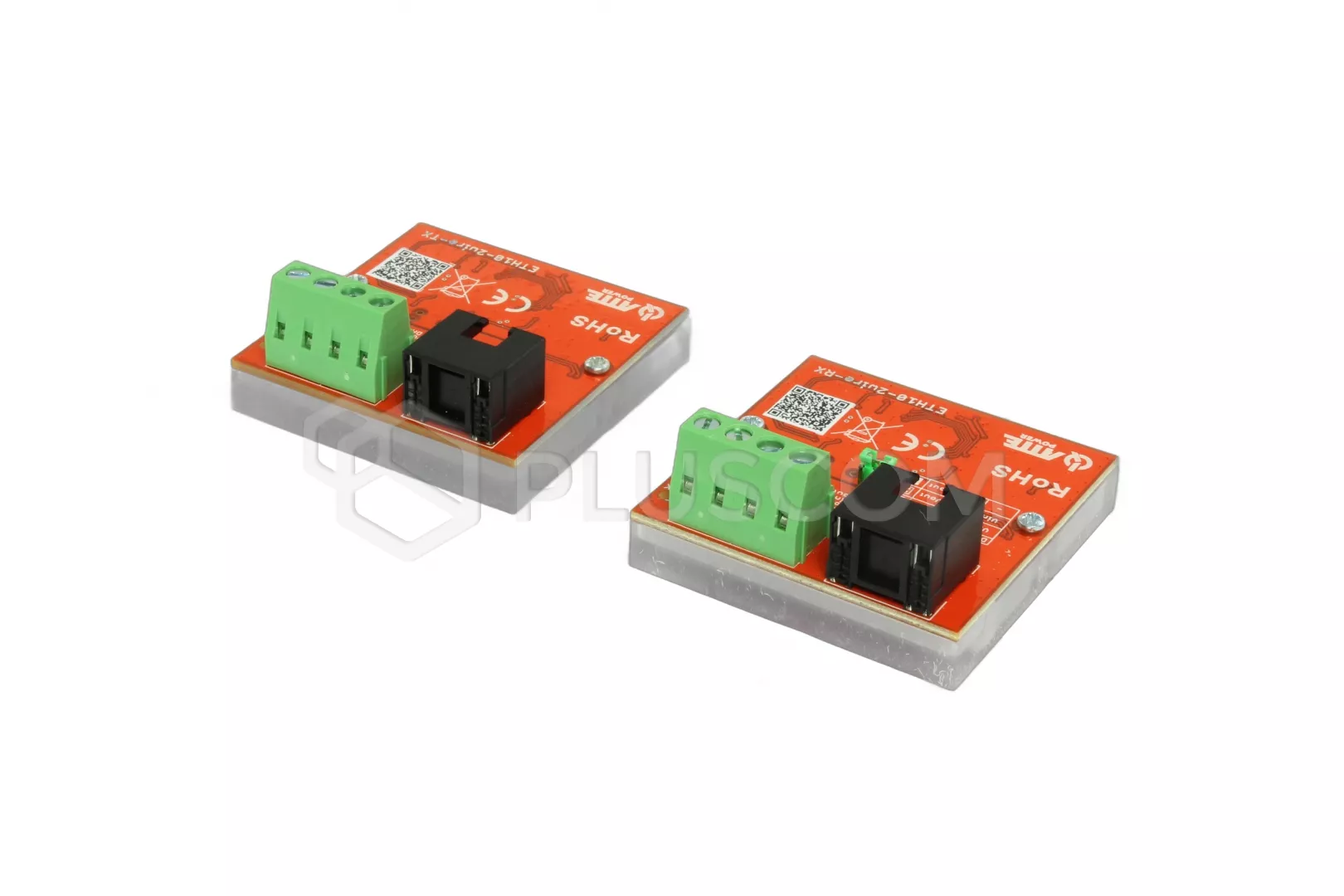

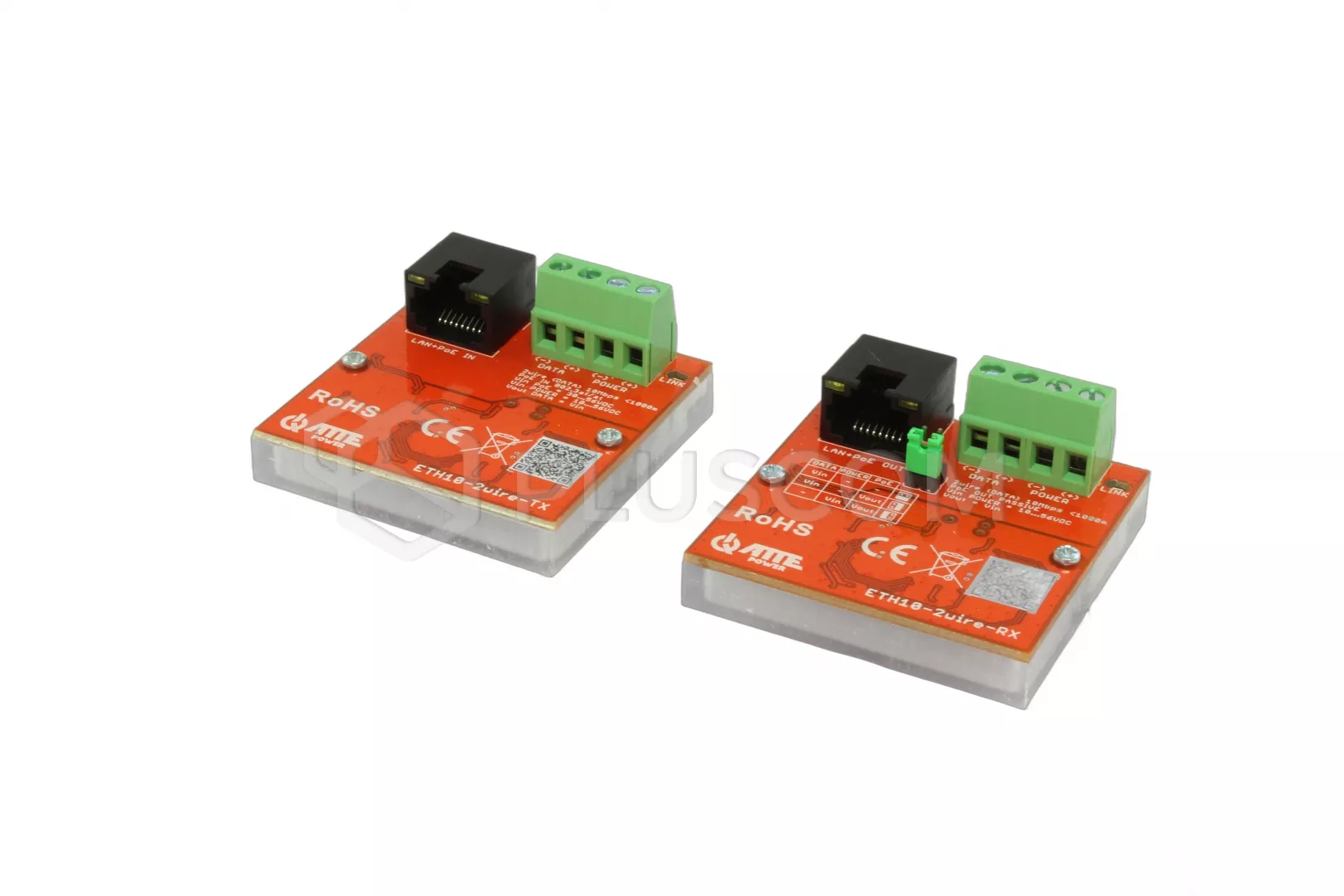

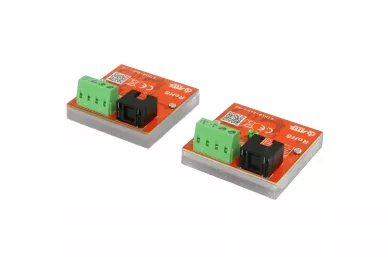

ETH10-2wire-SET is a set of active converters for data transmission from the
network Ethernet and PoE power supply using 2 wires, e.g. one pair UTP twisted
pairs. The devices enable the installation of cameras or other PoE IP devices
places where replacing the existing cabling is impossible or unprofitable.
The ETH10-2wire-TX module is powered by any PoE switch (RJ45 port) and then via
2 wires, enabling two-way communication network and power supply for the
ETH10-2wire-RX module with a PoE camera. Devices can optionally be powered from
POWER screw connectors. Maximum length cables in the 2wire track are 1000m. A
camera or other PoE receiver can be connected to the RJ45 port of the
ETH10-2wire-RX module at the end of the line.
Depending on the selected operating mode of the converters, they and the
devices are powered connected to them can be implemented in several ways.
Powered by PoE or z external power supply. Both from the ETH10-2wire-TX
transmitter side and ETH10-2wire-RX receiver. The device has a very small size,
which allows for easy installation in small spaces, e.g. in the camera base or
installation box.
The most convenient method of installation is dedicated ABOX series housings
and sheet metal assembly, equipped with system holes in a 10.8 mm pitch.
Systemic The solution allows for vertical or horizontal installation of
selected devices any drilled part of the housing or mounting plate. Applicating
additional adapter, the device can be installed on the TH-35 rail.
The housing allows for installation in several ways:
- using mounting pins on the 10.8 grid, which is available in all of them
ABOX
- housings
- by screwing through additional holes to any flat surface surface
- using the ADD-RACK2U1 or ADD-RACK2U2 mounting plate
- using additional latches on the TH35 (DIN) ADD-TH35 rail
TECHNICAL DATA:
- Total number of ports: 2 PoE ports, 2 Screw strips
- PoE IN port: LAN + PoE IN
- PoE OUT ports: LAN + PoE OUT
- LAN ports 10/100Mbps: LAN + PoE IN, LAN + PoE OUT
- Input voltage: Vin PoE - 30 ... 56 V, Vin Power - 10 ... 56 V
- PoE output voltage: VoutDATA = Vin, Vout = Vin
- Power consumption: 1.35 W (entire track)
- Output power control: Jumpers - configuration in the manual and on the
device
- Surge protection: LAN and DATA
- Overload protection: LAN + PoE IN - Overload protection at 0.6 A
- 2WIRE track cable length: < 1000m - 2 single twisted wires
- 2wire track signaling: LED LINK (green) - link and data transmission in
the 2wire track
- Power indication: LED RJ45 port (yellow) - power supply present
- Transmission signaling: LED RJ45 port (green) - link and data
transmission in the LAN path
- Operating temperature range: -25°C ... +65°C
- Protection rating: IP20
- Dimensions: 51 x 51 x 22 mm
- Weight: 0.05 kg

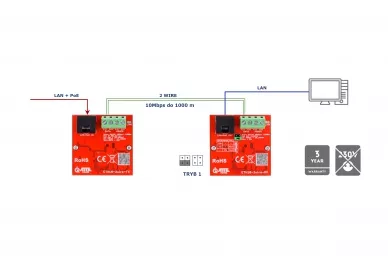

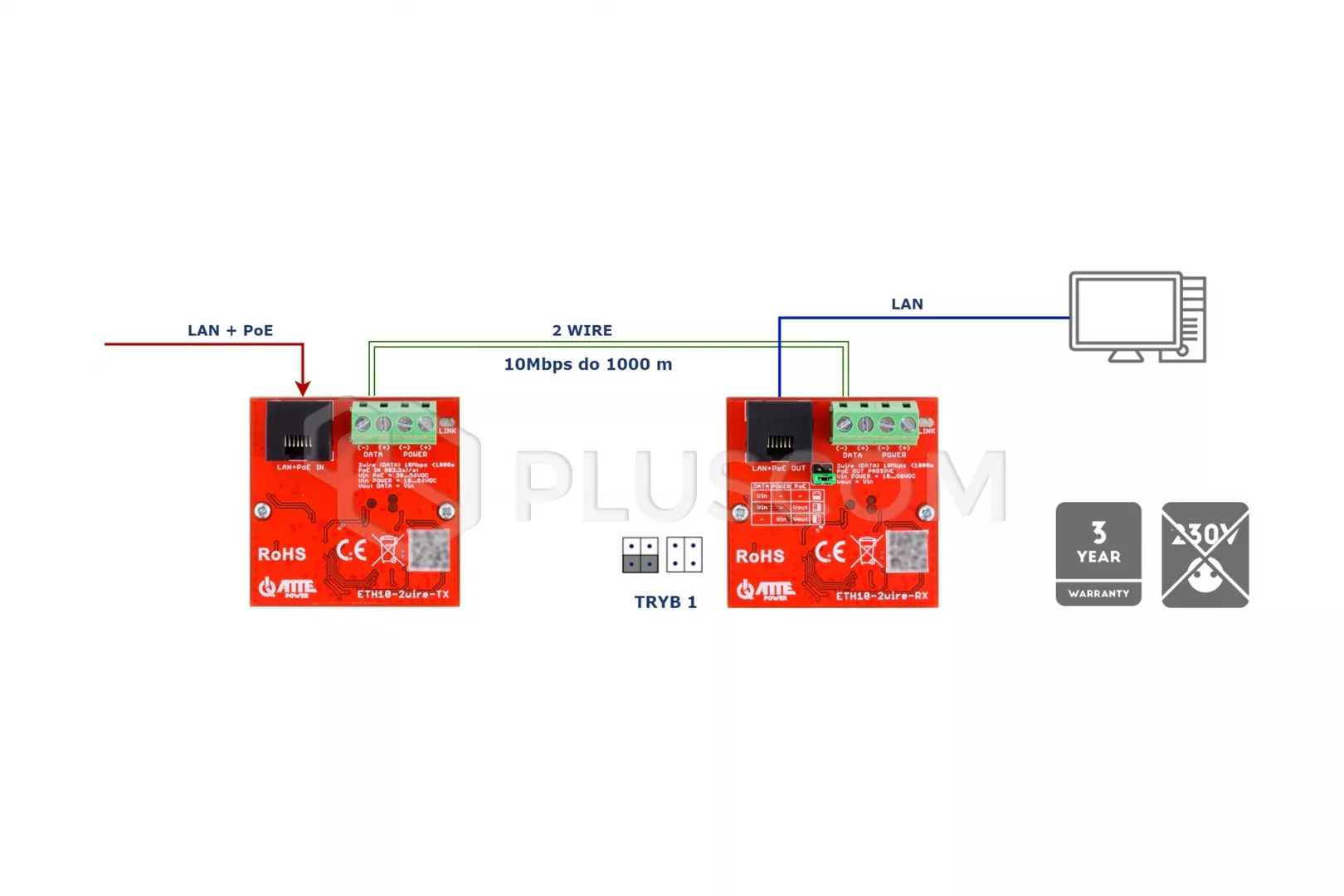

Example use of ETH10-2wire-SET when operating in Mode 1

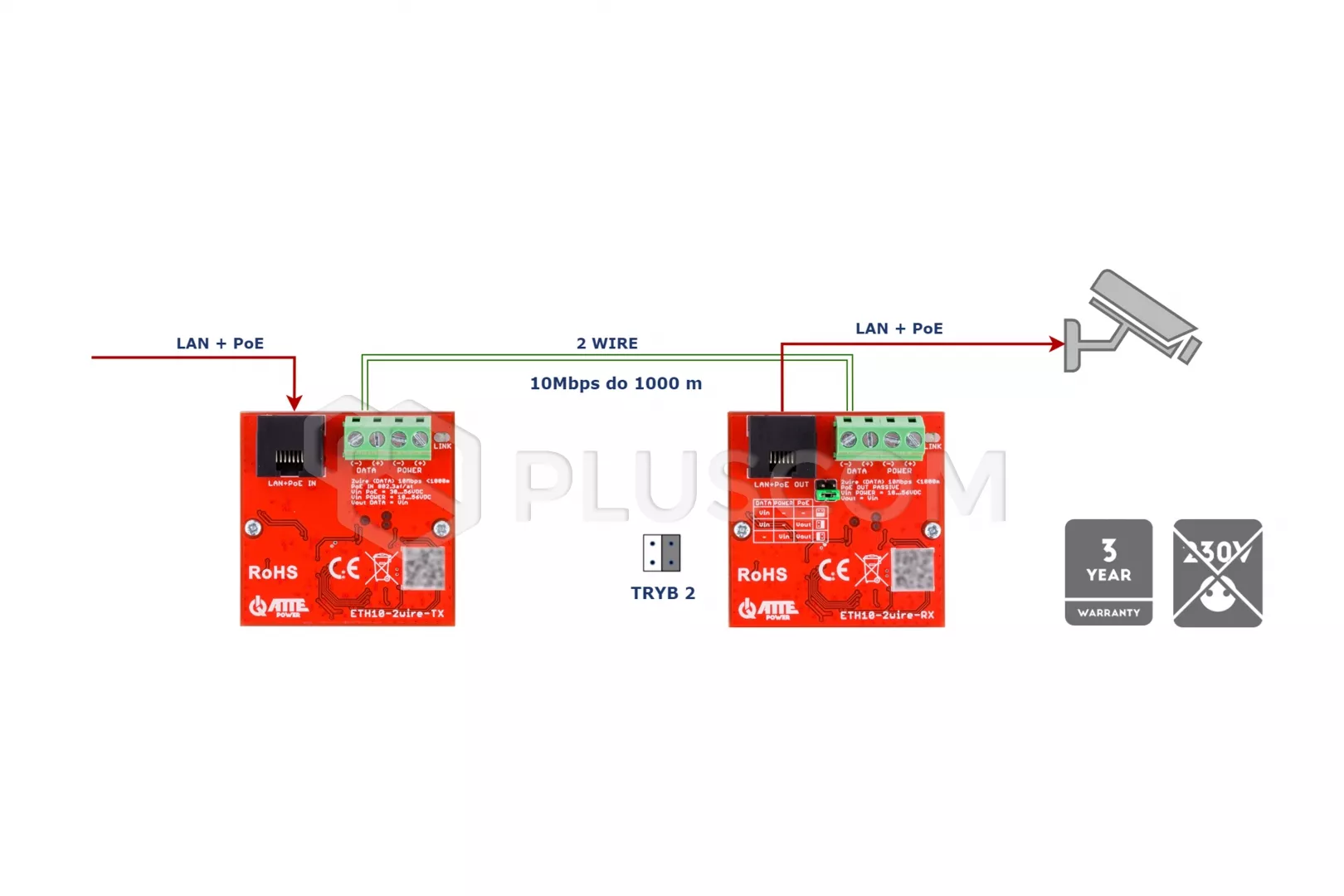

Example use of ETH10-2wire-SET when operating in Mode 2

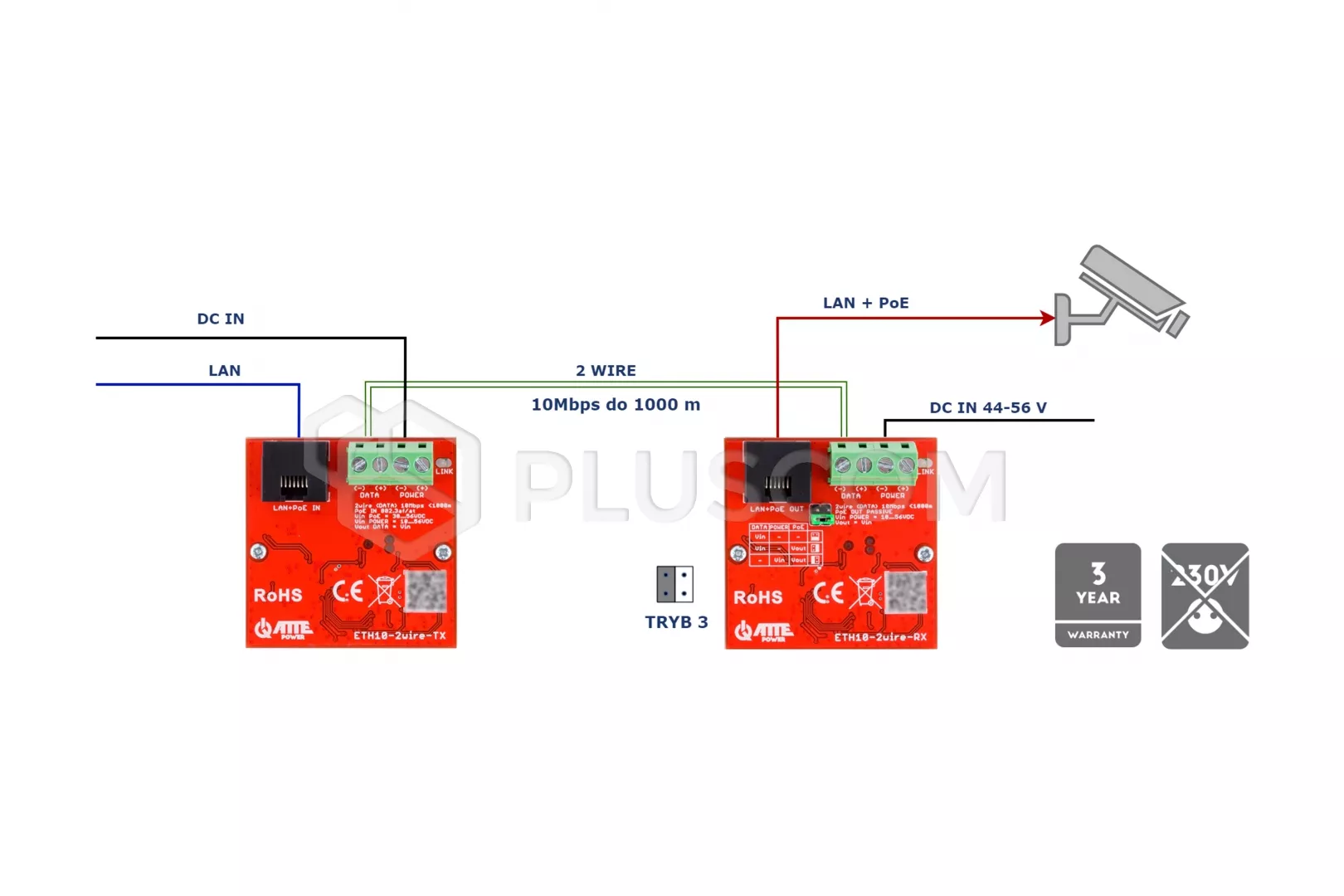

Example use of ETH10-2wire-SET when operating in Mode 3

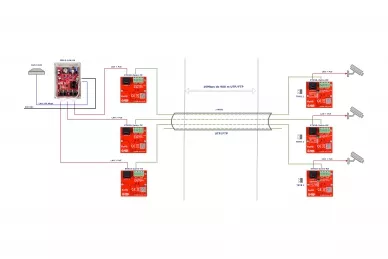

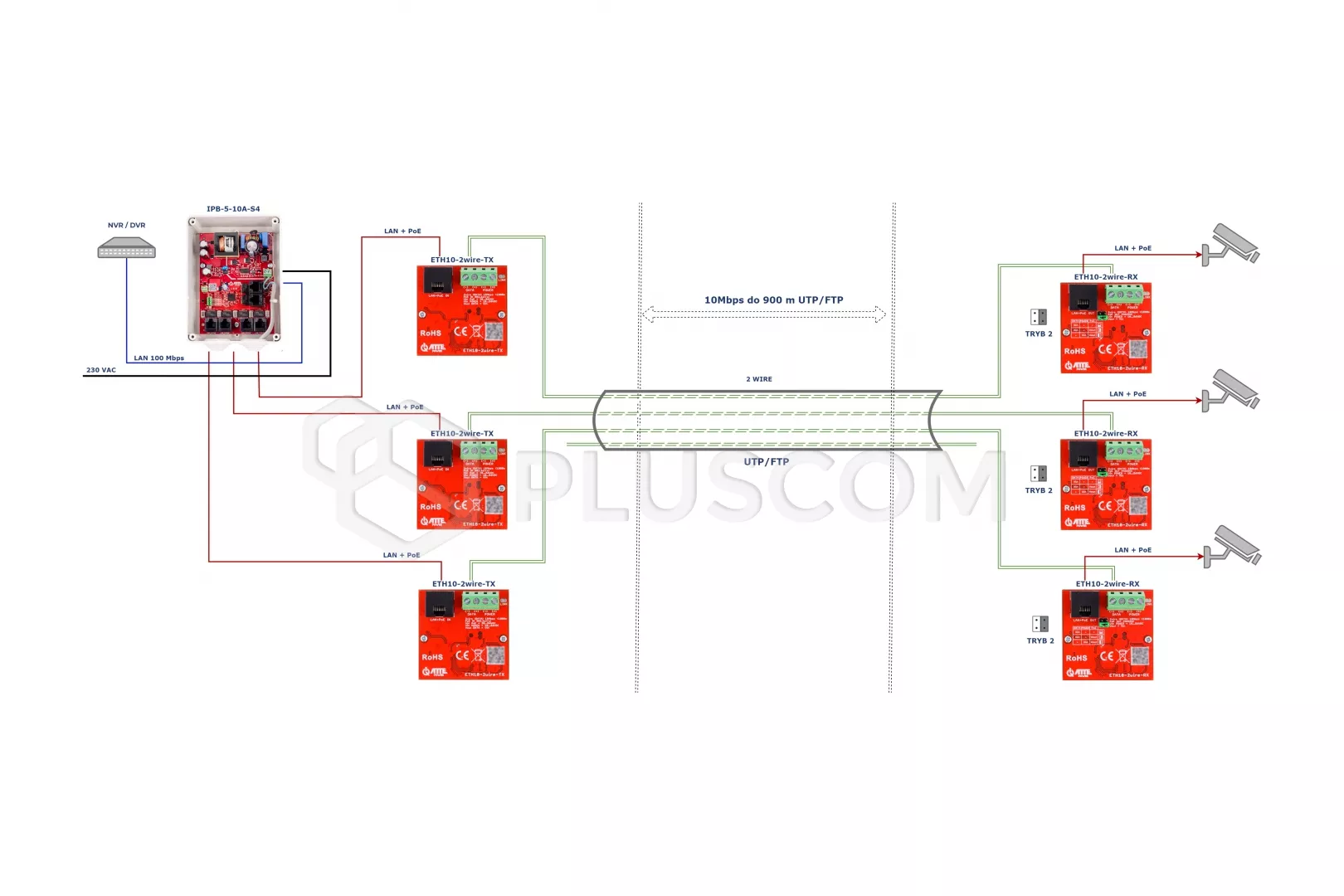

Example use of ETH10-2wire-SET to connect 3 PoE IP cameras using one UTP cable
