ATTE ETH-ETH500-SET LAN+PoE range extender

ATTE ETH-ETH500-SET LAN+PoE range extender up to 800m

ETH-ETH500-SET is a set of two converters that increase the range of a LAN network with POE. Installed between any PoE switch, and an IP camera powered by PoE, allows you to increase the network range up to 800m using a standard UTP cable.
The devices enable the installation of cameras or other IP PoE devices in remote places where additional cabling can be installed is impossible or unprofitable.
The use of the ETH-ETH500-SET kit facilitates the modernization of existing television systems based on analog cameras with cables UTP distances exceeding 100m where it is not possible to install standard network devices.

Main features:

• Transmits Ethernet and PoE data via a standard UTP cable
• Extends the Ethernet+PoE range to 800 m at 10 Mb/s or 500 m at 100 Mb/s via UTP cable
• the use of ETH-ETH500SET does not affect the identification of the PoE receiver in the power switch
• full bandwidth 10/100 Mbps
• symmetric bandwidth ensures consistent uploads and downloads
• automatic selection of maximum bandwidth
• Compatible with all major IEEE PoE standards and network protocols for UDP, TCP/IP, HTTP/HTTP
• LED indicators confirm operating status
• in combination with ABOX series housings, full compliance with environmental requirements (ambient temperature, humidity with condensation, high/low voltage conditions and protection against transient voltage)
• extended operating temperature from -25°C to +65°C

The ETH-ETH500 module can be powered from any PoE switch (RJ45 port). Then we connect the ETH-ETH500 modules with a UTP cable via LONG RANGE ports The maximum length of cables in the LONG RANGE track is 800m. The connection between the ETH-ETH500 modules provides bidirectional network communication and PoE power supply.
The devices can optionally be powered via POWER screw connectors. In this case, they must be powered independently on both sides of the LONG RANGE track.
A camera or other PoE receiver can be connected to the RJ45 port of the ETH-ETH500 module at the end of the line. After correct identification of the PoE receiver in the power supply switch, all devices will be powered and a connection will be established in the entire path.

Application

• modernization of existing analog CCTV installations to systems based on the Ethernet network
• construction of CCTV installations for photovoltaic farms, sports fields and recreational areas, city parks
• monitoring construction sites where, with a limited budget, installation must be performed on a large area. Low cost of cabling while maintaining safe use in places often exposed to damage

TECHNICAL DATA:

• Total number of ports: 4 PoE port, 2 Screw strips
• PoE IN/OUT ports: LAN + PoE
• 10/100Mbps LAN ports: LAN + PoE, LAN + PoE LONG RANGE
• Long Range LAN ports: LAN + PoE LONG RANGE
• Input voltage: Vin PoE - 44 ... 58 V, Vin - 12 ... 58 V
• PoE output voltage: Vout = Vin
• Power consumption: 1.35 W (entire track)
• Long Range track cable length:
  • < 250m - UTP 100 Mbps Maximum power 50 W PoE
  • < 500m - UTP 100 Mbps Maximum power 25 W PoE
  • <800m - UTP 10 Mbps Maximum power 15 W PoE
• LAN bandwidth signaling: LED 10Mb - LAN transmission in the LONG RANGE path at 10Mbps
• Power indication: PWR LED (white) - power supply present
• PoE signaling: LED RJ45 port (yellow) - presence of PoE power
• Transmission signaling: LED RJ45 port (green) - link and data transmission in the LAN path
• Housing design: universal mounting base
• Mounting: mounting pins, additional adapters available for TH-35 and RACK rails
• Protection rating: IP20
• Operating temperature range: -25°C...+65°C

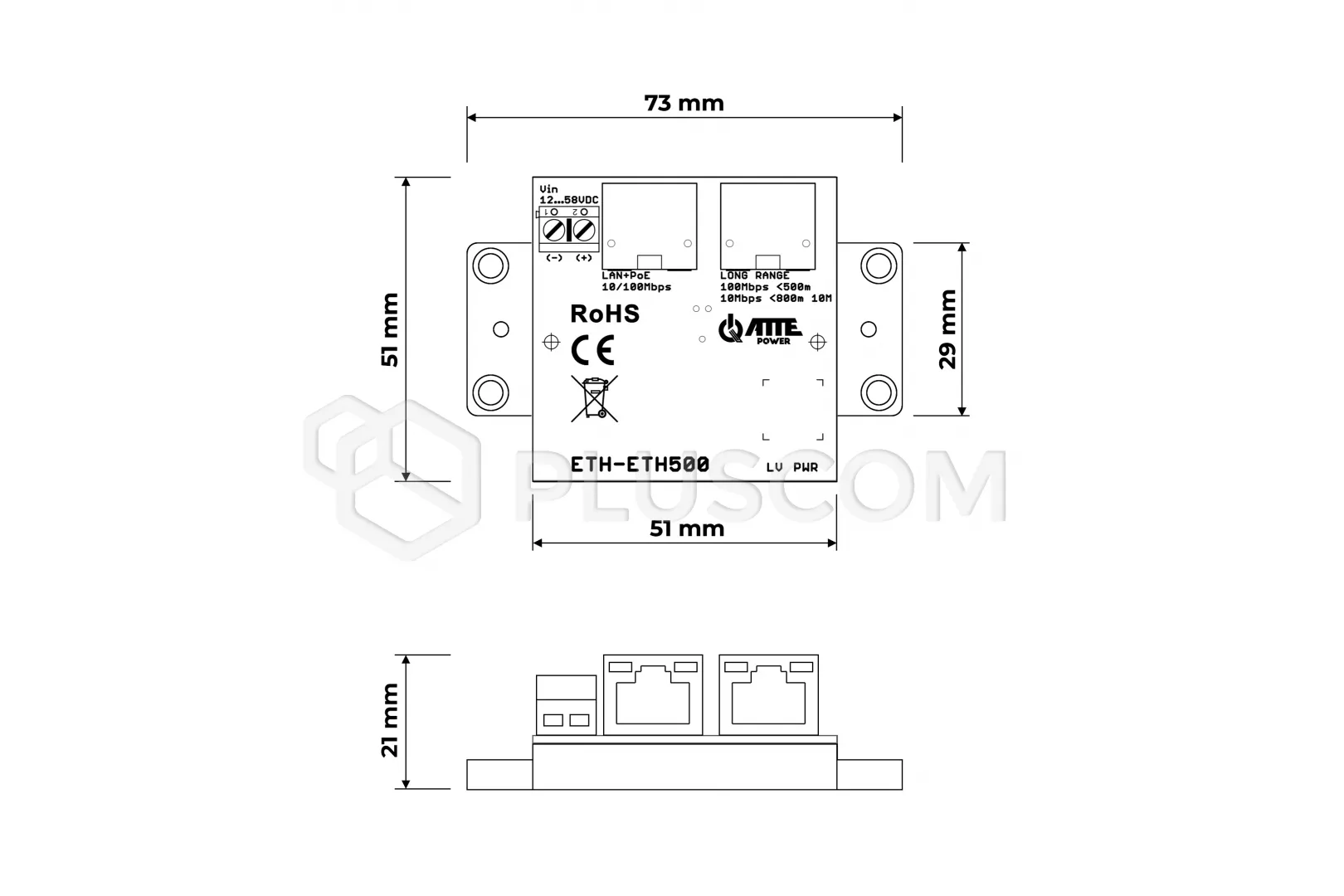

• Dimensions: 51(73) x 51 x 21 mm
• Weight: 0.026 kg
