ATTE AUPS-40-120-XL1 A buffer power supply in an external casing

ATTE AUPS-40-120-XL1 A buffer power supply in an external casing

The ATTE AUPS series buffer power supply is dedicated to television systems industrial CCTV, access control systems and alarm systems.
It will be perfect for buffer supply of demanding receivers uninterrupted work with periodic power outages. In significant extends the system operation time, in addition, the AUPS-40-120-XL1 can work with maintenance-free SLA batteries.

The device works with ASUC series converters, increasing the voltage output and adapting it to the installation requirements (e.g. up to 24/48/55 VDC) and with stabilizing modules of the AVC or AVIC series, recommended for receivers requiring a stable 12 VDC power supply.

KEY FEATURES:

• long backup time compared to classic systems using UPS
• energy saving and low heating of the housing interior thanks to high efficiency power supply (92%)
• short circuit protection (SCP), overload protection (OLP), thermal (OHP) and overvoltage
• battery over discharge protection (UVP), overload protection and reverse connection
• bootable without mains power (from battery)
• technical outputs OUF and ACF (work control and integration with others systems)
• easy installation of additional modules with holes in a 10.8 raster mm
• possibility to keep spare cables inside the case

In order to expand the power supply up to 8 output channels should be used fuse module AF-08-00-OF. The ADD-PMAL adapter allows easy installation housings on poles or lanterns (option).

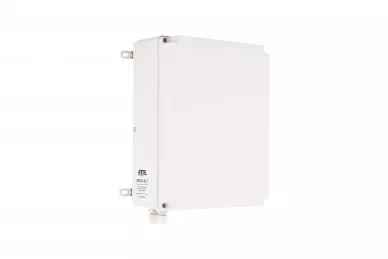

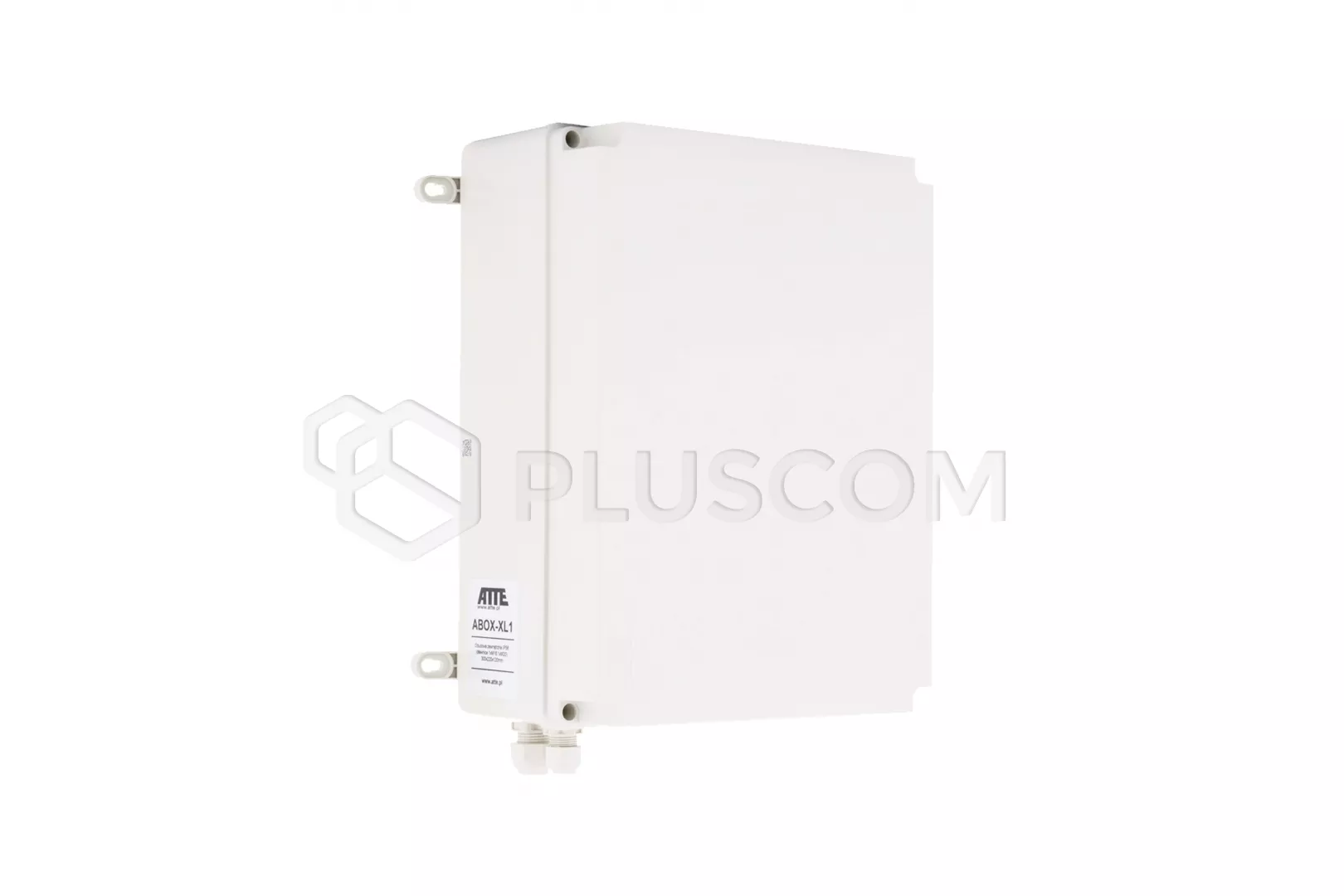

The power supply is housed in the ABOX-XL1 external casing, which is convenient solution to the problem of protecting devices and cable connections installed outdoors. High-quality plastic provides resistance to UV radiation and other unfavorable factors atmospheric and characterized by the following features:

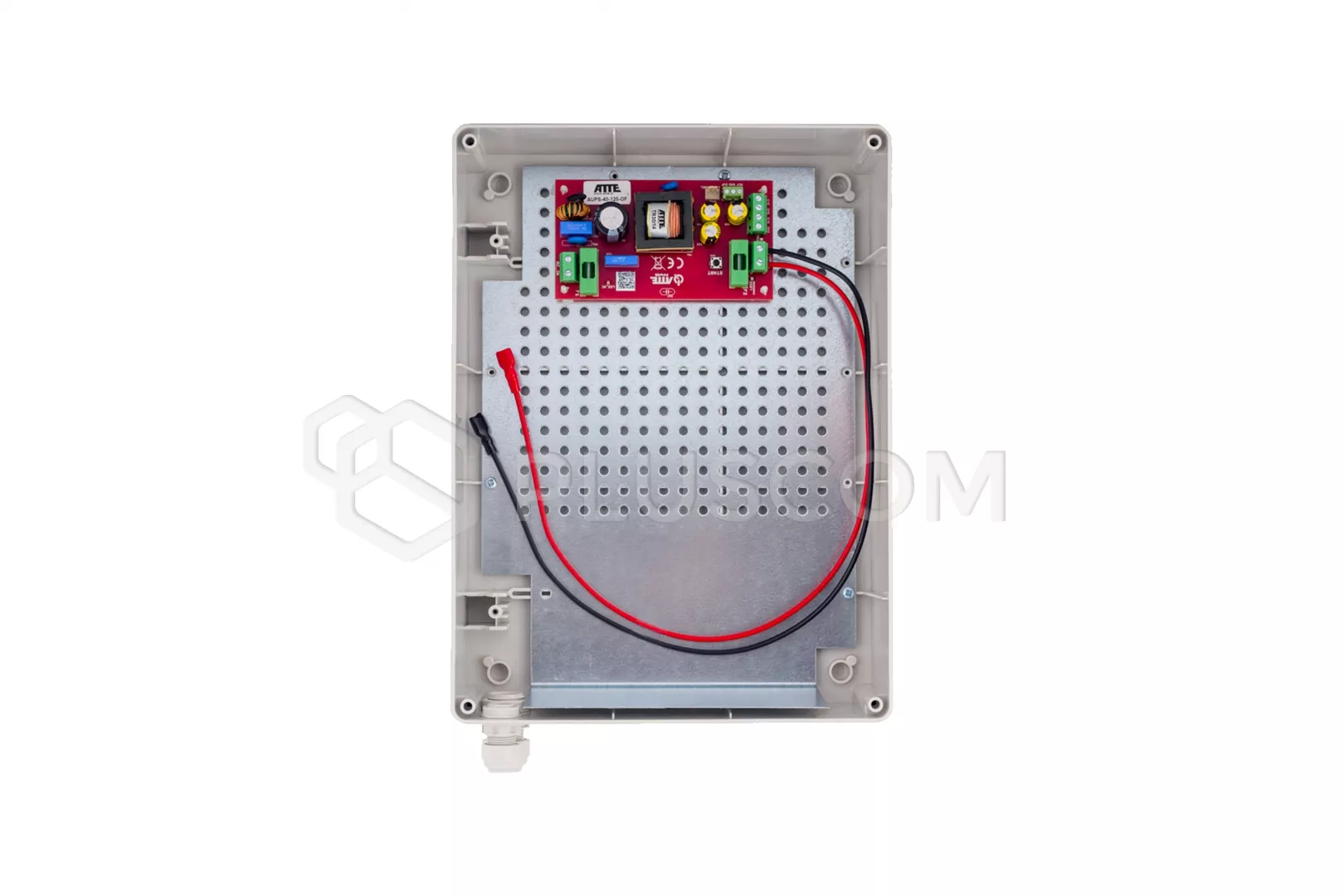

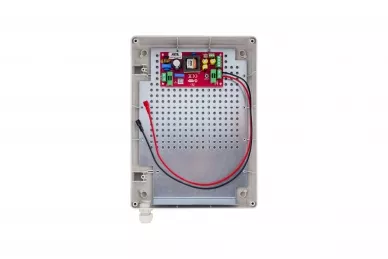

• mounting plate with a bend, for 18Ah battery
• cover and housing connected by string for easy service

• possibility to keep spare cables inside the case
• cable entry through the cable glands installed in the housing: 1xM16 and 1xM20

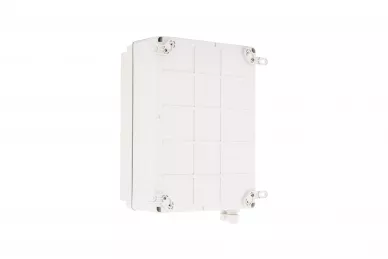

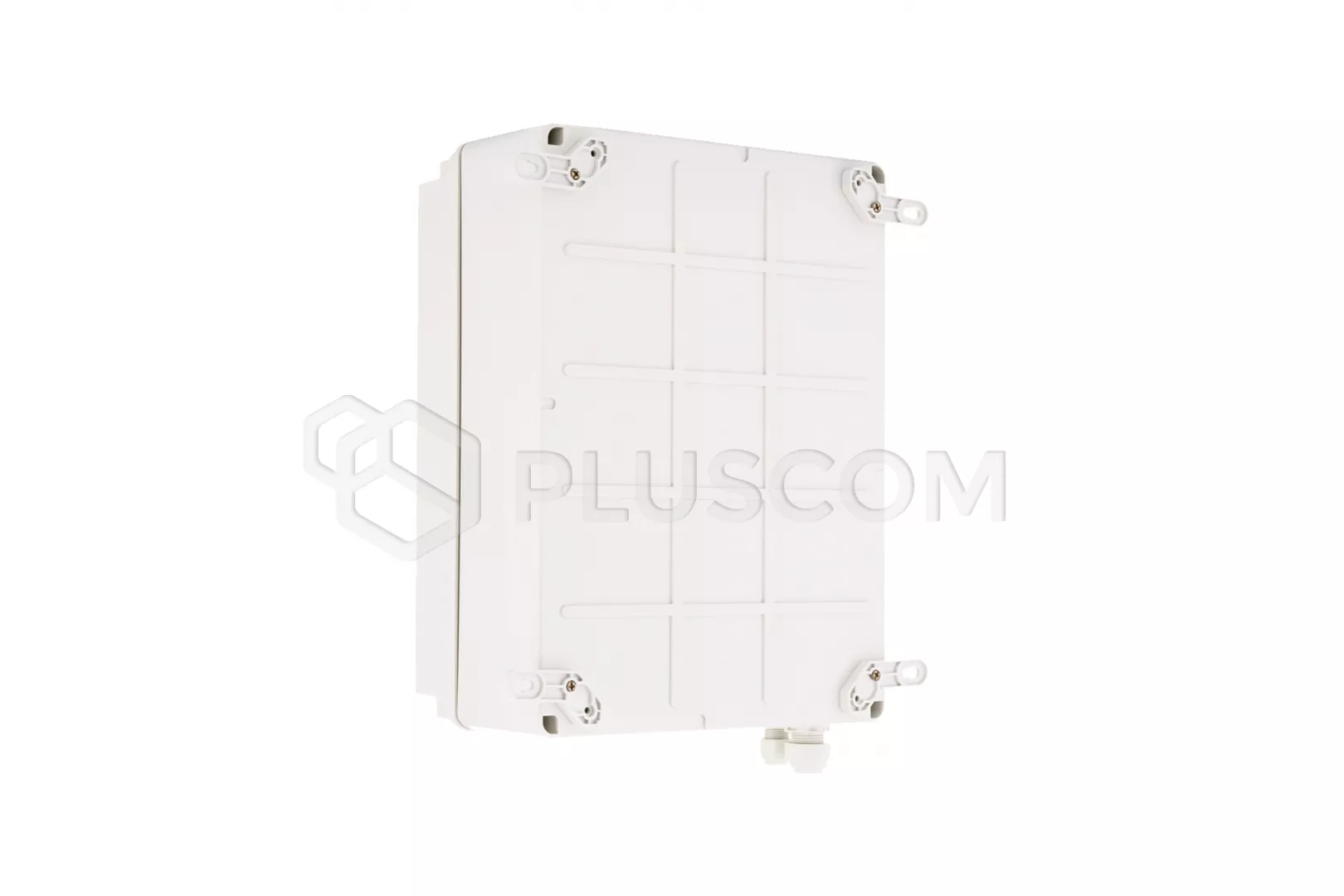

• 4 brackets included for mounting the housing without damaging the step IP56 protection

TECHNICAL DATA:

• output voltage: 12VDC (10.2 - 13.8 VDC)
• input voltage: AC 230V (190-260V)
• output current: max 5A
• power: 60W
• efficiency: 92% @ 40W
• input voltage: 190-260VAC
• battery charging current: up to 1.5A
• security:
• • PSU input protection
  • PSU output protection
  • battery circuit protection
• module signaling:
• • LED1 (yellow) - mains voltage present
  • LED2 (green) - output voltage present
  • LED3 (red) battery charging
• technical outputs of the open collector type with the maximum 50mA load
• • OUF - no + DC_OUT
  • voltage
  • ACF - no AC voltage
• external dimensions: 228x308x129mm
• space for battery: 1x 18Ah
• weight: 1.42 kg
• degree of protection: IP56
• temperature range: -25 ° C ~ + 50 ° C
