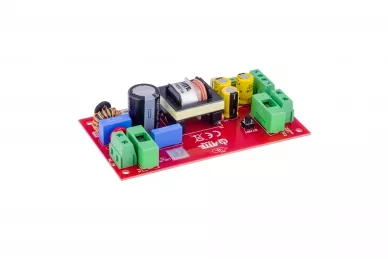

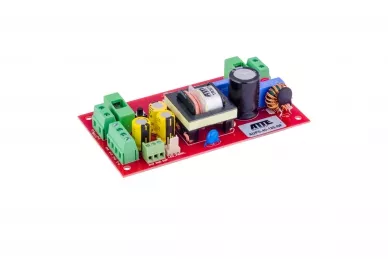

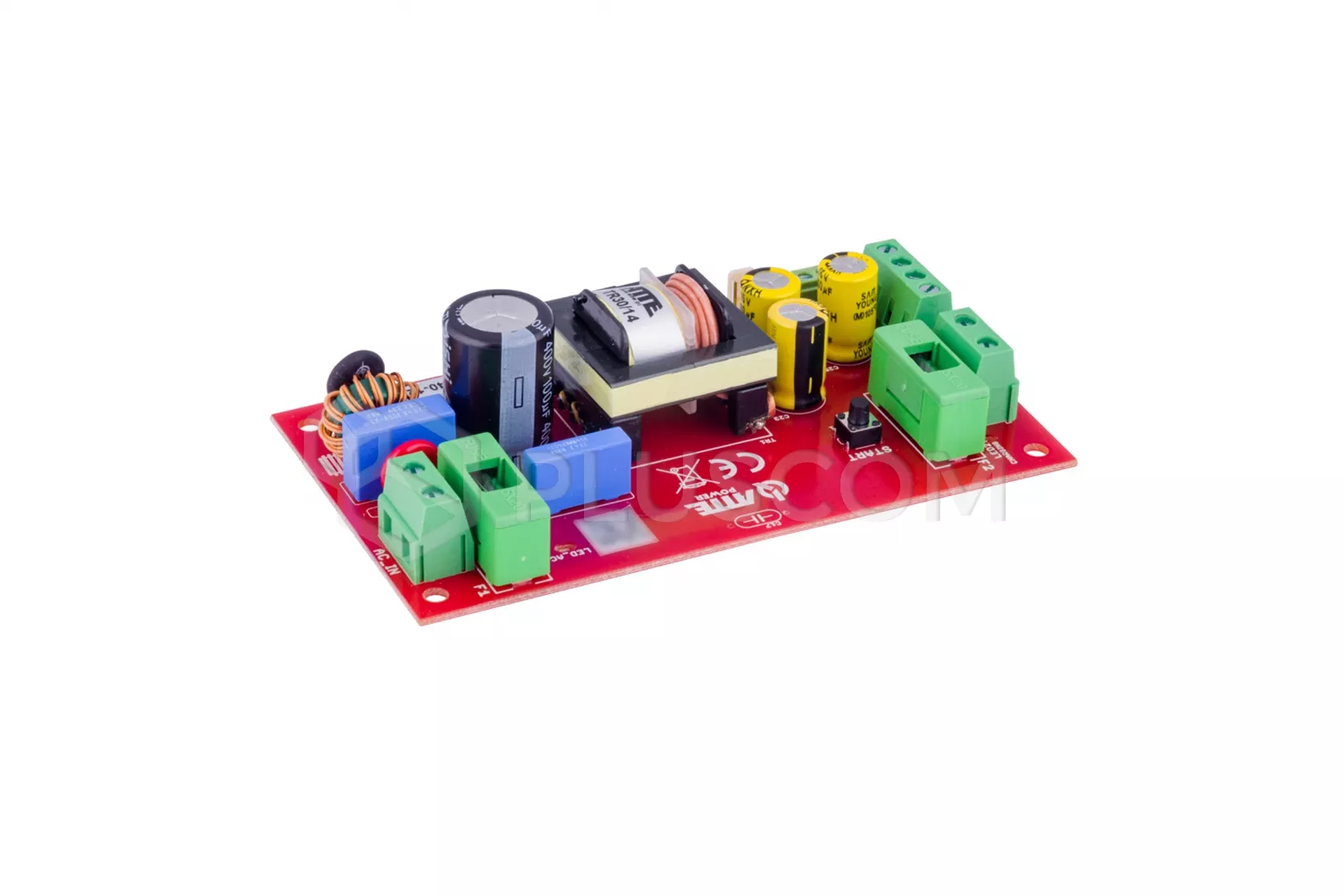

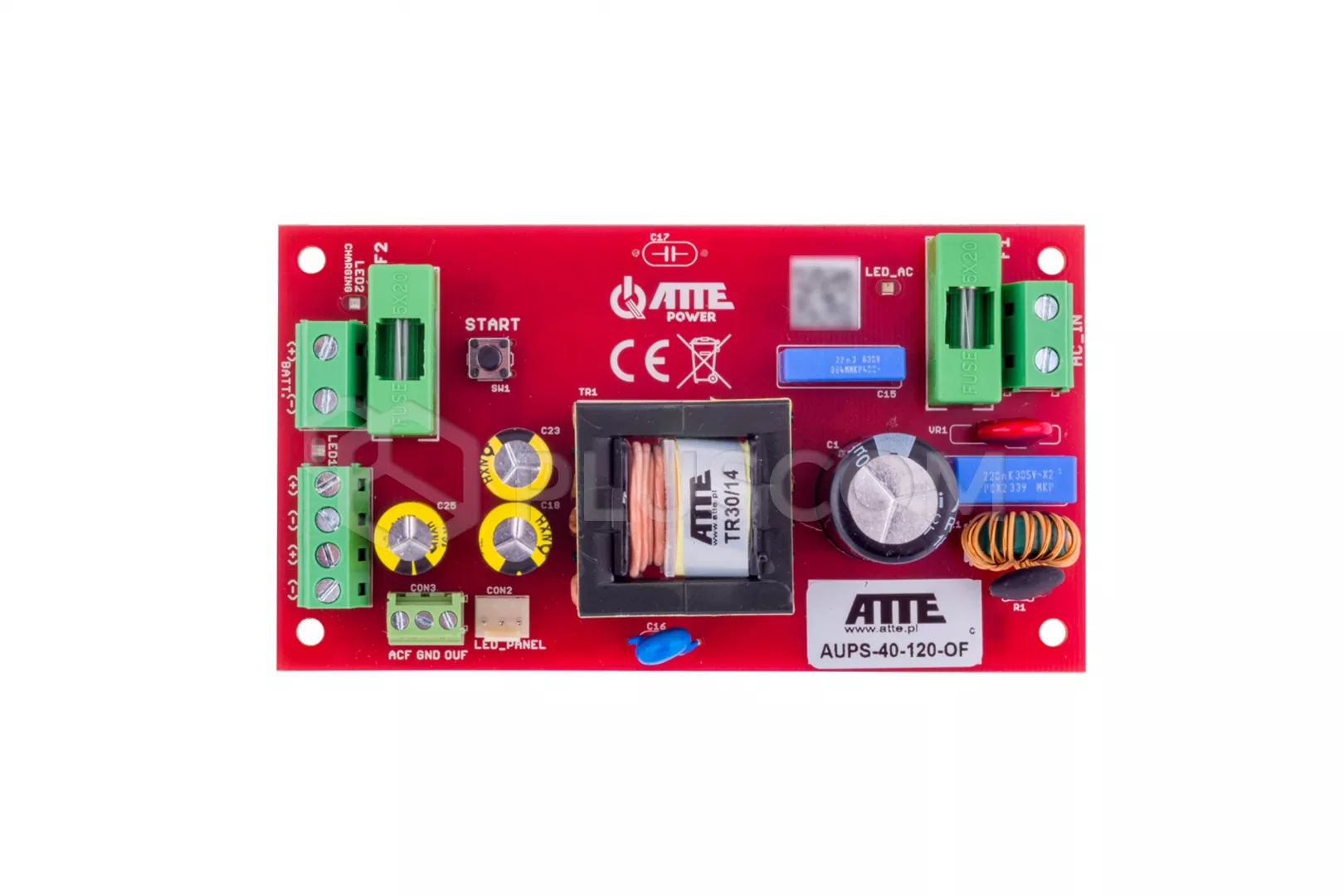

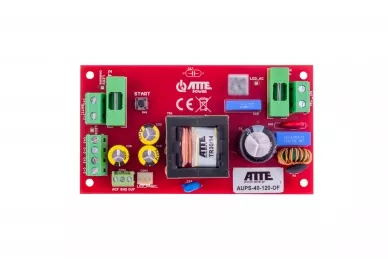

ATTE AUPS-40-120-OF power buffer supply unit for installation

BUFFER POWER SUPPLY ATTE AUPS-40-120-OF RECESSED

The ATTE AUPS series buffer power supply is dedicated to television systems industrial CCTV, access control systems and alarm systems.
It will be perfect for buffer supply of demanding receivers uninterrupted work with periodic power outages. In significant extends the system operation time, in addition, the AUPS-40-120-OF can work with maintenance-free SLA batteries.

The device works with ASUC series converters, increasing the voltage output and adapting it to the installation requirements (e.g. up to 24/48/55 VDC) and with stabilizing modules of the AVC or AVIC series, recommended for receivers requiring a stable 12 VDC power supply.

KEY FEATURES:

• long backup time compared to classic systems using UPS
• energy saving and low heating of the housing interior thanks to high efficiency power supply (92%)
• fast battery charging with current up to 1.5A
• short circuit protection (SCP), overload protection (OLP), thermal (OHP) and overvoltage
• battery over discharge protection (UVP), overload protection and reverse connection
• bootable without mains power (from battery)
• technical outputs OUF and ACF (work control and integration with others systems)
• easy installation in ABOX series enclosures with system openings in pitch 10.8 mm

In order to expand the power supply up to 8 output channels should be used fuse module AF-08-00-OF.

The OF (Open Frame) construction allows for easy installation of the module in any housing.

TECHNICAL DATA:

• output voltage: 12VDC (10.2 - 13.8 VDC)
• input voltage: AC 230V (190-260V)
• output current: max 5A
• power: 60W
• efficiency: 92% @ 40W
• input voltage: 190-260VAC
• battery charging current: up to 1.5A
