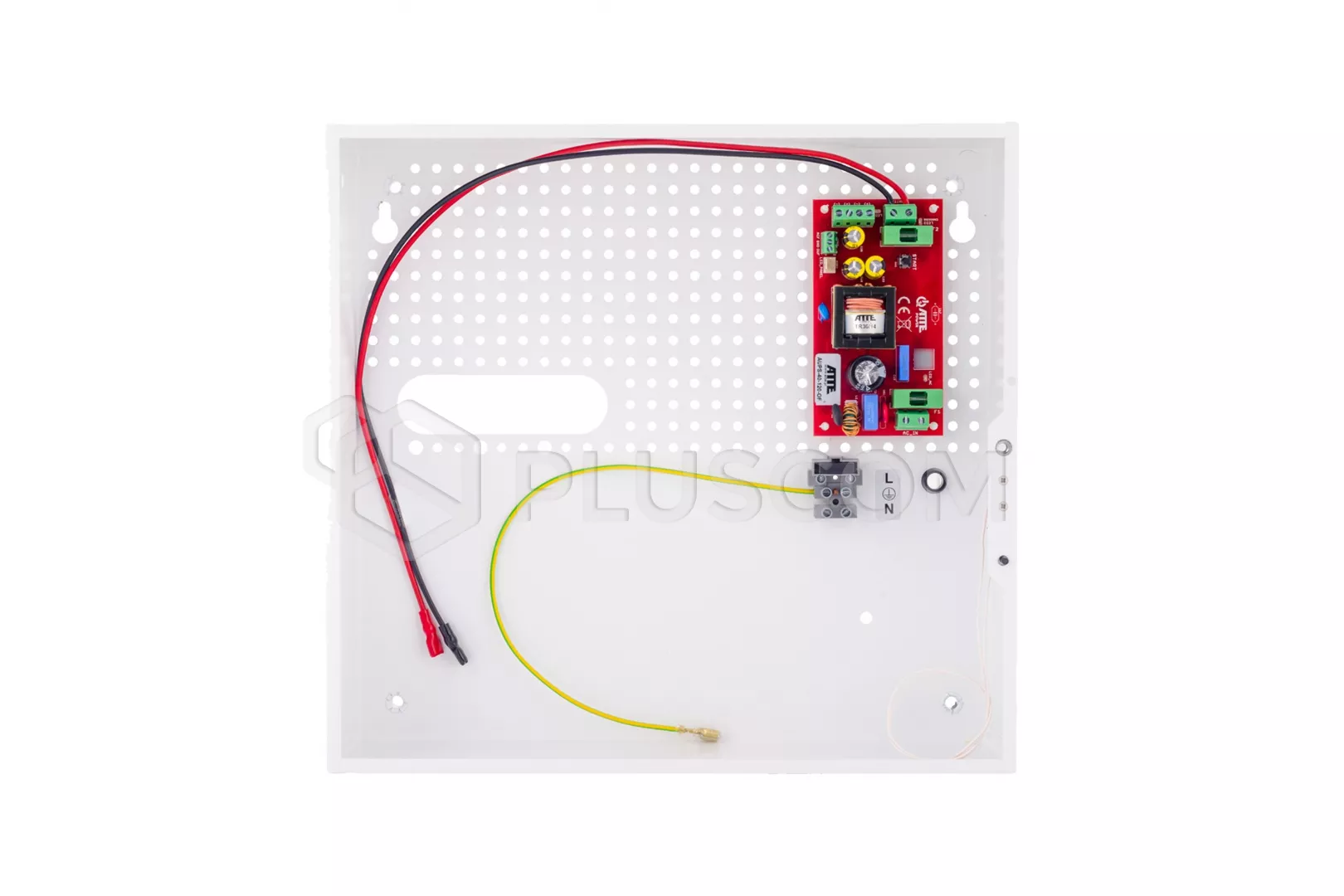

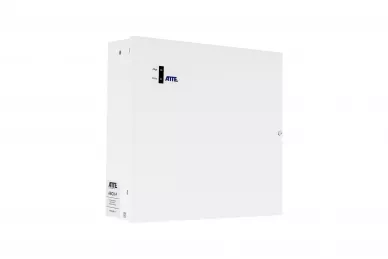

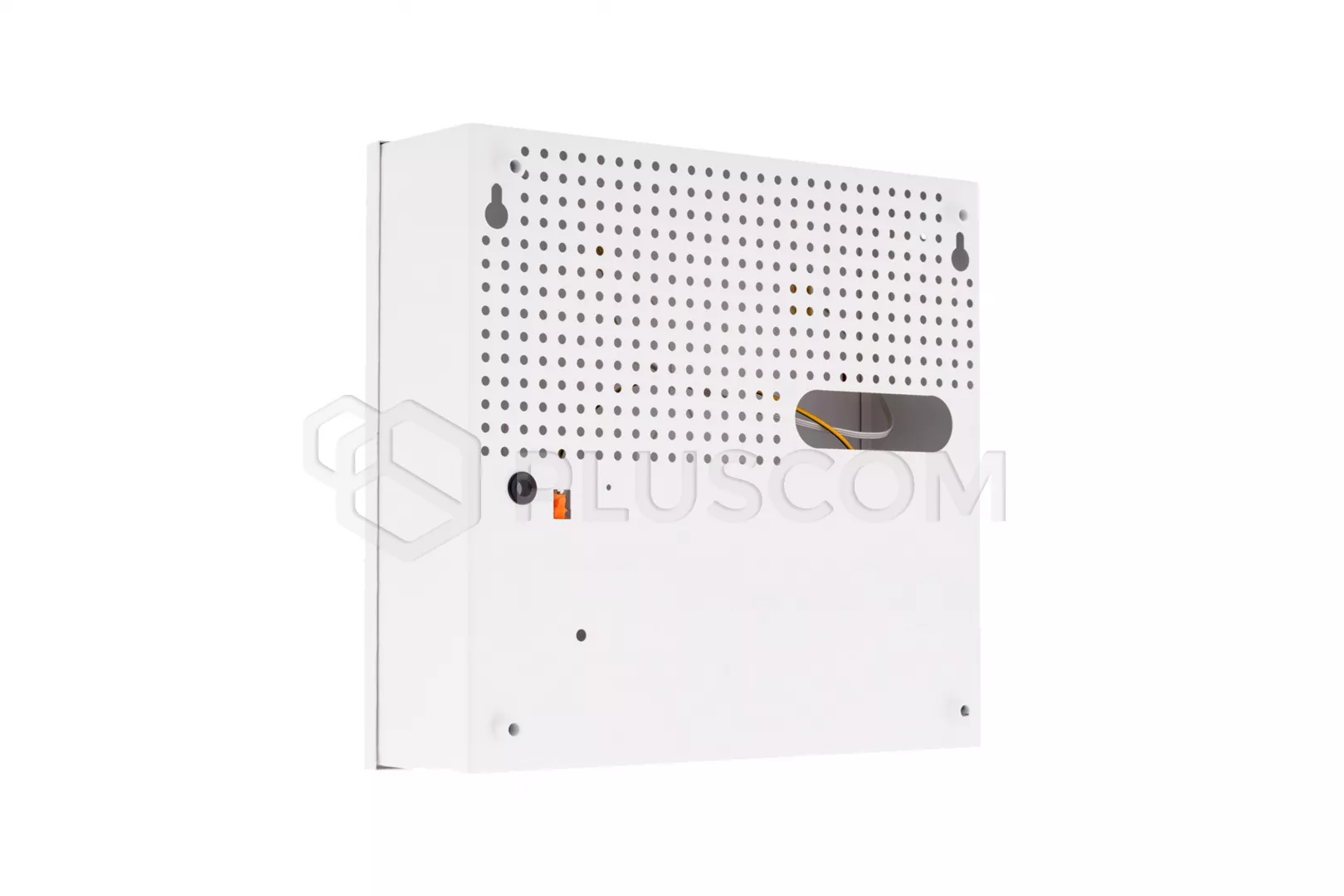

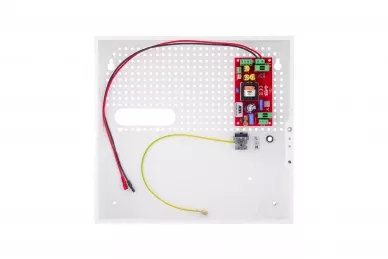

ATTE AUPS-40-120-F A buffer power supply in an internal casing ABOX-F
The ATTE AUPS series buffer power supply is dedicated to television systems
industrial CCTV, access control systems and alarm systems.
It will be perfect for buffer supply of demanding receivers uninterrupted work
with periodic power outages. In significant extends the system operation time,
in addition, the AUPS-40-120-F can work with maintenance-free SLA batteries.
The device works with ASUC series converters, increasing the voltage output and
adapting it to the installation requirements (e.g. up to 24/48/55 VDC) and with
stabilizing modules of the AVC or AVIC series, recommended for receivers
requiring a stable 12 VDC power supply.
ATTE AUPS-40-120-F A buffer power supply in an internal casing
ATTE AUPS-40-120-F A buffer power supply in an internal casing
KEY FEATURES:
- long backup time compared to classic systems using UPS
- energy saving and low heating of the housing interior thanks to high
efficiency power supply (92%)
- short circuit protection (SCP), overload protection (OLP), thermal (OHP)
and overvoltage
- battery over discharge protection (UVP), overload protection and reverse
connection
- bootable without mains power (from battery)
- technical outputs OUF and ACF (work control and integration with others
systems)
- easy installation of additional modules with holes in a 10.8 raster
mm
- possibility to keep spare cables inside the case
- cable glands on the back of the housing
In order to expand the power supply up to 8 output channels should be used
fuse module AF-08-00-OF.
The power supply is housed in the ABOX-F internal casing, which is
convenient solution to the problem of aesthetic installation of devices and
ending wiring inside buildings. It is made of painted steel sheet powder-coated
to a semi-matt, white color and is characterized by the following features:
- space for 18Ah battery
- cable glands on the back of the housing
- distance to wall / mounting surface
- wall mounting and 6mm mounting holes
The casing is equipped with a screw closure, removable door and opening
tamper.
TECHNICAL DATA:
- output voltage: 12VDC (10.2 - 13.8 VDC)
- input voltage: AC 230V (190-260V)
- output current: max 5A
- power: 60W
- efficiency: 92% @ 40W
- input voltage: 190-260VAC
- battery charging current: up to 1.5A
- security:
-
- PSU input protection
- PSU output protection
- battery circuit protection
- module signaling:
-
- LED1 (yellow) - mains voltage present
- LED2 (green) - output voltage present
- LED3 (red) battery charging
- case signaling:
-
- LED AC (green) - mains voltage present
- LED DC (red) - output voltage present
- technical outputs of the open collector type with the maximum 50mA
load
-
- OUF - no + DC_OUT
- voltage
- ACF - no AC voltage
- external dimensions: 300x320x90mm
- space for battery: 1x 18Ah
- weight: 2.32 kg
- degree of protection: IP20
- temperature range: -25 ° C ~ + 50 ° C
