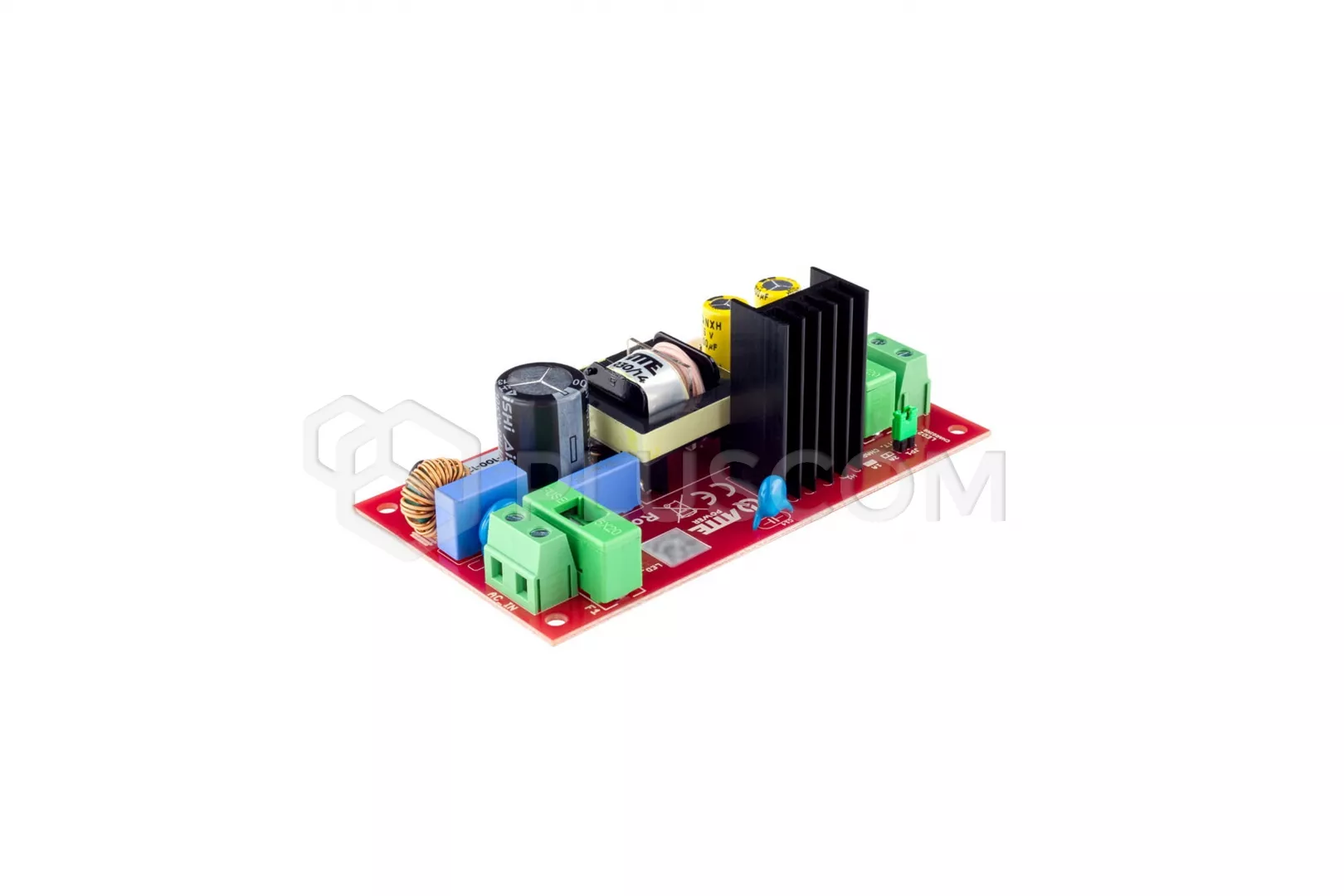

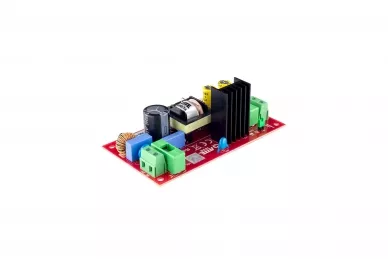

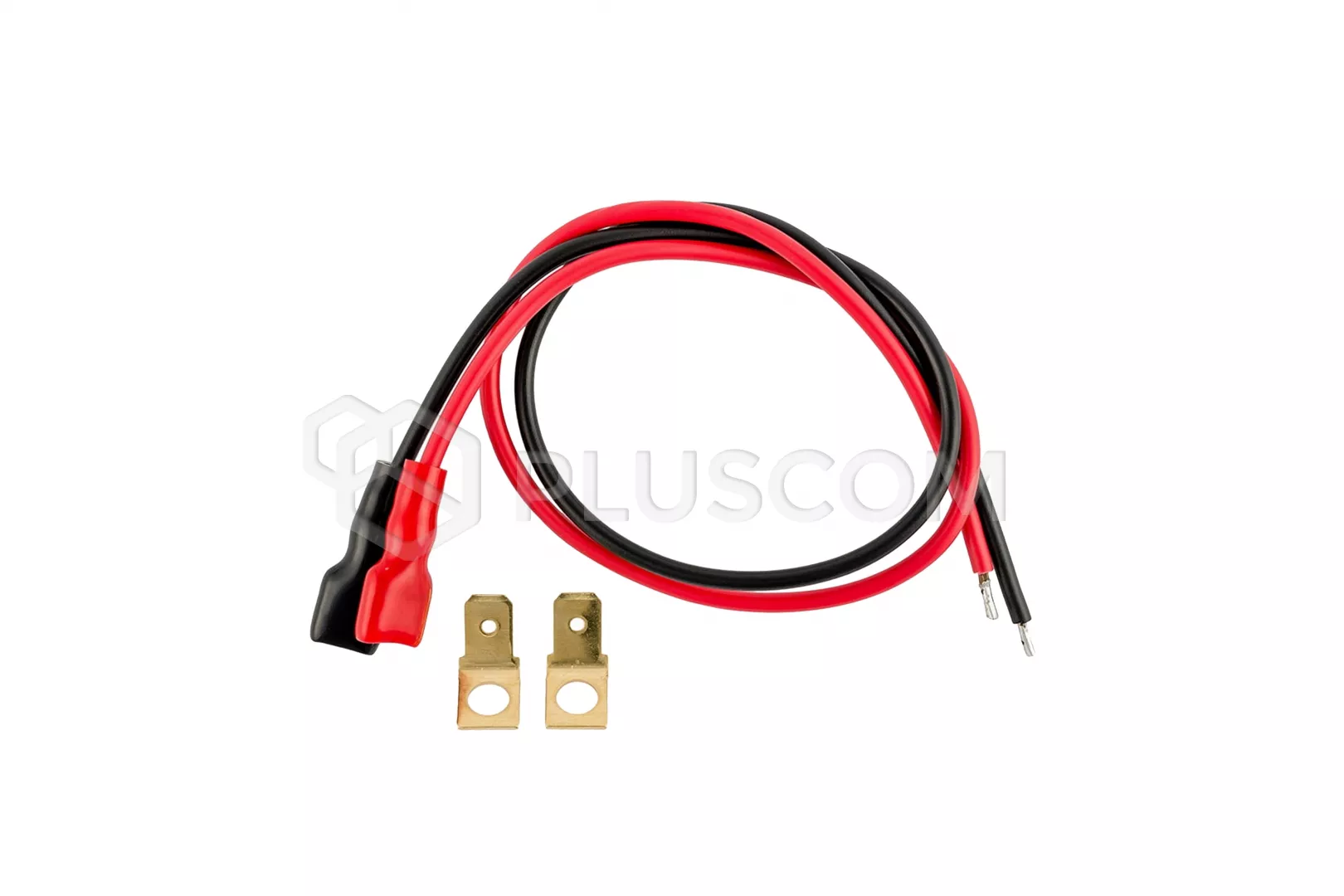

ATTE AUPS-100-122-OF SMPS power buffer supply unit for installation

ATTE AUPS-100-122-OF Built-in SMPS buffer power supply, switching mode

AUPS-100-122-OF is a power supply with increased voltage and increased charging current battery dedicated to installations operating with cyclical mains voltage failures.
It is used on construction sites, when powered by street lamps, in Tower CCTV systems and other places where the power is regularly turned off.

The system is adapted to work with maintenance-free SLA batteries (gel and AGM).

MOST IMPORTANT FEATURES:

• long power backup time compared to classic systems using UPS power supplies
• energy saving and low heating of the inside of the housing thanks to the high efficiency of the power supply (90%)
• short circuit protection (SCP), overload protection (OLP), thermal protection (OHP) and overvoltage
• battery protection against excessive discharge (UVP), overload and reverse connection
• possibility of starting without mains power (from the battery)
• OUF and ACF technical outputs (operation control and integration with other systems)
• easy installation in ABOX series housings with system holes in a 10.8 mm pitch

The OF (Open Frame) design allows the device to be installed in any housing, but the most convenient method of installation is there are dedicated ABOX series housings and mounting plates equipped with system holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the housing or mounting plate.

TECHNICAL DATA:

• Output voltage: 10.8 ... 14.4 VDC
• Output current - continuous: 8 A
• Output current - maximum: 10 A
• Power of the power supply - continuous: 100 W
• Power supply - maximum: 120 W
• Efficiency: 90% @100 W
• Input voltage: 190 ... 260 VAC, 50 Hz
• Power supply input protection: slow-blow fuse 3.15 A
• PSU output protection: electronic overload protection at 12 A
• Battery circuit protection: battery disconnection for voltage below 10.8 V 10 A fuse
• Starting in the absence of AC power: START button
• Battery charging current: 3 A or 6 A
• Battery: gel or AGM or LiFePO4 12V
• Signaling of mains voltage: LED_AC (yellow) - presence of mains voltage
• Output voltage signaling: LED 1 (green) - presence of output voltage
• Battery indication: LED 2 (red) - battery charging
• Housing design: built-in module

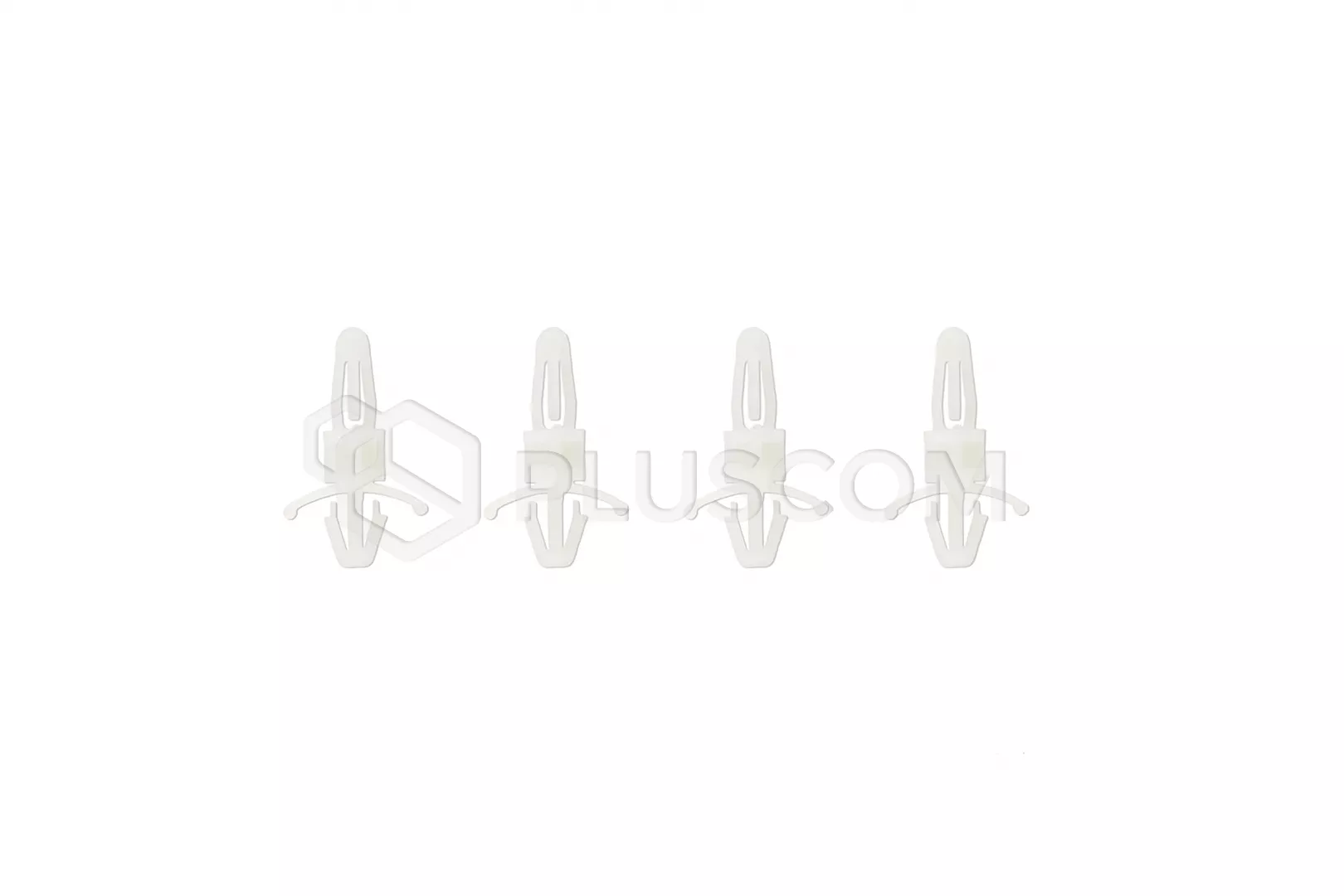

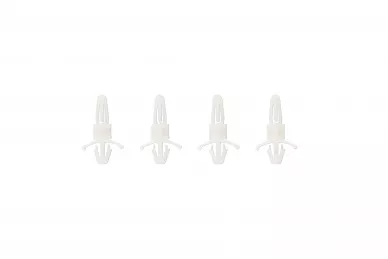

• Installation: snap-on spacer pins, mounting holes in a 10.8 mm pitch
• Operating temperature range: -25°C ... +50°C
• Dimensions: 118 x 65 x 45 mm
• Weight: 0.15 kg
