ATTE AUPS-100-120-F A buffer power supply in an internal casing

142,91 EUR including 23.00% VAT
Product code: #24535
Manufacturer: Atte
  • Output voltage: 12VDC (10,2 - 13,8 VDC)
  • Output Current: 5A
  • Power: 120W
  • Housing: ABOX-F (300x320x90mm)
  • Place for battery: 1x 18Ah
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

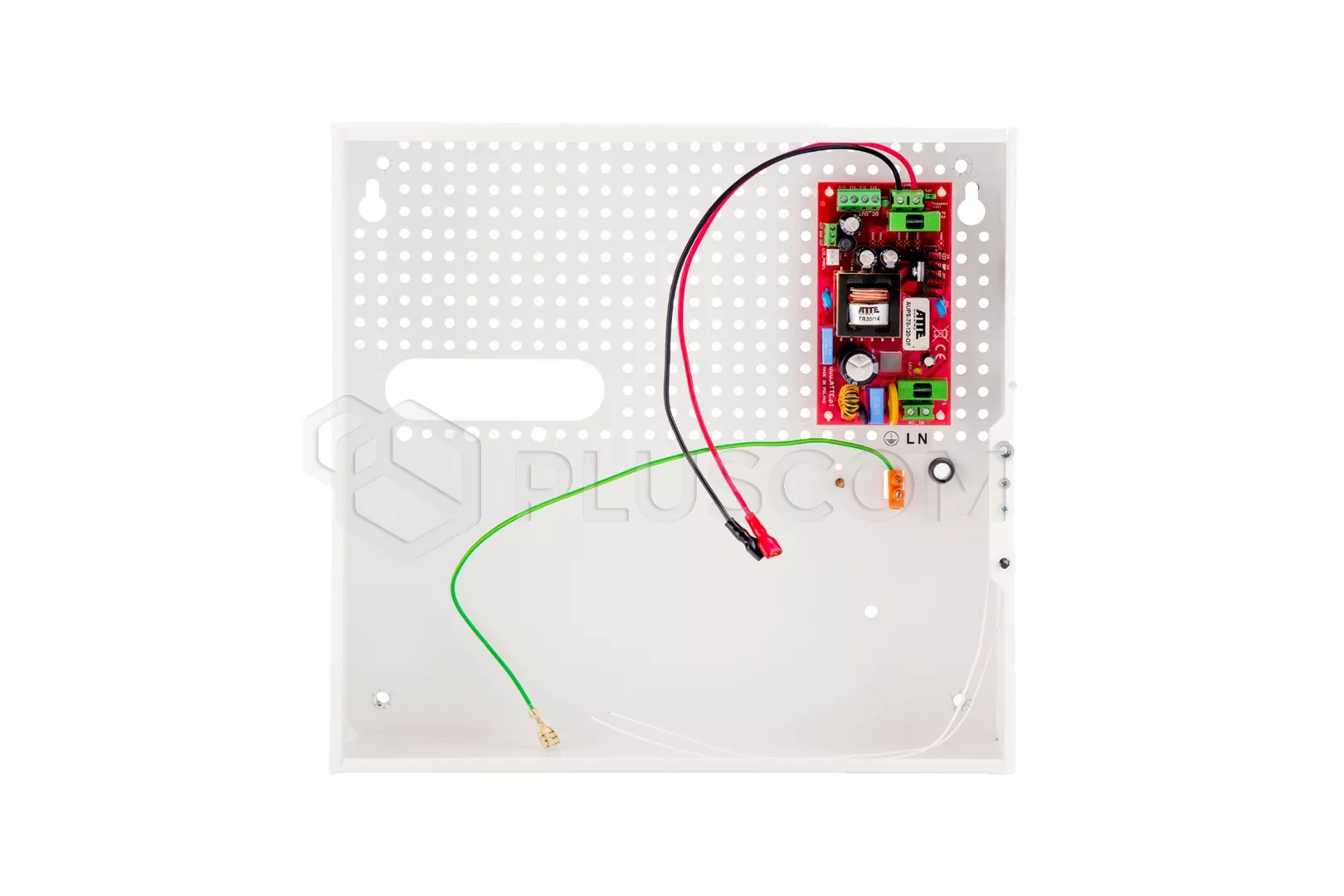

ATTE AUPS-100-120-F A buffer power supply in an internal casing ABOX-F


Buffer power supply for powering television system devices industrial CCTV and access control systems. It is adapted to work with SLA lead-acid batteries or dry batteries.
Thanks to the high efficiency of the power supply, it shows low heating the inside of the housing.

The device works with ASUC series converters, increasing the voltage output and adapting it to the installation requirements (e.g. up to 24/48/55 VDC) and with stabilizing modules of the AVC or AVIC series, recommended for receivers requiring a stable 12 VDC power supply.
ATTE AUPS-100-120-F A buffer power supply in an internal casing

ATTE AUPS-100-120-F A buffer power supply in an internal casing

ATTE AUPS-100-120-F A buffer power supply in an internal casing

ATTE AUPS-100-120-F A buffer power supply in an internal casing


KEY FEATURES:
  • long backup time compared to classic systems using UPS
  • energy saving and low heating of the housing interior thanks to high efficiency power supply (90%)
  • short circuit protection (SCP), overload protection (OLP), thermal (OHP) and overvoltage
  • battery over discharge protection (UVP), overload protection and reverse connection
  • bootable without mains power (from battery)
  • technical outputs OUF and ACF (work control and integration with others systems)
  • easy installation of additional modules with holes in a 10.8 raster mm
  • possibility to keep spare cables inside the case
  • cable glands on the back of the housing
In order to expand the power supply up to 8 output channels should be used fuse module AF-08-00-OF.

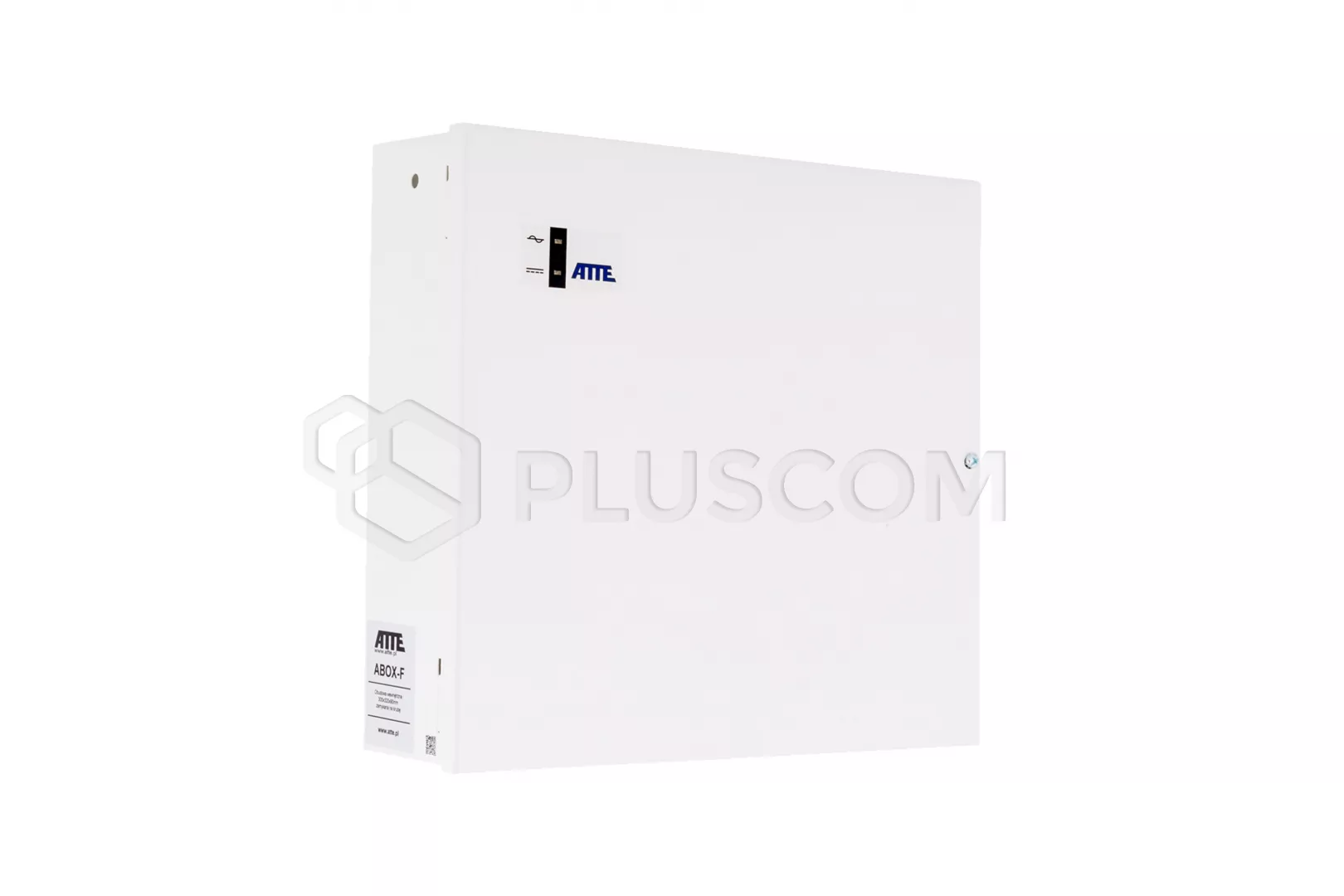

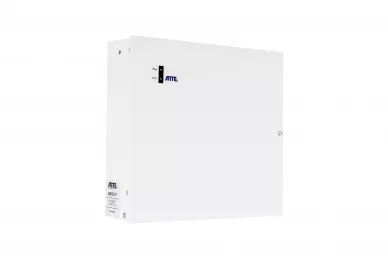

The power supply is housed in the ABOX-F internal casing, which is convenient solution to the problem of aesthetic installation of devices and ending wiring inside buildings. It is made of painted steel sheet powder-coated to a semi-matt, white color and is characterized by the following features:
  • space for 18Ah battery

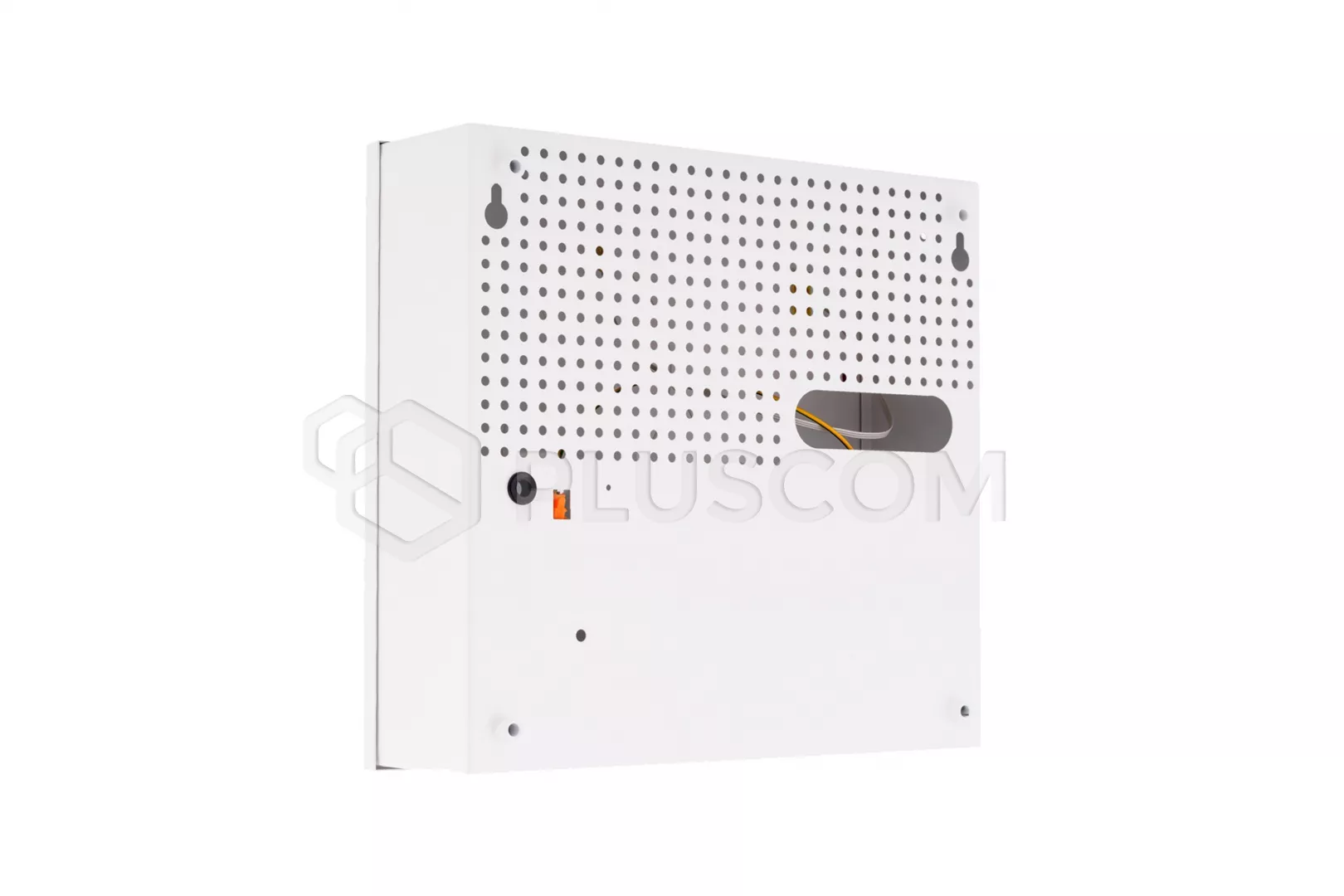

  • cable glands on the back of the housing
  • distance to wall / mounting surface
  • wall mounting and 6mm mounting holes
The casing is equipped with a screw closure, removable door and opening tamper.

TECHNICAL DATA:
  • output voltage: 12VDC (10.2 - 13.8 VDC)
  • input voltage: AC 230V (190-260V)
  • output current: max 10A
  • power: 120W
  • efficiency: 90% @ 100W
  • input voltage: 190-260VAC
  • battery charging current: 1A or 2A (selected with JP1 jumper)
  • security:
    • PSU input protection
    • PSU output protection
    • battery circuit protection
  • module signaling:
    • LED1 (yellow) - mains voltage present
    • LED2 (green) - output voltage present
    • LED3 (red) battery charging
  • case signaling:
    • LED AC (green) - mains voltage present
    • LED DC (red) - output voltage present
  • technical outputs of the open collector type with the maximum 50mA load
    • OUF - no + DC_OUT
    • voltage
    • ACF - no AC voltage
  • external dimensions: 300x320x90mm
  • space for battery: 1x 18Ah
  • weight: 2.34 kg
  • degree of protection: IP20
  • temperature range: -25 ° C ~ + 50 ° C
