ATTE ASUC-15-482-HS PoE PASSIVE Adapter

18,06 EUR including 23.00% VAT
Product code: #21676
Manufacturer: Atte
  • Input voltage: DC 10-16V
  • Output voltage: DC 48V
  • 1 port PoE
  • P20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

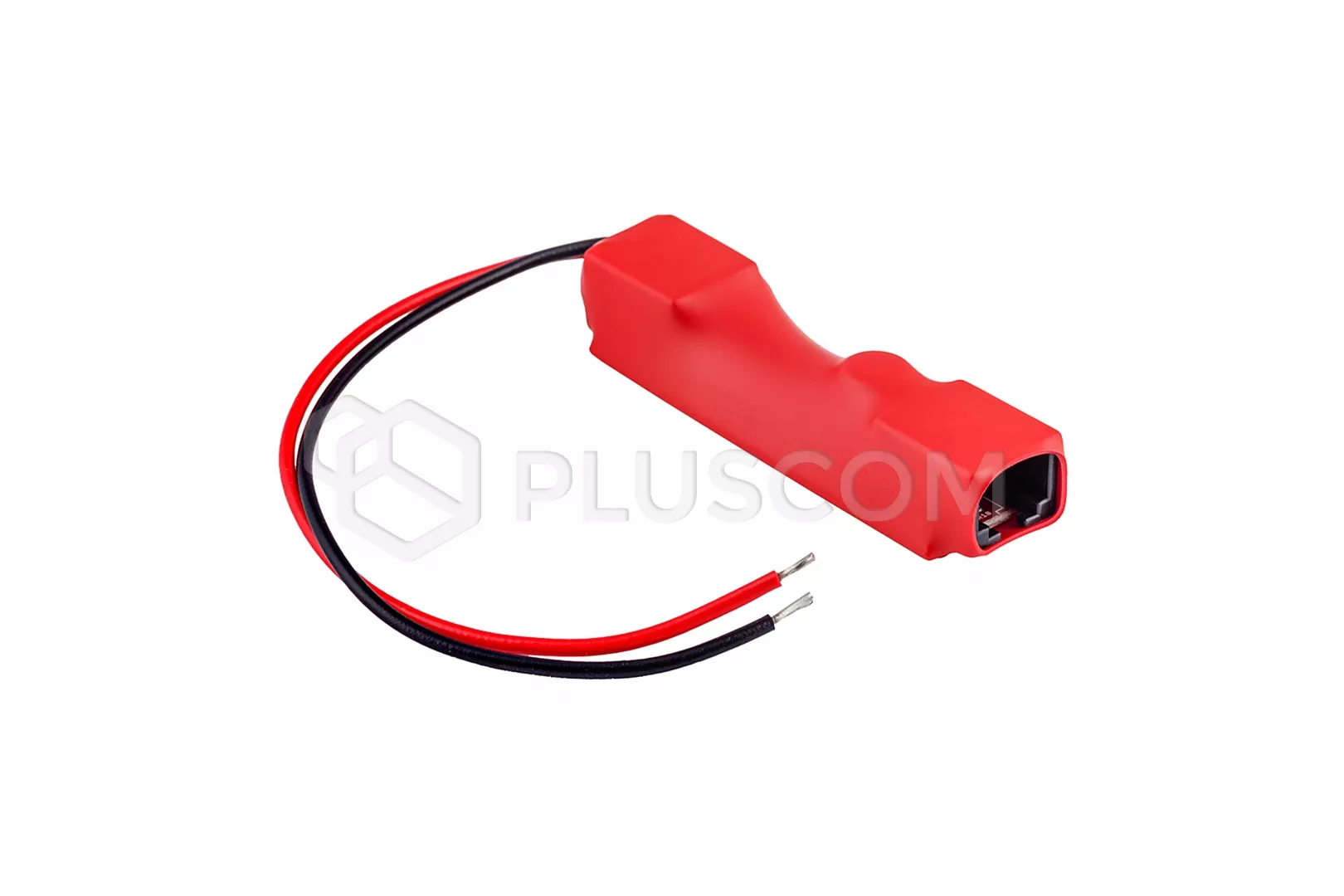

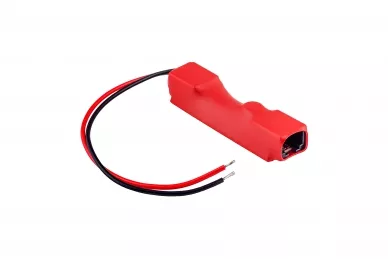

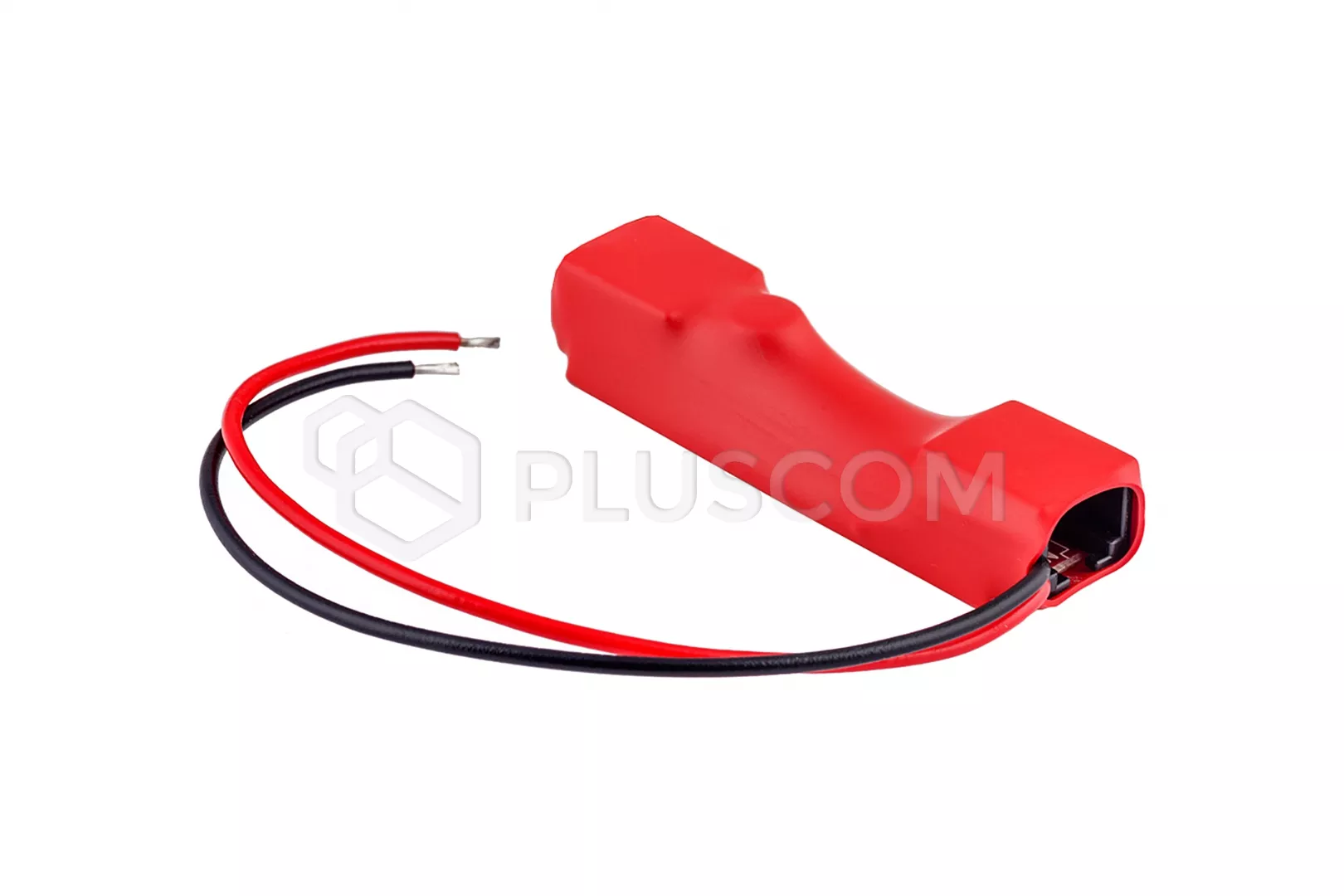

ATTE ASUC-15-482-HS PoE PASSIVE Adapter


The ASUC-15-482-HS adapter is designed for a single PoE IP camera via generation of 48 VDC PoE voltage from 12 VDC or 24 VDC. The layout provides while transferring data between the input connectors and output. Thanks to the high efficiency of the inverter, there is low heating the interior of the housing and the HS type housing provide good insulation.

Technical data:
  • input voltage:
    • 10 ... 30 VDC input voltage(Wire) </ li>
    • no voltage at the RJ-45 connector
  • output voltage: 48 VDC PoE PASSIVE, mode B (4.5+) (7.8-) (RJ-45 connector)
  • maximum output current: 0.3 A
  • output power: 15W
  • operation signaling: red LED inside RJ45 socket - presence of output voltage
  • housing design: polyethylene insulation film
  • I / O connector type: RJ-45
  • degree of protection: IP20
  • working temperature: -10 ... + 40 ° C
  • dimensions: 78 x 22 x 17 mm
  • weight: 0.027 kg
