ATTE ASET-xCOAX Set of active xCOAX converters

53,19 EUR including 23.00% VAT
In stock. Ships today!
Product code: #13733
Manufacturer: Atte
  • uses coaxial cable for Ethernet and PoE transmission
  • distance: up to 200m, power up to 40W
  • easy installation does not require configuration
  • PoE IN 802.3at/af Passive PoE OUT Passive

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

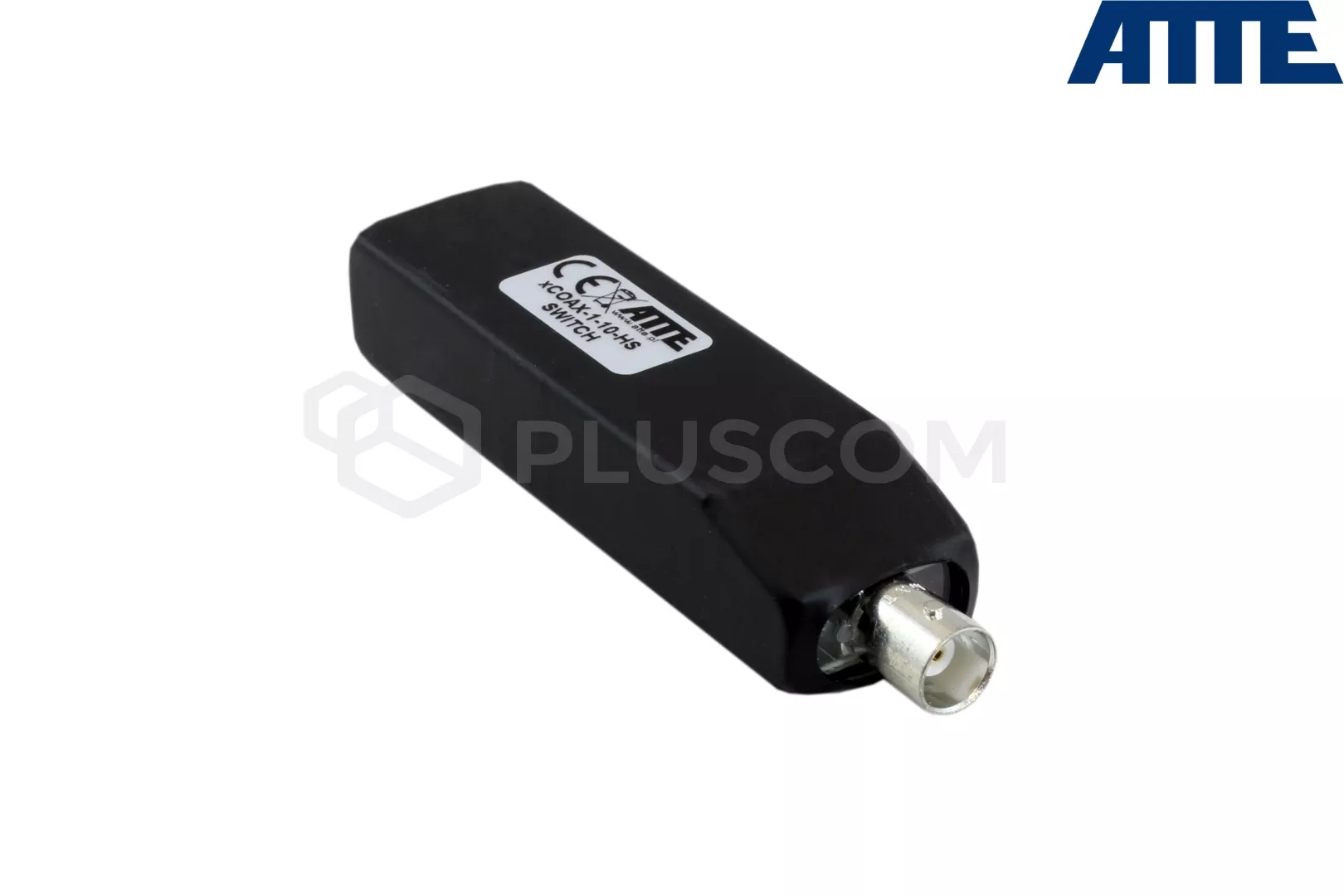

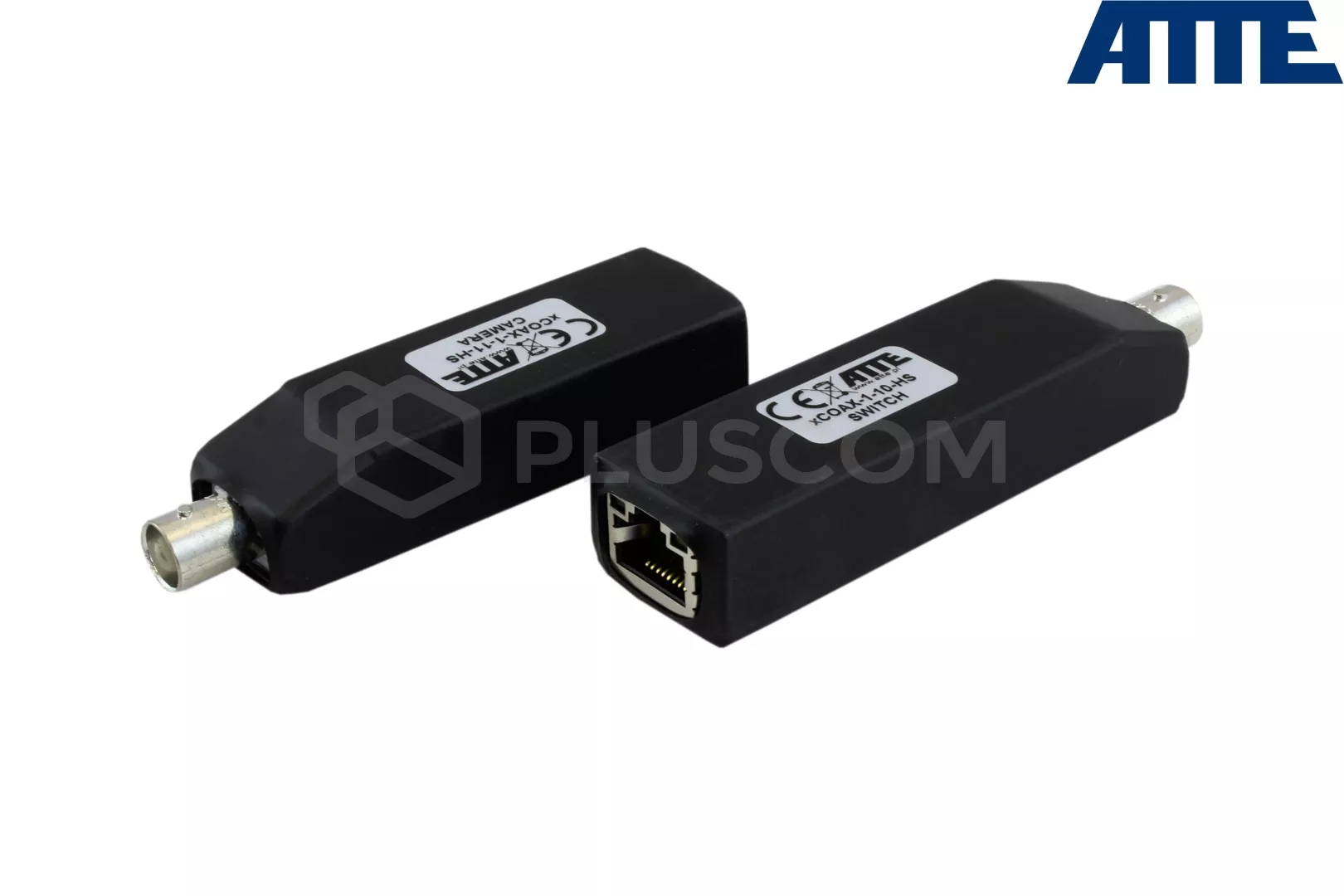

ATTE ASET-xCOAX Active converter for ETHERNET and PoE transmission over coaxial cable

Converter for Ethernet and PoE tranmission over coaxial cable:

Converter for Ethernet and PoE tranmission over coaxial cable:


TECHNICAL PARAMETERS:

CONNECTORS:

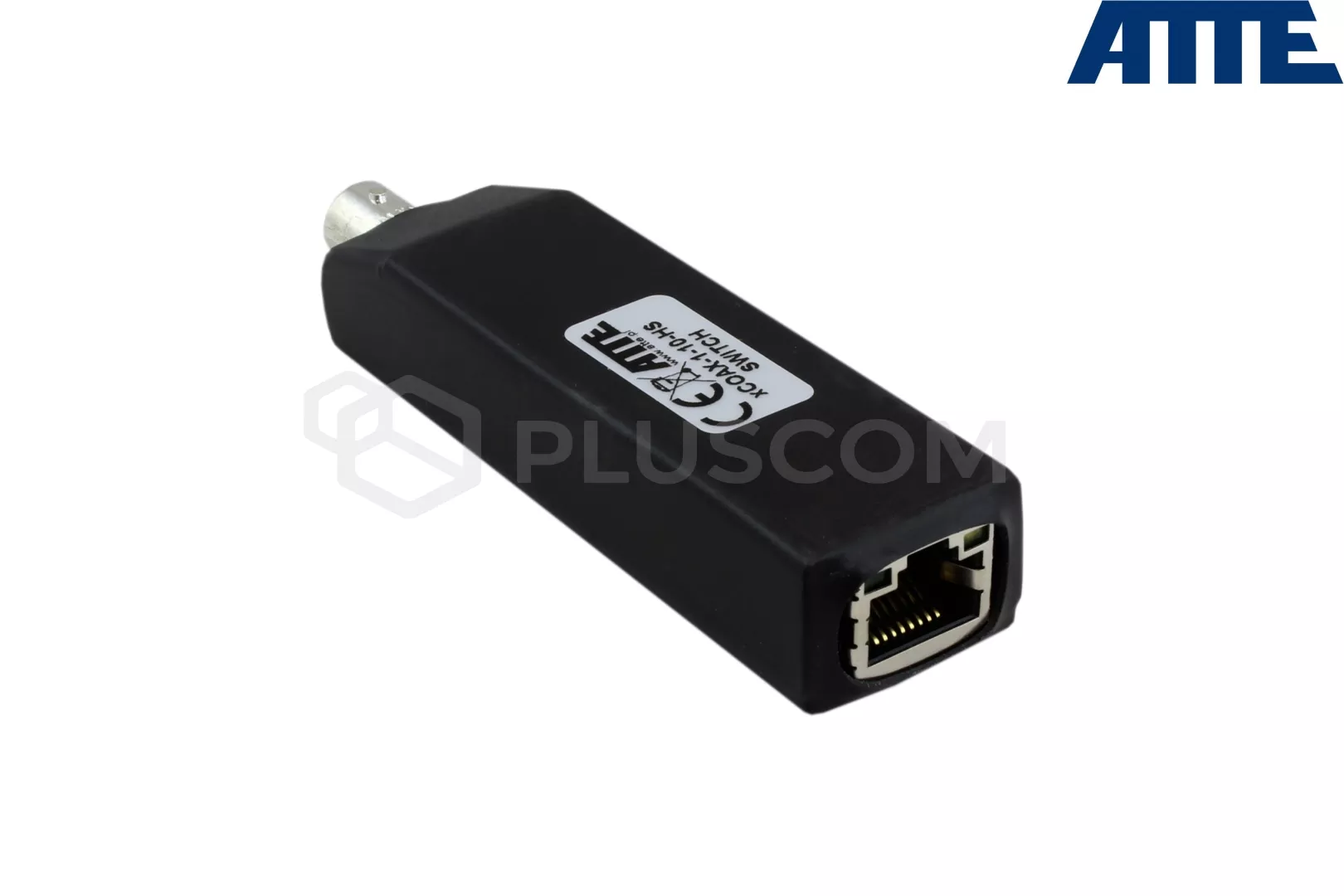

  • 8C8P (RJ45) 10 / 100Mbps auto MDI-MDIX, autonegotiation
  • BNC - F (female)
LENGTH OF WIRING:
  • coaxial cable between the converter modules: 200m for RG-6, 100m for RG59
  • UTP network cable: (transmitter) PoE switch - xCOAX-1-10-HS SWITCH - 100m
  • UTP network cable: (receiver) - xCOAX-1-11-HS CAMERA - 100m
POWER SUPPLY: Vin = Vout
  • xCOAX-1-10-HS SWITCH transmitter voltage: 35-56V DC
  • output voltage for PoE devices - xCOAX-1-11-HS CAMERA 35-56V DC
SUPPORTED STANDARDS PoE RECEIVERS
  • 802.3af - up to 15.4W
  • 802.3at - up to 30W
  • PoE PASSIVE - up to 40W
PoE output
  • xCOAX-1-11-HS PoE PASSIVE / mode B (4.5+) (7.8-)
SUPPORTED STANDARDS PoE TRANSMITTERS
  • 802.3af - up to 15.4W
  • 802.3at - up to 30W (default)
  • PoE PASSIVE - up to 40W
PoE input
  • xCOAX-1-10-HS 802.3at, 802.3af, PASSIVE / mode A (1,2 +/-) (3,6 +/-) and mode B (4,5 +/-) (7,8 +/-)
SECURITY:
    PoE xCOAX-1-10-HS SWITCH input: 0.75A (electronic, automatic return)
  • working temperature: -10°C...+40°C
  • dimensions, weight, degree of protection:
    • xCOAX-1-10-HS 98x25x19mm, 0.03kg, IP20
    • xCOAX-1-11-HS 87x25x19mm, 0.03kg, IP20
