ATTE AF‑P8‑00‑OF 8 channel power distribution module

13,39 EUR including 23.00% VAT
Product code: #24526
Manufacturer: Atte
  • Outputs: 8x
  • Input voltage: 10-56V DC
  • Fuse: PTC 0.75A
  • Power supply presence LED indication
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

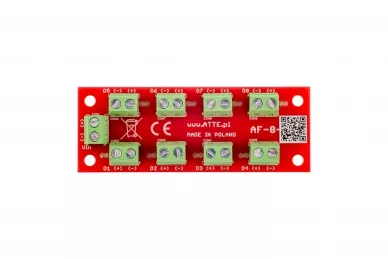

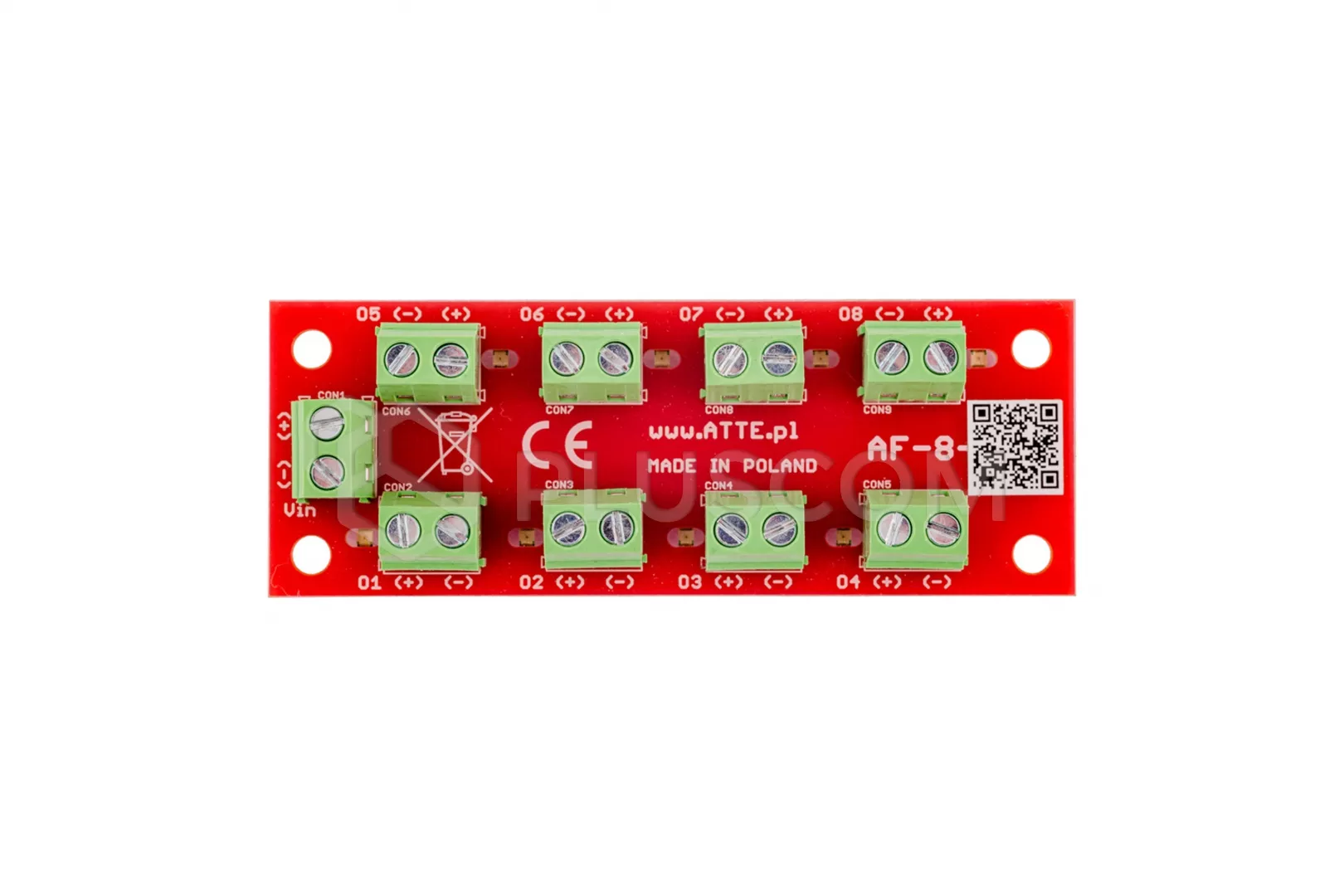

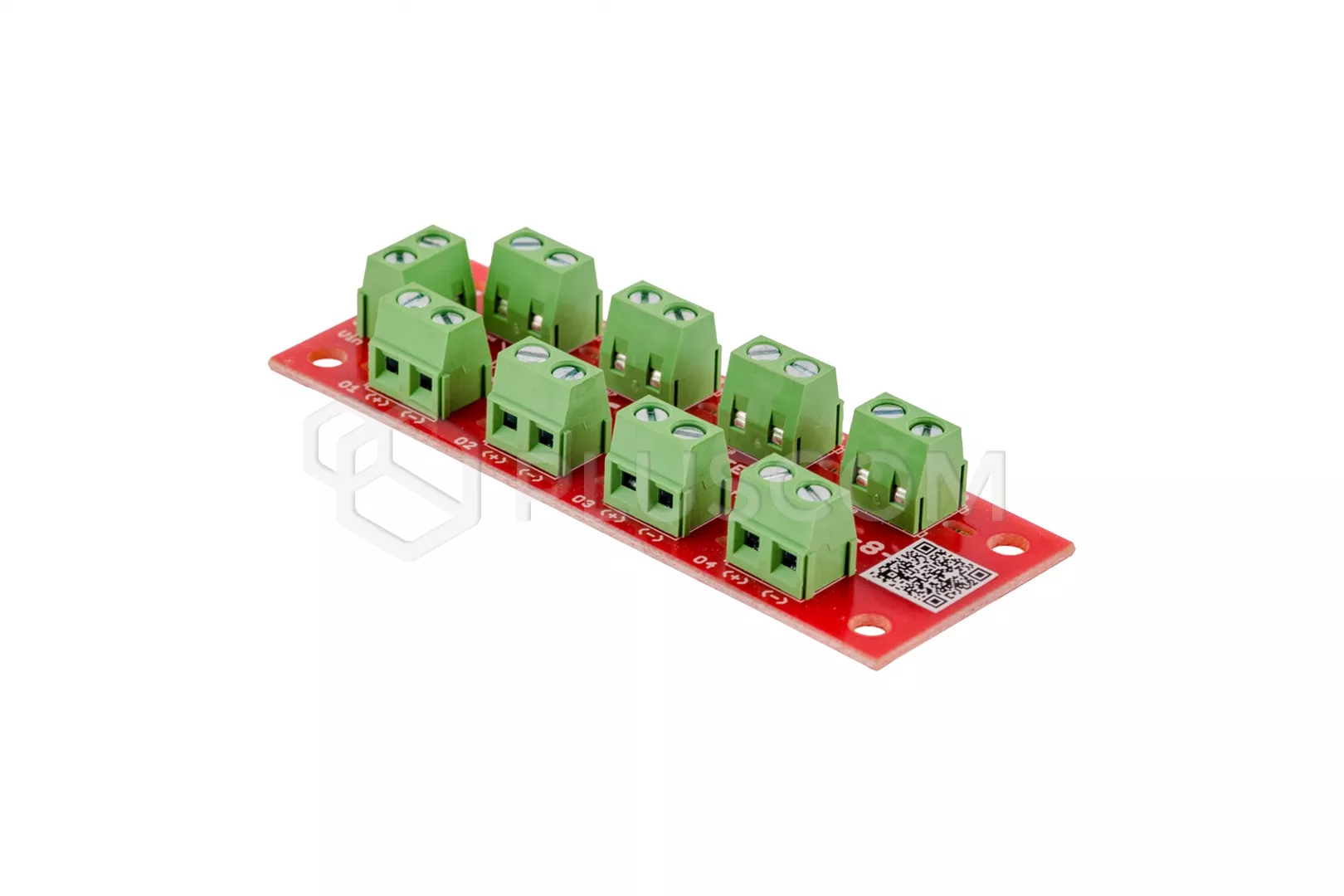

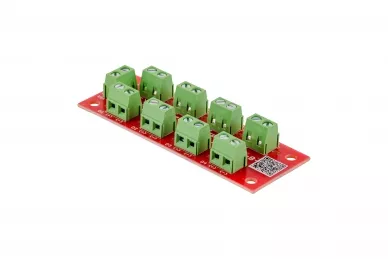

ATTE AF ‑ P8‑00 ‑ OF 8 Channel Power Distribution Module


The module enables distribution of the power source into 8 receivers . Each of the outputs is protected with a 0.75A polymer fuse and has overload and short circuit protection. Correct work exit is indicated by the lighting of the LED .

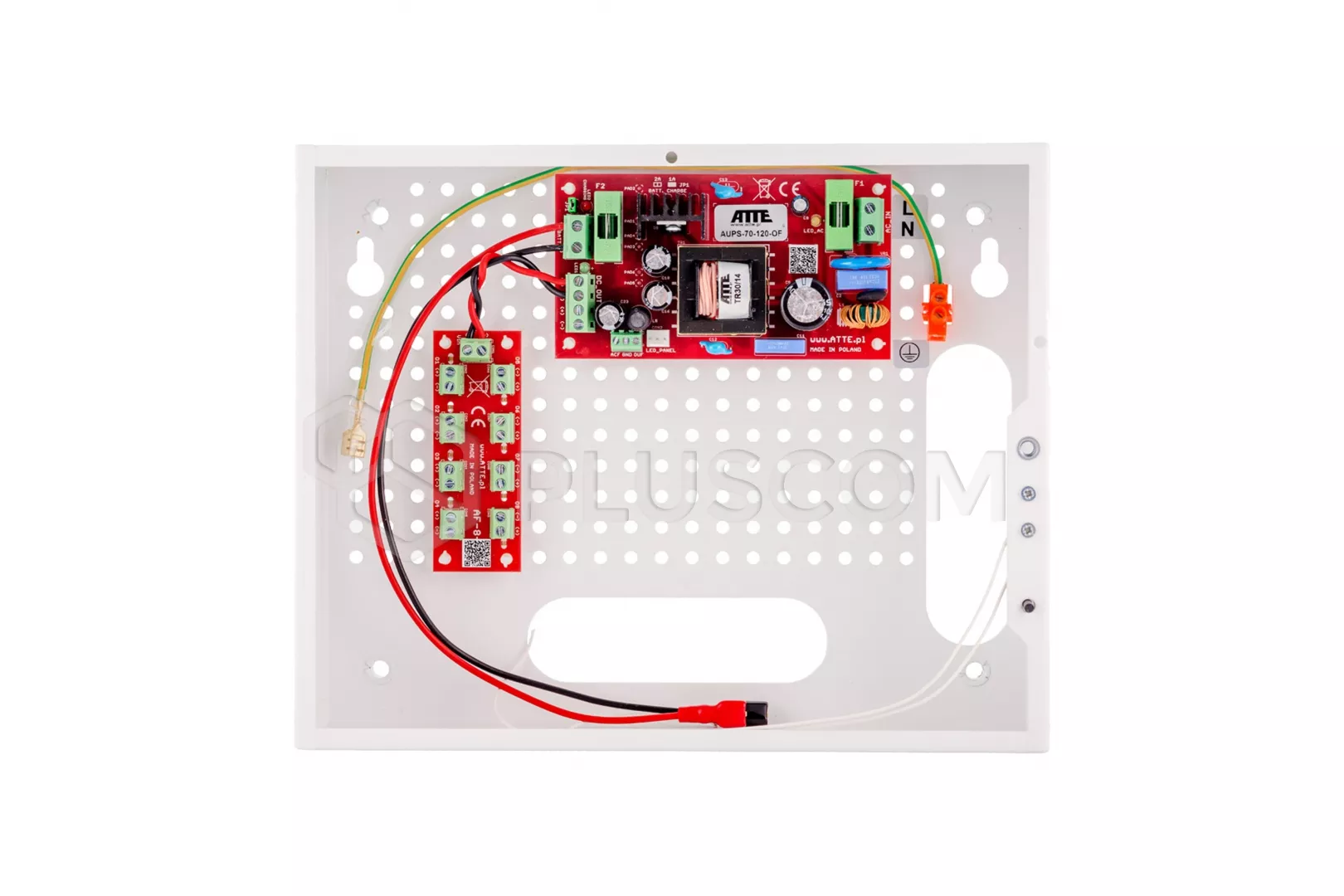

The module has an open structure, thanks to which its advantage is small size and easy installation in ABOX series enclosures with system openings in pitch 10.8 mm.

TECHNICAL DATA:
  • input voltage: 10-56 VDC
  • output voltage: Vout = Vin
  • output current: 8x 0.75 A - maximum per channel (total depending on sources)
  • current consumption: 8-40 mA (voltage dependent)
  • output protection
    • SCP (short circuit protection)
    • OLP (overload)
    • Polymer fuse 0.75A (restart may be required after short circuit module)
  • indication of output O1 ... O8: LED (red) - power on connector
  • assembly: snap-in distance pins, mounting holes in a 10.8 raster mm
  • working temperature: -25 ... + 50 ° C
  • dimensions: 85 x 32 x 17 mm
  • weight: 0.03 kg
The device complements the offer of APS series power supplies and power supplies buffer AUPS series intended for CCTV systems, access control systems and alarm systems.
