ATTE ABOX-ALUXL External casing

342,20 EUR including 23.00% VAT
Product code: #36423
Manufacturer: Atte
  • 2 internal mounting plates
  • 2 x TH35 rails
  • Holes for stuffing boxes 3 x PG 21, 12 x PG 16
  • Ground connection
  • Space for a 40Ah battery
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
ATTE ADD-PMAALUXLS Pole holder for hermetic cabinets ATTE ADD-PMAALUXLM Mast holder for hermetic cabinets

ATTE ABOX-ALUXL External casing with space for a battery 40Ah

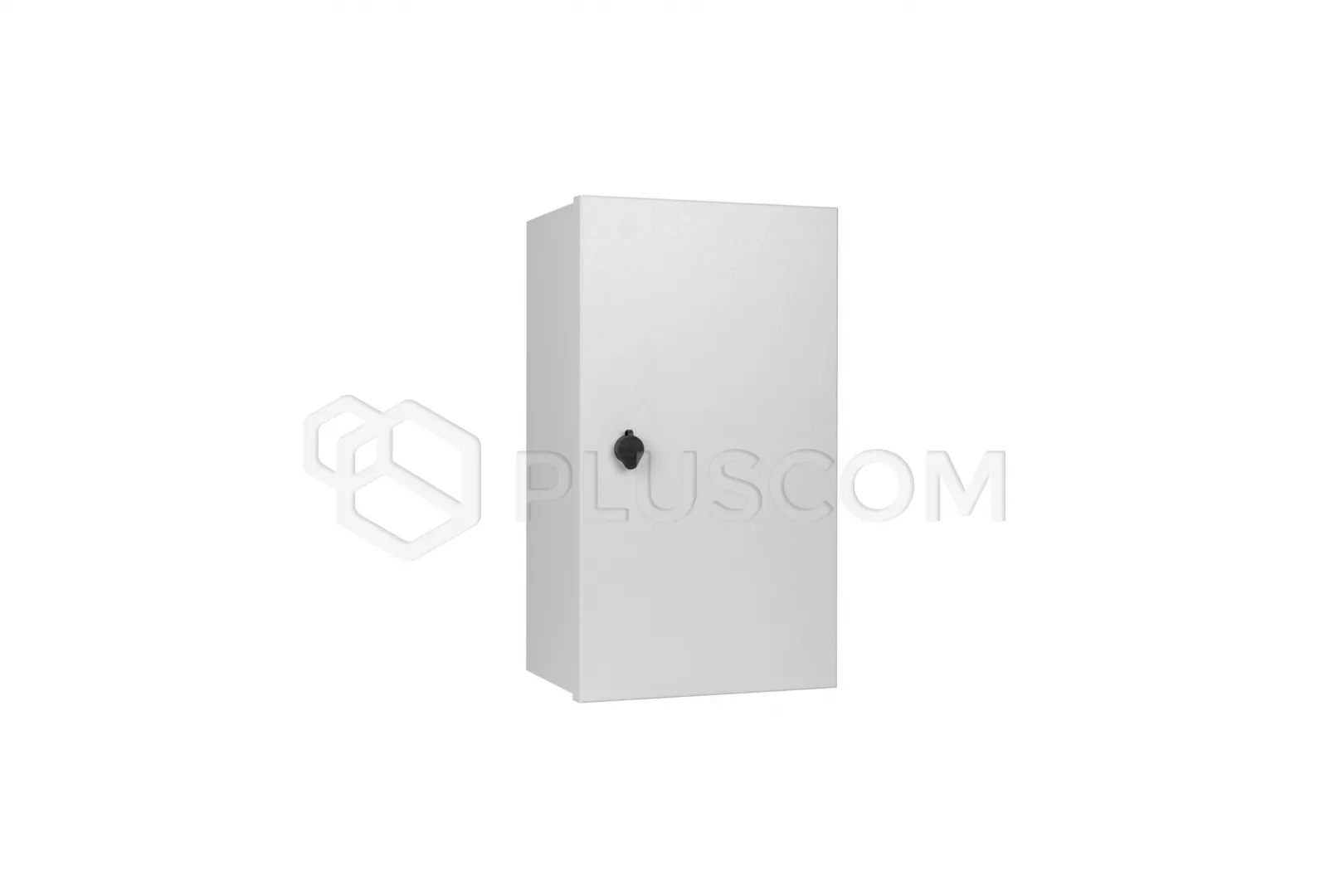

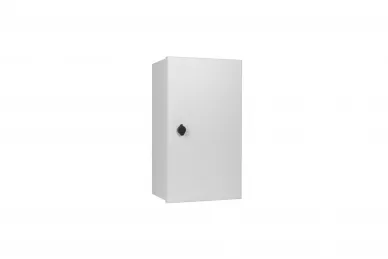

ABOX-ALUXL is a hermetic IP66 housing designed for installation on wall. Using an additional adapter, it can be installed on a pole or mast.

The housing is a convenient solution for preparing external spaces buffer sets for 8 IP cameras and additional devices. Allows you to preparing a distribution point tailored to the specific needs installation.

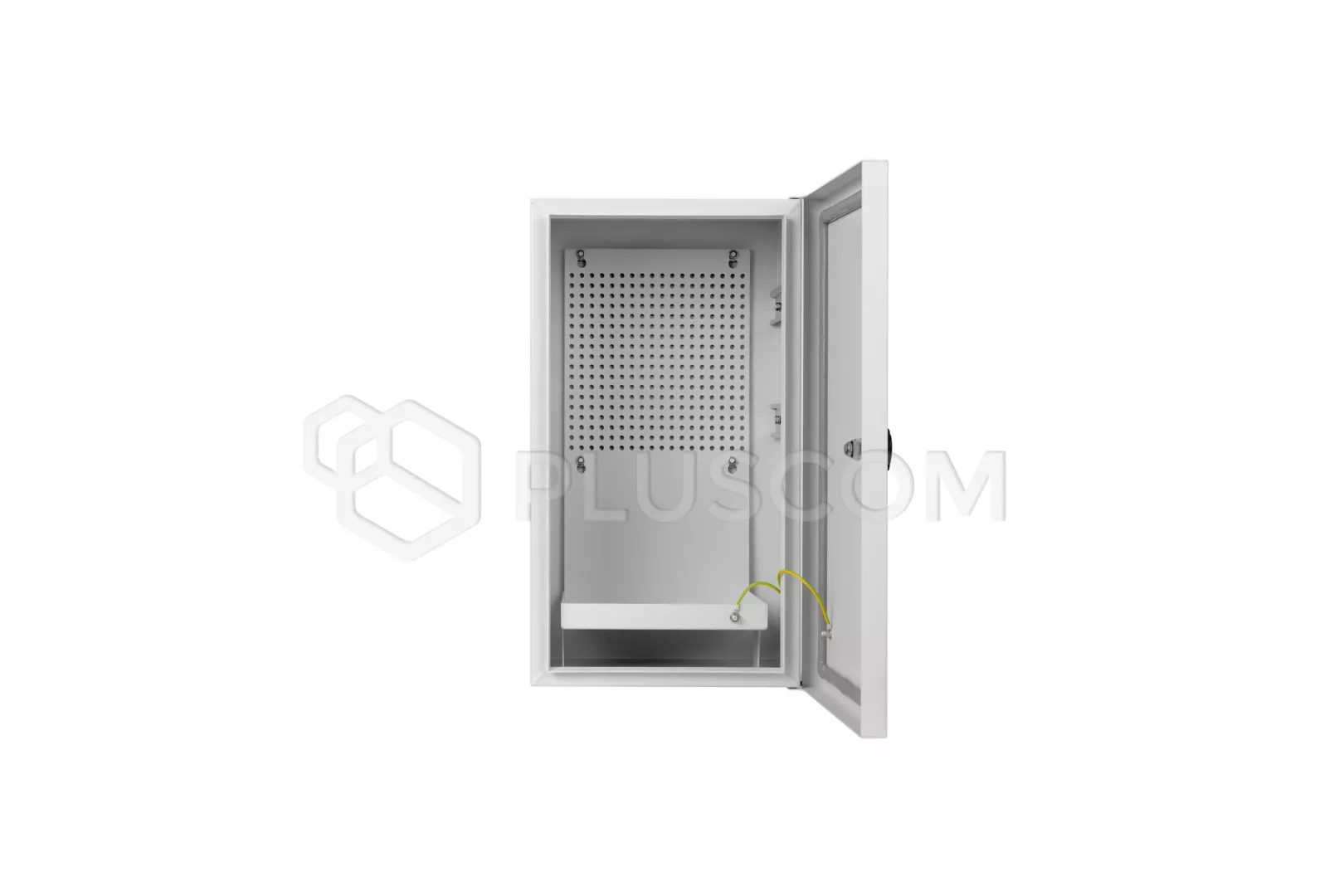

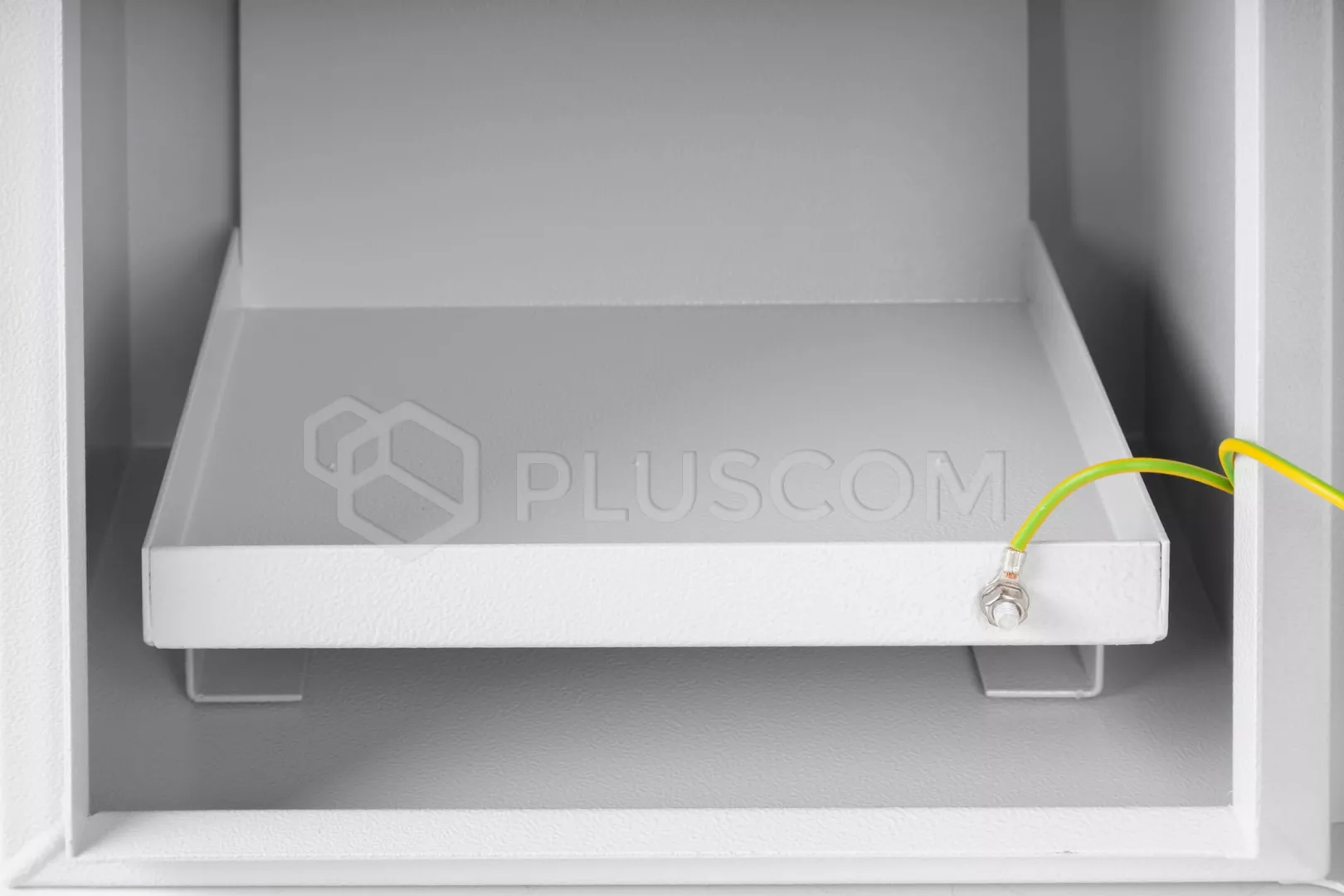

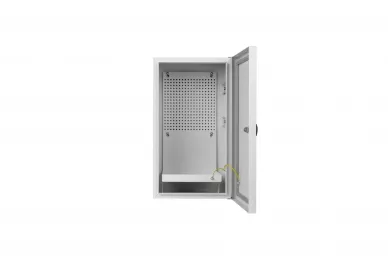

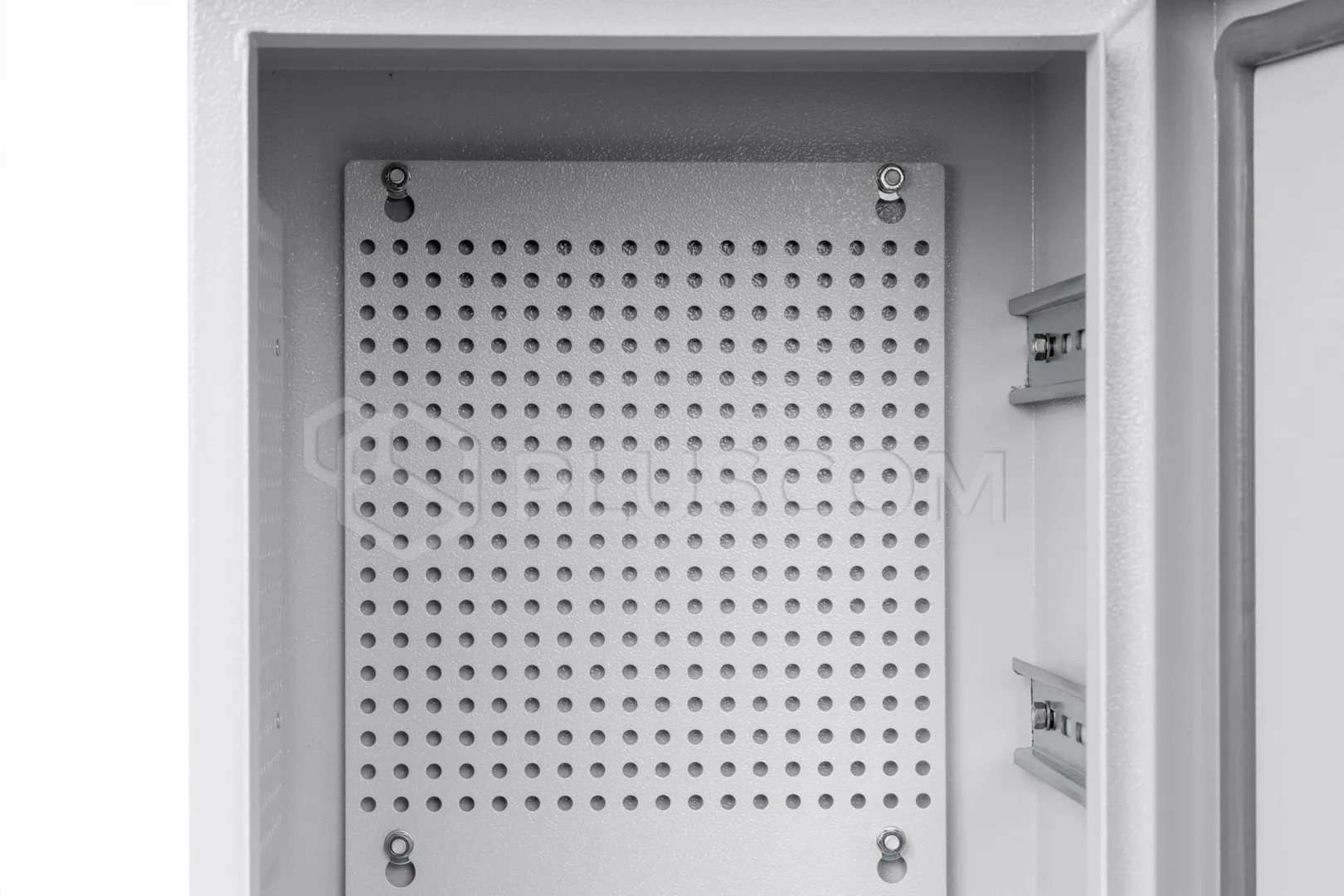

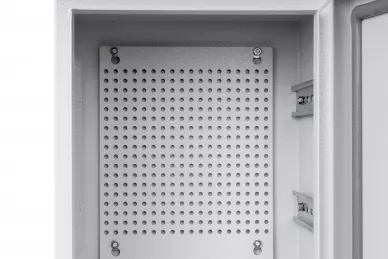

It has two mounting plates with a 10.8 mm pitch for mounting ATTE modules, which can be easily removed, and two DIN rails that facilitate the installation of elements such as switches, power supplies, media converters or mini fiber optic distribution boxes. Thanks to the appropriate number and size of cable entries, it is possible to conveniently introduce and exit power cables, fiber optics and twisted pairs. There are also protective conductors that can be connected to active devices. The battery shelf (40Ah) allows you to maintain a distance from the side walls and allow free air flow.

FEATURES AND FUNCTIONS

  • Two mounting methods available: using special holes in a 10.8 mm pitch and via a TH35 rail
  • Possibility to keep spare cables inside the housing
  • Space for a 40Ah battery
  • Enclosure door locked with a key
  • High degree of protection IP66

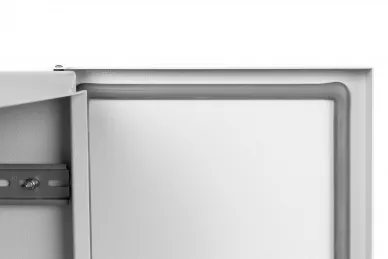

  • High-quality polymer gasket
  • Drainage of water from the seal thanks to the special profile of the collar pressing the seal, which is particularly important during frosts
  • High resistance to ozone, oxidation and acids
  • High corrosion resistance, including in marine conditions and industrial atmospheres
  • Almost three times lighter than its steel counterpart
  • The housing has a ground connection
  • Electrical continuity - both through the conductive structural parts of the housing and a separate protective earth conductor
  • The set includes:
    • 2x universal keys for the housing
    • 4x rubber bands for wall mounting
    • 3 holes for PG 21 glands (marked)
    • 12 holes for PG 16 stuffing box (marked)

TECHNICAL DATA

  • Installation: wall or pole mounting using an adapter
  • Protection rating: IP66
  • Operating temperature range: -25 ... +65 °C
  • Dimensions: 270 x 480 x 205 mm
  • Weight: 3 kg
Download
Datasheet 0.22 MB
