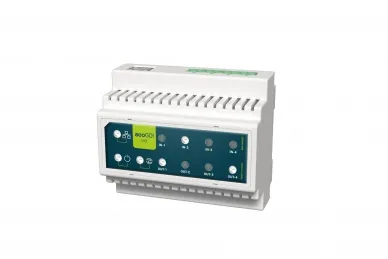

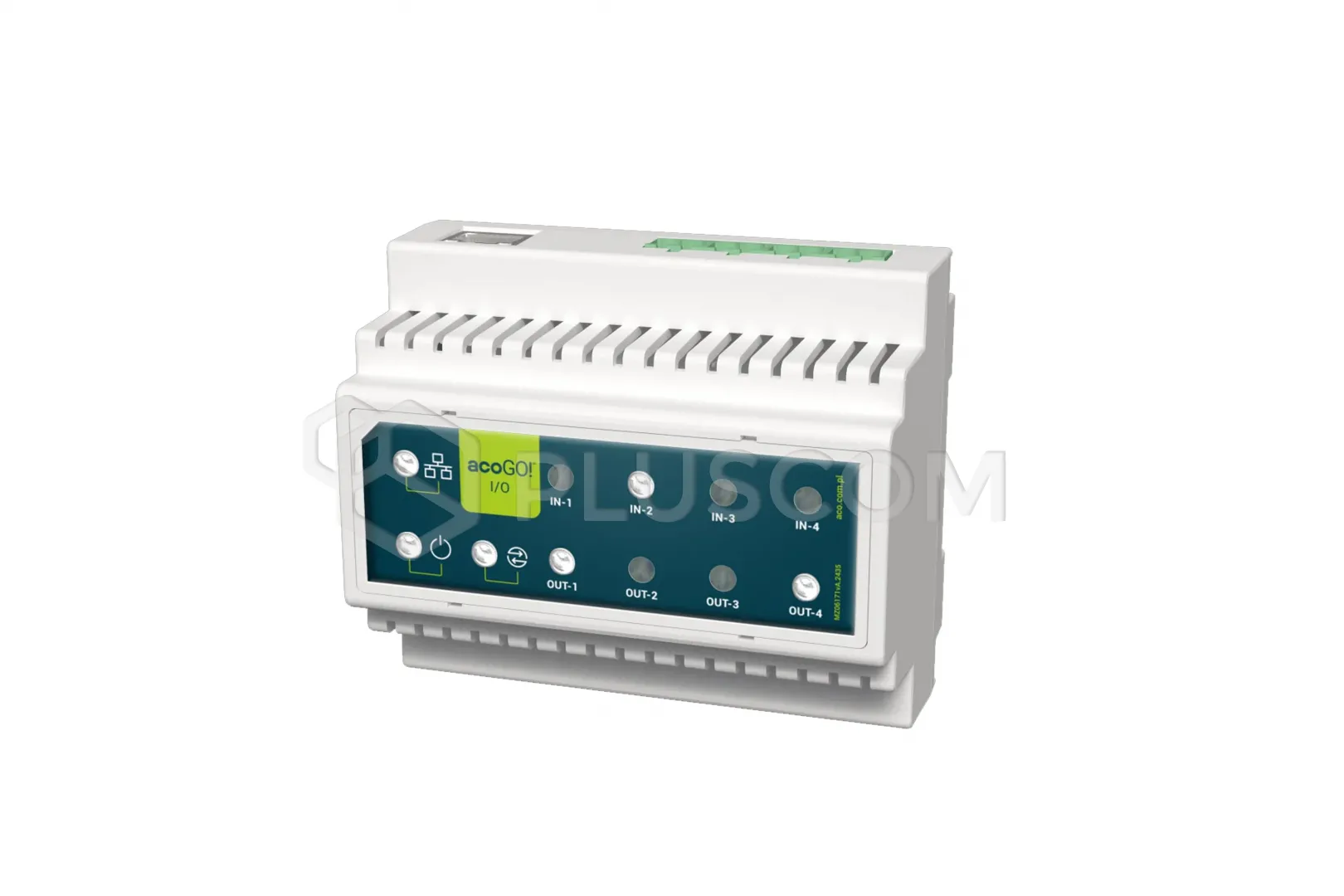

ACO AcoGO! I/O – Expansion Module for acoGO! 2.0 WiFi DIN
Expansion module for acoGO! 2.0 WiFi DIN (P and PRO) enabling the connection of
sensors and control of external devices via a smartphone app (up to 16 inputs
and 16 outputs in the first acoGo! 2.0 gateway).
Compatible with CDNP, INSPIRO, and COMO standard installations; pairing with an
acoGO! 2.0 gateway is required.
Designed to integrate the acoGO! 2.0 WiFi DIN gateway with additional sensors
and actuators in home automation systems, including multi-apartment systems –
using signal inputs and isolated relay outputs – independent and with
adjustable operating time (mono and bistable). When paired with an acoGO!
gateway, 2.0 allows for individual allocation of output control permissions and
input signal visibility to all users of the acoGO! 2.0 gateway, depending on
the owner's or administrator's decision. With the ability to connect up
to four acoGO! I/O modules to the acoGO! 2.0 gateway, it allows for a wide
range of residential automation applications (ultimately, up to 16 inputs and
outputs can be connected to a single acoGO! 2.0 gateway).
The device is compatible with both PRO and P bus-based systems and does not
require additional licenses or subscriptions beyond those already purchased for
the acoGO! 2.0 gateway.
The minimalist design allows for versatile use in a variety of projects. It is
primarily intended for installation in a switchboard. To operate, the device
requires a permanent internet connection, which can be provided via a wireless
Wi-Fi network or a wired LAN (recommended).
FEATURES:
- App available in both the Google Play Store (Android) and the App Store
(iOS)
- The smartphone app allows you to control additional devices, such as a
second gate, barriers, elevators, lighting, roller shutters, or any other
home automation system, in addition to talking to the intercom system (option
available depending on the device configuration on the acoGo! portal).
- Connection possible anywhere in the building (internet access required
for both the gateway and smartphone).
- Internet connection via LAN (Ethernet) (recommended) or Wi-Fi.
- Simple configuration on the acogo.pl portal after connecting to the
acoGO! 2.0 gateway, including programmable individual input and output
relationships.
- Remote control of input and output settings from the acoGO! portal. (from
anywhere, on any device)
- No additional licenses or subscriptions required on the acoGO! portal,
other than those already purchased for the acoGO! 2.0 gateway.
- Individual permissions for each user connected to the AcoGO! gateway (up
to 64 apartments/users after purchasing a MULTI license).
- Device settings management via a standard web browser (the ability to log
in to the device's configuration page within the local network).
- Firmware/software update capability.
- Compatible with all digital devices from the CDNP, Inspiro, Familio P/PV,
and COMO-PRO groups.
- 3 LEDs indicating device status, 4 LEDs indicating output activity, 4
LEDs indicating input status.
- Continuous development and improvement of the mobile app, gateway, and
portal – constantly adding acoGO! features and capabilities.
The module has facilities for people with disabilities and Thanks
to the smartphone app, we can:
- remotely answer the intercom and conduct a
conversation
- remotely open the door, gate, call the elevator,
etc.
The acoGO! system ensures a high level of security thanks to the use of
modern technologies. All connections between the server, mobile app, and the
acoGO! gateway are encrypted using standard SSL and HTTPS methods, guaranteeing
the confidentiality of transmitted data. Our servers are located at Amazon – a
global leader in cloud services (AWS) – ensuring exceptional security and
professional management. Cameras in the intercom panels allow video
transmission only to users added to the gateway's dial plan, preventing
unauthorized access. Additionally, neither video nor audio are stored, further
enhancing user privacy and security.
