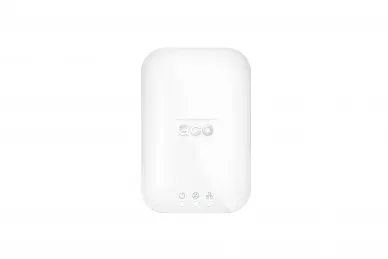

ACOGO! BT – Bluetooth access module for the acoGO! system

ACO ACOGO! BT – Bluetooth Access Module for the acoGO! System

AcoGO! BT is a Bluetooth module compatible with the acoGO! system, enabling convenient and touchless control of entrances and selected devices using a smartphone. The device detects an authorized user's phone, communicates with it via Bluetooth, and after verifying permissions, initiates a programmed action, such as opening a door, garage door, or calling an elevator.

The module can operate automatically upon detection of a user or upon confirmation of the action in the app. It works with the acoGO! gateway, offers event logging, configuration via the portal and the acoGO! app, and the ability to individually adjust the activation threshold. It is designed for surface mounting inside buildings.

FEATURES:

• Touchless door, gate, or smartphone control
• Bluetooth communication with the acoGO! app
• Two operating modes: automatic or with confirmation
• Compatible with the acoGO! gateway and the acoGO! system
• Output relay control
• PoE or DC 12–15 V power supply
• Connection via Ethernet or WiFi
• Event logging in the acoGO! system
• Surface-mounted indoor installation

TECHNICAL DATA:

• Power supply: PoE or DC 12–15 V
• Minimum power supply output: DC 0.5 A
• Output: Relay OUT
• Contact type: COM / NO / NC
• Communication: Bluetooth / BLE
• Connector: LAN RJ45
• Compatibility: acoGO! 2.0, acoGO! I/O, acoGO! app
• Function: User phone detection, output control
• Operation modes: Automatic / with app confirmation
• Network connection: Ethernet / WiFi
• Configuration: acoGO! Portal, acoGO! app, gateway GUI
• Operation regulation: Individually adjustable threshold / RSSI
• Mounting: Surface-mounted
