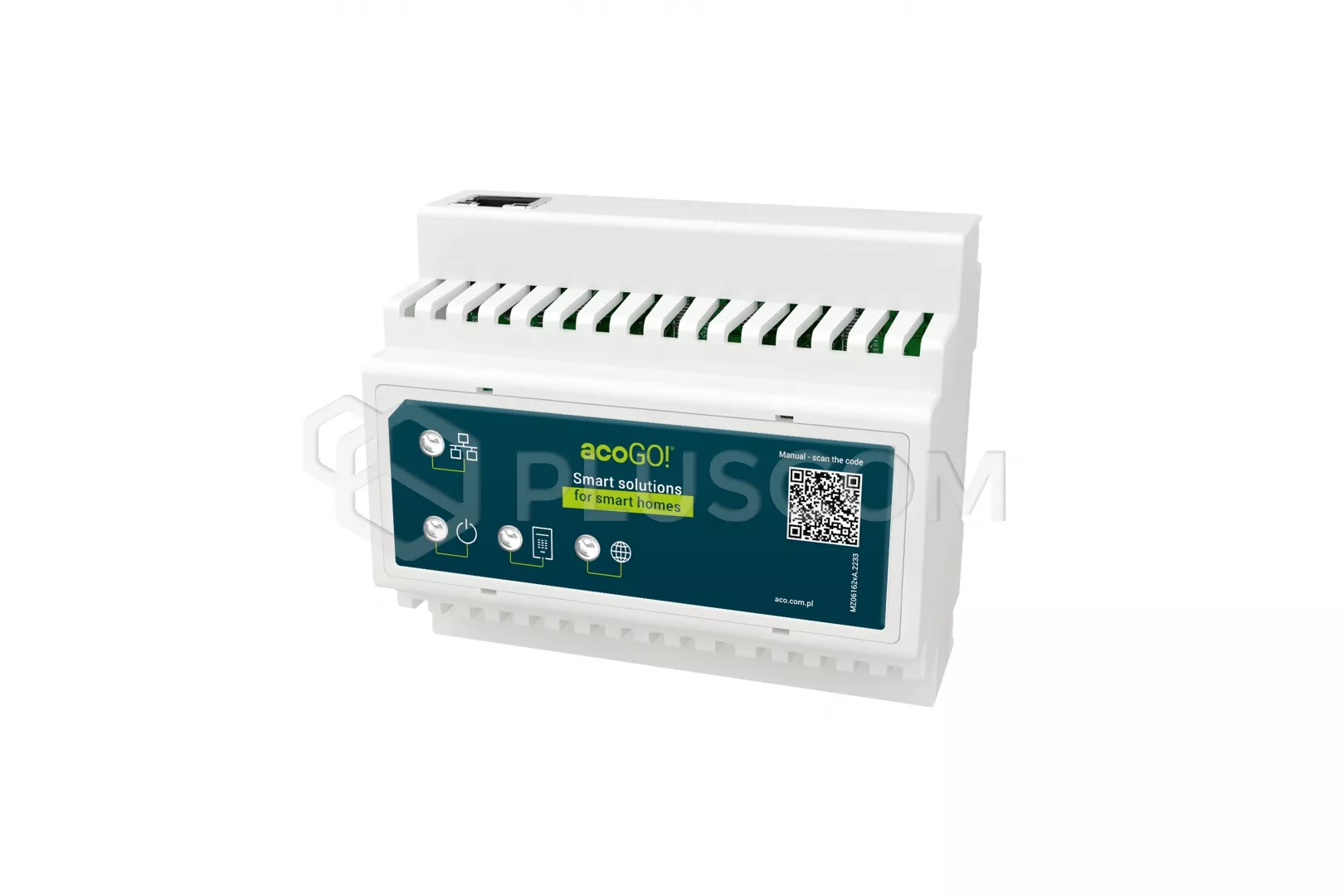

ACOGO! 2.0 P WiFi - IP gateway for P or PV intercom system with built-in
WiFi on DIN rail
Goal acoGO! 2.0 allows you to answer a call from the intercom on your
smartphone too using the acoGO! 2.0 (iOS/Android/Audio/Video/Single/ multi). It
allows you to remotely answer the call, open the door, and control second gate
or other home automation.
AcoGO! 2.0 is a multifunctional device and can be used both in single-family
home, block of flats or townhouses. In the case of construction
multi-apartment, it is enough to install one device in the building, and each a
resident can join the gate and use the “Moje acoGO! Multi'.
To operate the Gateway requires a permanent connection to the Internet, which
you can deliver via wireless WiFi or wired LAN (recommended solution). AcoGO!
allows you to send a video signal from the camera intercom in the form of an
RTSP stream, which can be intercepted by e.g. video recorder.
Works with ACO brand devices operating in P and PV systems.
By default, the device is in audio and Single versions - it supports 1 premises
(1 address receiver) and an audio conversation with the possibility of
connecting up to 4 devices mobile devices (smartphones, tablets).
By purchasing and activating the appropriate licenses, you can, for example,
add a video function, which allows you to view the image from the camera of the
intercom calling. It is possible You can also purchase a Multi license, which
in turn is dedicated to the investment multi-apartment buildings and allows the
device to service up to 64 premises, and in each of them it is possible to
connect up to 4 mobile devices (smartphones, tablets).
DEVICE FEATURES:
- redirects the functions of the intercom receiver to the smartphone with
it installed acoGO! 2.0
- the application on the smartphone enables, among others:
-
- call audio: clear, noise-free audio
- preview of the video image from the calling video intercom
- opening the door - both without having to connect to premises
- control of additional devices, e.g. second gate, barrier, lighting,
blinds or other home automation with the help of an additional one relay
output* (function F2) - both without necessity establishing a connection
with the premises
- opening the electric strike or additional relay output* F2 without
having to connect to the premises
- full connection privacy
- intuitive and comfortable operation
- speaker mode or like a classic phone call
- call/talk volume control
- sleek housing that can be mounted next to a classic receiver (surface
mounting)
- can be mounted instead of the receiver (possibility of automatic
operation, without classic intercom receiver)
- possibility of parallel operation with the receiver (at the same address
as classic intercom receiver
- can be connected anywhere in the intercom bus
- works over the Internet (requires Internet access for both gateways as
well as for a smartphone)
- Internet connection via LAN (Ethernet) / recommended or Wi-Fi
- simple configuration
- handles the dialing address from the pool available in the system: 1023
addresses
- can respond to any dialing address (when address is set to
"0")
- remote operation of the device via a web browser and the acoGO! (With
anywhere, on any device)
- possibility to increase the capabilities of the device by purchasing i
licenses subscription on the acoGO! portal.
- supports up to 64 apartments (after purchasing the appropriate license -
versionMulti)
- possibility to connect up to 4 phones (after purchasing a subscription -
version Single/Multi)
- managing device settings via a regular web browser (possibility to log in
on the local network to the configuration page devices)
- sending video stream from video intercom in RTSP format
- upgradable firmware (firmware / software)
- compatible with all digital devices operating in PRO, PRO-A
- systems
- 4 LEDs for device status
- continuous development and improvement of the mobile application, gateway
and portal - constantly added features and capabilities of acoGO!
Facilities for people with disabilities (thanks to the application on
smartphone):
- answering the intercom remotely and talking
- preview of the image from the panel's camera (video system PRO
required)
- remote door opener
- remote control of home automation, e.g. opening a second gate, barrier,
blinds, lighting control (proper installation required intercom)
The device is mainly intended for installation in switchboards.
TECHNICAL DATA:
- Power: 15V DC / 500mA
- Standby power consumption: ~6W
- Inputs:
-
- 6 x screw connectors (PRO system bus connection):
-
- connection of audio communication line: "LINE"
- power connection: "+DC" and "-DC"
- Video signal connection: "V+" and "V-"
- 1 x RJ45 connector: P and PV system bus connection
- 1 x RJ45 connector: LAN connection
- Outputs: 2 x screw connectors: audio output connection: "LINE+"
and "LINE-"
- Installation type:
-
- Digital P system, audio: 2-wire + power
- Digital PV system, video: cat. 5e or 6
- Mounting method: DIN rail
- Dimensions: 109x92x59mm (6 DIN modules)
