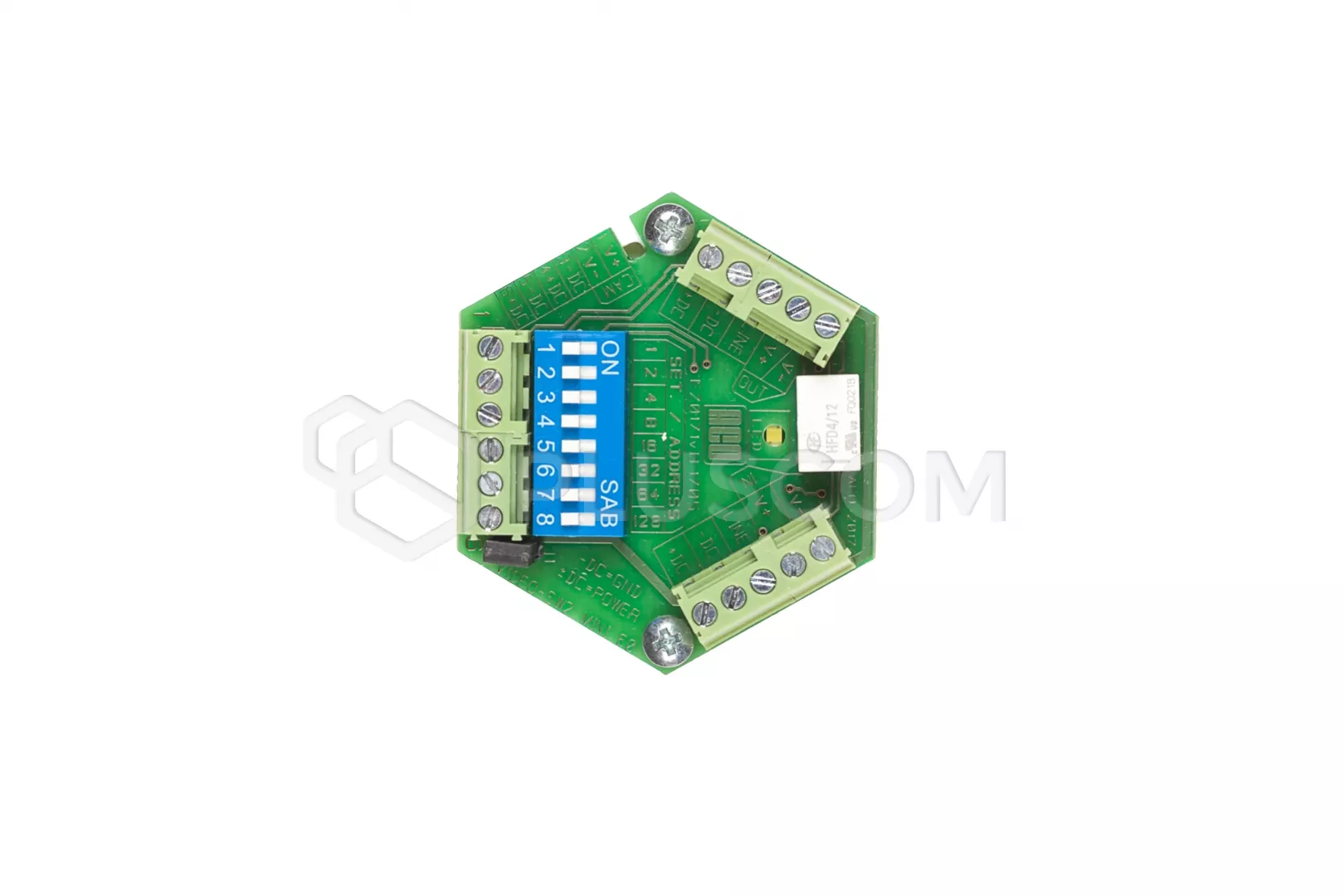

Aco VIDEO-SW2 MINI–60 Additional camera switch

VIDEO-SW2 MINI–60 Additional camera switch – for electrical box Ø60 mm

The VIDEO-SW2 MINI–60 module allows you to connect an additional camera to the system. We can use more switches in the system, thus increasing the quantity connected cameras. However, we must remember that the sum of all supported cameras, for each address, cannot be greater than 4.

The switch is compatible with the entire PRO system

MOST IMPORTANT FEATURES:

• possibility to connect an additional camera in the system
• possibility to use more switches in the system for the purpose connecting more additional cameras (up to 4 cameras supported globally via all monitors or up to 4 cameras for each address multimonitor
• possibility to connect a camera supported globally and simultaneously cameras for each address
• addressing similarly to PRO system receivers (0 u2013 3 0 = any address) for which address it should perform the switching functions cameras
• monitors detect the number of connected switches
• compatible with the entire PRO system
• fits in an electrical box with a diameter of 60mm
• module supported by monitors from software version: v1.3 for MPRO7 and v1.6 for MPRO

TECHNICAL PARAMETERS:

• power supply: 15 VDC
• power consumption in standby mode: ~ 0.4W
• Installation type: Cat twisted pair. 5e or 6
• ARK screw connector outputs:
• • connection of the VIDEO signal of the PRO system (blue pair)
  • connecting the PRO system line
  • power connection
• ARK screw connector inputs:
• • connection of the VIDEO signal of the PRO system (blue pair)
  • connecting the PRO system line
  • power connection
  • connection of an external VIDEO signal (differential signal)
• dimensions: Ø: 60mm
