Aco PS-MDR-20-15 Mean Well DC 15V/1,34A DIN TS35

25,30 EUR including 19.00% VAT

Add to cart

Product code: #19860

Manufacturer: ACO

Ask about this product

Output parameters: DC 15V 1,34A max 20W
Width: 22,5mm
Output OK for DC: (DC OK ACTIVE SIGNAL)

Delivery and tax:

Germany VAT: 19.00% change

Shipping cost from:

10,84 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

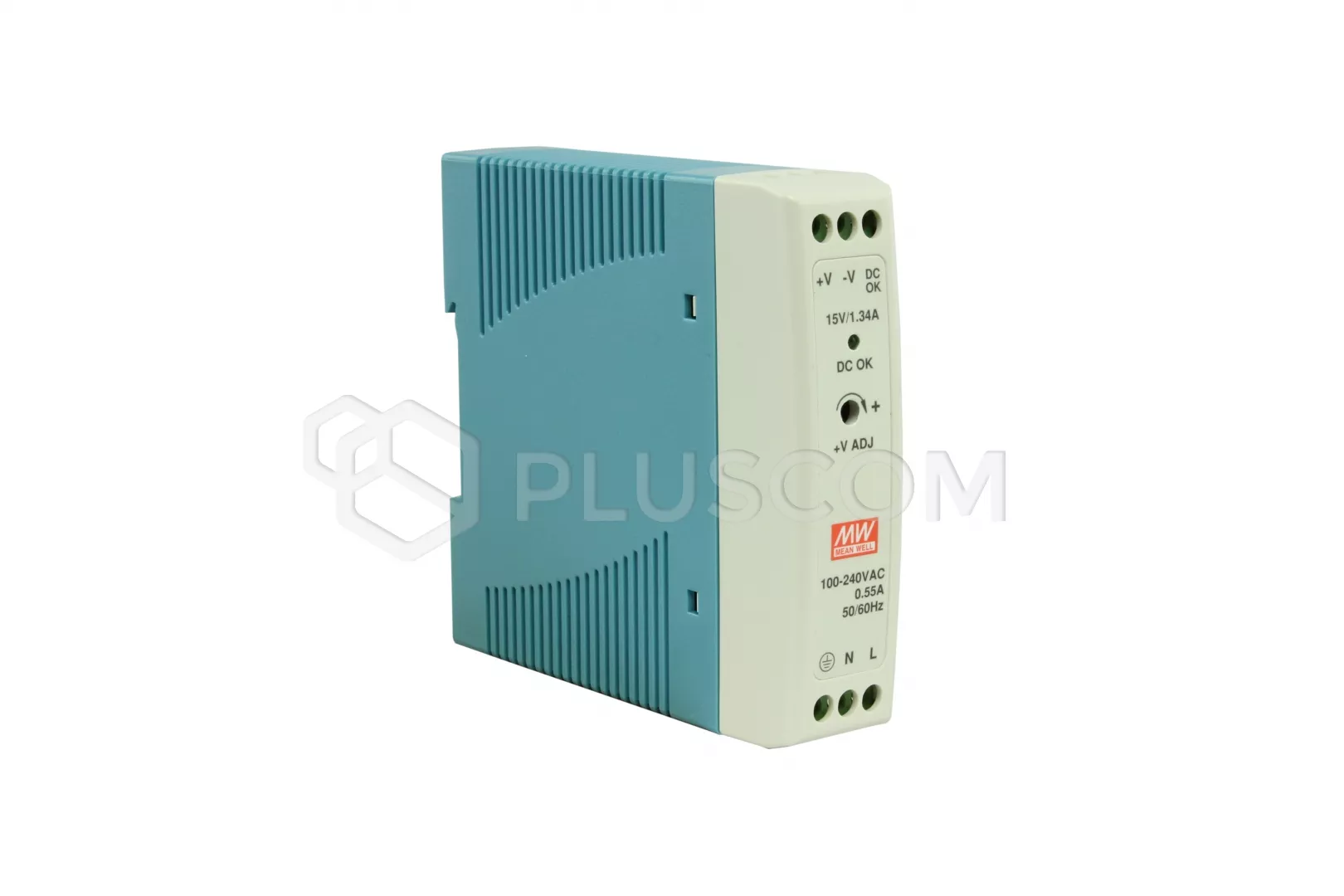

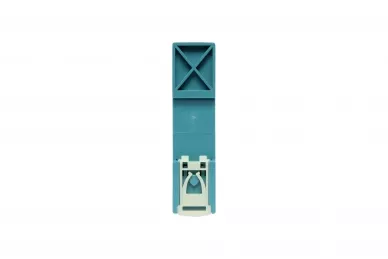

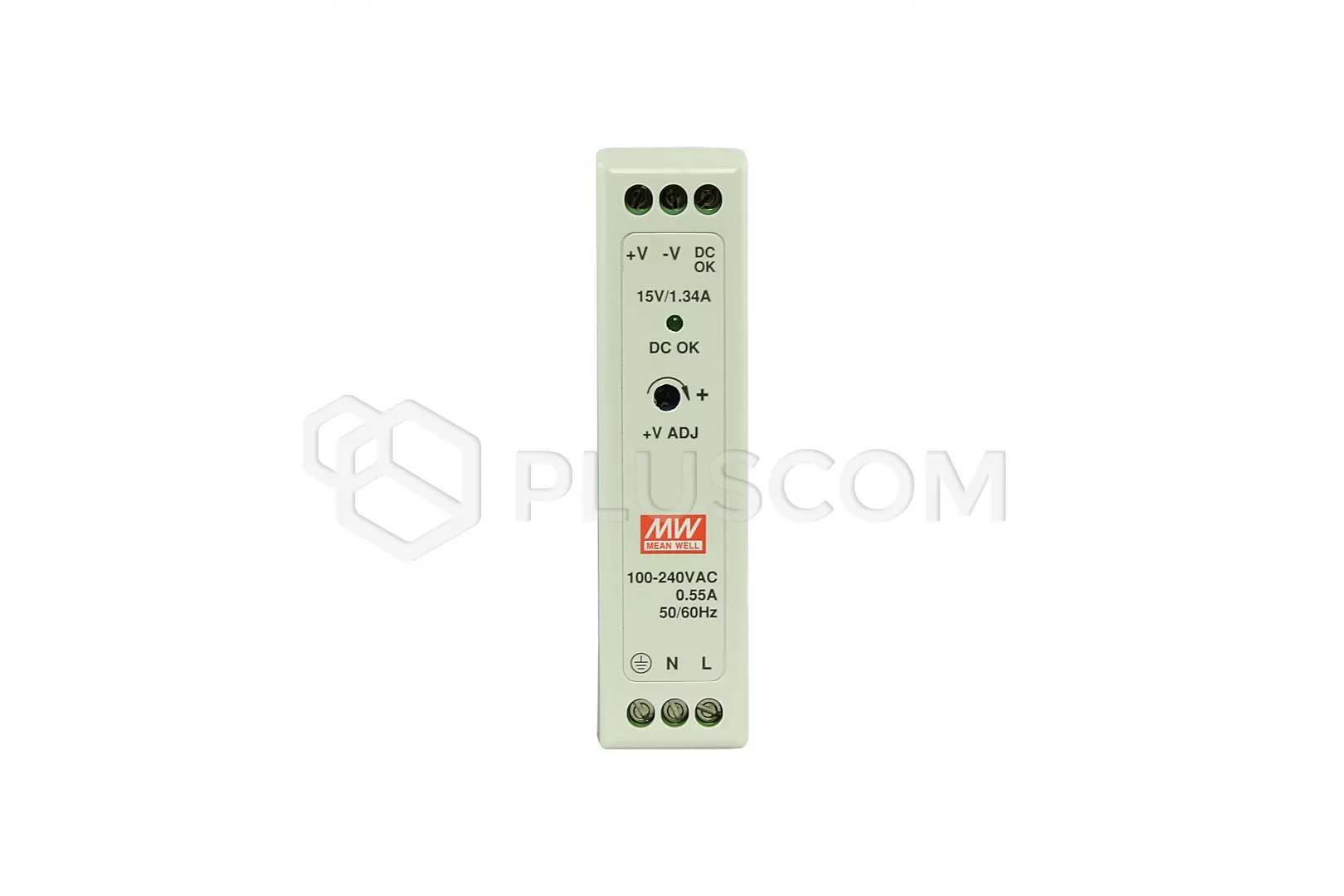

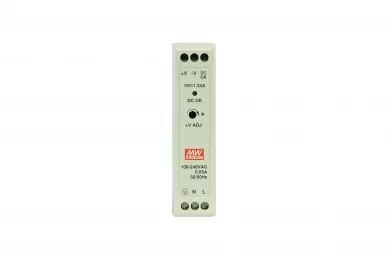

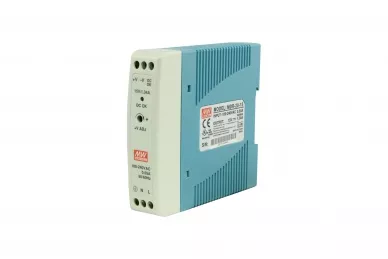

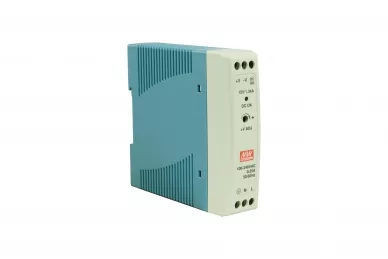

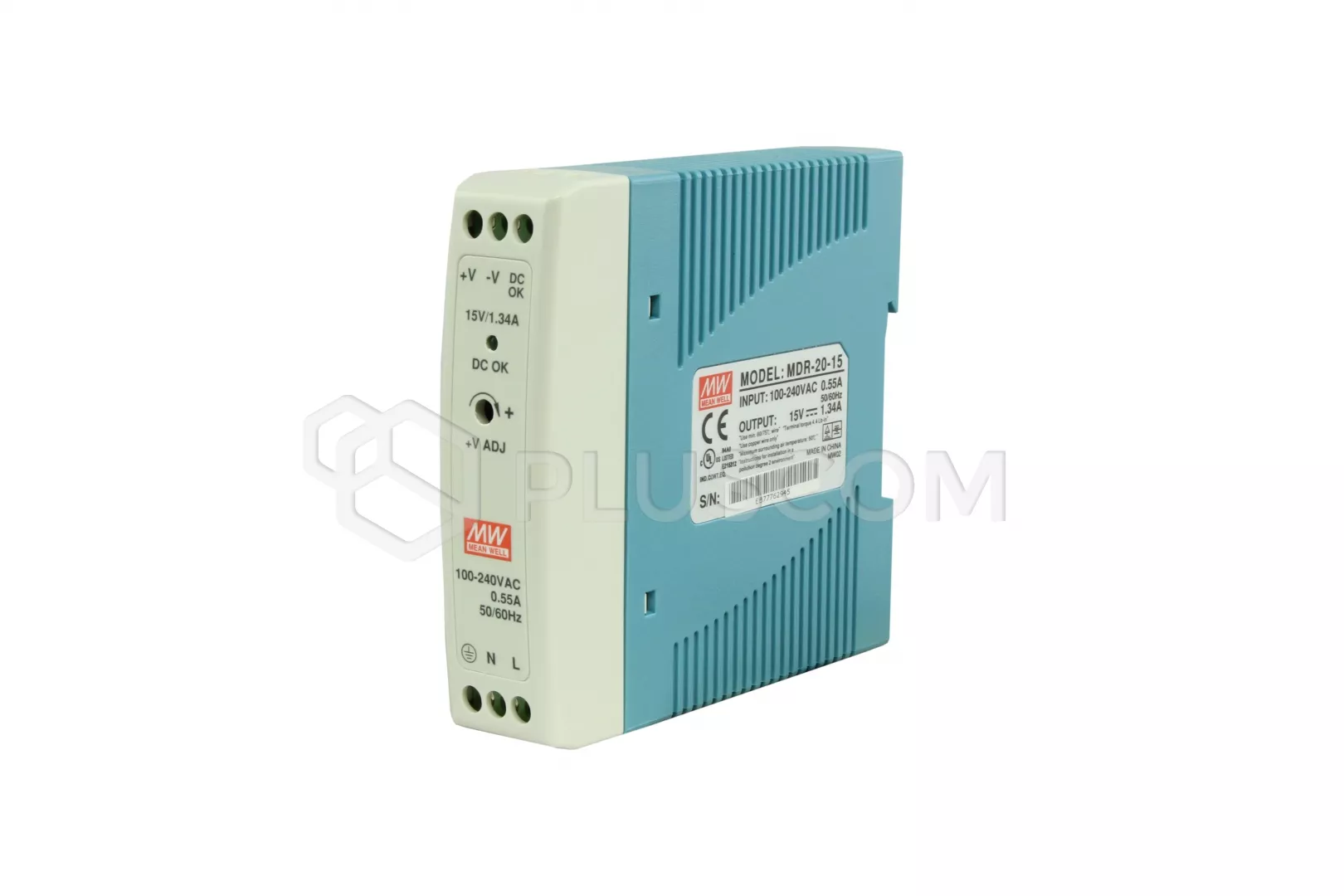

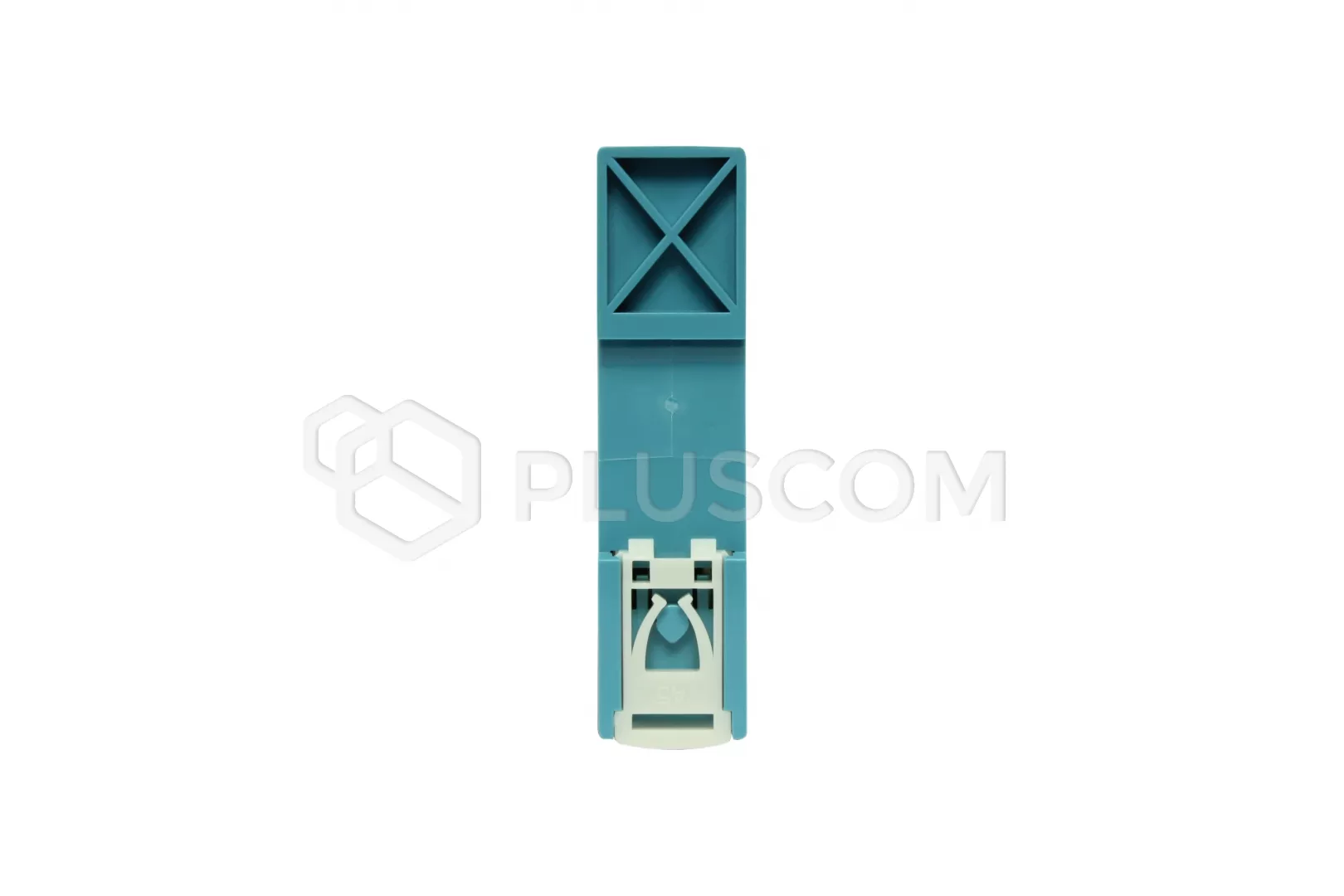

Mean Well PS-MDR-20-15 20W Single Output Industrial DIN Rail Power Supply 15V/1,34A/20W

PS-MDR-20-15 Mean Well DC 15V/1,34A DIN TS35

Mean Well MDR series of power supplies mounted on a DIN TS-35 rail distinguishing small dimensions (ultra slim) and high efficiency.
The power supply has safeguards:

overload
over voltage
short circuit

The power supply is enclosed in a small plastic case. Cooling takes place free air flow, no additional fans. overload over voltage
The power supply is dedicated to the ACO CDNP, INSPIRO +, Familio / COMO (P / PV / PRO) systems and to receivers, requiring additional power supply (e.g. INS-UP720MR, UP800).

MDR-20-15 has been equipped with an output indicating voltage output. DC OK ACTIVE SIGNAL(11.5 ~ 16.5V / 40mA).

PARAMETERS AND FEATURES:

output: DC 12V 1,34A moc 20W
voltage range: AC 100-240V
efficiency: 81%
no load power consumption: 0,75W
LED indicator for power on
builit in DC OK active signal

working temperature: -20°C...70°C
dimensions: 22,5x100x90(h)mm
weight: 0,17kg

Download

Datasheet 0.1 MB

Declaration CE 0.34 MB
