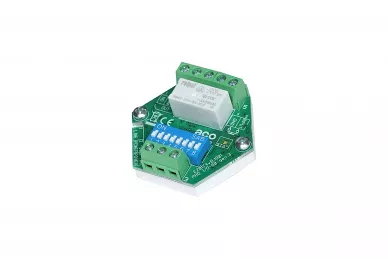

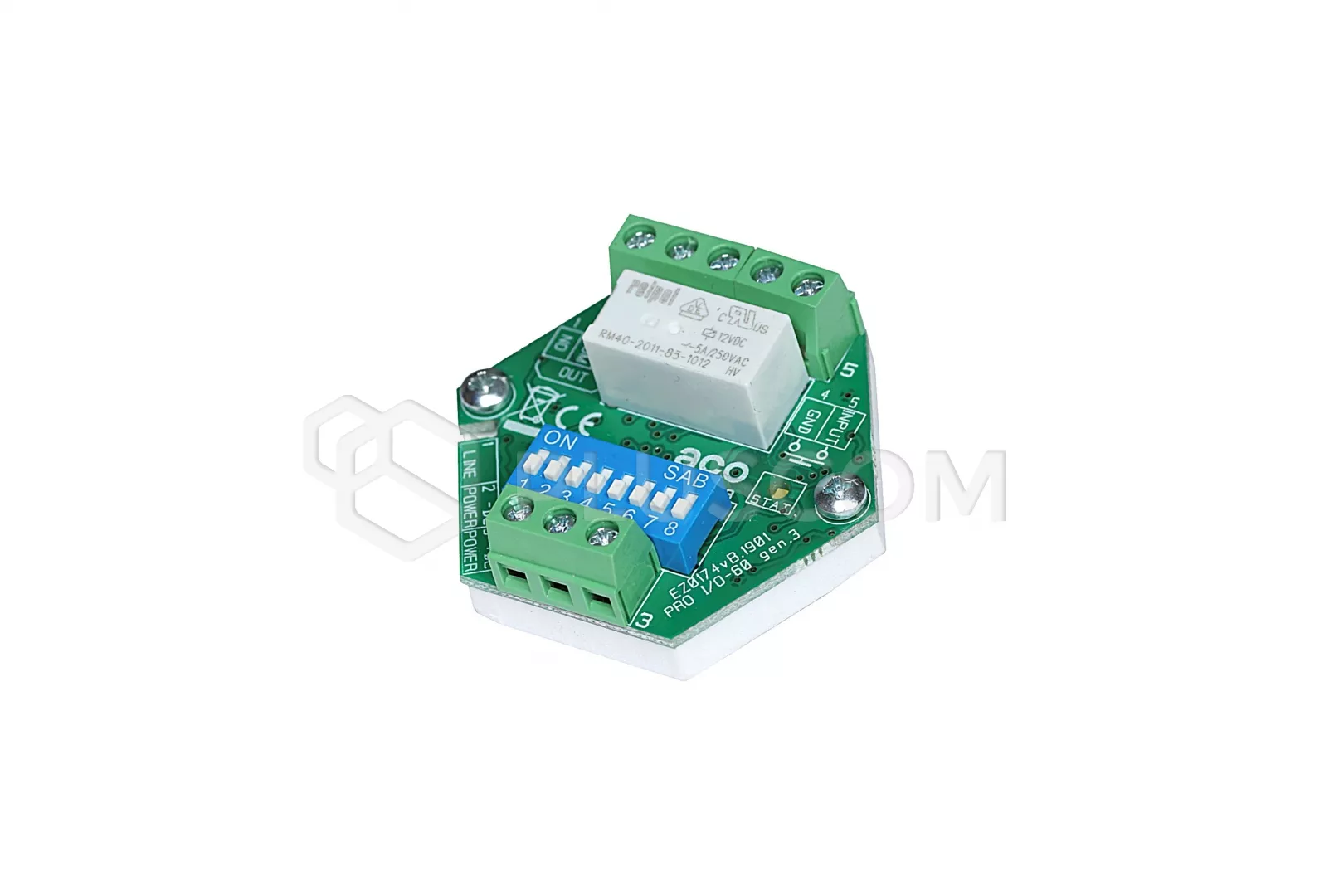

Aco PRO I/O-60 (G3) Extension module to support additional devices

ACO PRO I/O-60 (G3) Extension module to support additional devices

The module has a relay output: one pair of NO/NC 5A/24VDC type contacts and a NO type input to connect a NO button. It enables connection and operation of additional devices, e.g. control of home automation, garage door, barrier, lighting, roller shutters and connection of call signaling devices. It also enables the connection of an external button for direct activation of the electric door strike in the panel, automatic opening of the door when the receiver rings and calling the doorbell function (receiver rings).

It has a secured door opening control function: the electric door strike is connected to the PRO-I/O module (instead of the panel) and the panel activates remote opening via the system bus.

Designed for mounting in the Ø60mm installation box. Compatible with all devices from the group COMO/ Familio PRO, PRO-A.

This is the next generation of the module (G3), which supports, among others, a greater number of addresses (e.g. for COMO-PRO series panels, GLASS-PRO-7 series monitors), and also enables programming settings and software updates on the system bus by means of a computer.

Characteristics:

• the relay output can operate in monostable or bistable mode
• opening the door at any time (no need to answer the call)
• automatic opening of the door during ringing
• possibility of connecting an additional acoustic or light device signalling ringing in the premises
• it is possible to operate the module independently without the receiver and in parallel with the receiver
• the function of activating the output each time the door is opened in the panel
• secure door opening control function
• the functions performed are selected by means of switches on the module
• switching on the relay output and reaction to the input can be assigned to the container address of the receiver or to all receivers (regardless of the address)
• supports receiver addresses: 31 addresses (programmed with switches on the module) or 1023 addresses (programmed from a computer using optional PRO-USB interface)
• for address 0 the module cooperates with all addresses in the system
• the relay functions can be additionally limited depending on the address of the Intercom receiver
• compatible with the entire PRO system
• programming of settings and software update on the system bus (PRO-USB computer interface required)
• individual number of each device: DevID
• search for all devices in the system
• individual or group facility management
• possibility to manage devices and update them in a working system
• one software to handle all devices: PRO 3 Manager

Example of application:

• home automation: control of external devices, e.g. lighting, roller blinds, etc.
• control of the second gate: e.g. entrance gate, barrier
• as a doorbell
• as a ringtone at an entrance where there is no external panel
• additional ringing tone indication
• additional manual/automatic door release
• various uses in the premises of people with disabilities
• relay activation during door opening in PRO system (does not apply to opening from INPUT of panel)

TECHNICAL PARAMETERS:

• power supply: 15V DC / 40mA
• power consumption in standby : 0.6W
• installation type:
• • digital PRO system: cat. 5e or 6
  • digital PRO-A system: 3 wires
• outputs: 3 x screw terminals - NO / N / NC relay contacts, max. 5A, 24VDC
• inputs:
• • 3 x screw terminals (PRO system bus connection) - audio signal connection: "LINE", power supply connection: „+DC" and "-DC"
  • 2 x screw terminals (NO input) - connection of normally open buttons, e.g. a bell button
• mounting method: to Φ60mm electrical box
• dimensions: 50x50x20mm
