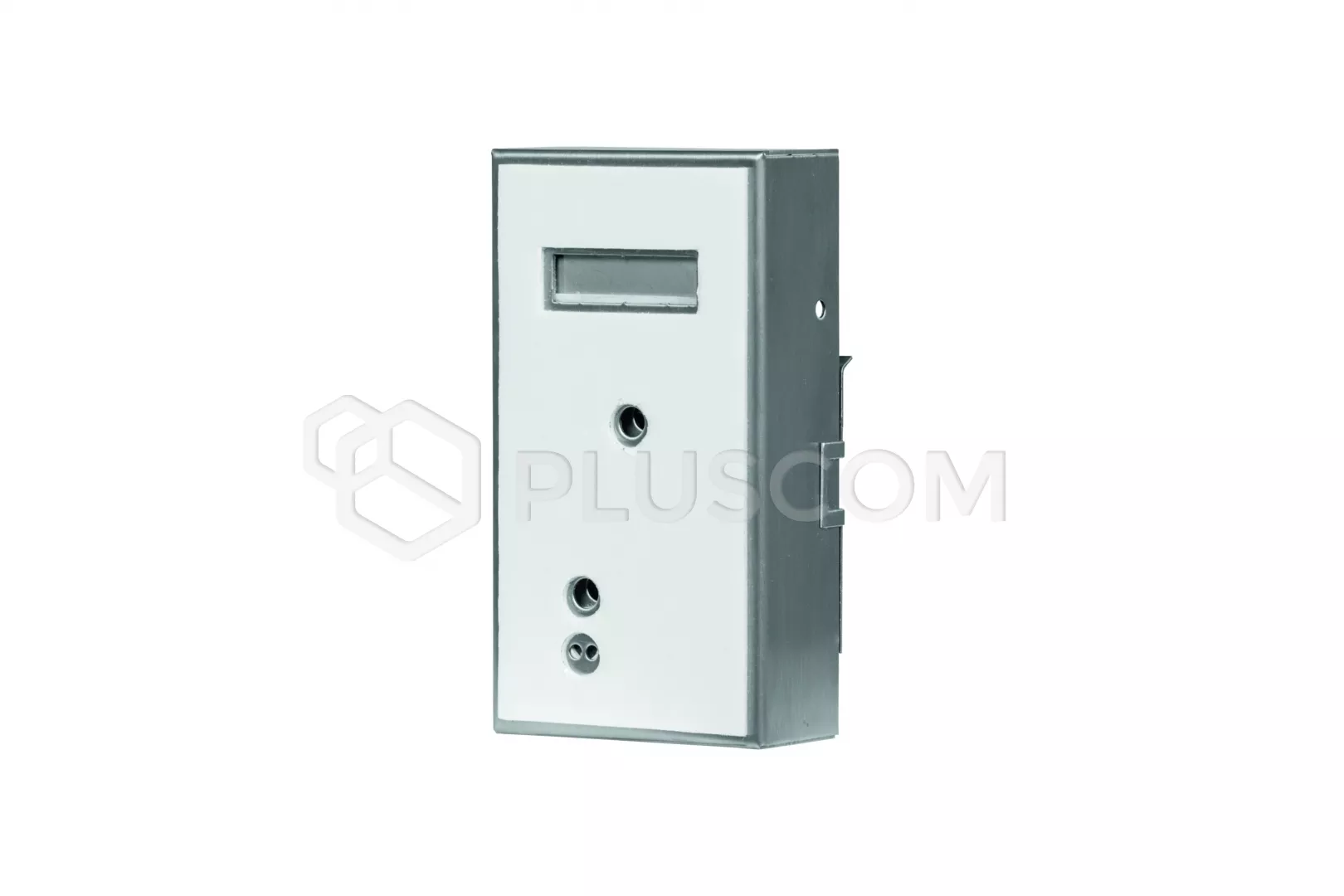

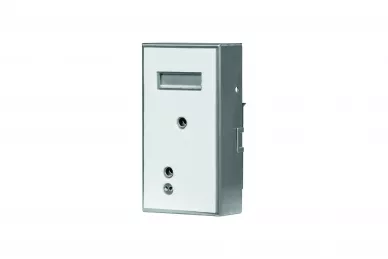

Aco MOD-SPK-PRO (G3) Built-in main unit module

MOD-SPK-PRO (G3) Built-in main unit module

Audio main unit module, without its own buttons, for built-in installatin. Used e.g. in fronts with external call buttons or to connect a mailbox with an door entry system. MOD-SPK-PRO (G3) is a continuation and at the same time the next generation of built-in modules. The module has functions similar to those of the COMO-PRO series.

The new design of the control electronics provides even greater reliability and possibilities of the device. The third generation of these modules include support for larger (longer) installations, a larger number of users, remote device management (from any place in the system) and software updates. The module in this version also includes an additional microphone, which can be mounted in a suitable place, and an external antenna for a proximity key fob reader. The set also includes a pre-programmed key fob, which allows you to open the door and add more key fobs. The device enables management of proximity fobs by using "master" and "super master" key rings. The module will be continuously developed, and thanks to software updates all new functionalities and possibilities will also be available for people who have already bought this product before. The module allows you to make a call to a single apartment via the built-in NO input. It is possible to connect external call buttons by using the optional MOD10NBP modules, which each allows to connect another 10 buttons. If an optional MOD-CAM-FAM built-in camera module is purchased, it is possible to expand the audio to video system.

Compatible with all digital devices operating in Familio/COMO systems (PRO and PRO-A).

Attributes:

• possibility of any kind of installation (front, letterbox)
• intuitive and comfortable operation and easy configuration
• weatherproof and vandalism resistant
• access control - proximity key fob reader with external antenna
• keyring(fob) programmed in the set (with the possibility of opening the door and adding another 9 key fobs)
• possibility to use up to 10240 proximity fobs, including 10 each assigned to the apartments + 10 administration (programmed from the computer)
• programming and updating the module's software from the computer using the optional CDN-USB or PRO-USB interface
• acoustic information in the apartment about opening the door (calling) - only for key fobs assigned to the apartment (possibility to disable the function from the computer)
• support for multiple expansion modules to increase system functionality
• home automation: control of external devices, e.g. entrance gate, barrier, lighting, roller shutters (optional PRO-I/O module connected to the system bus required)
• possibility of connecting multiple call receivers at the same time
• receiver presence detection (The module will not call if there is no receiver)
• possibility of connecting different types of electric door strikes
• output for direct connection of the electric door strike
• possibility of controlling an electromagnetic jumper
• possibility of powering the output to connect the door strike from a separate power supply (DC or AC)
• possibility of connecting an external opening button
• option of protected door opener control: the electric door strike is connected to the optional PRO-I/O module (relay contacts) and the panel activates opening via the system bus
• possibility of connecting an additional acoustic device in the apartment or a light signal ringing (optional PRO-I/O module connected to the system bus required)
• compatible with all digital operating devices in Familio/COMO PRO and PRO-A systems
• possibility of connecting an external camera in the system (additional MOD-CAM-FAM module and UTP cat bus are required. 5e or 6)
• connection of two panels / modules in one system: 1 x master and 1 x slave
• adding and removing proximity fobs with the "master" key fob (separately for each apartment) and using the "super master" key fob (in all apartments)
• programming of settings and software update on the system bus (PRO-USB computer interface required)
• compatible with previous generations of the PRO system
• the individual number of each device: DevID
• searching for all devices in the system
• individual or group management of devices
• possibility to manage devices and updates in a working system
• one software to operate all devices: PRO 3 Manager
• freeware

TECHNICAL PARAMETERS"

• Power supply voltage: 15VDC ±5%
• Standby power consumption: ~2,5W
• Maximum current consumption: 400mA
• E-lock supply voltage: 12VDC - 15VDC
• Max load on E-lock output: 1,5A
• MOD-10NBP ringing resistance: ≤ 20Ω
•

• Standard of supported proximity cards (RFID): Unique 125 kHz
• Maximum number of supported proximity cards: 70 (10 each for apartment + 10 administration)
•

• Output type: normal or reversible (default: normal)
• E-lock activity time: 0.6 to 25s (default: 4s)
• Type of output control: pulse to E-lock (default) or fixed to relay
• Connection type: RJ45 socket / removable ARK screw connectors
•

• Housing material: Stainless steel
• External opening input resistance (INPUT): ≤ 20Ω, input type: Normally-closed (NO)
• INPUT delay time: 0 - 25s (default: 0s)

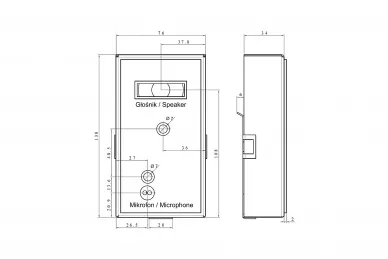

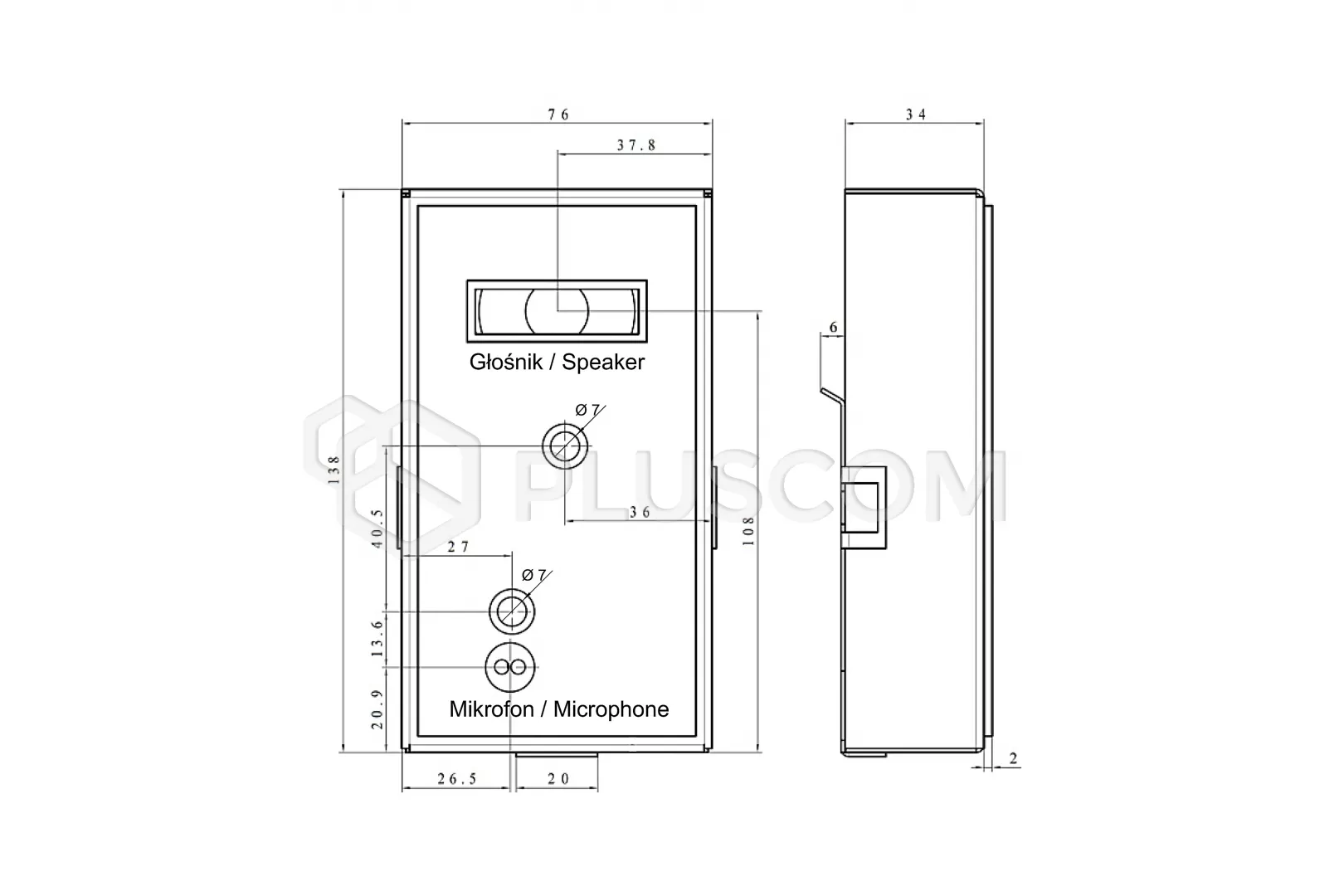

• Dimensions: 138 x 76 x 35 mm
