Aco MOD-10NBP Control module with 10 external buttons

52,62 EUR including 23.00% VAT
Product code: #26124
Manufacturer: ACO
  • Power supply: 15V DC/23mA
  • Power consumption in standby mode: ~0.35W
  • Max. number of subscribers 10
  • Possibility to connect several modules together
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco MOD-SPK-P Built-in main unit module

ACO MOD-10NBP Direct selection module with external support buttons

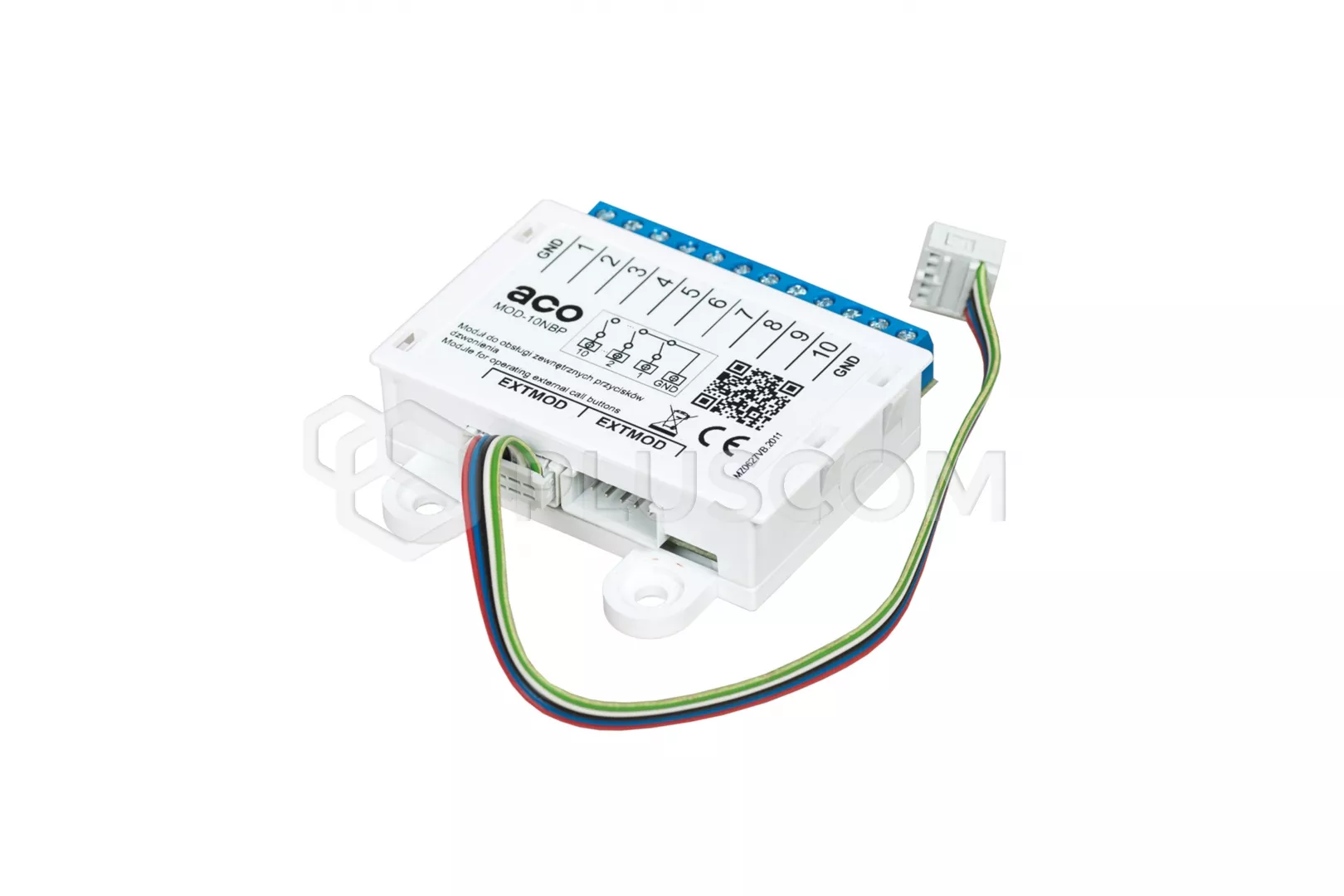

ACO MOD-10NBP is an ACO digital intercom module that allows you to connect 10 external direct dial buttons. Supports up to 10 buttons (addressed in the range 1-255), the addresses of which are programmed using computer using a USB cable.

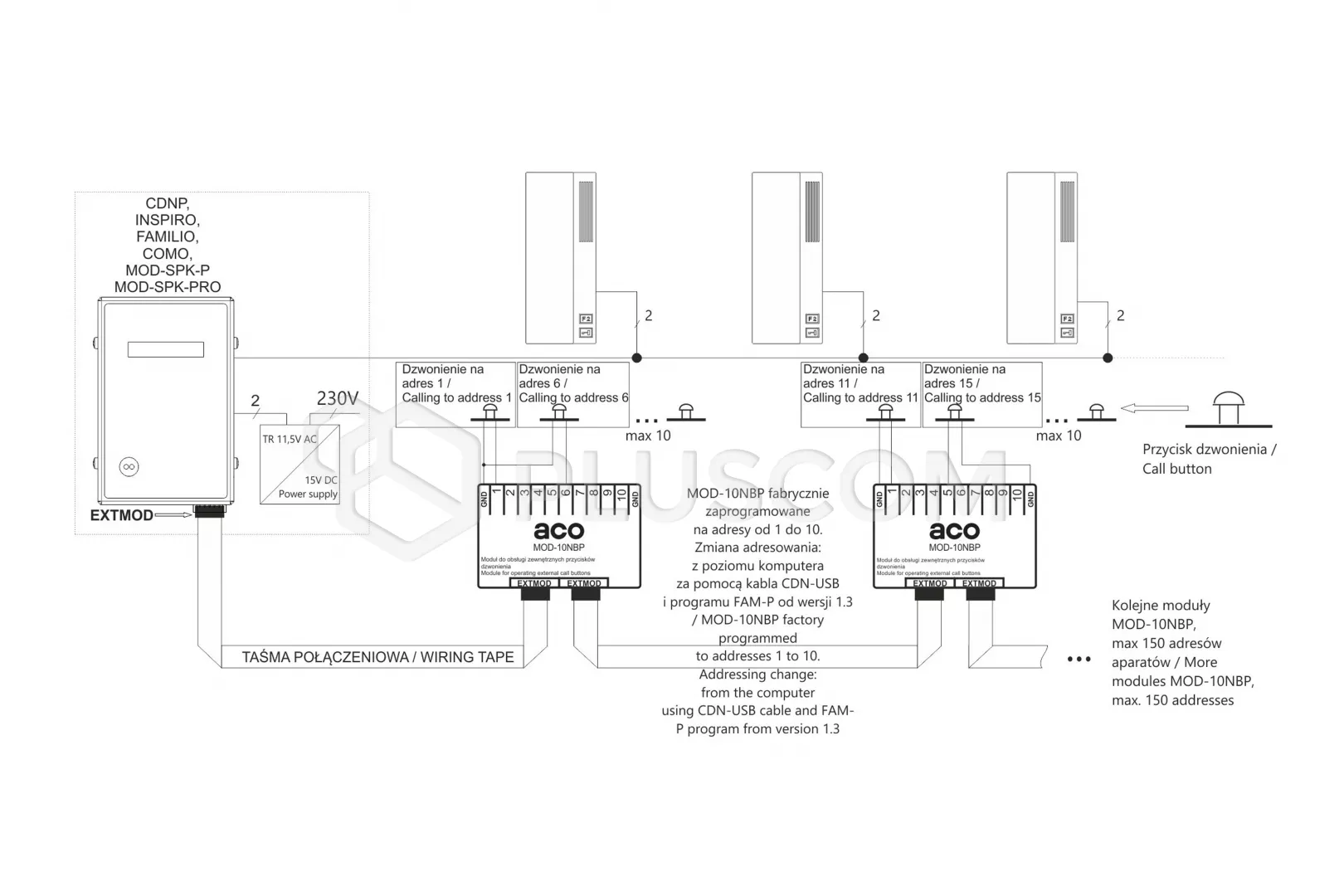

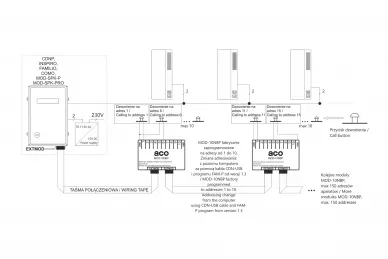

It is designed to be installed and connected directly to the conversation module MOD-SPK-P. MOD-10NBP modules can be connected together to increase quantity supported buttons. The device supports normally open buttons (NO type) connected with one common wire (GND). It is compatible with CDN exchanges, Inspiro and Familio P/PV panels.

Outputs
1 x EXTMOD connector (control panel/panel connection)
Inputs
ARK screw connectors:
  • 10 x normally open (NO), e.g. u201e bell button u201d
  • 2 x GND (common terminal for all buttons)
  • 1 x EXTMOD socket (connection of other modules)


  • TECHNICAL DATA:
  • Power supply: from the control panel/panel (15V DC / 23mA)
  • Power consumption in standby mode: ~ 0.35W
  • Max. number of subscribers: 10
  • ABS plastic housing

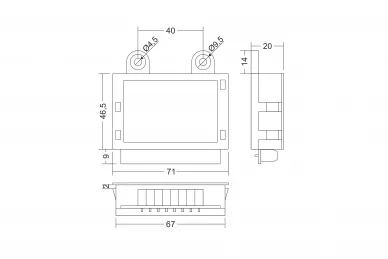

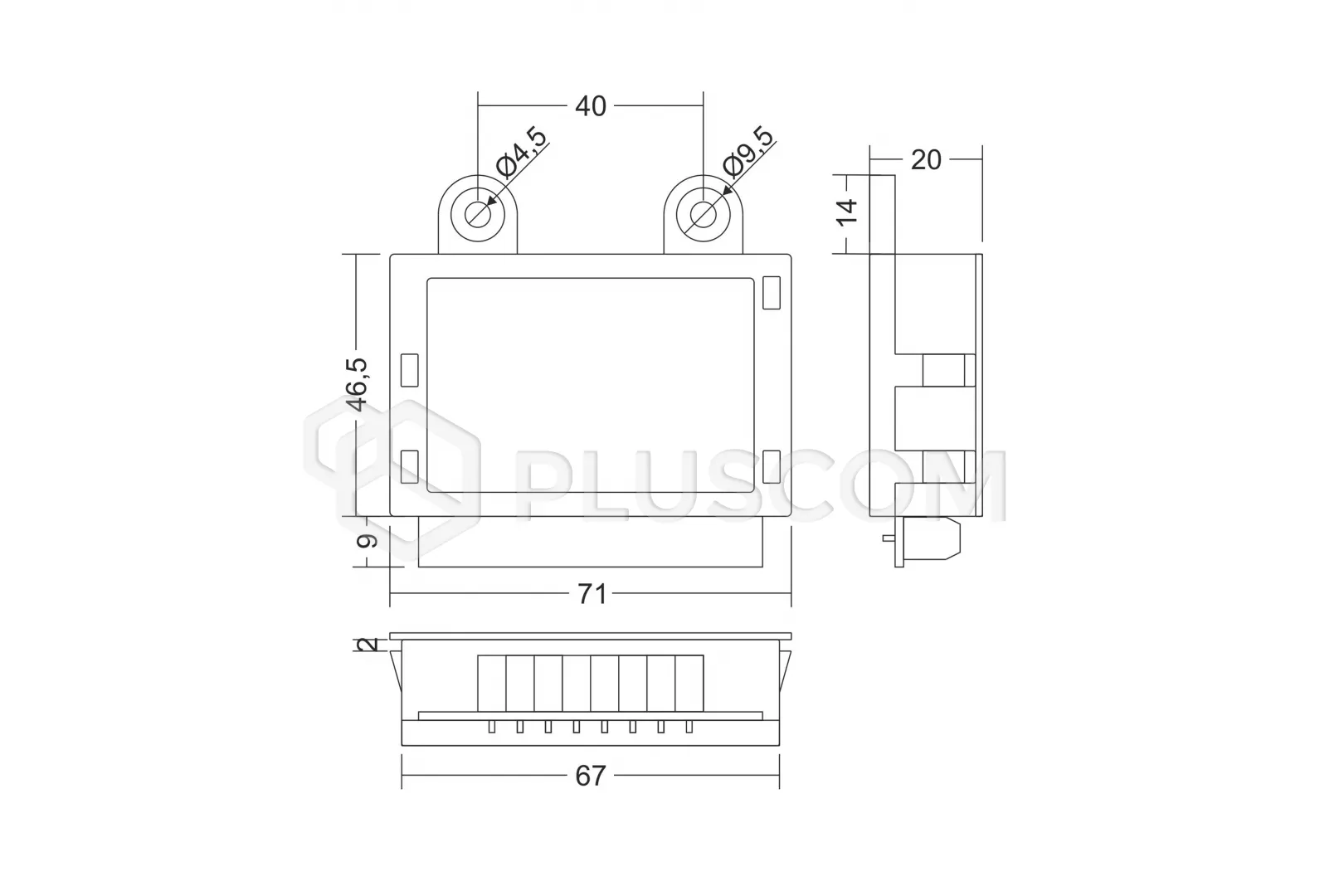

  • Dimensions: 70.5x71x19.5mm
Download
Product card 0.79 MB
