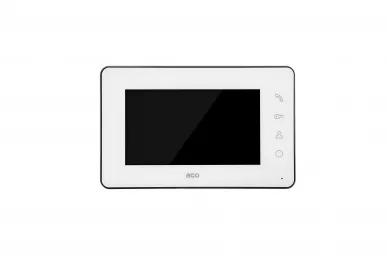

Aco INV-MP7 WH MP7 Lite Speakerphone Video Monitor: 7”

Aco INV-MP7 Digital, Speakerphone Video Intercom with a 7" Color Display

The MP7 Lite video intercom was designed for medium- and large-scale multi-apartment investments. It is compatible with panels from the CDNP, Inspiro, and Familio series. Modern, minimalist design and extensive functionality are its greatest advantages. See what the MP7 Lite monitor can offer you.

FEATURES:

• Modern, flat, touchscreen front made of glass
• Scratch-resistant, easy-to-clean
• Speakerphone
• 7-inch display (color, clear image)
• Touch buttons
• Doorbell function (RING)
• Image preview option
• Multiple monitors can be operated at one address
• Ringtone volume adjustment
• Conversation volume adjustment
• Image parameters can be adjusted (brightness/color)
• Complete call privacy
• Function button for activating the relay output on the intercom panel
• Control of external devices, e.g., gate, barrier, lighting
• Opening the door without establishing a connection
• Built-in relay outputs activated independently for 1 second (potential-free, separated from the system, NO contact: 2A / 24VDC)
• Supports addresses from the 255 address pool
• Compatible with P / PV systems (CDNP, FAMILIO, INSPIRO)

INPUTS:

• System bus connection: 1 x RJ45 socket
• Audio line connection: 2 x LINE+/LINE- screw connectors
• Power line connection: 2 x Power DC+/Power DC- screw connectors
• Video signal connection: 2 x V+/V- screw connectors
• Additional connectors: 1 x RING screw connector - connection of a normally open contact (NO), e.g., a "bell" button - doorbell function (activated by shorting to the Power DC- / GND terminal of the system)

OUTPUTS:

• Function button F2 / "Circle": via the system bus, activates the relay in the external panel (during a call, briefly touch the circle icon)
• 2 x F2/F2 screw connectors: NO contact: 2A/24VDC, potential-free, isolated from the system (activated at any time by holding the circle icon for 3s)
