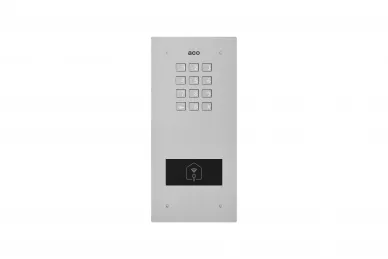

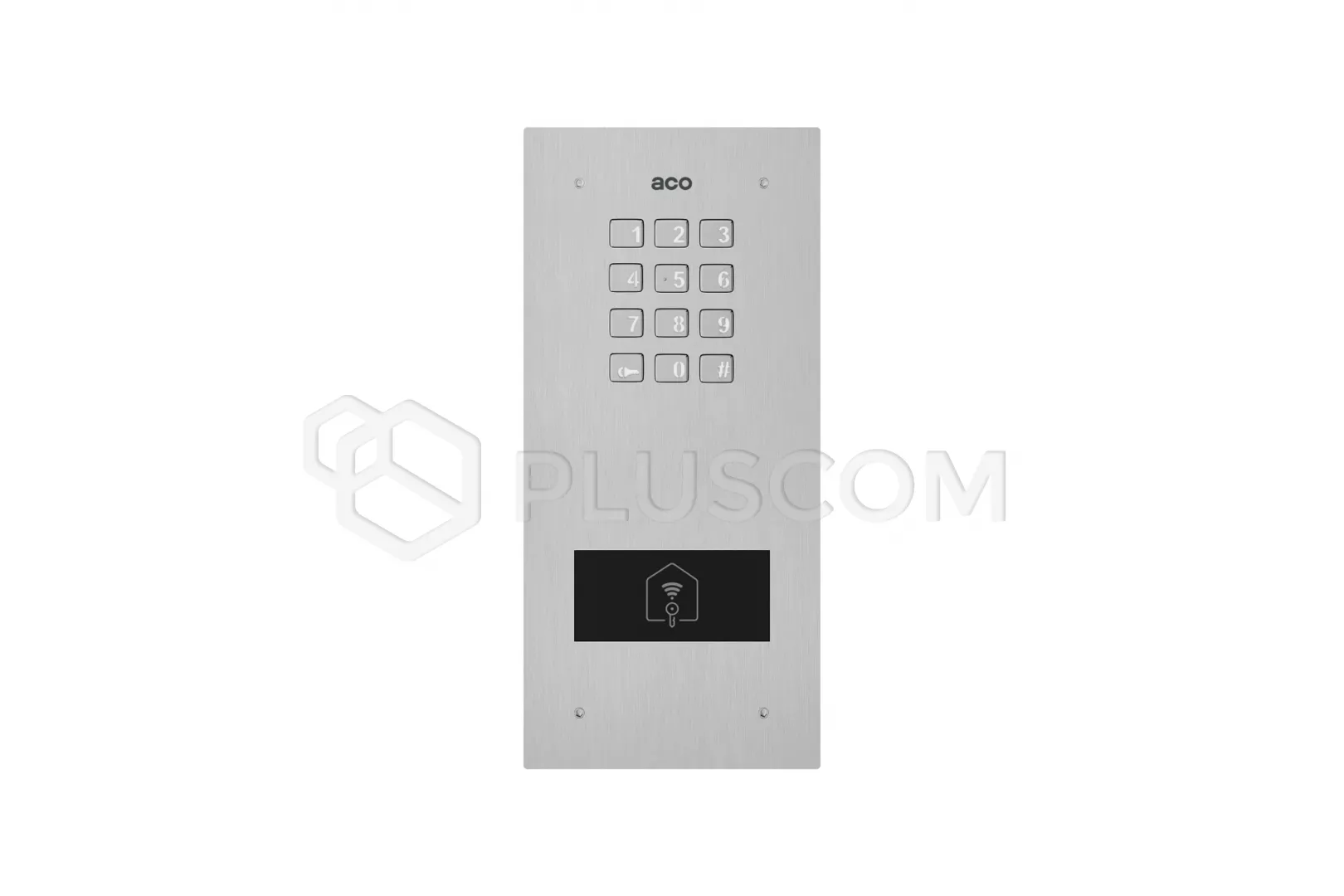

Aco INS-ZSACC Autonomous code lock module

205,19 EUR including 23.00% VAT
Product code: #26128
Manufacturer: ACO
  • 255 individual four-digit opening codes
  • Supports max. 1,536 key rings or cards
  • Power supply: 12 – 15VDC
  • Up to 4 independent outputs
  • Output operation time adjustment from 1s – 9s
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco INS-P-XS NT (INS-ZSACC) Surface-mounted box with roof

ACO INS-ZSACC Autonomous combination lock and proximity card/key fob reader


INS-ZSACC is a combination of two devices autonomous INS-ZS and INS-ACC in one panel. Is a microprocessor device combining the features of a lock code and a reader for proximity elements used to control one or more outputs.

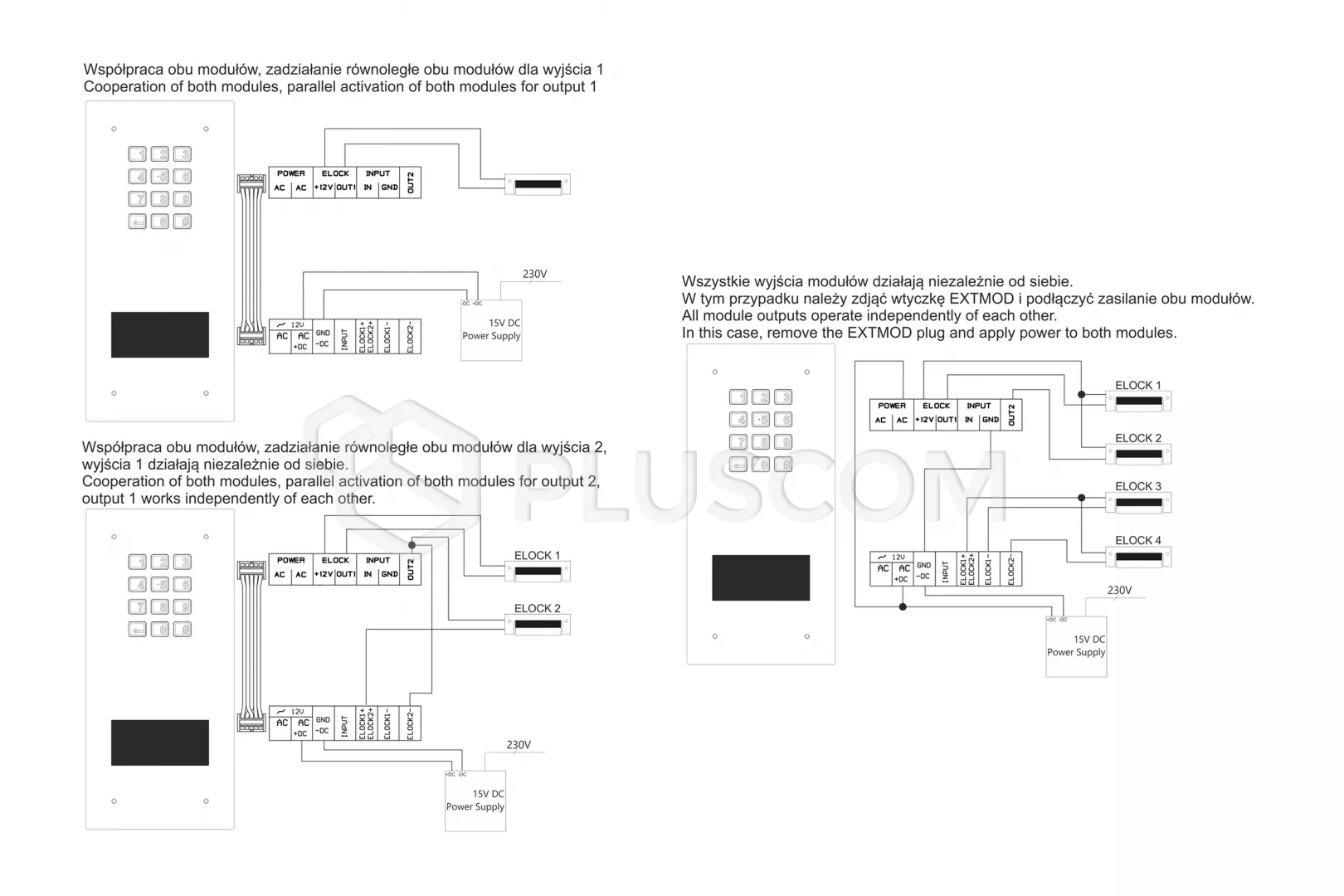

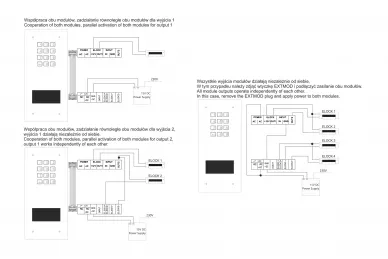

Activation output can be done using the appropriate code or key fob/proximity card assigned to a given output. Devices can be configured as needed so that cooperated with each other to control a common output, or separately up to four independent outputs. Can steer directly with external devices such as: electric strike, reversible electric strike (only outputs 1) or an optional relay with which we can control any other device, e.g. electromagnetic lock, barrier, etc.



FEATURES:
  • 255 individual four-digit opening codes
  • compatible with ACO code tables
  • proximity tag reading standard: Unique 125 kHz
  • supports max. 1536 key rings or cards
  • up to 4 independent outputs – depending on the configuration
  • sound signaling (can be turned off)
  • output operation time adjustment from 1s - 9s
  • possibility to connect various types of electric strikes (traditional, reversible, with memory) or an electromagnetic lock (CDN-PK module required)
  • support for two independent external opening buttons: INPUT (e.g. INS-OB)
  • programming from the device level (adding key fobs using the Master key fob, without having to dismantle the device)
  • programming from a computer (using an optional CDN-USB cable)
  • common computer software to support proximity readers in INS-ACC, CDNP6ACC, CDN-ACC, xNACC and xNPACC products
  • wide supply voltage range
  • resistant to weather conditions and acts of vandalism
  • operating temperature: from -20 to 50ºC
  • surface mounting possible after purchasing the INS-P-XXS NT box (INS-ZSACC)

Technical parameters:
  • Supply voltage: 12V - 15V DC
  • Power consumption: 1.2 W
  • Number of users: 255
  • Backlit keyboard: YES
  • Proximity reader: Unique 125 kHz
  • Housing: Brushed steel

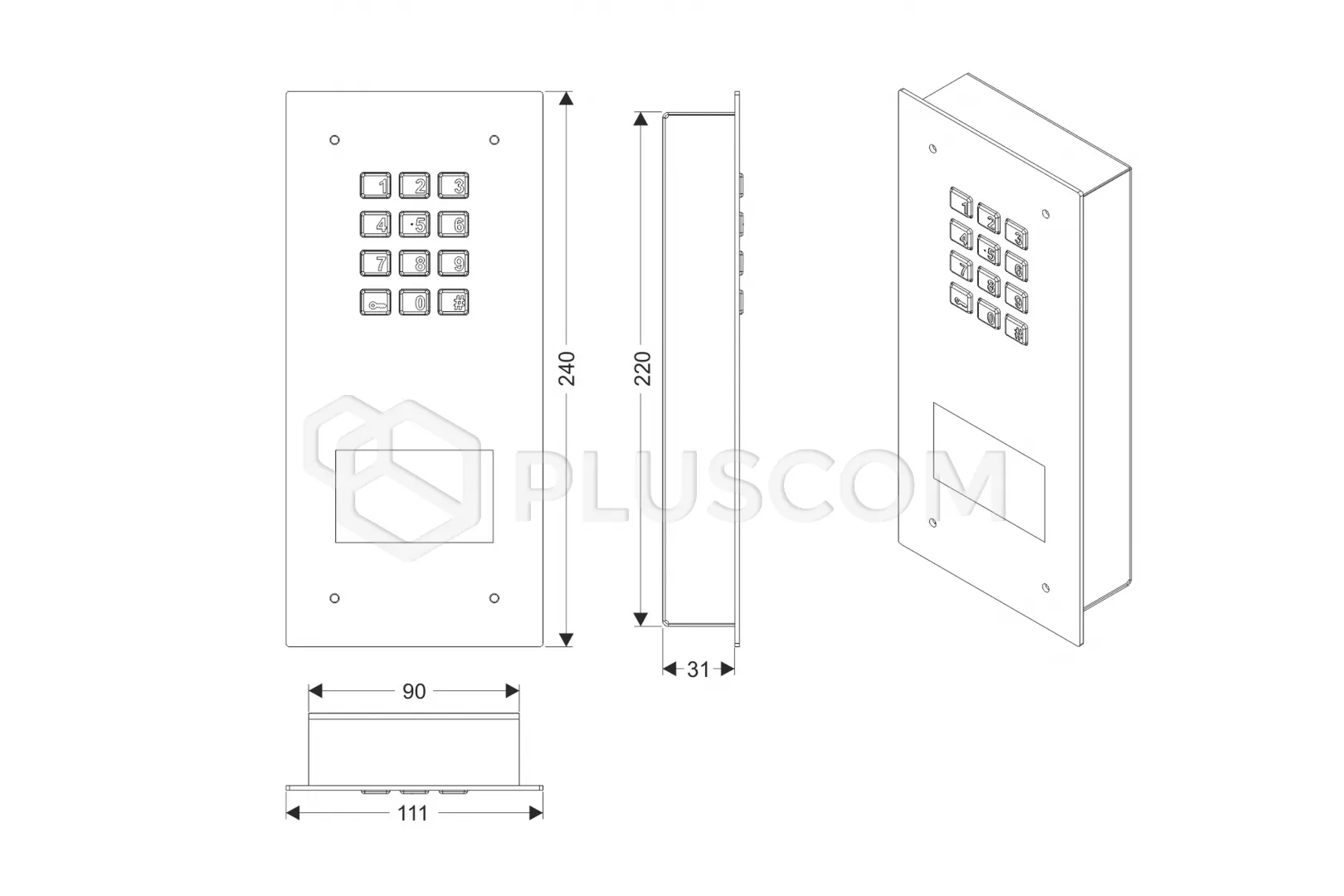

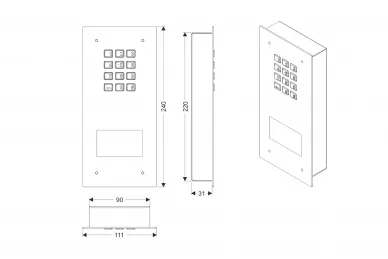

  • Dimensions: 111 x 130 mm
