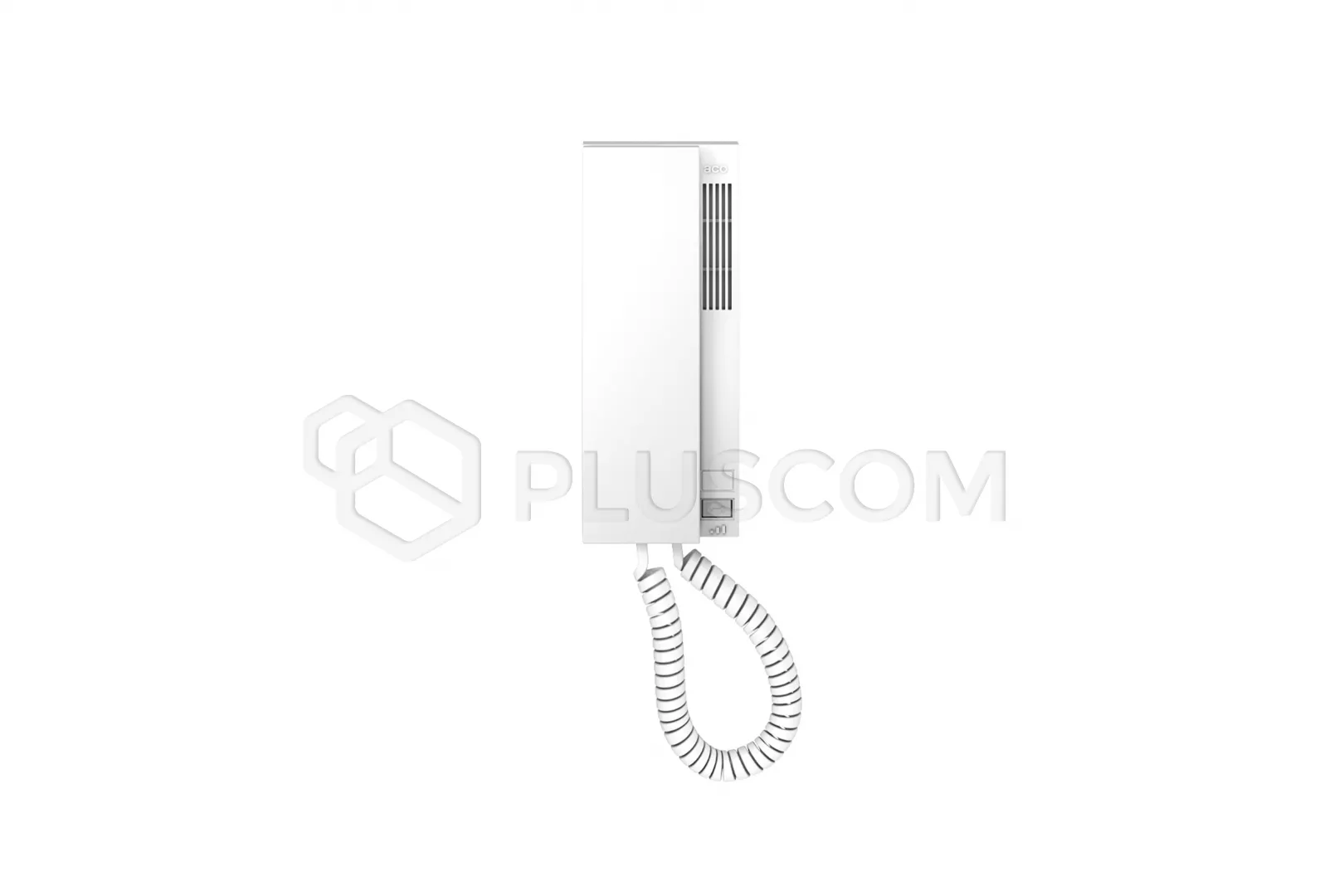

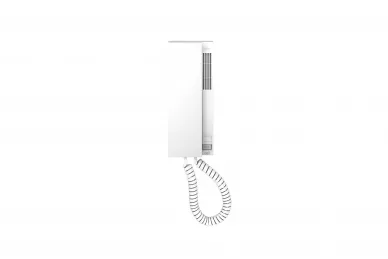

ACO INS-UP720M RJ Digital uniphone with magnetic hang-up

A modern, elegant uniphone compatible with CDN, Inspiro, and Familio P/PV digital intercom systems ACO company.
Perfect for intercom installations in buildings multi-apartment buildings.

White casing is made of high-quality ABS plastic.
There are two buttons on the front of the housing:

• opening the door
• functional to control external devices
• and a 3-step ringing volume control switch.


The device is equipped with a magnetic hang-up mechanism there are no traditional hooks and an RJ45 socket.
It has a hold function that allows you to hang up the headphones without unplugging them conversations.

TECHNICAL DATA

• 2-wire digital installation
• power supply: DC 12-18V from the bus
• power consumption: 0.09W in standby mode
• power consumption:

• • 7mA in standby
  • 50mA when calling

• ARK screw connectors
• RJ45 socket
• surface mounting
• ABS plastic housing, white color
• dimensions: 200x80x39mm
• operating temperature: 10°C...50°C

INSTALLATION AND CONNECTION

The uniphone is connected to a 2-wire digital bus, not required additional external power supply.The next step is setting the required address/number under which the uniphone will be called. We do it for using jumpers on the uniphone electronics board.

The F2 function key can be controlled in two ways (configuration via jumper):

• on the system bus
• on an additional line separated from the intercom system
