Aco INS-UP720BX (G2) Passive digital uniphone

20,48 EUR including 19.00% VAT
Product code: #25486
Manufacturer: ACO
  • hanging up: magnetic
  • installation type: digital, 2-wire
  • open button
  • RJ45 socket
  • regulated volume of bell
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco FAM-P-1NPACC NT Digital door entry panel with 1 button and RFID reader Aco FAM-P-1NPACC Digital door entry panel with RFID reader and 1 button Aco INSPIRO 5+ Outside unit with code lock, electronic list and RFID reader

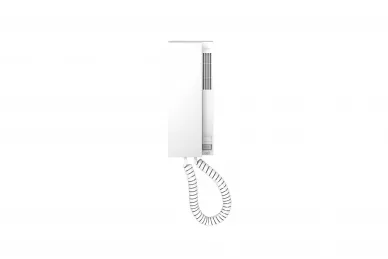

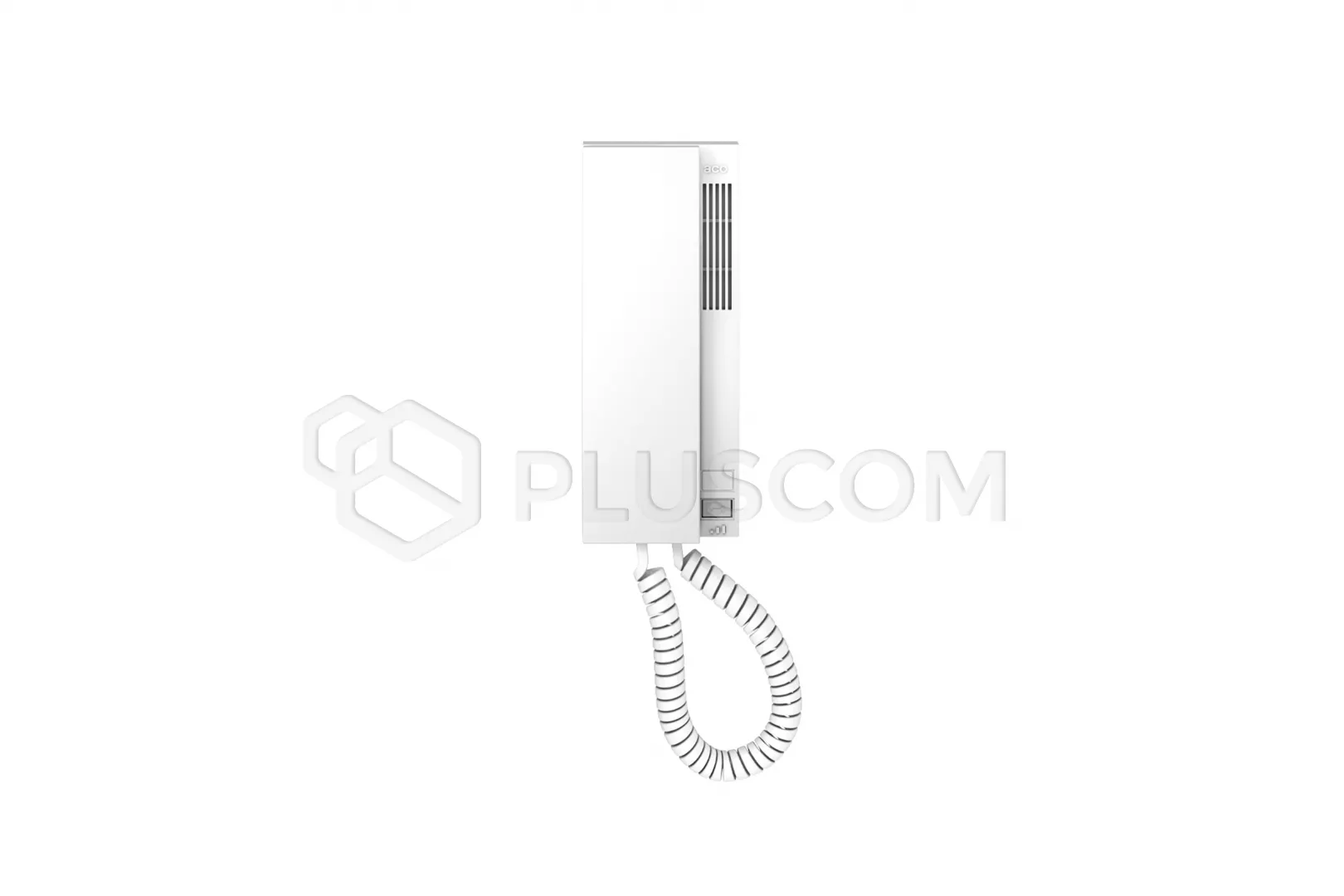

ACO INS-UP720BX (G2) Passive digital uniphone


A modern, elegant uniphone compatible with digital switchboards and panels groups: CDNP, Inspiro and Familio P.
Perfect for intercom installations in buildings multi-apartment buildings.

White casing is made of high-quality ABS plastic.
There is a button on the front of the housing:
  • opening the door
  • and a 3-step ringing volume adjustment switch
The device is equipped with a magnetic hang-up mechanism there are no traditional hooks.
It has a hold function that allows you to hang up the headphones without unplugging them conversations.

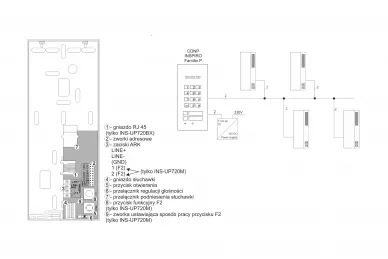

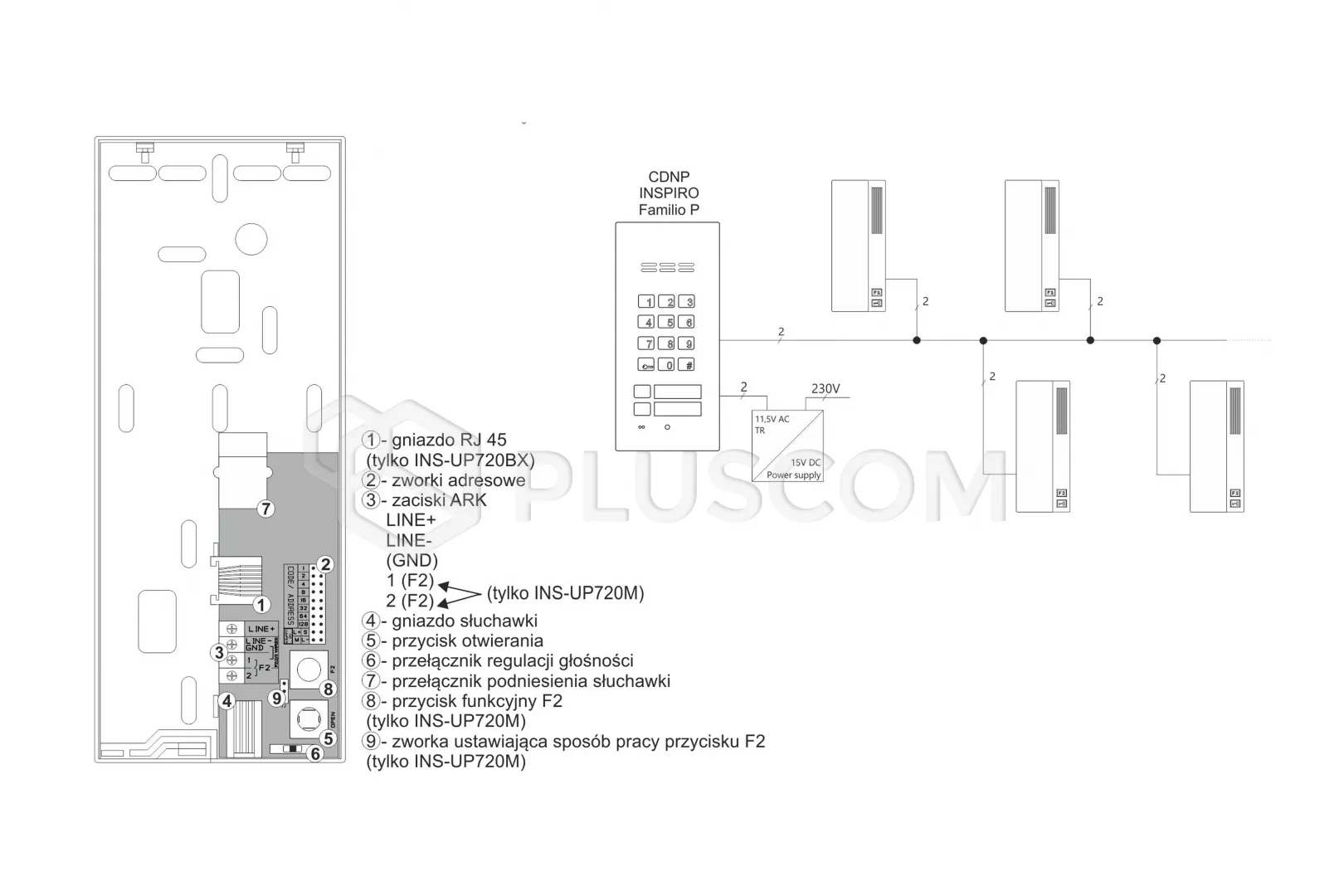

INSTALLATION AND CONNECTION

The uniphone is connected to a 2-wire digital bus, not required additional external power supply.The next step is setting the required address/number under which the uniphone will be called.



TECHNICAL PARAMETERS:
  • On-hook: magnetic
  • Installation type: digital: 2 wires
  • Inputs: 1x RJ45 socket
  • ARK screw connectors
  • Mounting method: surface-mounted
  • ABS plastic housing

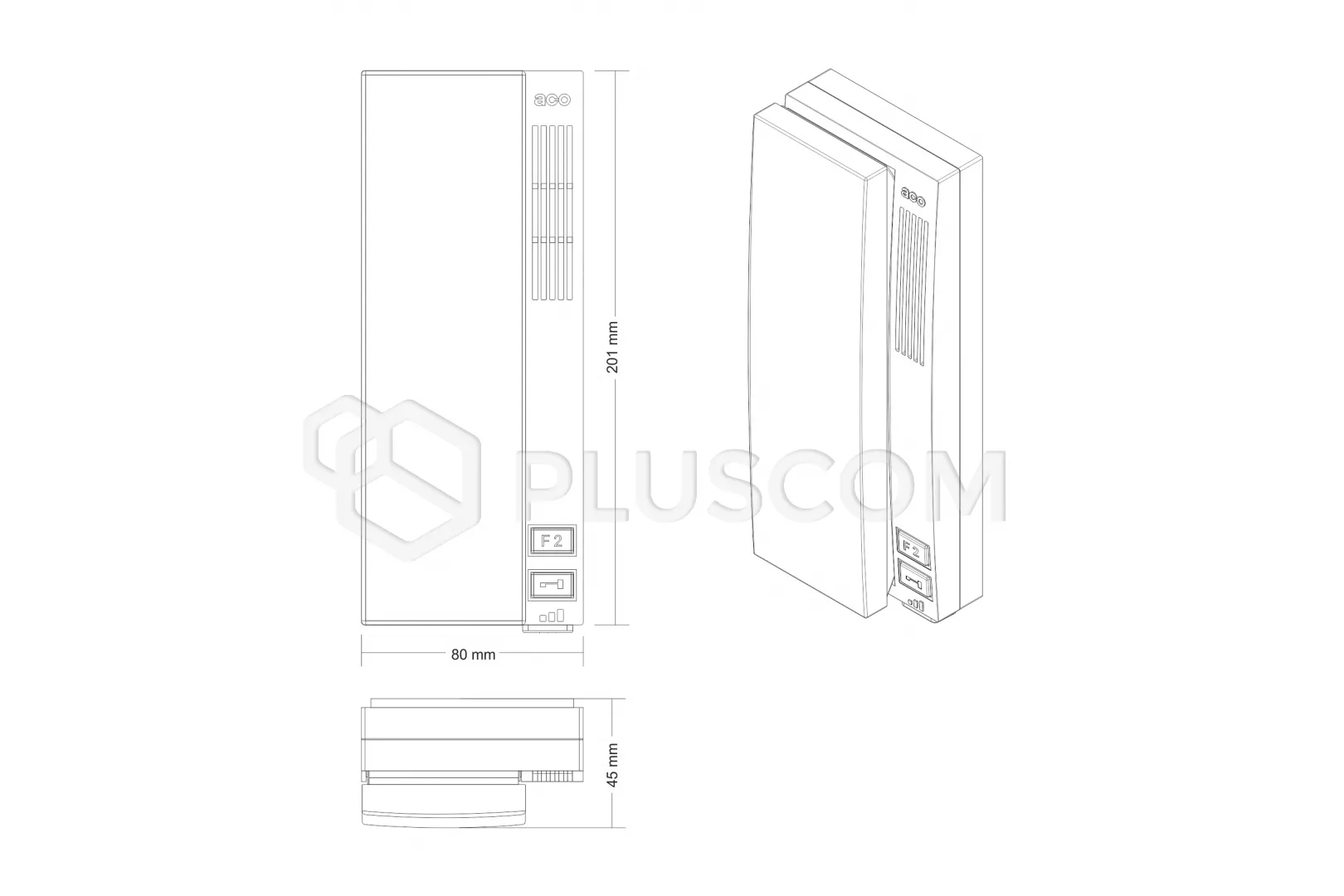

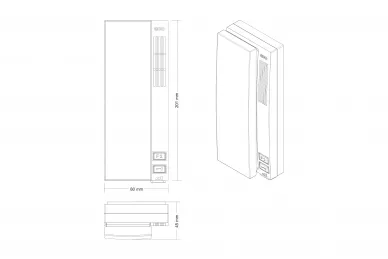

  • Dimensions: 201x80x45mm
Download
Manual 1.41 MB
CE Declaration 0.11 MB
