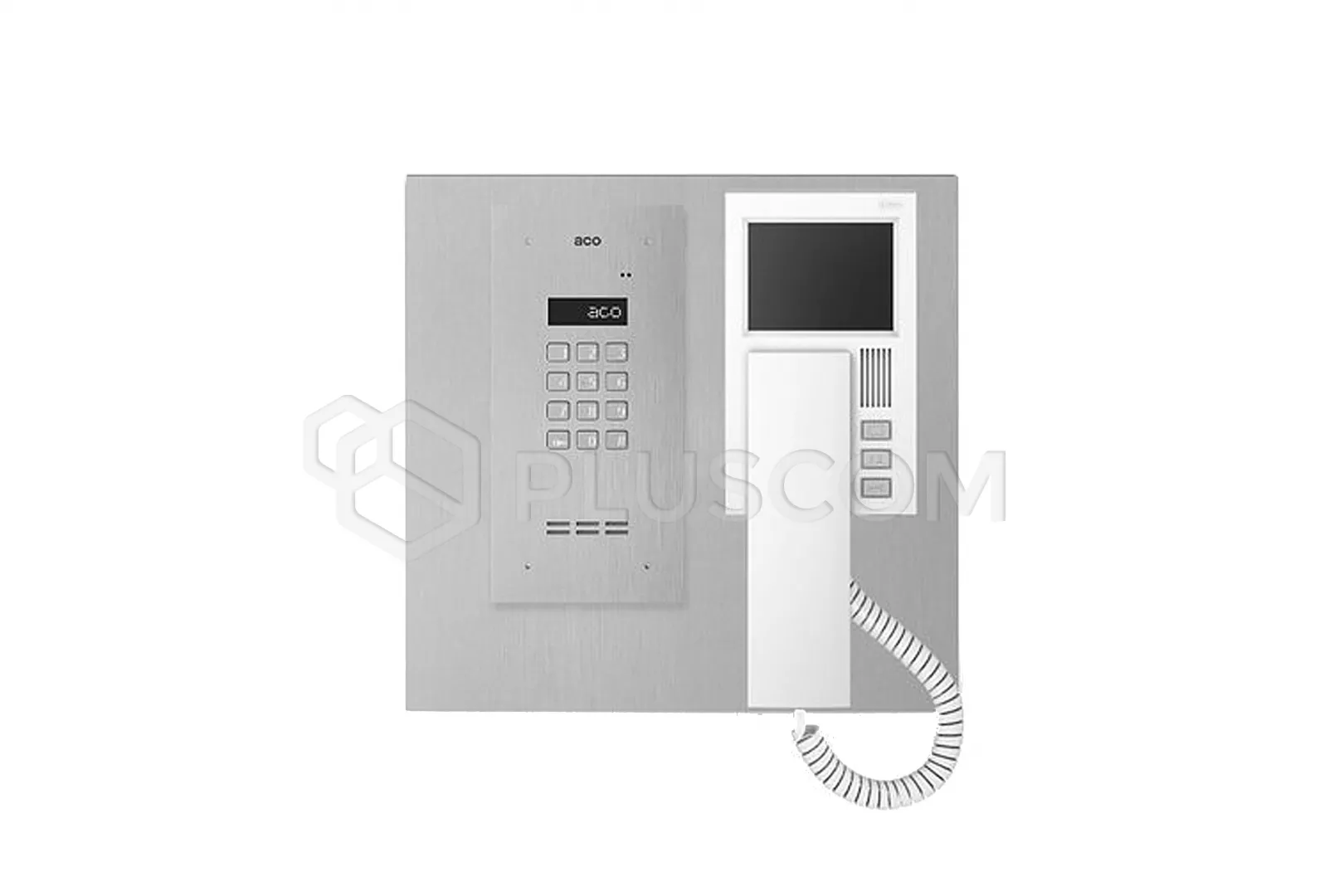

Aco INS-PORTERNIA+ Inspiro porter station

1027,21 EUR including 23.00% VAT
Product code: #15616
Manufacturer: ACO
  • Max. amount of phones: 1020 apartments
  • Magnetic hang-up
  • Installation type Digital: 2 x Cat twisted pair.
  • Compatible with devices from the following groups: CDNP, Inspiro and Familio P/PV connections
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

ACO INS-PORTERNIA+ Inspiro porter station


The digital guard panel is intended for use in solutions multi-family buildings where access control supported by is required porter.
The panel allows you to receive audio and video calls and make calls audio to receivers in the system. The porter answers the call using the receiver, can open a gate or gate (using the F2 button on the receiver is depending on the elements used in the entire intercom system), a then at the same time he can call anyone from the installed panel premises in the system.

The guard panel is compatible with all P and PV system devices (CDNP/INSPIRO/FAMILIO-P/PV).

FEATURES:
  • ability to receive audio calls from other panels in the system
  • video preview when calling from other panels in system
  • possibility to make audio connections to other receivers system
  • adjustable max. talk time (40-120 seconds)
  • support for multiple expansion modules to increase functionality system
  • optional SW4S-DIN module required
  • to support 1020 premises
  • control of external devices, e.g. gate, barrier, lighting, blinds, F2 button on the receiver. Also without active connection
  • sound adjustment (calls and conversations)
  • clear, distortion-free sound
  • doorbell function
  • programming from the control panel and computer via cable USB
  • the panel also has other functions and possibilities corresponding to
  • INSPIRO 1+ master panel and INS-MPR 4" video receiver
  • functionalities and possibilities of the guard panel are also available depending on the installation topology and system configuration as well as on elements used in the entire intercom system
  • compatible with all digital devices from the following groups: CDNP, Inspiro and Familio P/PV connections

TECHNICAL PARAMETERS
  • Supply voltage: 15VDC ±5%
  • Power consumption in standby mode: ~2W
  • Maximum current consumption: ~700mA
  • Connector type: RJ45 socket
  • Installation type: Cat.5e or 6 twisted pair
  • Housing material: Stainless steel
  • Display diagonal: 4”
  • Dimensions: 320 x 305 x 80 mm
Download
CE Declaration 0.11 MB
