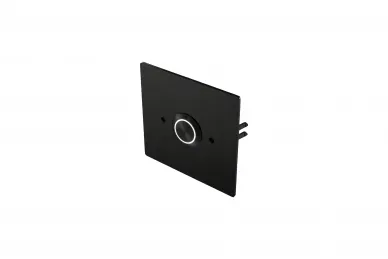

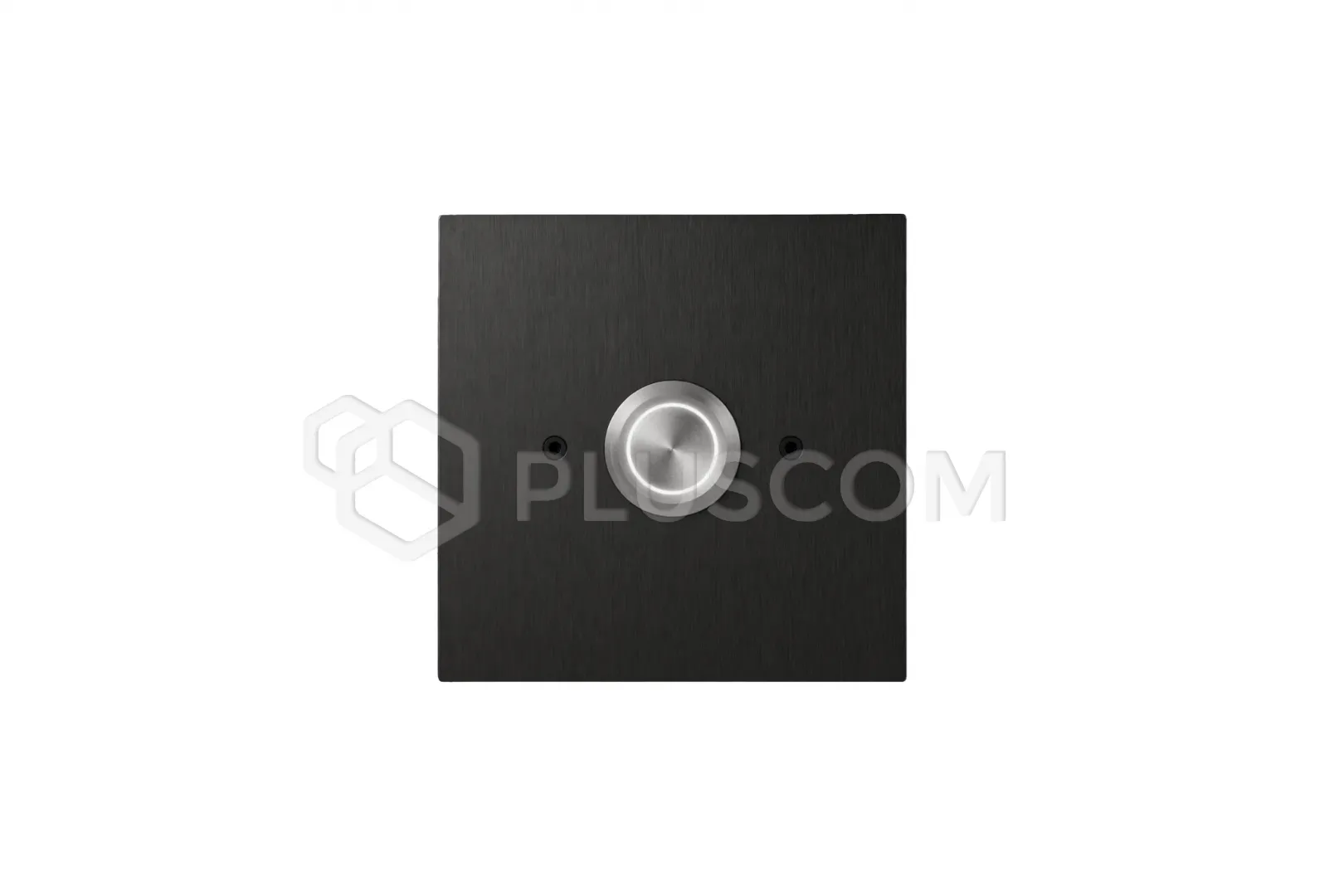

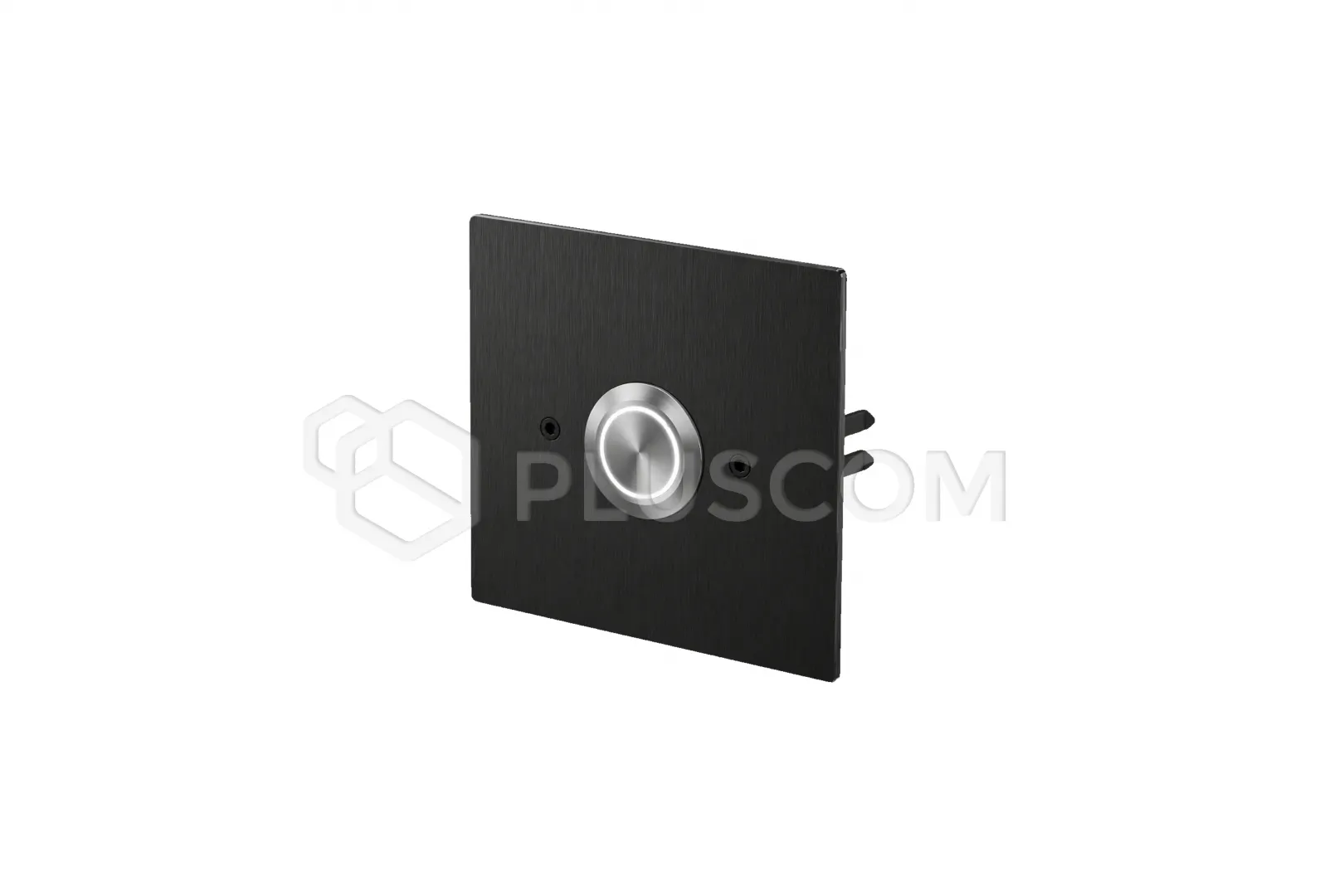

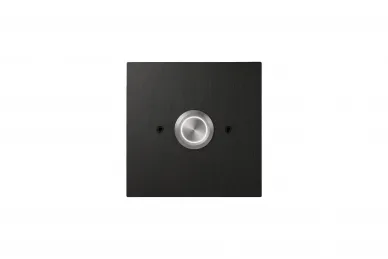

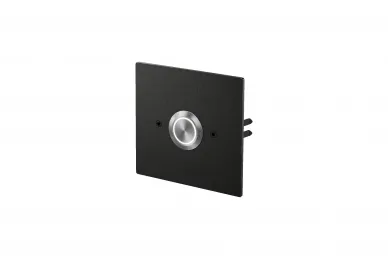

Aco INS-OB-60 AL BL Outside switch button

Aco INS-OB-60 AL BL Outdoor Illuminated Opening Button, black version

A universal-purpose, NO (bell-type) outdoor button. In Aco systems, it can be used, for example, to directly trigger the door opening (when leaving) or to ring a selected apartment (depending on the panel/intercom system configuration). It can also be used to trigger the doorbell (RING) function in selected receiver models. The INS-OB-60 AL BL version also features a white illuminated button surround, making it easier to locate in the dark.

Designed for flush mounting in a Ø60 electrical box.

FEATURES:

• Weather-resistant
• Operating temperature: -20 to 50ºC
• IP protection rating for the button: IP67
• White illuminated button surround
• For mounting in a Ø60 mm electrical box
• Recommended, for example, on the inside of a gate/door to facilitate opening the gate/door when leaving.
• Can function as a doorbell (RING function available in selected receiver/monitor models)
• Can function as a call to the apartment (depending on the settings of the device to which it is connected)
• Compatible with all ACO devices

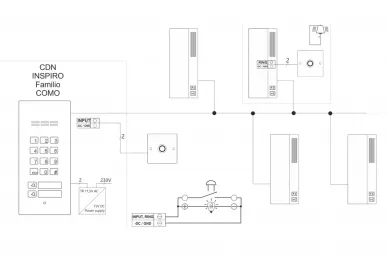

• When connecting a backlit button to ACO devices, the backlight is powered on the same wires as the control (two wires are sufficient between the ACO device and the button).

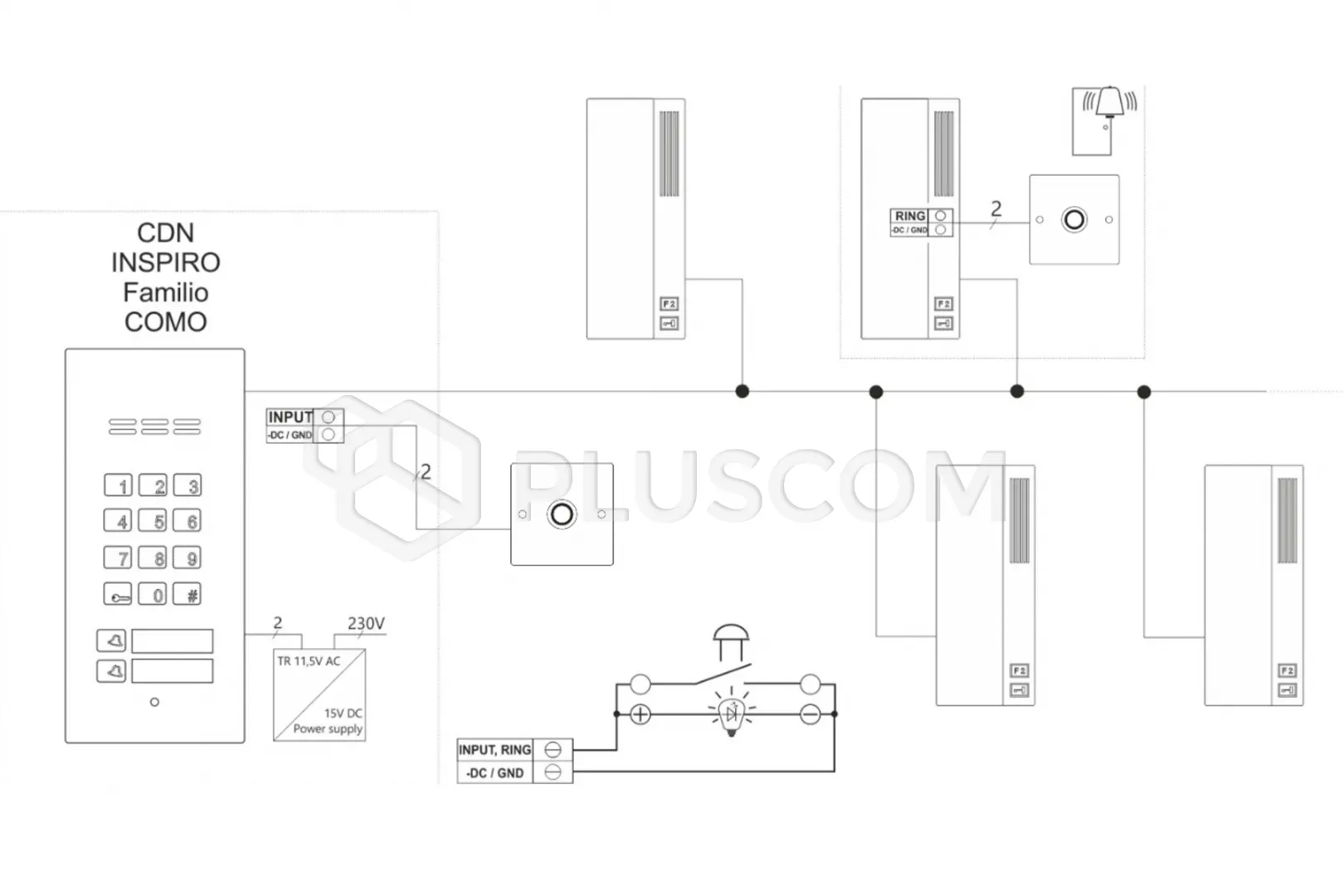

Compatible with all digital devices from the following groups: CDN, Inspiro, Familio, and COMO.

TECHNICAL PARAMETERS:

• Material: flat front panel, 2mm thick, buttons made of brushed stainless steel
• Mounting: flush

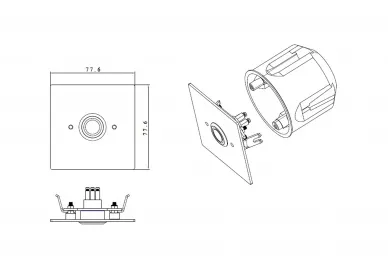

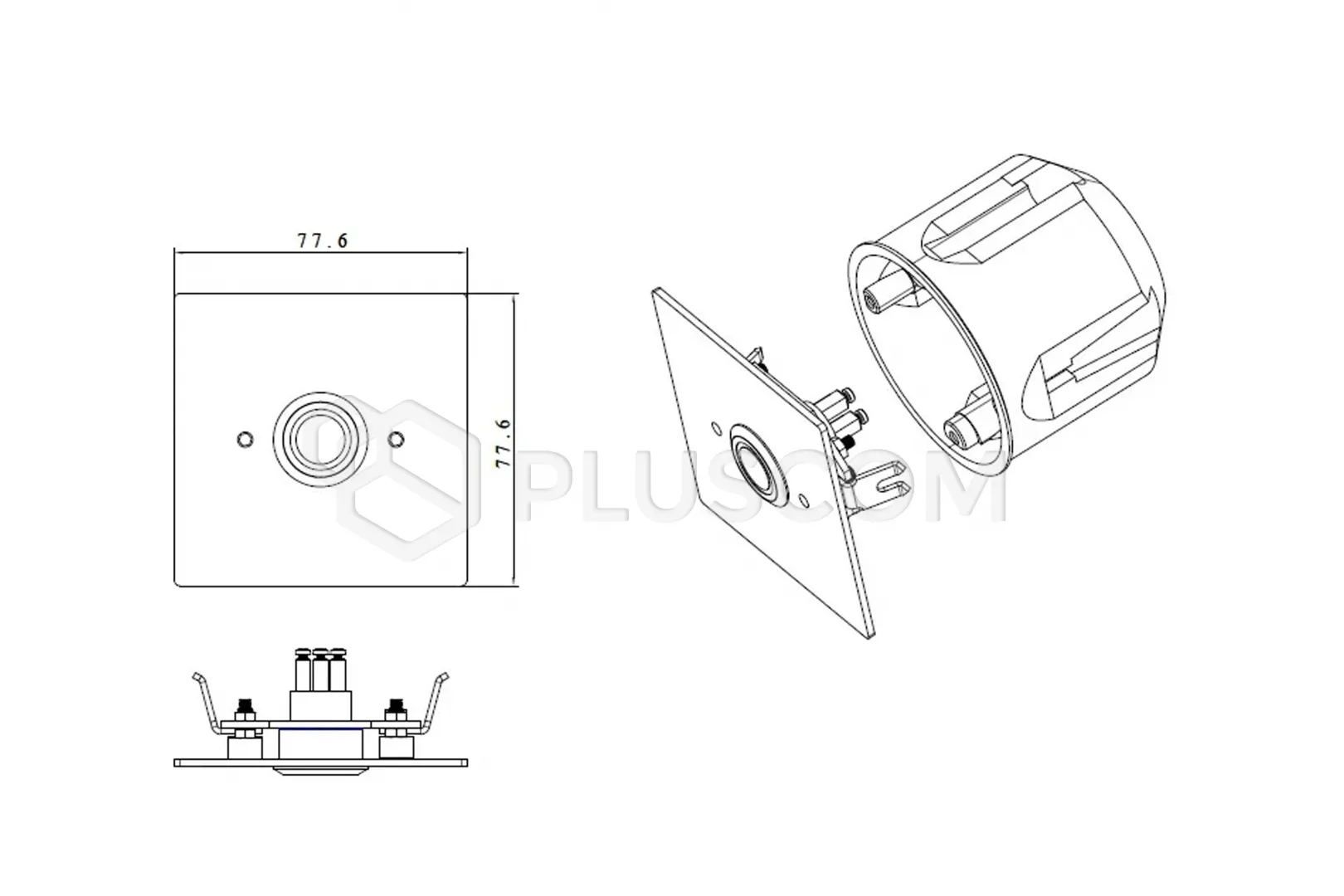

• Dimensions(mm):

  • panel 77,6x77,6mm
  • mounting backbox ⌀60mm
• Installation type 2 wires:
• Outputs: screw terminals ARK: No contact, max. 2A, DC 36V
• Resistant to bad weather conditions and vandalism
• Compatible with chosen ACO devices
