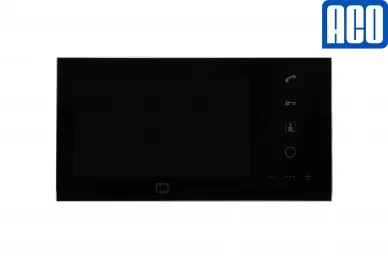

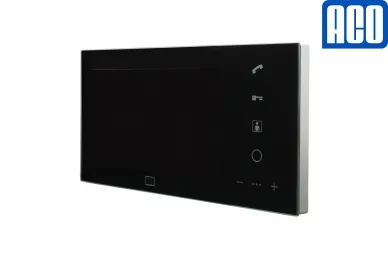

Aco INS-MP7 BK Handsfree digital inside unit with glass front and 7'' colour display

ACO INS-MP7 BK Digital Video Intercom, Hands-Free with 7" Color Display

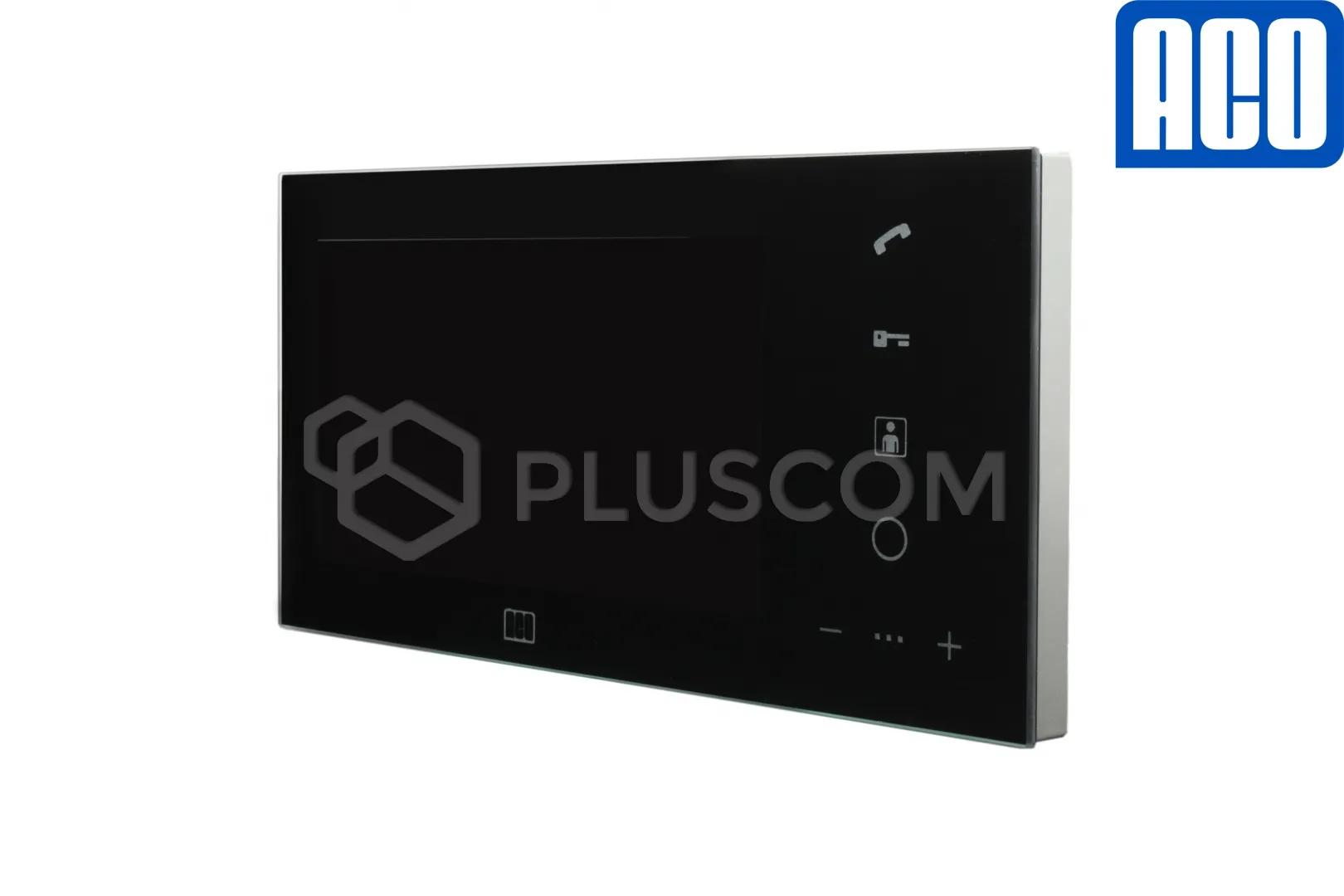

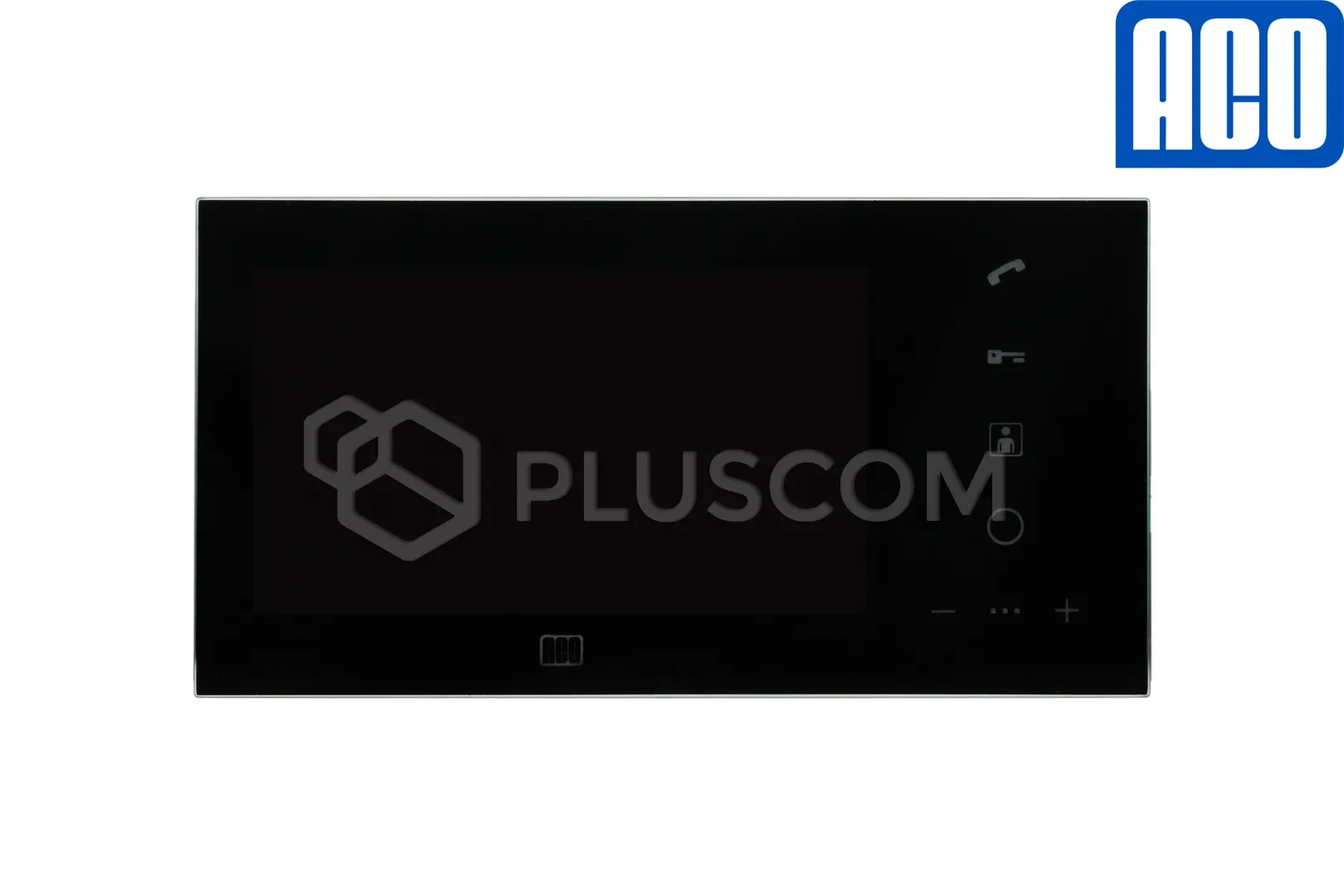

Modern 7" LCD display for the Familio PV and INSPIRO digital systems. The completely flat front is made of scratch-resistant glass and is equipped with touch buttons for managing calls and the monitor.

MONITOR PARAMETERS AND FUNCTIONS:

• Clear, colorful image
• Camera image preview without an active connection
• Compatibility with an additional camera
• Ringer volume adjustment (7 levels), brightness, and image saturation
• Doorbell support
• Ability to control additional devices, F2 button
• Auto-opening function (office), automatically opening the electric strike during office hours after pressing the call button
• Supports multiple monitors with the same address

INSTALLATION AND MOUNTING:
The video intercom system uses a digital bus based on UTP cable (twisted pair).

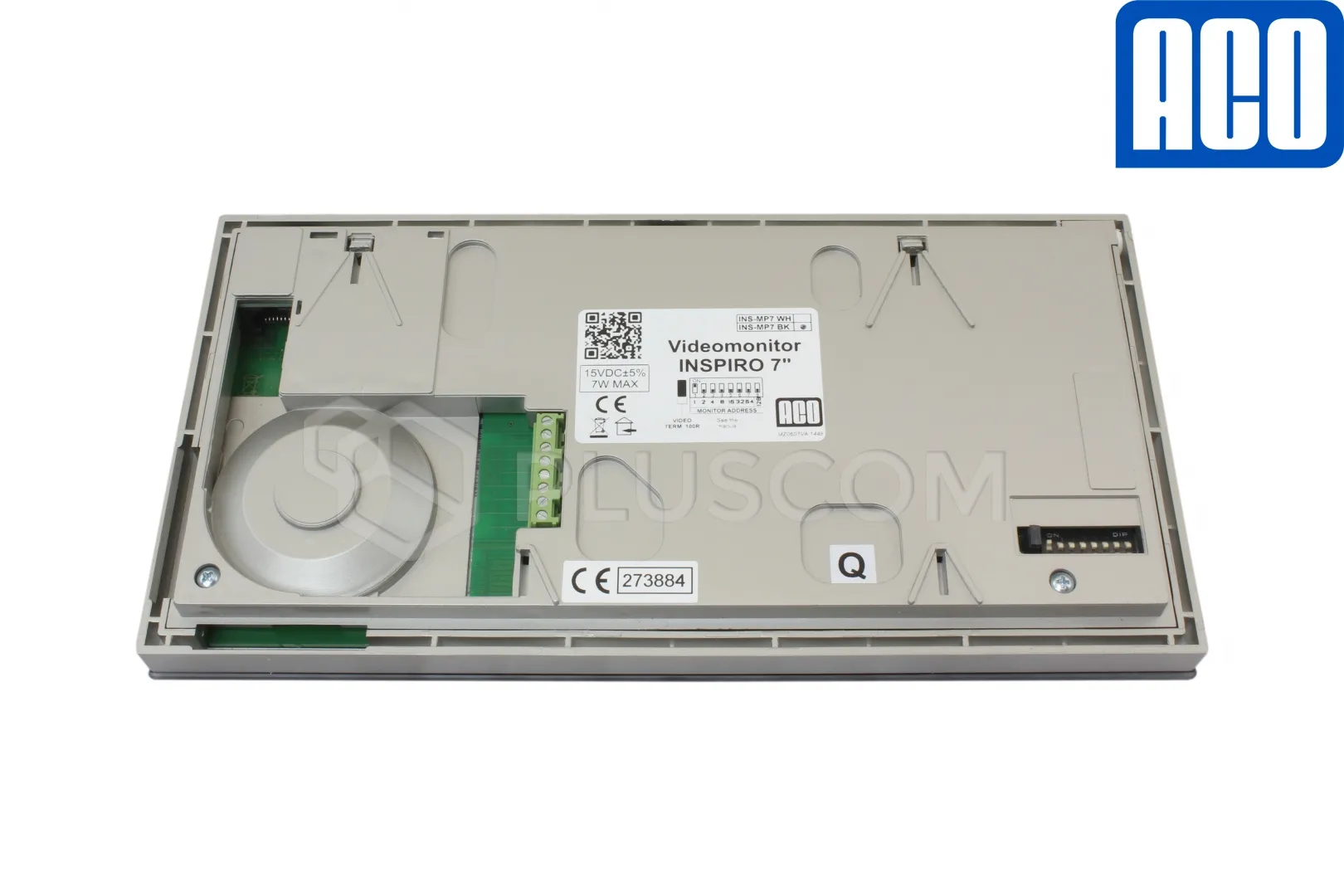

The monitor can be connected using ARK screw connectors or an RJ45 socket (T568B standard). The monitor is powered from the control panel (gateway panel) or from a splitter in a multi-monitor installation. It does not require an additional power supply. If only one monitor is installed in the system, the distance between the control panel and the monitor should not exceed 70m.
The total length of the bus based on UTP cat. 5e cable using active splitters can be 300m.

The monitor address should be set using the DIP switches (it is permissible to set the same address on multiple monitors); in this case, several monitors will be called simultaneously.

TECHNICAL PARAMETERS

• Power supply: DC 15V (min 13.5V - max 18V)
• Power consumption in standby mode: ~0.2W
• Current consumption during a call: 460mA
• Screen diagonal: 7''
• Resolution: 800x480

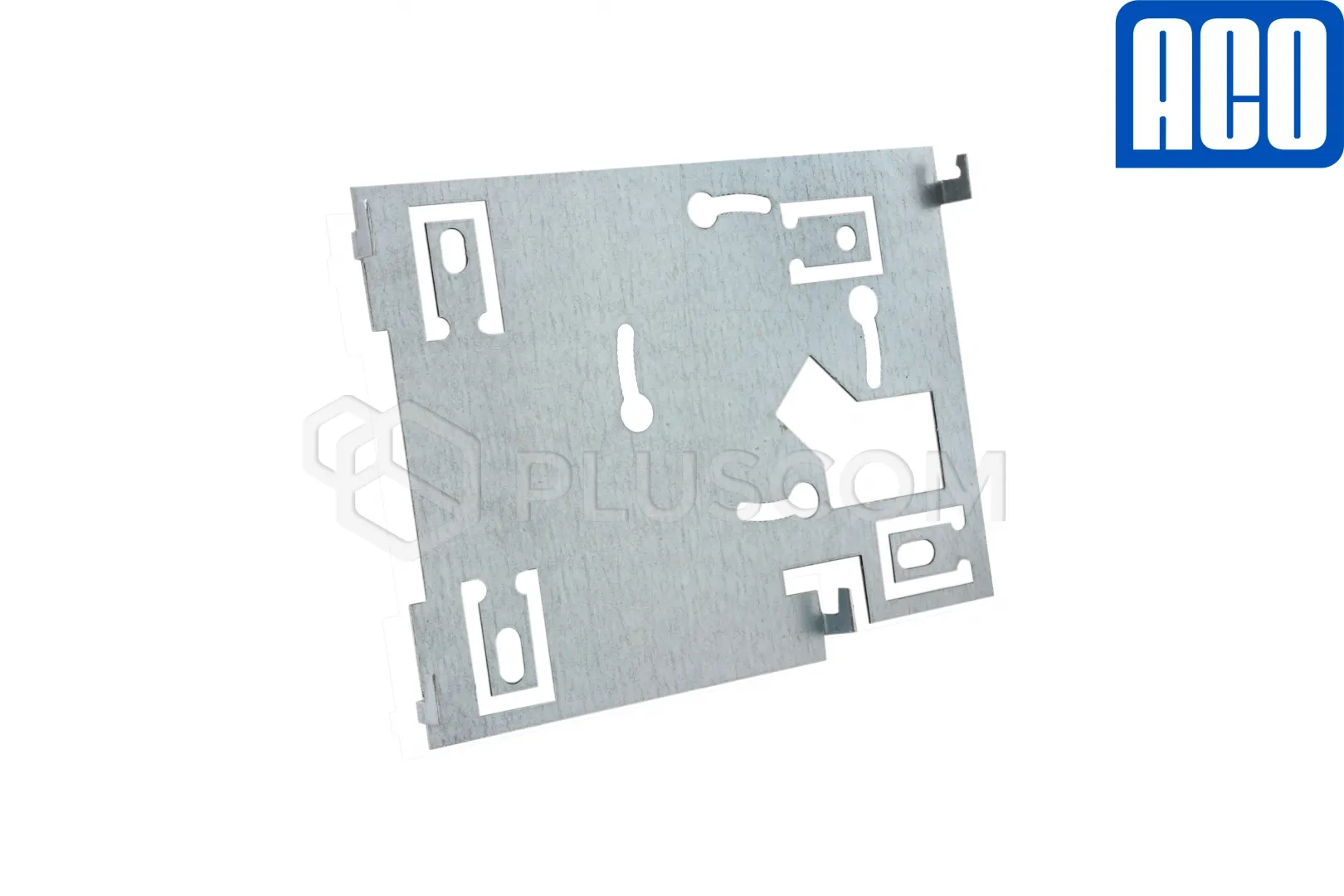

• Mounting plate (bracket) dimensions: 140x92mm
• Monitor front dimensions: 240x120x25mm
