Aco INS-ACC-60 Autonomous, miniature proximity tag reader

93,10 EUR including 23.00% VAT
Product code: #26129
Manufacturer: ACO
  • Flush mounting or installation in an electrical box Φ 60 mm
  • Power supply: 12 – 15VDC
  • Maximum number of key rings: 6144
  • External open button support: INPUT
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco INS-OB Outside switch button Aco CDN-USB Programming cable Aco INS-P-XXS-60 NT Surface-mounted box with a roof

INS-ACC-60 Autonomous proximity tag reader for a box electrical Φ 60mm


Miniature proximity tag reader module in the Unique 125 kHz standard.
The device is used to control one output using key fobs added to reader memory.
The reader is mounted flush-mounted in a standard electrical box Φ 60 mm or surface-mounted using the optional INS-P-XXS-60 NT box.

INS-ACC-60 supports a maximum of 6144 proximity tags. Moreover, a reader allows you to easily add key rings using the main "Master" key ring (without necessity of connecting to a computer or dismantling the reader) or adding i key fob management using free computer software (CDN-USB interface required).

The device is compatible with other Aco devices equipped with a reader proximity ACC, which allows you to open many entrances with one key fob, both in... intercoms and in autonomous readers.

FEATURES:
  • proximity tag reading standard: Unique 125 kHz
  • support max. 6144 keychains
  • sound signaling (can be turned off)
  • output operation time adjustment from 0.6s - 25s

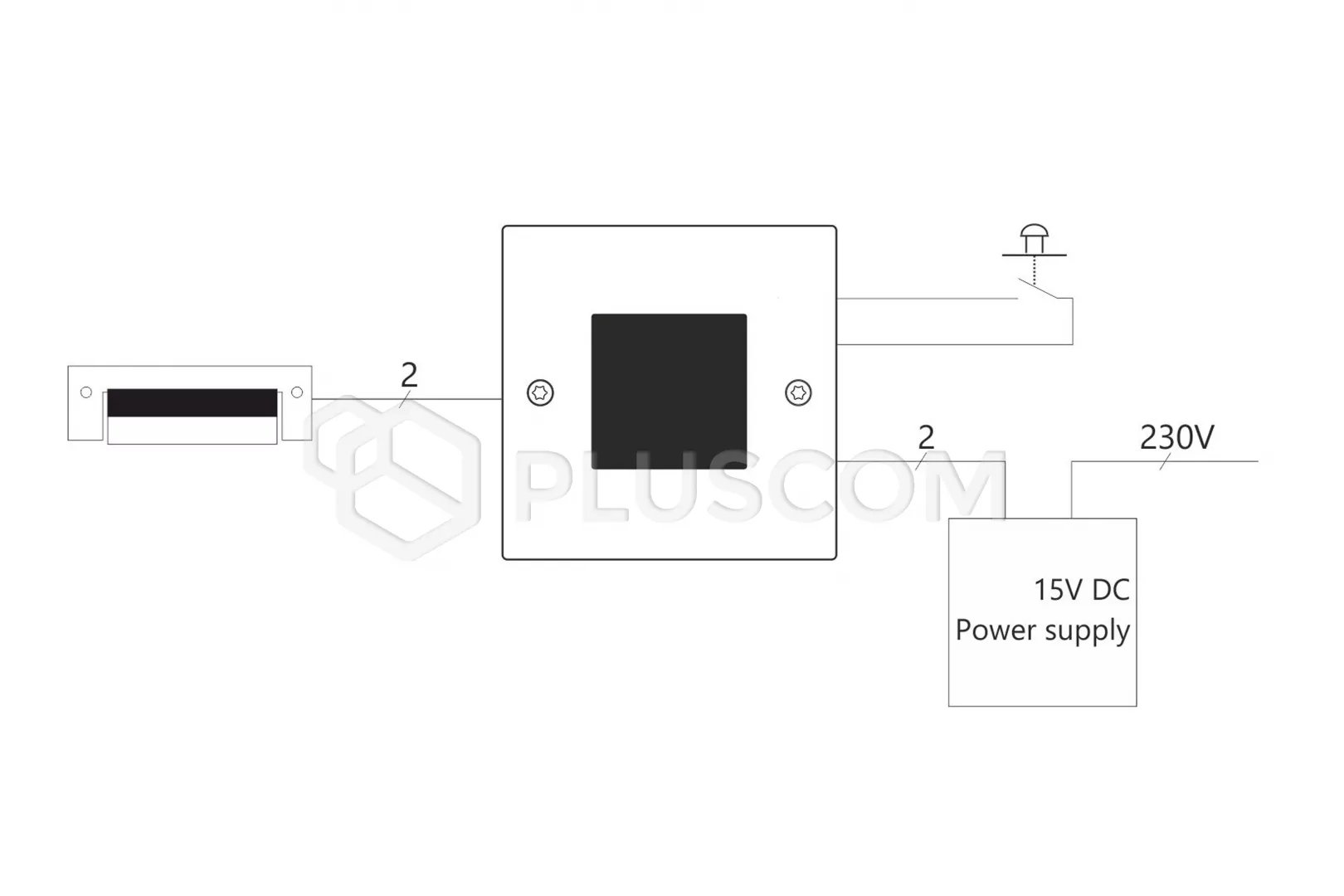

  • possibility to connect various types of electric strikes (traditional, reversible, with memory) or electromagnetic jumper (module required CDN-PK)
  • support for external opening button: INPUT (e.g. INS-OB )
  • way of managing key rings compatible with products of the series: CDNP7ACC and INSPIRO+
  • programming from the device level (adding key fobs using a key fob Master, without having to disassemble the device.)
  • programming from a computer (using an optional cable CDN-USB)
  • common computer software to support proximity readers in INS-ACC-60, CDNP7ACC and INSPIRO+
  • products
  • free software
  • wide supply voltage range
  • output protected against short circuit with a fuse polymer

TECHNICAL PARAMETERS:
  • Power supply: 12V-15V DC; 40mA
  • Power consumption in standby mode: ~0.3W
  • Output load max 1A. (for reversible electric strike 0.5A)
  • Output control method: shorting to ground impulsively (for an electric strike) or permanently (for a relay/gate)
  • Maximum number of cards/key rings: 6144
  • Card/tag reading standard: Unique 125 kHz
Download
CE Declaration 0.11 MB
Product card 0.37 MB
Manual 0.56 MB
