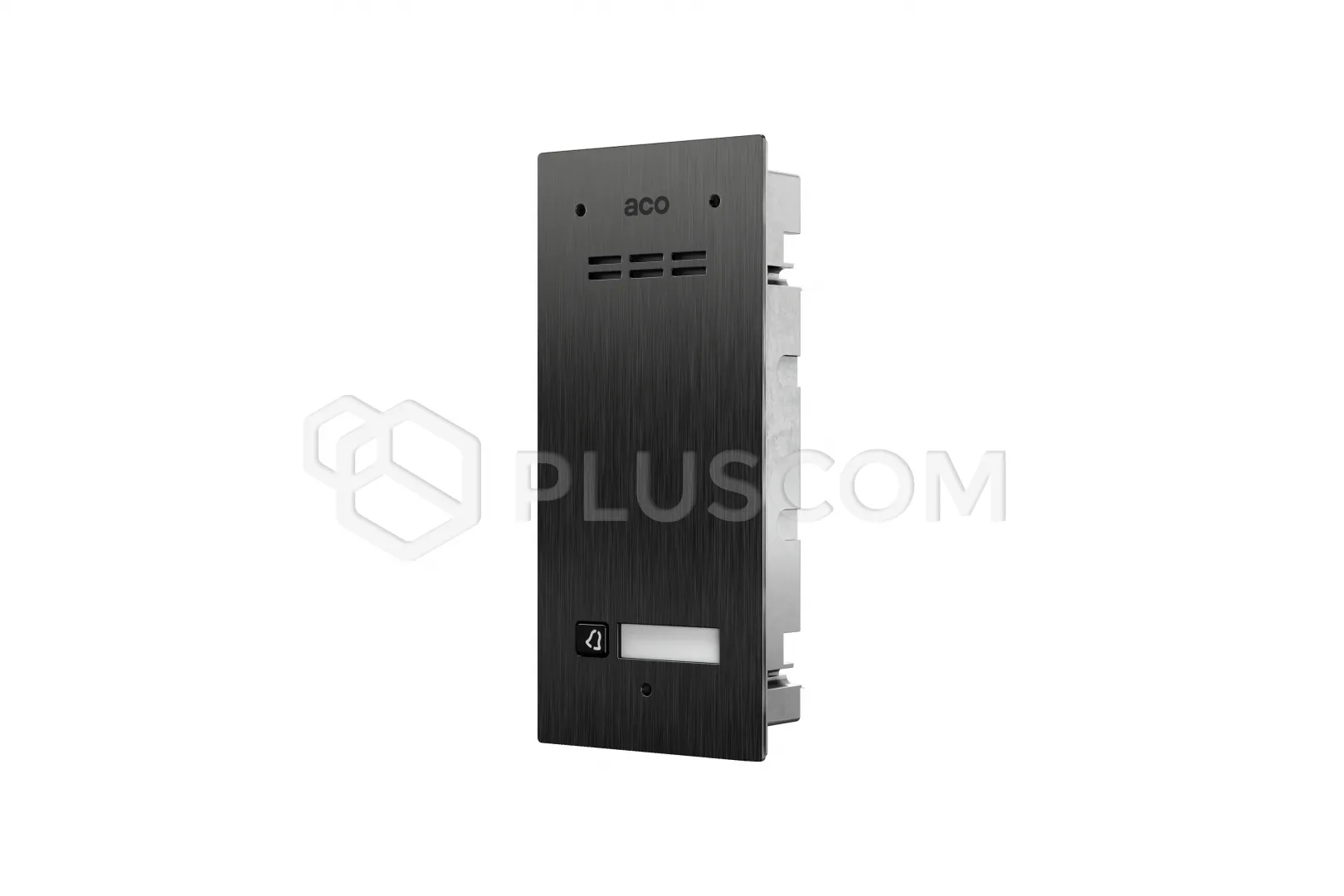

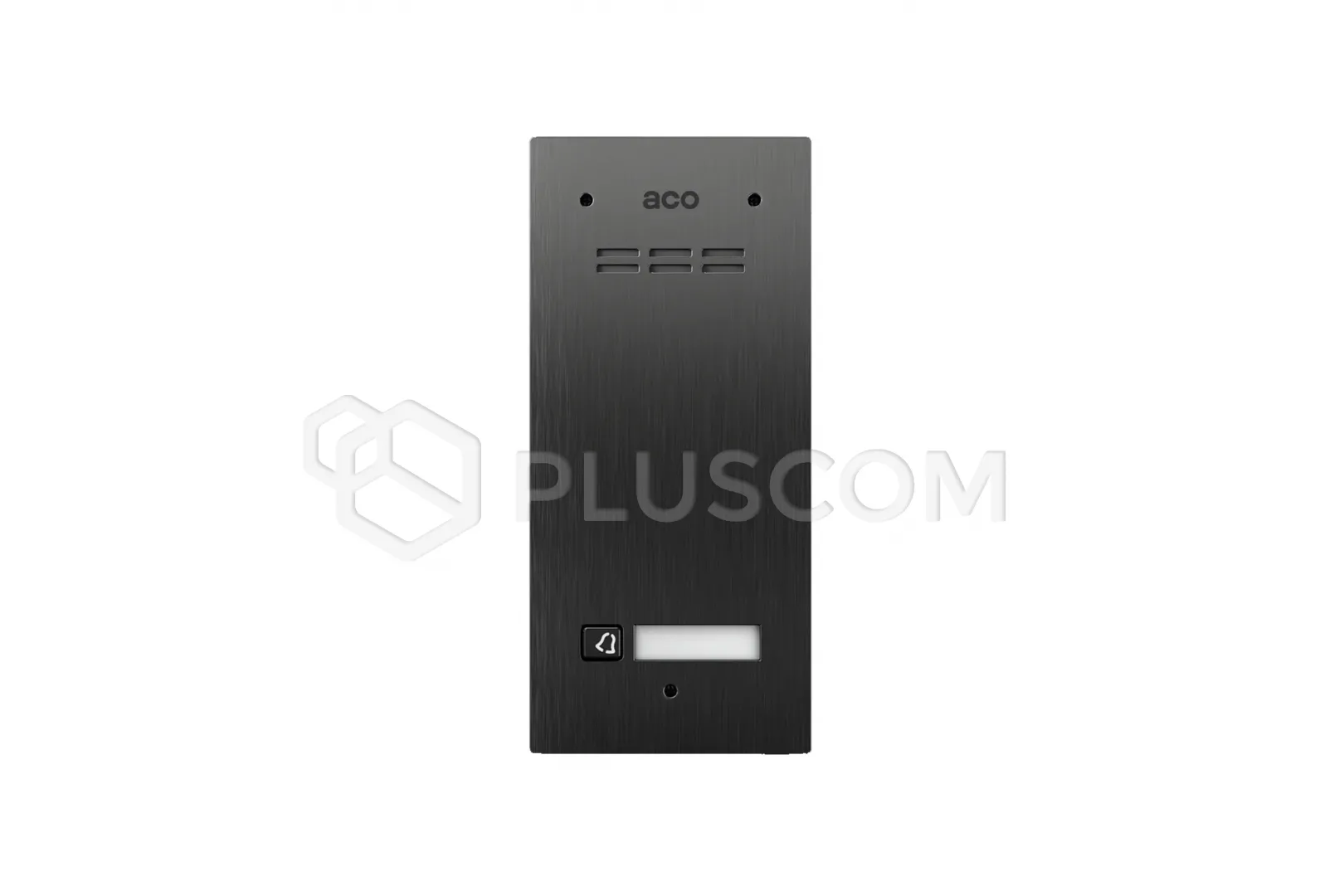

ACO COMO-PRO-A1 AL BK Intercom with a single call button for single-unit
operation, black version.
The intercom is a component of the digital ACO COMO PRO system, which can be
used in single-family homes.
This is the next generation of the renowned FAMILIO-PRO series. Thanks to its
completely new electronic design, it provides, among other things, greater
reliability, support for longer installations, remote management, and a larger
number of subscribers. The installation is based on UTP twisted-pair cables.
The system allows for the connection of two panels in a single system: 1 x
master and 1 x slave, multiple receivers calling simultaneously, various types
of electric strikes, and an external opening button.
The ACO panel has many features for users with disabilities.
Using the PRO-I/O module, connected to the system bus, we can connect an
additional light or sound device that will signal a call. You can also open the
door without answering the call and, thanks to the auto-opening function, open
the door automatically. By connecting the PRO-I/O module, we can manage home
automation devices such as gates, barriers, lighting, or roller shutters.
Operating the panel itself is easy and intuitive, and programming is performed
from the panel and a computer using a CDN-USB cable.
PANEL CONSTRUCTION AND EQUIPMENT:
- The panel is made of stainless steel (2mm thick), and has one
metal call button.
- The design and materials used ensure high resistance to weather
conditions and acts of vandalism.
- Integrated proximity key fob reader (Unique 125kHz) Supports up
to 10 key fobs per apartment (the reader is located behind the lower
description field).
- White illuminated button and description field (easy description
replacement).
- Controls various types of electric strikes. The electric strike
is connected directly to the panel.
|

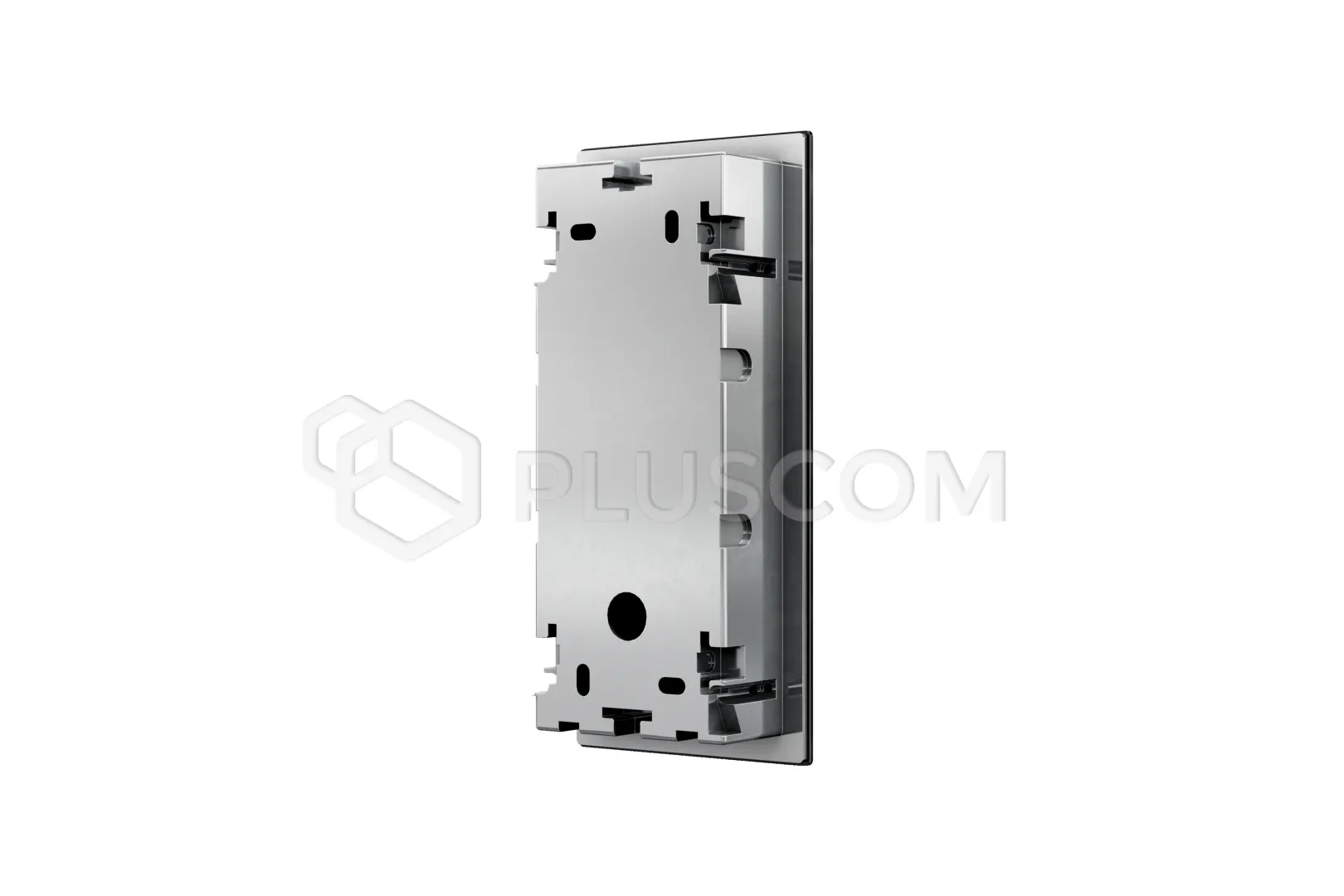

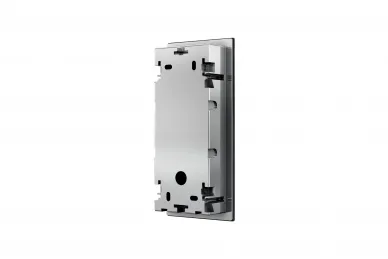

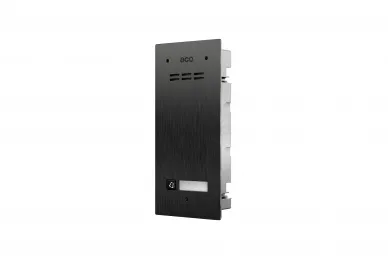

Aco COMO-PRO-A1 AL BK Digital door entry system
|
In the new COMO-PRO generation, you can add and remove proximity tags using the
"master" and "super master" key fobs.
TECHNICAL PARAMETERS:
- Mounting method: flush-mounted
- Dimensions:
-
- Panel: 197x90mm
- Box: 179x73x32mm
- Installation type: min. 3 wires or twisted pair Cat. 5e or 6
- Line length: max. 1000m
- Power supply: 15V DC
- Power consumption in standby mode: approx. 2.5W
- Output: for connection to:
-
- Standard electric strike (max. 1.5A)
- Reversing electric strike (max. 1.5A)
- Relay module: CDN-PK (max. 5A)
- Audio signal: "LINE"
- Power supply: "+DC" and "-DC"
- Video signal: "V+" and "V-"
- PRO system bus
- Input: for connection to:
-
- Normally open (NO) button
- Separate power supply for the electric strike output
