Aco CDNVSbk Adder for station without camera

30,82 EUR including 23.00% VAT
Product code: #8692
Manufacturer: ACO
  • Digital installation: twisted pair cable cat. 5e or 6
  • Outputs: 1x RJ45 socket, 1x ARK screw connectors
  • Inputs: 1x RJ45 socket, 1x ARK screw connectors
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

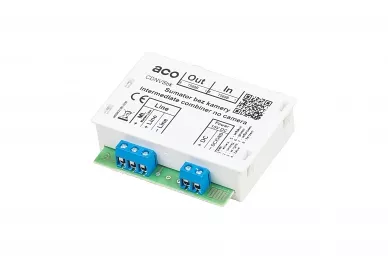

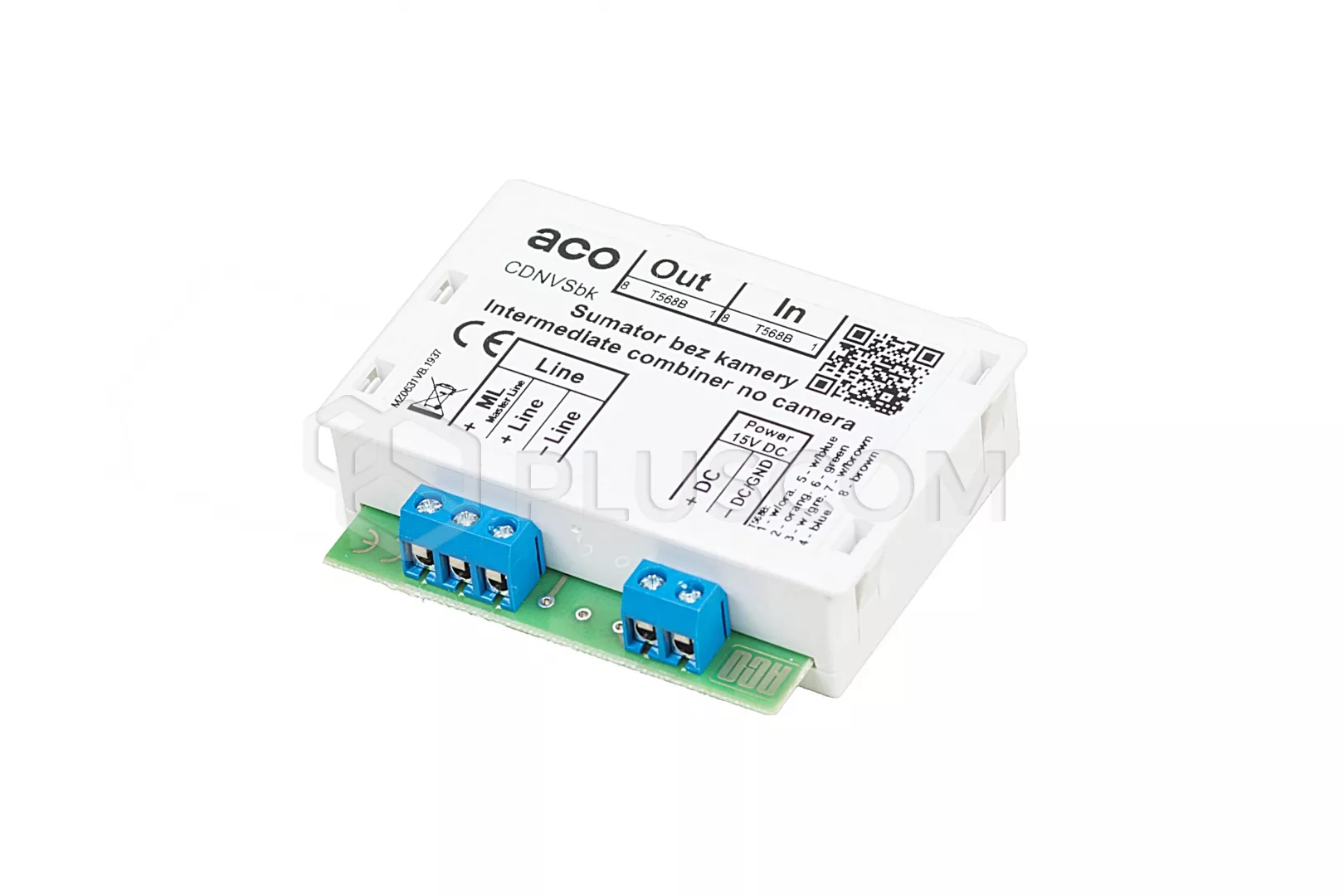

CDNVSbk Adder for station without camera


Adder for station without camera is used in situations, such as when Slave has no camera, but whole installation was prepared to fit video system. Device is compatibile with INSPIRO and CDN stations.

TECHNICAL PARAMETERS:
  • Installation type: twisted pair cable cat. 5e or 6
  • Outputs:
    • 1x RJ45 socket
  • Inputs:
    • 1x RJ45socket
    • 1x ARK screw connectors:
      • connection of the audio line from the previous panel ("ML" connector)
      • connection of audio lines from the panel
      • power connection
  • Dimensions: 71x68x20mm (standard body for ACO modules)
  • ABS plastic housing
Specification
Installation type: Digital: twisted pair cable cat. 5e or 6
Stand-by power consumption: 0W
Outputs:
1 x RJ 45
1 x ARK
Inputs:
1 x RJ45
1 x ARK screw connectors
Dimensions: 70,50 x 71 x 19,50mm
Download
Datasheet 1.64 MB
Declaration 0.15 MB
Block diagram 1.61 MB
