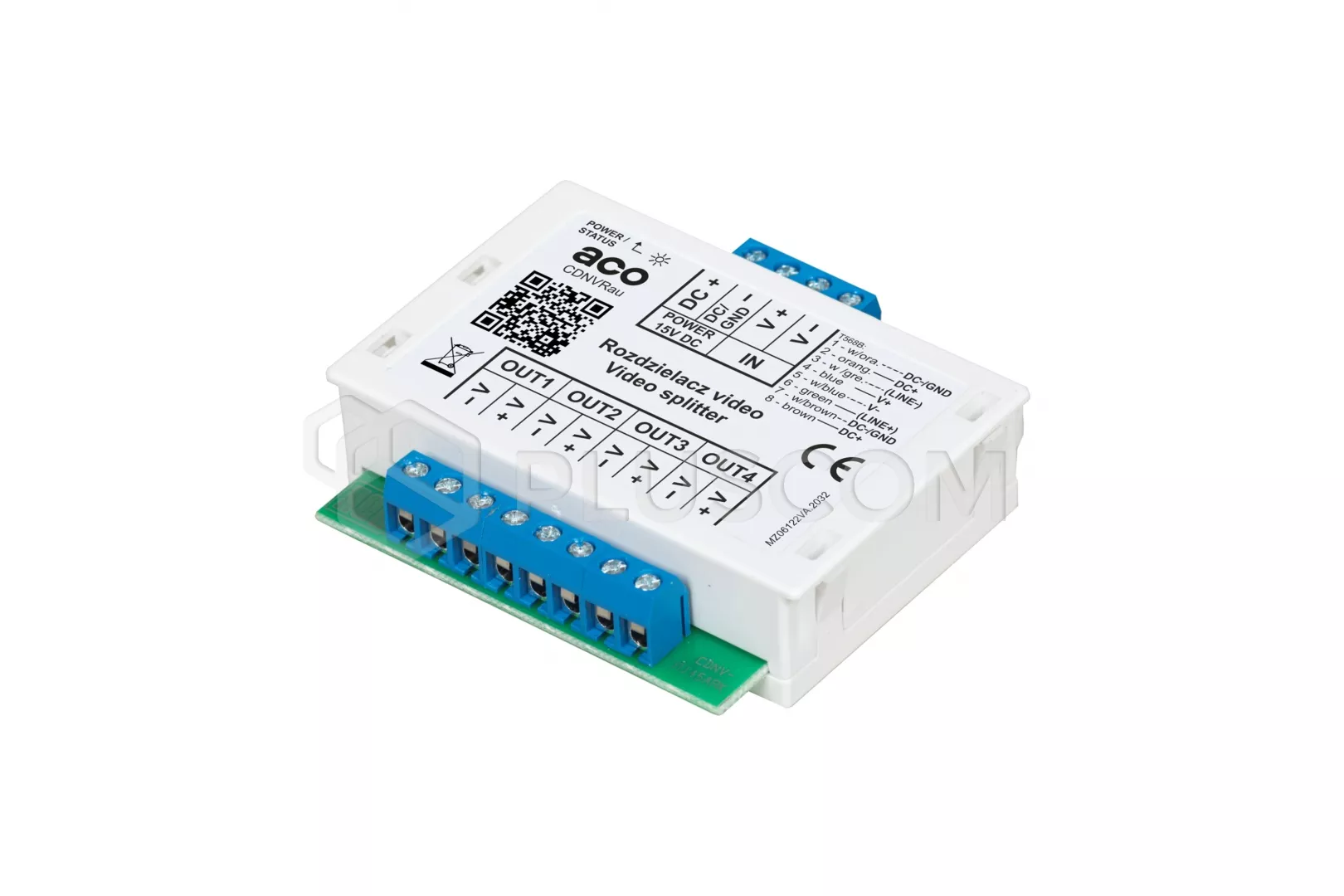

Aco CDNVRau Active video splitter for digital systems

CDNVRau Active video splitter for digital systems

Universal active video splitter for Aco video door entry systems. Distributes the video signal to four active outputs (built-in amplifiers). It allows the connection of up to 4 receivers or splitting the main bus into 4 independent outputs. It is also possible to connect another splitter or to terminate the main bus (100Ω video terminator included in the set).Active outputs allow direct connection of receivers at distances up to 70m (with appropriate number of power supplies). With appropriate system configuration it is possible to achieve greater distances. Mounted on floors, at the assembly point of the installation or at the bus splitting point.It can be powered from the main bus or an external 15V power supply. The distributor is resistant to wiring faults: shorting the video line, shorting the video line with the power or audio line.

Designed for surface mounting or, on selected models of devices, directly into a frame or box.
Compatible with all digital devices from the groups: CDNP, Inspiro, Familio P/PV and COMO PRO.

Characteristics:

• connection of up to 4 receivers
• split the main bus into 4 independent outputs
• distance to receiver: up to 70 m. (with the appropriate number of power supplies)
• possibility of increasing the distance using additional power supplies
• four active outputs (video amplifiers)
• compatible with ACO video systems
• can operate as straight-through or video end splitter (100Ω video terminator connected to video input)
• LED indicating power supply and operating status of the splitter
• the active outputs are resistant to damage: shorting the video line, shorting the video line with power supply line or audio line

TECHNICAL PARAMETERS:

• Installation type: digital: twisted cat. 5e or 6
• Power: DC 15V / 40mA
• Standby power consumption: ~ 0.6W
• ABS housing
• Dimensions: 70.5x71x19.5mm
