Aco CDNP8ACC ST Digital intercom with code lock and proximity reader

ACO CDNP8ACC Digital intercom with code lock and reader proximity

The CDNP digital intercom with a code lock and proximity reader is a modern device with a digital dialing the apartment number and coded door opening.
The use of the LED display ensures simple and friendly operation by users and installers.

The control panel can be combined with a very wide range of additional modules, thanks to which its functionality can meet the individual expectations of customers. Very wide configuration possibilities make the products easy to find versatile use when modernizing old systems.
The intercom is compatible with all digital devices from the following groups: CDN, Inspiro and Familio P/PV.

KEY FEATURES:

• resistance to vandalism and weather conditions (from -20 to 50°C, IK07, IP42)
• supports up to 1536 proximity tags
• support for multiple extension modules to increase system functionality
• support for multi-entry Master/Slave systems
• universal Master and Slave design (the control panel can work both as a Master or as a Slave)
• home automation: control of external devices, e.g. entrance gate, barrier, lighting, blinds
• possibility to connect multiple receivers under the same number
• wide possibilities of individual configuration of settings for each premises
• individual settings of sound parameters
• intuitive and comfortable operation and configuration
• corridor opening function
• hotel mode up to 10 zones
• gatekeeper function
• operating electric strikes and electromagnetic locks of various types
• compatible with all digital devices from the following groups: CDN, Inspiro and Familio P/PV
• programming from the panel and computer via USB cable
• free software for creating description lists and device configuration available in the "download" tab
• compatible with all CDN-R series steel frames (e.g. CDN-R-S, CDN-R-M, etc.)

The housing of the intercom is made of powder coated aluminum alloy a stainless steel keypad. Depending on the choice of frame, we can intercom mount flush or surface mounted.

CDNP8ACC has facilities for people with disabilities:

• backlit keyboard buttons, optionally with embossed Braille characters
• acoustic and optical indication of panel functions
• automatic or remote (using a button) door opening without the need to answer the call and the possibility connecting an additional acoustic or light device in the premises to signal ringing (CDN-U)

OUTPUTS
First to connect:

• traditional electric strike (max. 1A)
• reversible electric strike (max.0.5A)
• CDN-PK relay module (max. 5A)

Second relay to be connected:

• home automation (max. 2A,30VDC)

INPUT

• 1x normally open (NO), e.g. "bell" button - direct activation of the electric strike or ringing to the selected premises

SPECIFICATION:

• Power supply: 15V DC / 200mA or 12V ± 0.5V AC
• Standby power consumption: ~1W
• Max. number of subscribers: 255 premises
• Line length: max. 1000m
• Display: LCD (heated)
• Mounting method:

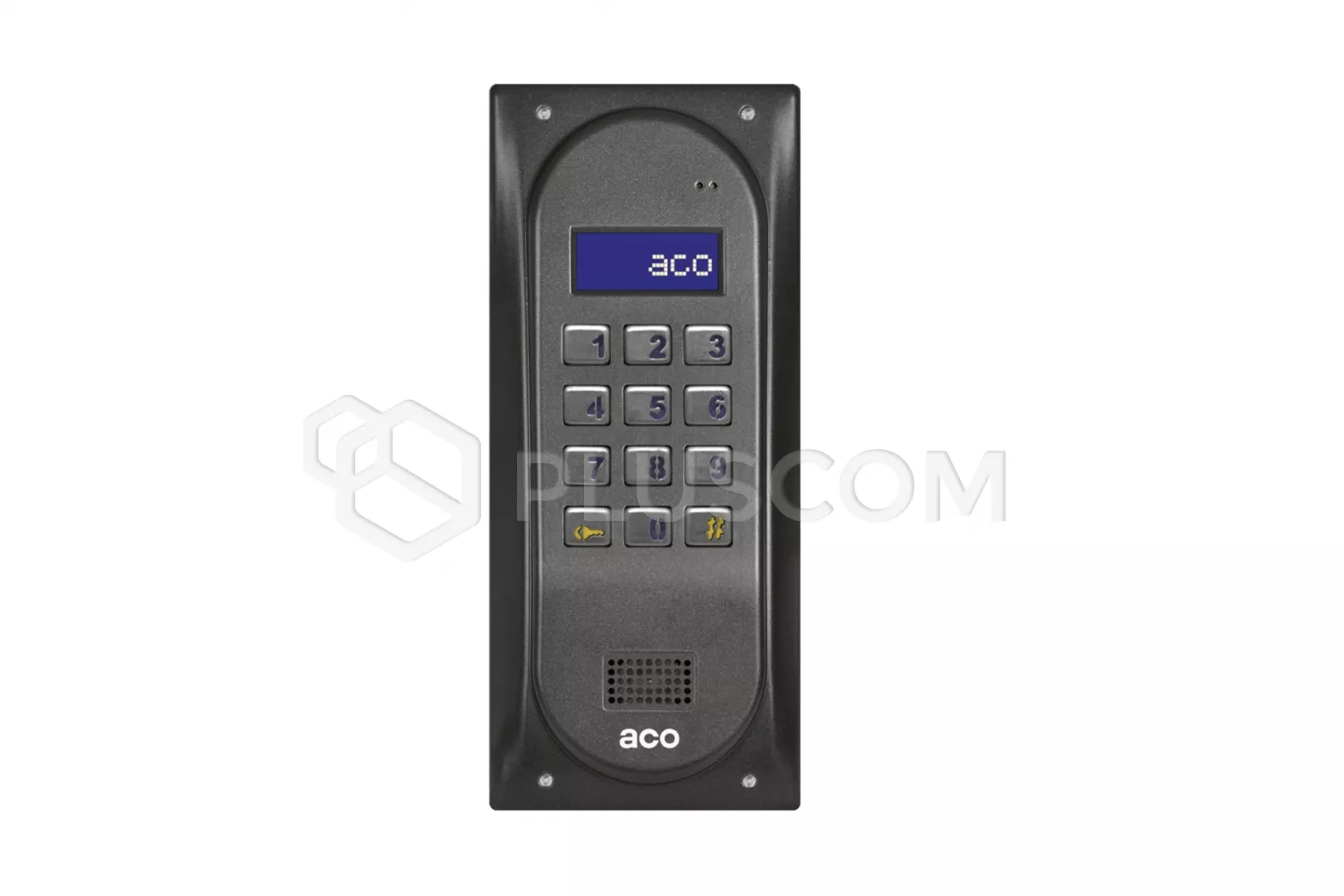

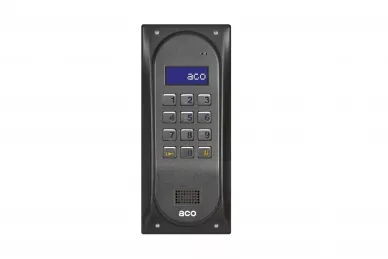

• • recessed: CDN-R-S-AL ST (the frame is shown in the main picture)
  • surface: CDN-P-S NT
• Installation type: digital: 2-wire
• Dimensions: 206×88mm
