Aco CDNP8 ST Digital intercom with code lock

ACO CDNP8 Digital intercom with combination lock

The CDNP digital intercom with a code lock is a modern device with a digital dialing the apartment number and coded door opening.
The use of the LED display ensures simple and friendly operation by users and installers.

The control panel can be combined with a very wide range of additional modules, thanks to which its functionality can meet the individual expectations of customers. Very wide configuration possibilities make the products easy to find versatile use when modernizing old systems.
The intercom is compatible with all digital devices from the following groups: CDN, Inspiro and Familio P/PV.

KEY FEATURES:

• resistance to acts of vandalism and weather conditions (from -20 to 50°C, IK07, IP42)
• support for multiple expansion modules to increase system functionality
• support for multi-entry Master/Slave systems
• universal Master and Slave design (the control panel can work both as Master or Slave)
• home automation: controlling external devices, e.g. a gate entrance gate, barrier, lighting, blinds
• possibility to connect multiple receivers under the same number
• wide possibilities of individual configuration of settings for everyone premises
• individual settings of sound parameters
• intuitive and comfortable operation and configuration
• corridor opening function
• hotel mode up to 10 zones
• gatekeeper function
• operating electric strikes and electromagnetic locks of various types
• compatible with all digital devices from the groups: CDN, Inspiro i Family P/PV
• programming from the panel and computer via USB cable
• free software for creating description lists and configurations devices available in the "download" tab
• compatible with all steel frames of the CDN-R series (e.g. CDN-R-S, CDN-R-M, etc.)

The housing of the intercom is made of powder coated aluminum alloy a stainless steel keypad. Depending on the choice of frame, we can intercom mount flush or surface mounted.

CDNP8 has facilities for people with disabilities:

• backlit keyboard buttons, optionally with embossed characters Braille
• acoustic and optical indication of panel functions
• automatic or remote (using a button) door opening without the need to answer the call and the ability to connect in the premises an additional acoustic or light device for ringing (CDN-U)

EXITS
First to connect:

• traditional electric strike (max. 1A)
• reversible electric strike (max.0.5A)
• CDN-PK relay module (max. 5A)

Second relay to be connected:

• home automation (max. 2A,30VDC)

INPUT

• 1x normally open (NO), e.g. "bell" button - direct activation electric strike or calling the selected premises

SPECIFICATION:

• Power supply: 15V DC / 200mA or 12V ± 0.5V AC
• Standby power consumption: ~1W
• Max. number of subscribers: 255 premises
• Line length: max. 1000m
• Display: LCD (heated)
• Mounting method:

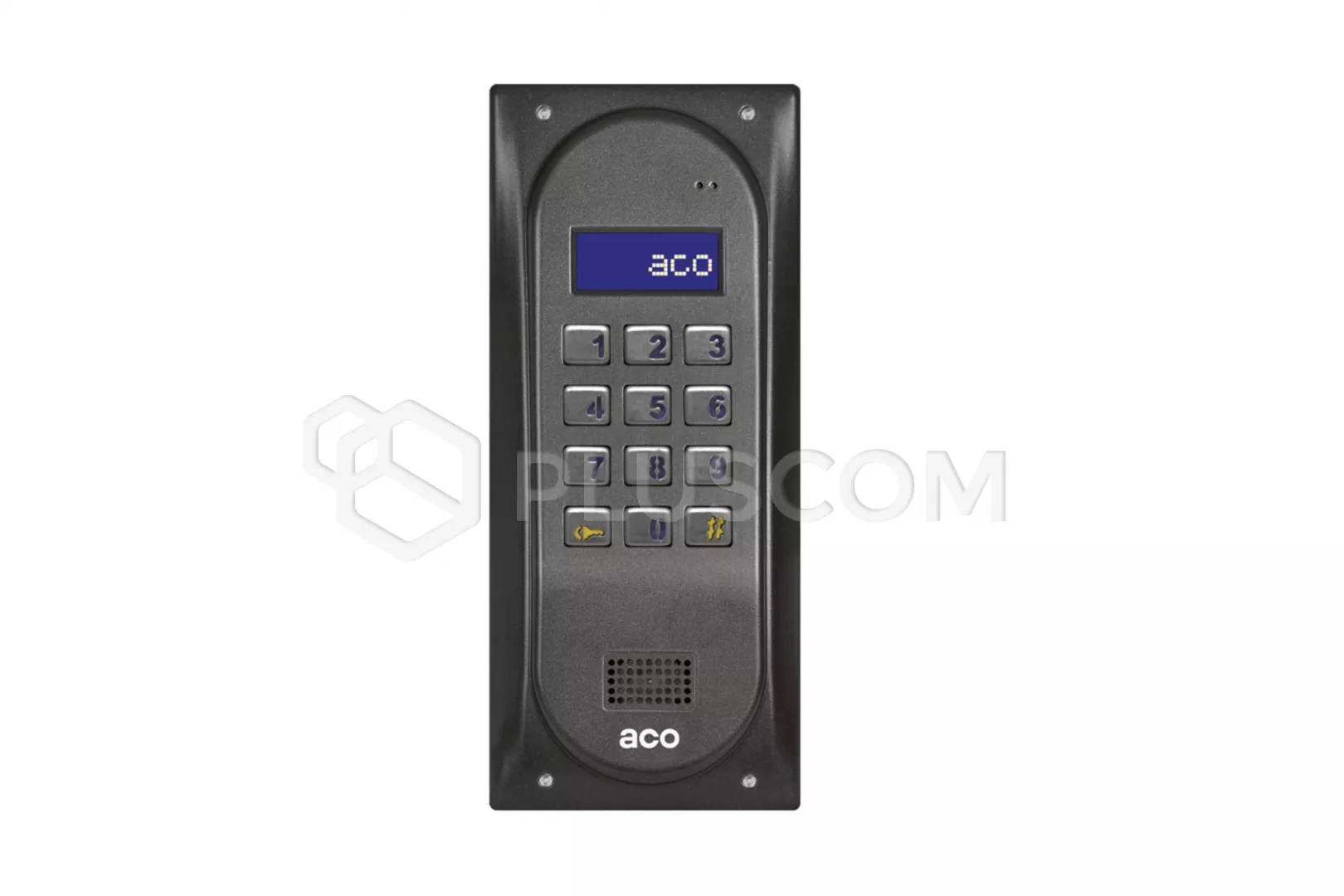

• • flush: CDN-R-S-AL ST (the frame is shown in the picture main)
  • surface: CDN-P-S NT
• Installation type: digital: 2-wire
• Dimensions: 206×88mm
