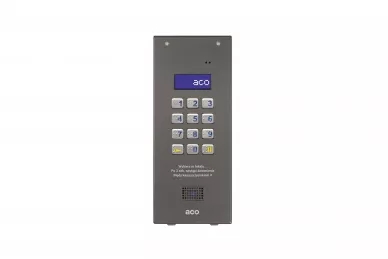

Aco CDNP7ACC ST (SW4S) Digital door entry panel with RFID reader

ACO CDNP7ACC ST (SW4S) Digital intercom with code lock and reader proximity

The CDNP7ACC (SW4S) Master intercom switchboard is modern device dedicated to multi-family housing equipped with:

• digital dialing of the apartment number
• code door opening
• Unique 125kHz proximity tag reader


In '''7'' series of CDN devices, a number of new ones have been introduced functions and facilities. The appearance of the panel has become more modern, added new configuration possibilities and the structure was changed to protect electronics and facilitate assembly and connection.

SELECTED NEW FEATURES OF CDNP7ACC

• flat housing front flush with the mounting frame
• additional housing protecting electronics

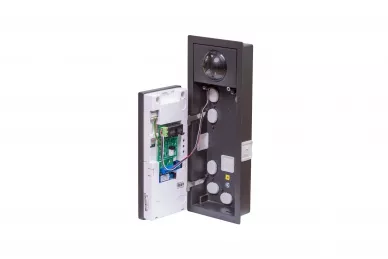

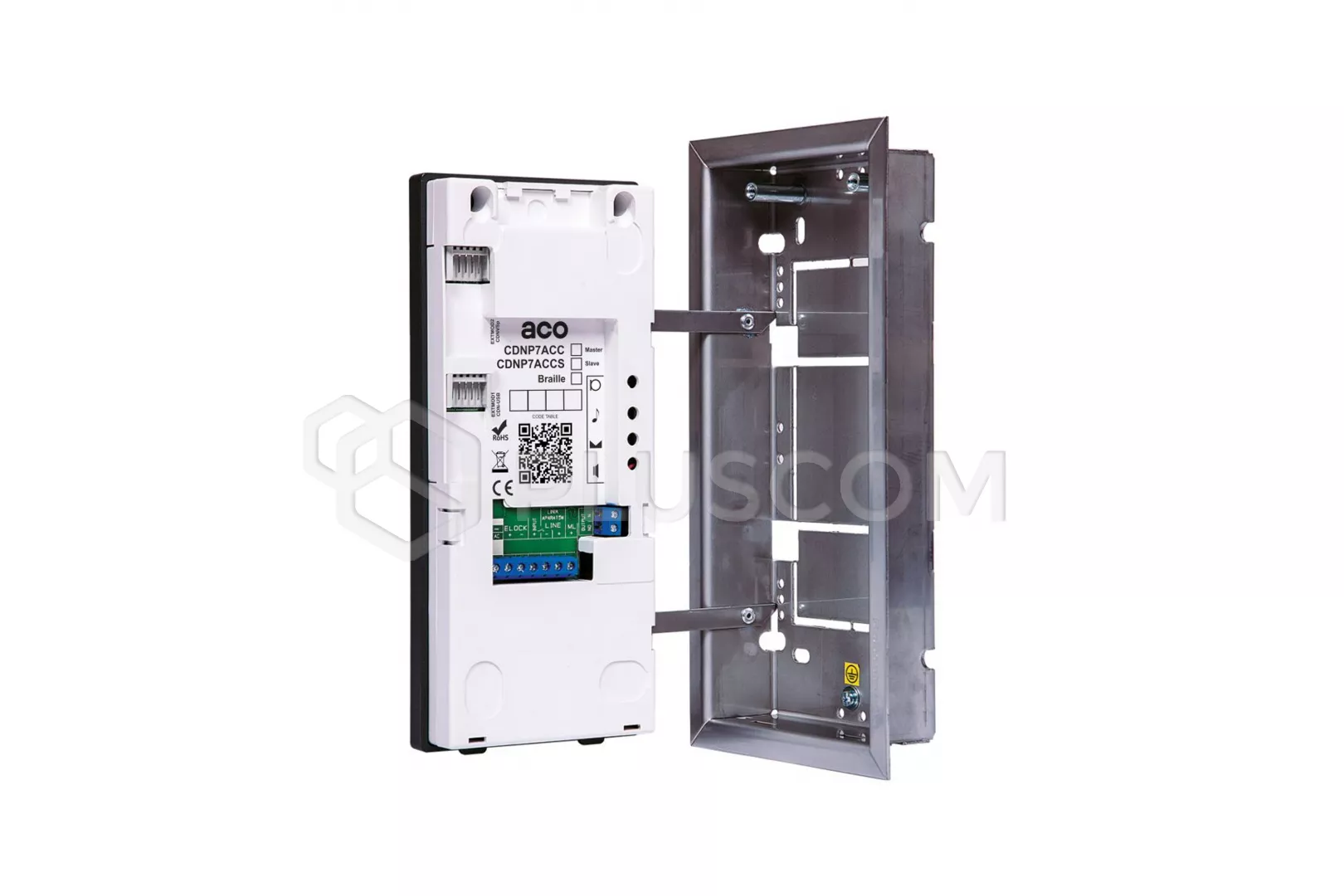

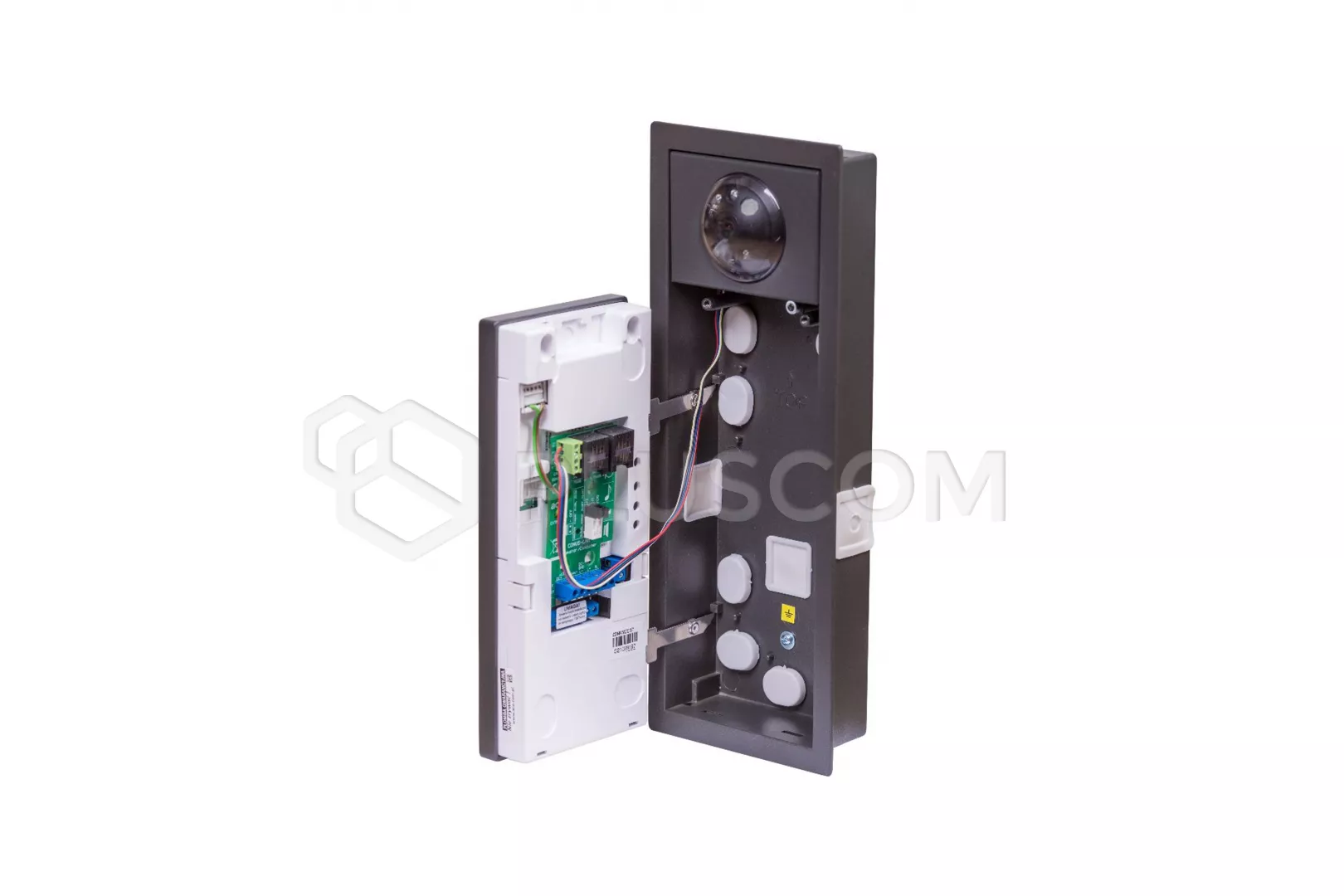

• new mounting frames with handles to hang the control panel on time installation and configuration

• increasing the maximum number of fobs registered in the z system 1536 to 6144

• increasing the number of keyrings assigned to a given premises from 6 to any numbers from the pool of 6144
• any number of admin access keychains from pool no assigned to the premises


• 5 admin codes
• group change of call numbers
• group changes of call parameters
• conversation time adjustment (40-120s)
• adjustable number of openings during a conversation (1-3)
• the ability to enable auto-opening for each restaurant
• individual setting of access to control external devices for a given premises

Due to the different needs of customers, the CDNP7ACC control panel has a wide range configuration options. It is compatible with all digital devices from the following groups: CDN, Inspiro and Familio P/PV.

The system uses optional modules like SW4S-DIN (support up to 1020 premises only in INSPIRO+) so you can connect an unlimited number of panels master.
The SW4S-DIN module enables the separation of 4 independent zones in the system. each the zone creates an independent bus with operating and installation rules as a classic panel connection.
The operation of the system with many intercoms is analogous to that of a single one intercom.

Facilities for people with disabilities

• backlit keyboard buttons optionally with embossed characters Braille
• acoustic and optical indication of panel functions
• automatic or remote (using a button) door opening without the need to answer the call and the ability to connect in the premises an additional acoustic or light device for ringing (CDN-U)

TECHNICAL PARAMETERS:

• power supply: 15V DC / 200mA or 12V ± 0.5V AC
• combination lock
• ACC - Unique 125kHz proximity tag reader

• installation type: Digital: 2 wires - P system or twisted pair UTP cat. 5e/6 - PV system
• max. number of subscribers: 1020 premises
• assembly method depending on the frame selection:

  • recessed
  • surface-mounted
• dimensions: 206x88x29.3mm
• standby power consumption: ~0.6W
• execution:

  • powder coated aluminum alloy housing
  • flat housing front flush with the mounting frame
  • additional plastic back cover to cover the electronics
  • stainless steel keyboard
• color: steel (ST)
