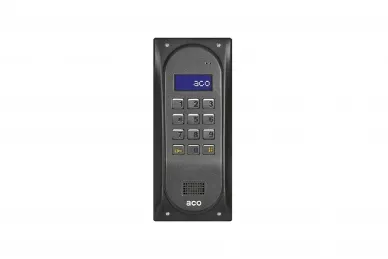

Aco CDNC BR Cyfral / bartar door entry panel with a combination lock

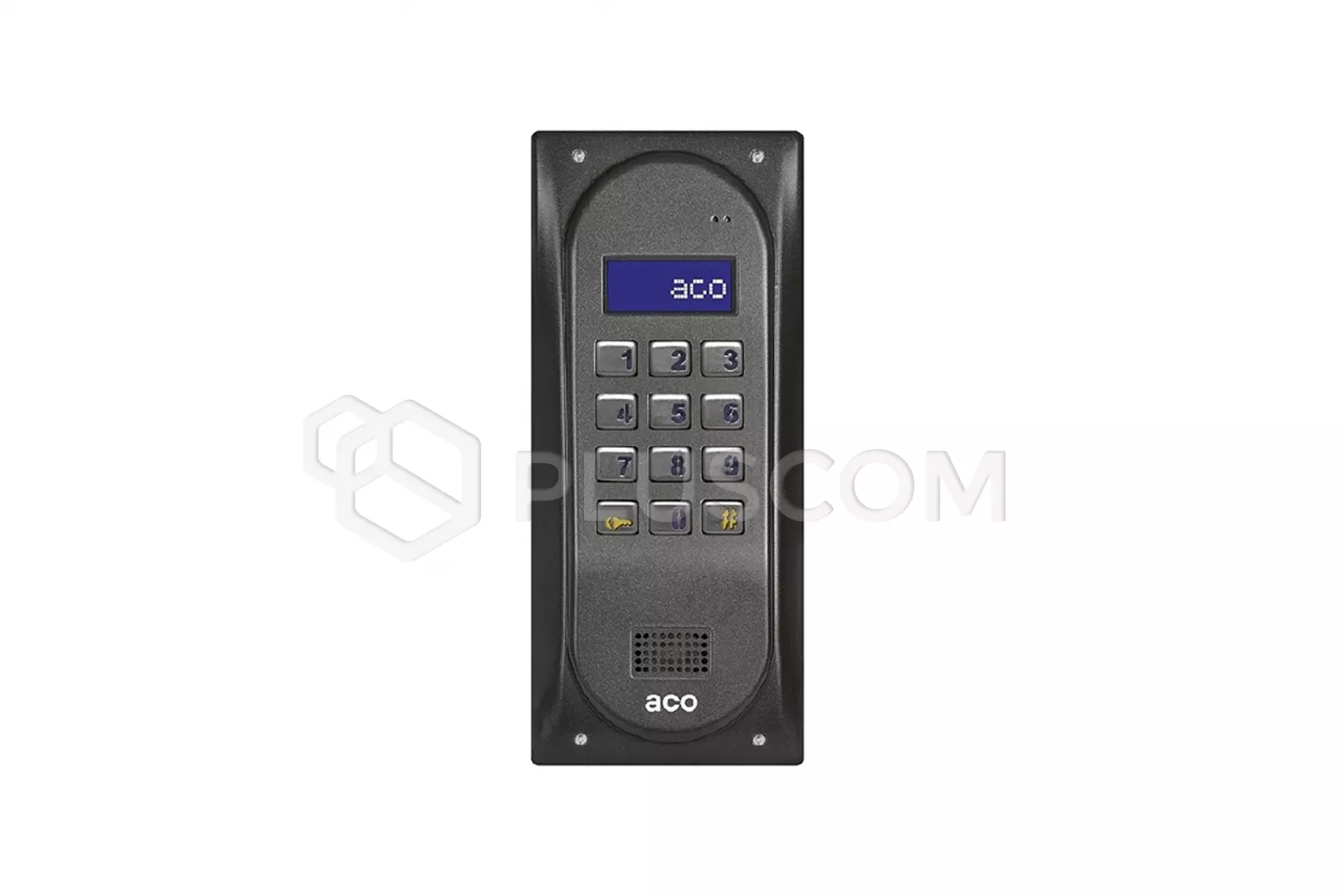

ACO CDNC GR Cyfral / bartar door entry panel with combination lock

CDNC is an intercom switchboard with digital dialing and number display premises, access control function (coded opening of the entrance door), cooperating with the traditional and electronic module for names.
Illuminated, stainless steel keyboard with a modern design construction ensures failure-free operation for many years.

The control panel can be combined with a very wide range of additional modules, thanks to which its functionality can meet individual expectations.
Compatible with "Cyfral"/"Bartar" (1+n) installations.

Advantages of the CDNC PBX:

• easy to use - adapted for deaf and blind people
• no possibility to eavesdrop on calls from other uniphones
• an individual door opening code for each apartment
• opening lock with master code
• possibility to open the lock or speed dial with an additional external button
• individually adjustable ring volume levels
• detection of a badly placed, damaged or missing uniphone (three short beeps, the word "FLd")
• possibility to connect up to 32 (64) uniphones
• function of test activation of uniphone line voltage
• possibility to move the calling number
• possibility to set any table of codes - facilitated service
• resistance to corrosion and devastation
• modern housing made of zinc-aluminum alloy
• possibility of flush and surface mounting
• illuminated, stainless steel keyboard
• for flush-mounted version, illuminated traditional or electronic cassette to names
• cooperation with many additional external modules (description)
• possibility to adjust the control panel to individual needs

TECHNICAL PARAMETERS

• power supply: 11.5-14V AC or 13.6V DC from a power adapter with a battery
• control panel power consumption: 140mA without electric strike
• current consumption of the illuminated panel for names: 40mA
• permissible electric strike output load: 1A
• housing: zinc-aluminium casting
• modules: code lock - individual four-digit opening code for each apartment
• outputs (first to connect):
• • traditional electric strike (max. 1A)
  • CDN-PK relay module (max. 5A)
• inputs: 1x normally open (NO), e.g. "bell" button - direct activation electric strike or calling the selected premises
• color: graphite
• surface panel dimensions: 207 x 90 x 30mm
• external dimensions of the frame for flush mounting: 230x110x22mm
• required hole for flush mounting: 215 x 95 x 21mm
